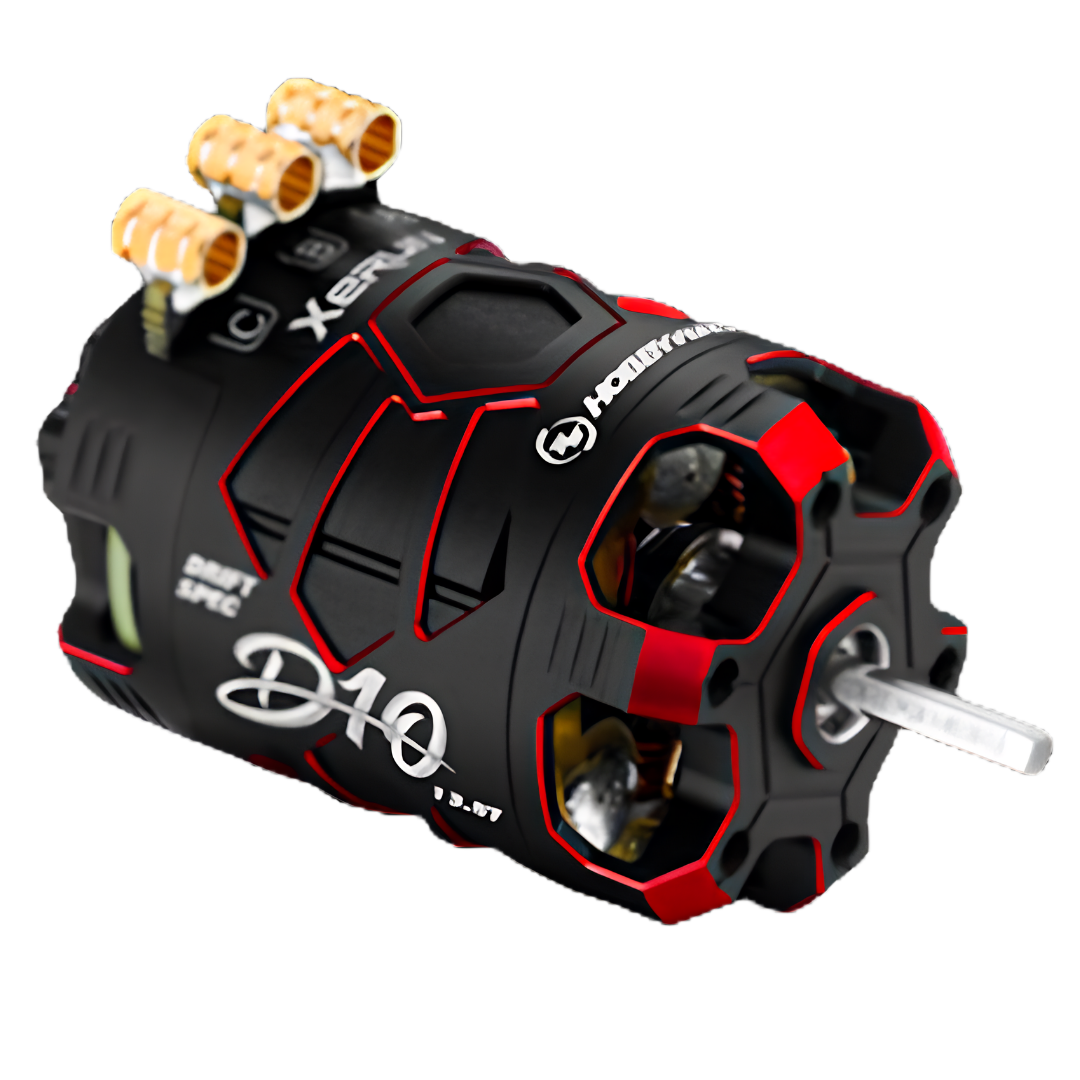

Hobbywing XeRun D10 10.5T 4600KV Sensored Drift Brushless Motor 1/10 Red HW30401135

The Hobbywing XeRun D10 10.5T is a 4600KV sensored brushless motor designed for 1/10 scale RC drift cars, delivering smooth throttle control, adjustable motor timing and drift-specific cooling for precise power delivery during sideways driving.

Features

• Drift-Specific Design: Purpose-built motor stator and rotor configuration optimised for smooth, responsive power delivery during RC drifting.
• 4600KV 10.5T Performance: Provides responsive acceleration and controlled wheel speed for 1/10 scale drift applications.
• Sensored Brushless Technology: Integrated high-precision sensor board improves throttle linearity and low-speed control when paired with a compatible sensored ESC.
• Internal Fan Rotor: Specially shaped gold fan rotor assists with internal airflow and motor cooling while producing a distinctive operating sound.
• Adjustable Mechanical Timing: Allows drivers to fine-tune motor output characteristics to suit their driving style and track setup.
• 3.5mm Banana Plug Connections: Factory-fitted connectors simplify motor installation, removal and swapping when used with compatible ESC connections.
• Lightweight Construction: Approximately 157g motor weight supports chassis weight distribution and balance adjustments.
• Serviceable Design: Removable motor construction allows access for cleaning, inspection and maintenance.
• Optional Rotor Tuning: Compatible with selected Hobbywing D10 replacement rotors for adjusting magnetic strength and power delivery characteristics.
• Passion Red Finish: Red anodised-style exterior provides a coordinated appearance for custom drift chassis builds.

Specifications

• Brand: Hobbywing
• Product Range: XeRun D10
• Model: XeRun D10 10.5T
• Manufacturer Part Number: 30401135
• SKU: HW30401135
• Barcode: 6938994419802
• Product Type: Sensored Brushless Drift Motor
• Scale: 1/10
• Motor Turns: 10.5T
• KV Rating: 4600KV
• Motor Type: Brushless, Sensored
• Motor Poles: 2
• Recommended Battery Configuration: 2S LiPo
• Motor Diameter: 35.7mm
• Motor Length: 52.6mm
• Shaft Diameter: 3.175mm
• Shaft Length: 15mm
• Weight: Approximately 157g
• Motor Connectors: Factory-fitted 3.5mm Banana Plugs
• Standard Rotor: L1, 7-12.2 x 24.1mm
• Mechanical Timing: Adjustable
• Colour: Red (Passion Red)
• Application: 1/10 Scale RC Drift Cars
• Recommended ESC: Hobbywing XeRun XD10 PRO or compatible sensored brushless ESC

Includes

• 1 x Hobbywing XeRun D10 10.5T 4600KV Sensored Brushless Drift Motor in Red

FAQ

Is the Hobbywing XeRun D10 10.5T suitable for RC drifting? Yes. The Hobbywing XeRun D10 10.5T is specifically designed for 1/10 scale RC drift cars, using a drift-optimised stator, sensored operation and adjustable timing for controlled throttle response.

What is the difference between the XeRun D10 10.5T and 13.5T motors? The D10 10.5T produces 4600KV, while the 13.5T produces 2900KV. The 10.5T offers a higher nominal motor speed per volt, while the 13.5T provides a lower-KV alternative. Actual driving characteristics also depend on gearing, ESC settings and load.

Which ESC should I use with the Hobbywing D10 10.5T? Hobbywing recommends pairing the XeRun D10 with the XeRun XD10 PRO ESC. Other compatible sensored brushless ESCs may also be used when their motor, current and voltage specifications are suitable.

Can the motor timing be adjusted? Yes. The XeRun D10 features adjustable mechanical timing. Increasing timing can change motor speed and power delivery, but may also increase operating temperature. OZRC recommends monitoring motor temperature and following Hobbywing's setup instructions.

Important Notes

• This listing is for the brushless motor only. A compatible ESC, battery, chassis and other vehicle electronics are required separately.
• Hobbywing's product specifications list 2S LiPo operation, while its D10 instruction manual also references 2–3S compatibility. Confirm the complete power system's voltage and temperature limits before using higher voltage.
• Use M3 motor mounting screws with a maximum insertion depth of 7mm to avoid damaging internal motor components.
• Motor timing, gearing and ESC boost settings affect operating temperature. Follow Hobbywing's instructions and avoid operation when the motor casing exceeds 100°C.
• Confirm adequate chassis clearance, correct motor mounting and compatible sensored ESC connections before installation.
