HPI Stage-D10 Flux Ford Mustang James Deane RC Drift 1/10 RTR HPI-161007

HPI Racing HPI-161007 Stage-D10 Flux is a 1/10 rear-wheel-drive RC drift car featuring an officially licensed 2024 Ford Mustang RTR Spec 5-FD body in James Deane Formula Drift livery. Supplied pre-assembled with a sensored 10.5T brushless motor, programmable 80A sensored ESC, D-Box3 Pro drift gyro, brushless metal-geared steering servo and 4-channel radio system, it combines a ready-to-run setup with extensive chassis geometry, weight distribution and drivetrain adjustment.

Features

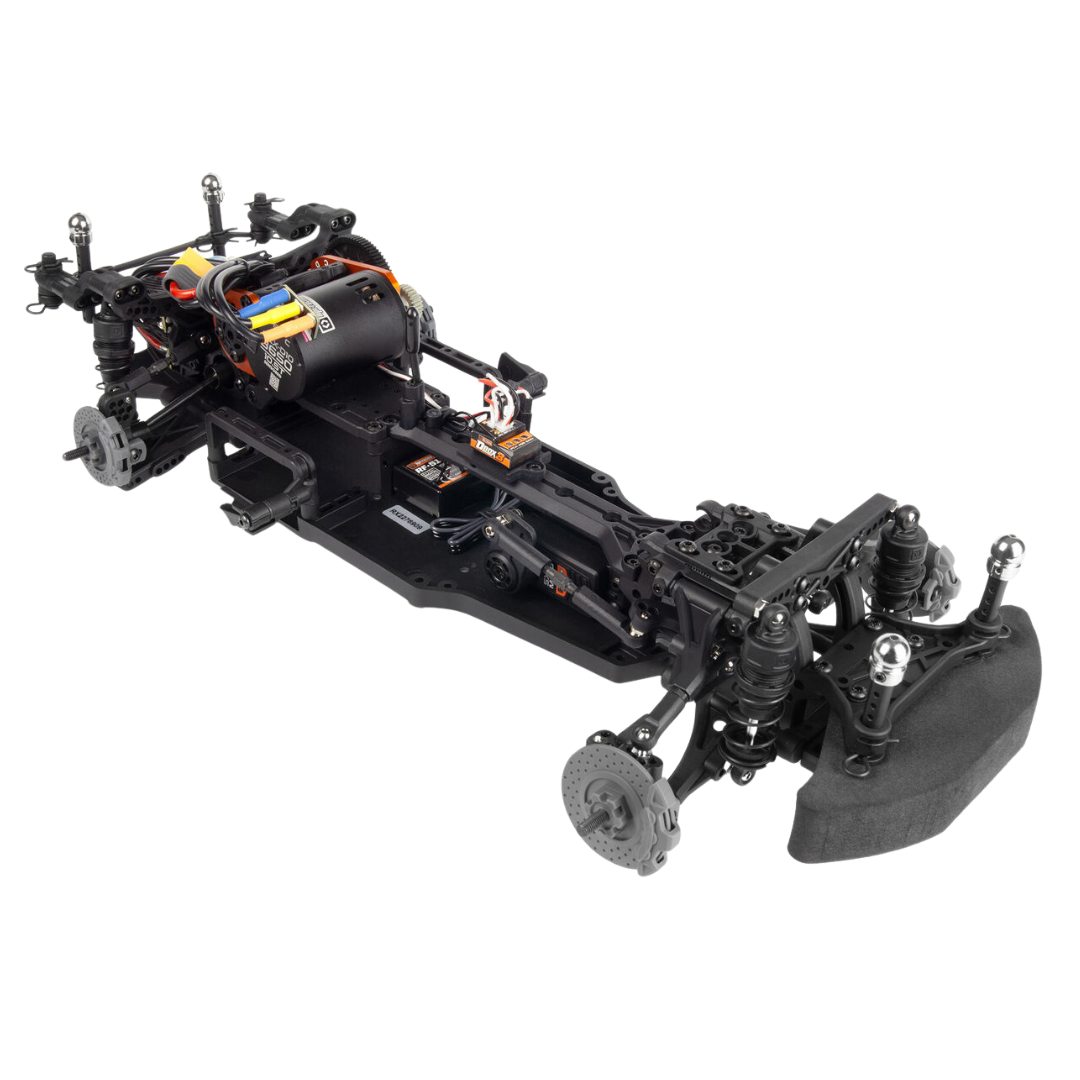

• Purpose-Built RWD Drift Chassis: Stage-D10 platform developed specifically for modern 1/10 rear-wheel-drive drifting

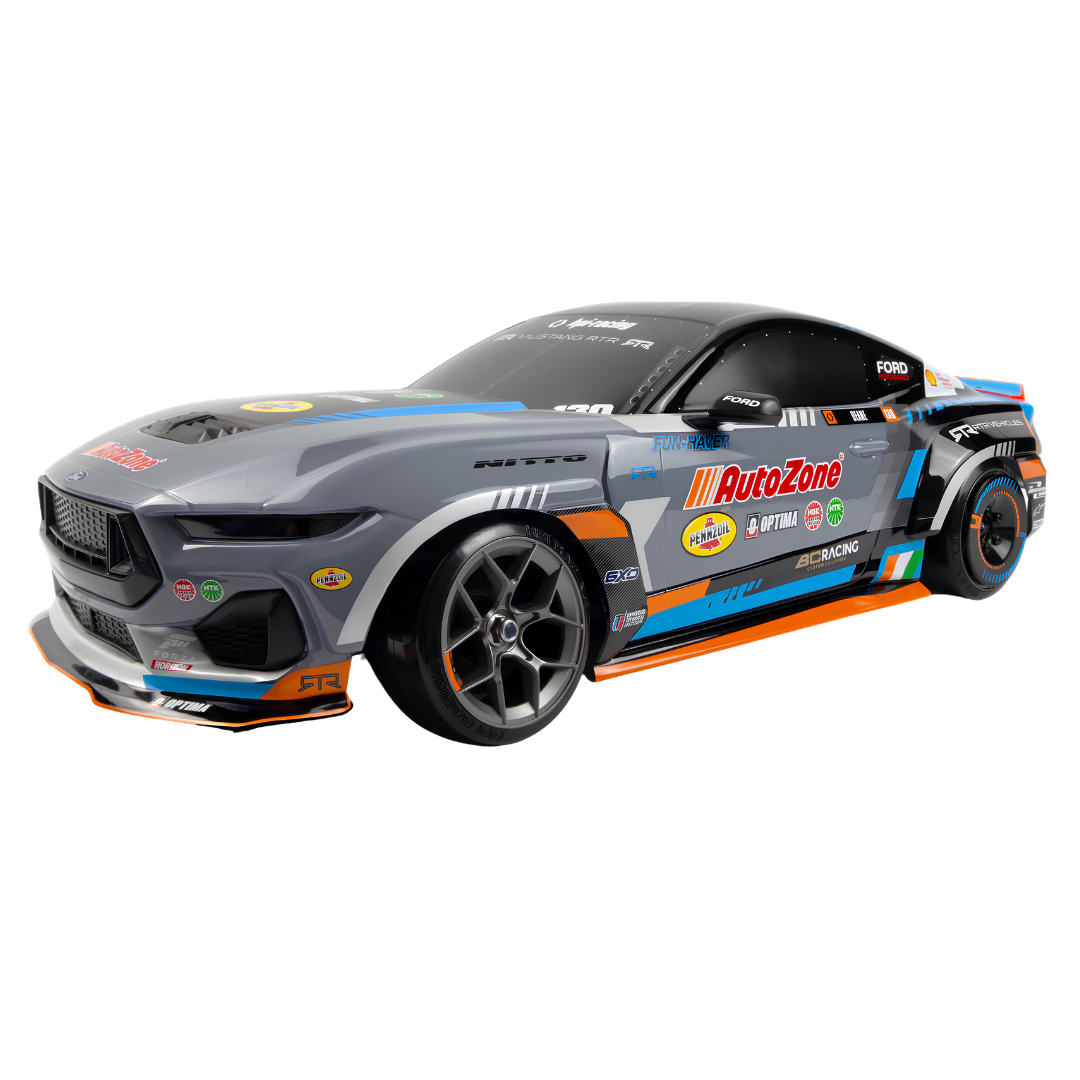

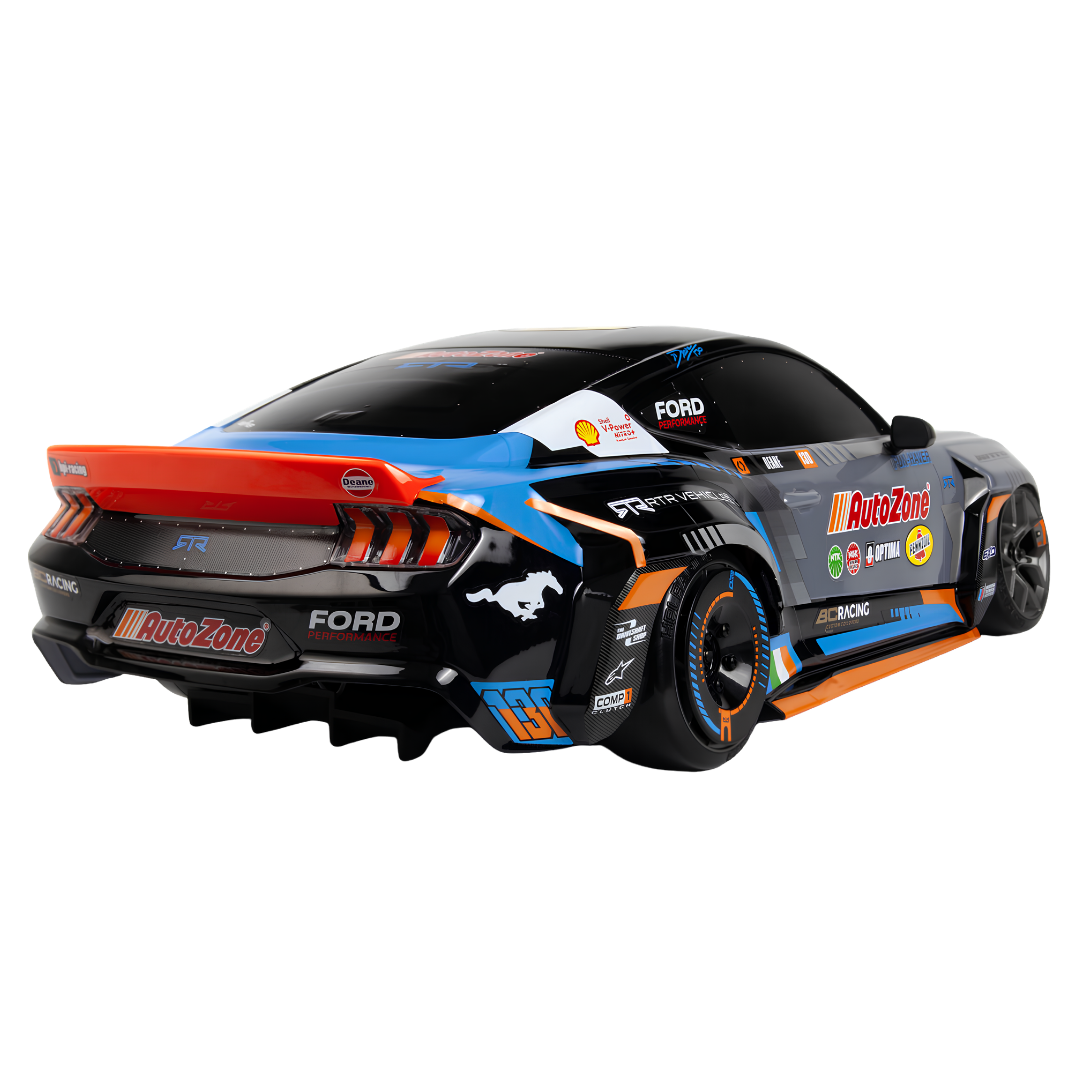

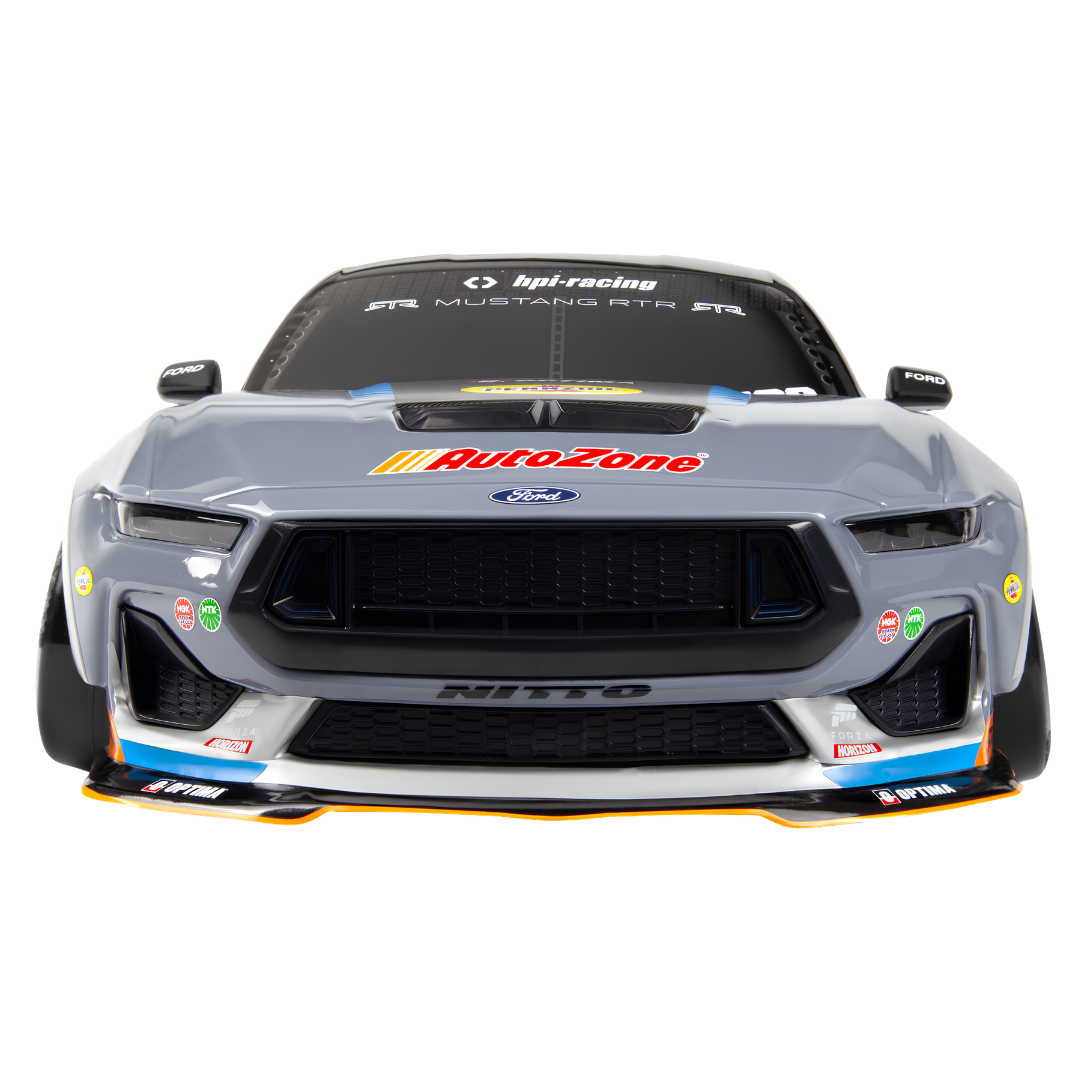

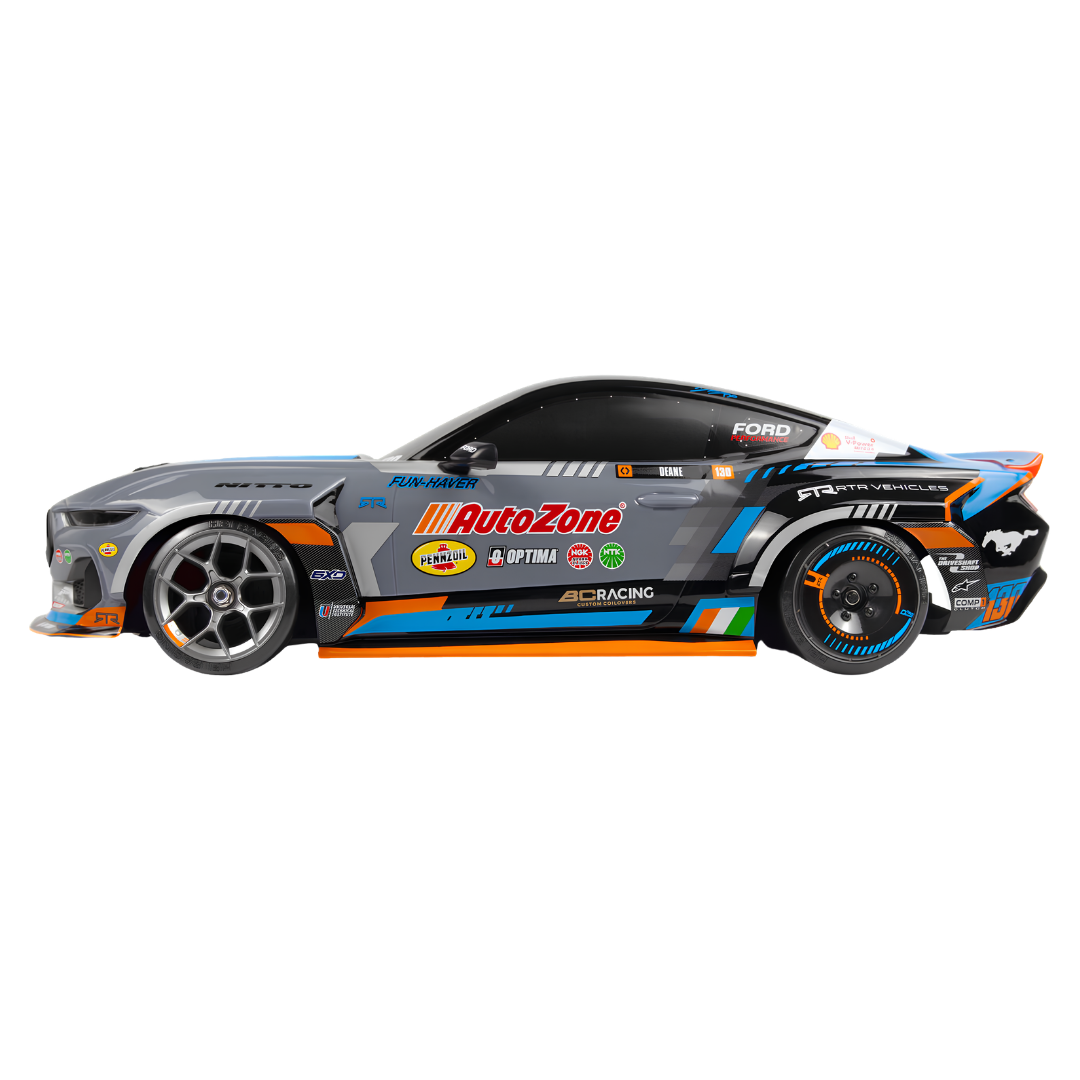

• James Deane Mustang: Officially licensed 2024 Ford Mustang RTR Spec 5-FD body with authentic James Deane Formula Drift livery
• Factory-Finished Body: Five-piece polycarbonate body supplied painted and assembled with moulded mirrors, vents, grilles and light buckets
• Magnetic Body Mounting: N52-grade magnets and 10mm steel balls secure the Mustang body without conventional posts protruding through the shell
• Full LED Lighting: Factory-fitted headlights, upper grille lights, tail lights and brake lights with transmitter-controlled lighting modes
• Sensored Flux Power: FLX-D10 3650 10.5T sensored brushless motor paired with an FLX-D10 80A sensored ESC
• Drift ESC Tuning: Programmable Boost Timing, Turbo Timing, Turbo Delay, punch and braking parameters
• D-Box3 Pro Gyro: Features PCA Priority Control Adjustment, AGS Anti-Glitch System, EPA and gain adjustment
• Transmitter Gyro Control: Gyro gain can be adjusted through Channel 4 of the supplied TF-51 transmitter
• Brushless Steering Servo: SX-12MGLP low-profile metal-geared servo rated at 12kg and 0.093 sec/60°
• Adjustable Wheelbase: Chassis can be configured from 246mm to 264mm with a 255mm factory setting
• Extensive Motor Adjustment: More than 100 motor positions allow substantial rear weight-distribution tuning
• Configurable Transmission: Included parts allow three-gear or four-gear transmission configurations and motor-direction changes
• Adjustable Drift Geometry: Multiple Ackermann, toe, roll centre, camber gain, servo position and wheel-spacing adjustments
• Adjustable Battery Position: Compatible shorty battery packs can be mounted in mid or rear positions
• Threaded Oil-Filled Shocks: Adjustable coilover suspension allows ride-height and spring-preload tuning
• Aero-5 Replica Wheels: Livery-matched wheels use 3mm front and 6mm rear offsets
• Harder T-Drift Tyres: HDPE drift tyres developed specifically for the Stage-D10 platform
• Scale Brake Details: Rotating front and rear brake discs incorporate selectable 1mm and 2mm wheel-spacing adjustment
• Metal-Shielded Ball Bearings: Full bearing-equipped drivetrain for smooth operation

Specifications

• Brand: HPI Racing
• Series: Stage-D10
• Model: Ford Mustang RTR Spec 5-FD James Deane
• Product Type: RC Drift Car
• Scale: 1/10
• Build Type: Ready-To-Run / Pre-Assembled
• Drive Type: 2WD Rear-Wheel Drive
• Power System: Electric Brushless
• Motor: FLX-D10 3650 10.5T Sensored Brushless
• ESC: FLX-D10 80A Sensored
• Battery Connector: XT60
• Steering Servo: HPI SX-12MGLP Low-Profile Brushless Metal Gear
• Servo Voltage: 7.4V Capable
• Servo Torque: 12kg
• Servo Speed: 0.093 sec/60°
• Gyro: HPI D-Box3 Pro
• Transmitter: HPI TF-51 4-Channel 2.4GHz
• Receiver: HPI RF-51 with LED Adaptor
• Internal Final Drive Ratio: 2.6
• Rear Differential: Sealed Composite Geared Differential
• Standard Wheelbase: 255mm
• Adjustable Wheelbase Range: 246mm to 264mm
• Front Wheel Offset: 3mm
• Rear Wheel Offset: 6mm
• Length: 460mm
• Width: 200mm
• Height: 120mm
• Manufacturer Part Number: 161007
• Supplier SKU: HPI-161007
• GTIN / EAN: 5050864610070

Includes

• 1 x HPI Stage-D10 Flux 1/10 RWD Drift Car
• 1 x Factory-Finished Ford Mustang RTR Spec 5-FD James Deane Body
• 1 x FLX-D10 3650 10.5T Sensored Brushless Motor
• 1 x FLX-D10 80A Sensored ESC
• 1 x HPI SX-12MGLP Brushless Metal Gear Steering Servo
• 1 x HPI D-Box3 Pro Drift Gyro
• 1 x HPI RF-51 Receiver with LED Adaptor
• 1 x HPI TF-51 4-Channel 2.4GHz Transmitter
• 1 x Full LED Lighting System
• 1 x Set of Aero-5 Replica Wheels with Harder HDPE T-Drift Tyres
• 1 x Set of Chassis Setup and Configuration Parts

Required To Complete

• 1 x 2S 7.4V LiPo Battery with XT60 Connector
• 1 x Compatible LiPo Balance Charger
• 4 x AA Batteries for Transmitter

FAQ

Which driver livery does HPI-161007 feature? HPI-161007 features the officially licensed James Deane 2024 Ford Mustang RTR Spec 5-FD Formula Drift livery.

What is the difference between HPI-161006 and HPI-161007? HPI-161006 is the brushed James Deane Stage-D10 RTR, while HPI-161007 is the higher-spec Flux version with a 10.5T sensored brushless motor, FLX-D10 80A sensored ESC, SX-12MGLP brushless metal-geared servo and D-Box3 Pro gyro.

Is HPI-161007 rear-wheel drive? Yes. The Stage-D10 is a purpose-built 2WD rear-wheel-drive drift chassis rather than an AWD touring-car conversion.

Does the Stage-D10 Flux include a drift gyro? Yes. HPI-161007 includes the D-Box3 Pro with PCA, AGS, EPA and gain adjustment. Gyro gain can be controlled from Channel 4 on the TF-51 transmitter.

What battery does HPI-161007 require? HPI specifies a 2S LiPo battery with an XT60 connector. The battery and compatible LiPo charger are sold separately.

Is the James Deane Mustang body already painted? Yes. The five-piece polycarbonate Ford Mustang RTR Spec 5-FD body is factory finished and assembled with the James Deane livery and additional moulded scale details.

Does the Stage-D10 use body posts through the Mustang shell? No. The supplied Mustang uses HPI's magnetic body mounting system with N52-grade magnets and steel balls, keeping conventional body posts from protruding through the shell.

Can the Stage-D10 wheelbase be adjusted? Yes. The standard setup is 255mm, while the chassis can be adjusted from 246mm to 264mm to accommodate different compatible body configurations.

How adjustable is the Stage-D10 chassis? The chassis provides adjustable Ackermann, camber, toe, roll centre, camber gain, servo position, track width, battery placement and wheelbase. More than 100 motor positions are available, and the included parts support three-gear and four-gear transmission configurations.

Important Notes

• 2S LiPo battery, compatible charger and 4 AA transmitter batteries are required separately
• HPI specifies a 2S LiPo battery with XT60 connector
• This is HPI-161007, the Flux sensored brushless James Deane version
• The brushed James Deane version is the separate HPI-161006 model
• Follow appropriate LiPo charging, storage and handling procedures
