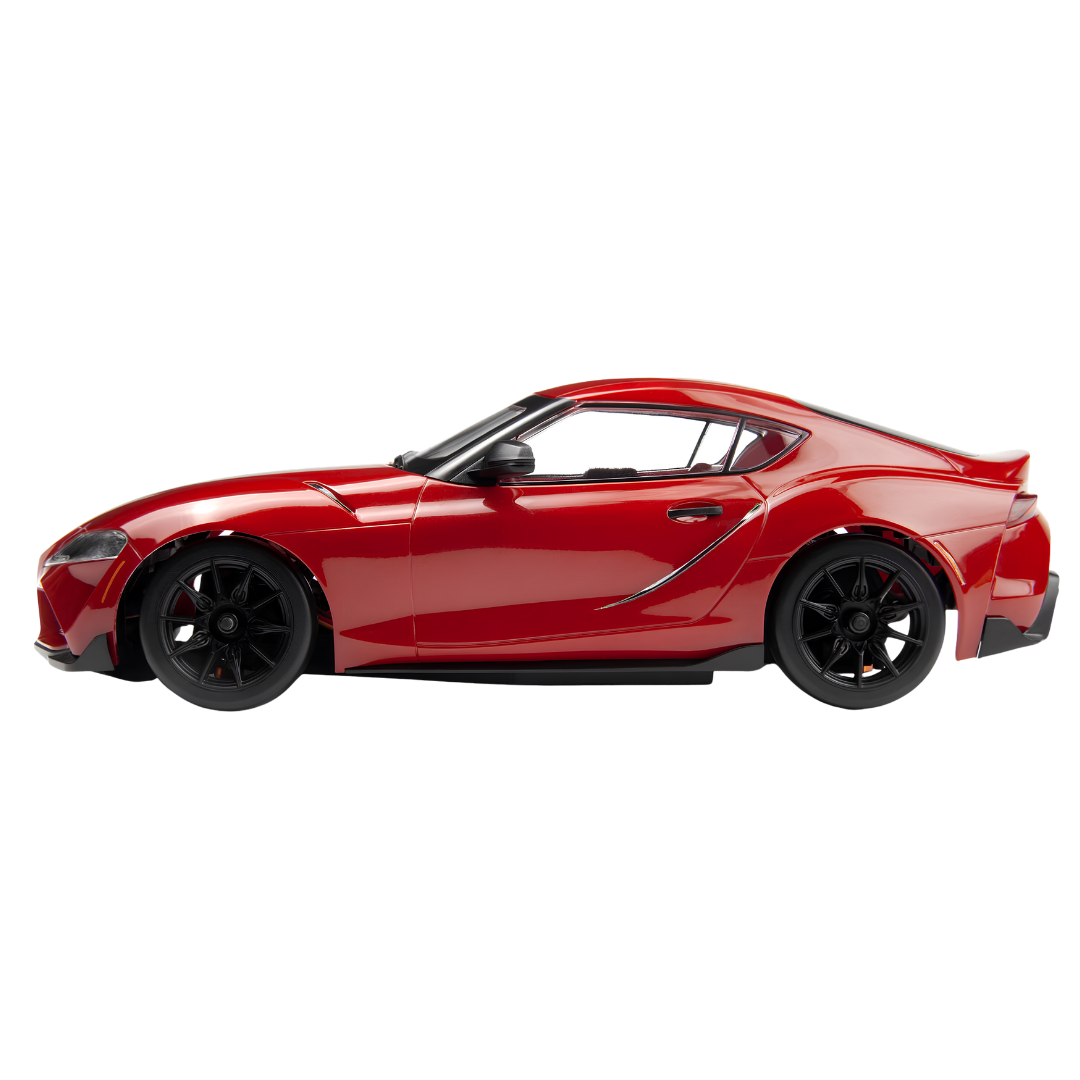

HPI Stage-D24 Toyota GR Supra RC Drift 1/24 RWD RTR Red HPI-161267

HPI Racing HPI-161267 Stage-D24 is a 1/24 rear-wheel-drive RC drift car with an officially licensed 2024 Toyota GR Supra hardbody finished in Prominence Red. Purpose-built for small-scale RWD drifting, it combines up to 67.5 degrees of steering angle, an integrated gyro, adjustable track width and wheelbase, front and rear LED lighting, and a complete brushed RTR package with a 7.4V 360mAh LiPo battery and USB balance charger.

Features

• Dedicated RWD Drift Chassis: Purpose-built 1/24 platform designed specifically for rear-wheel-drive drifting

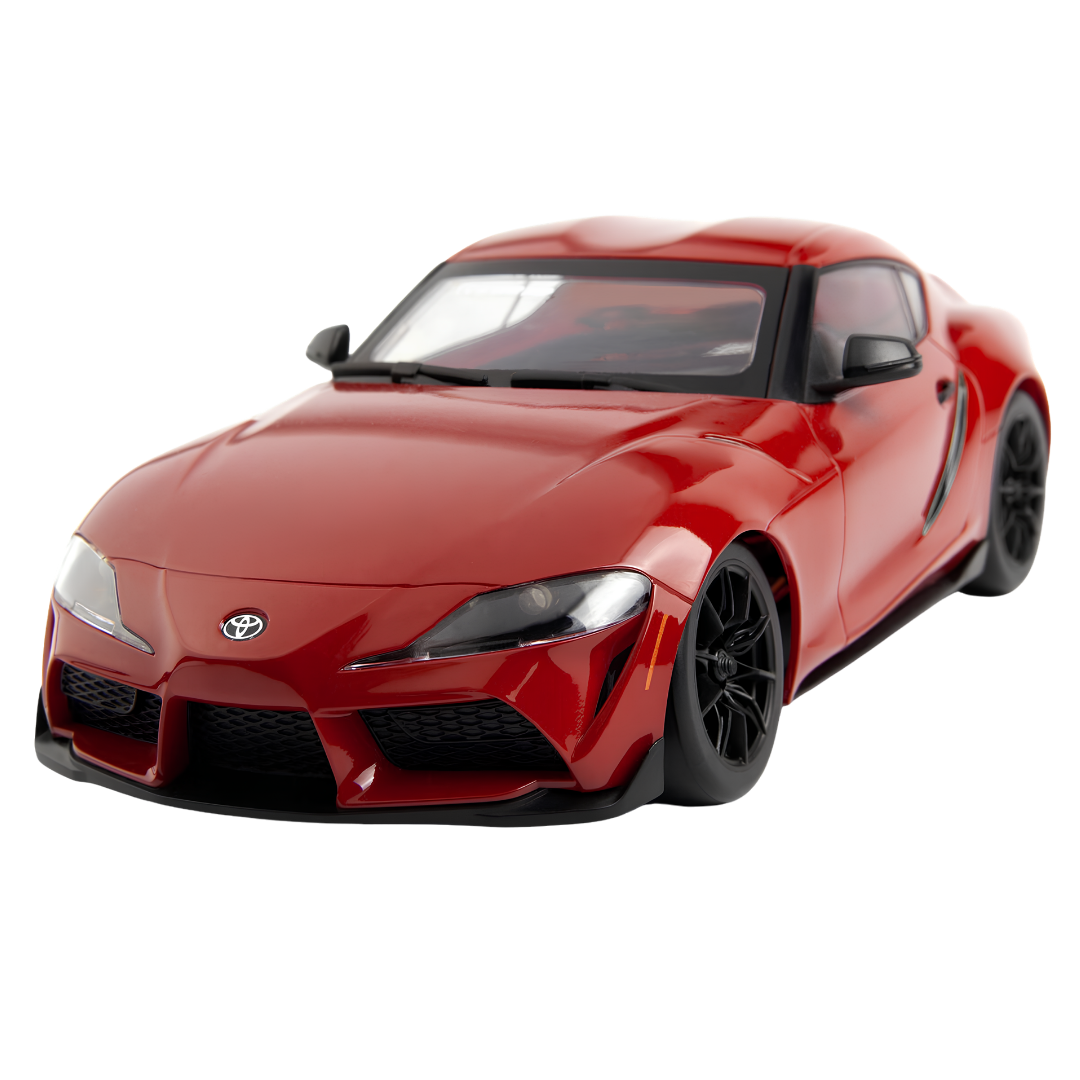

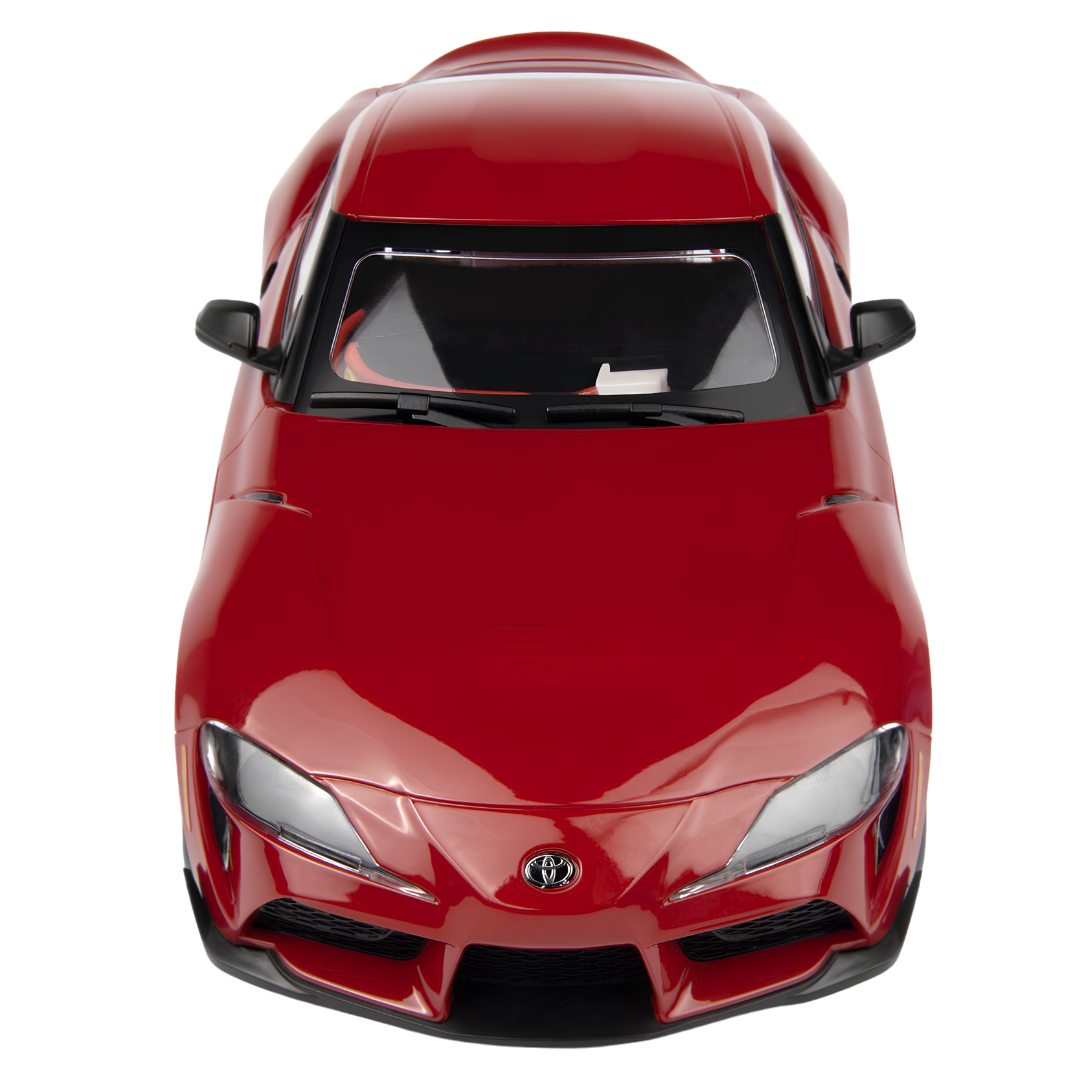

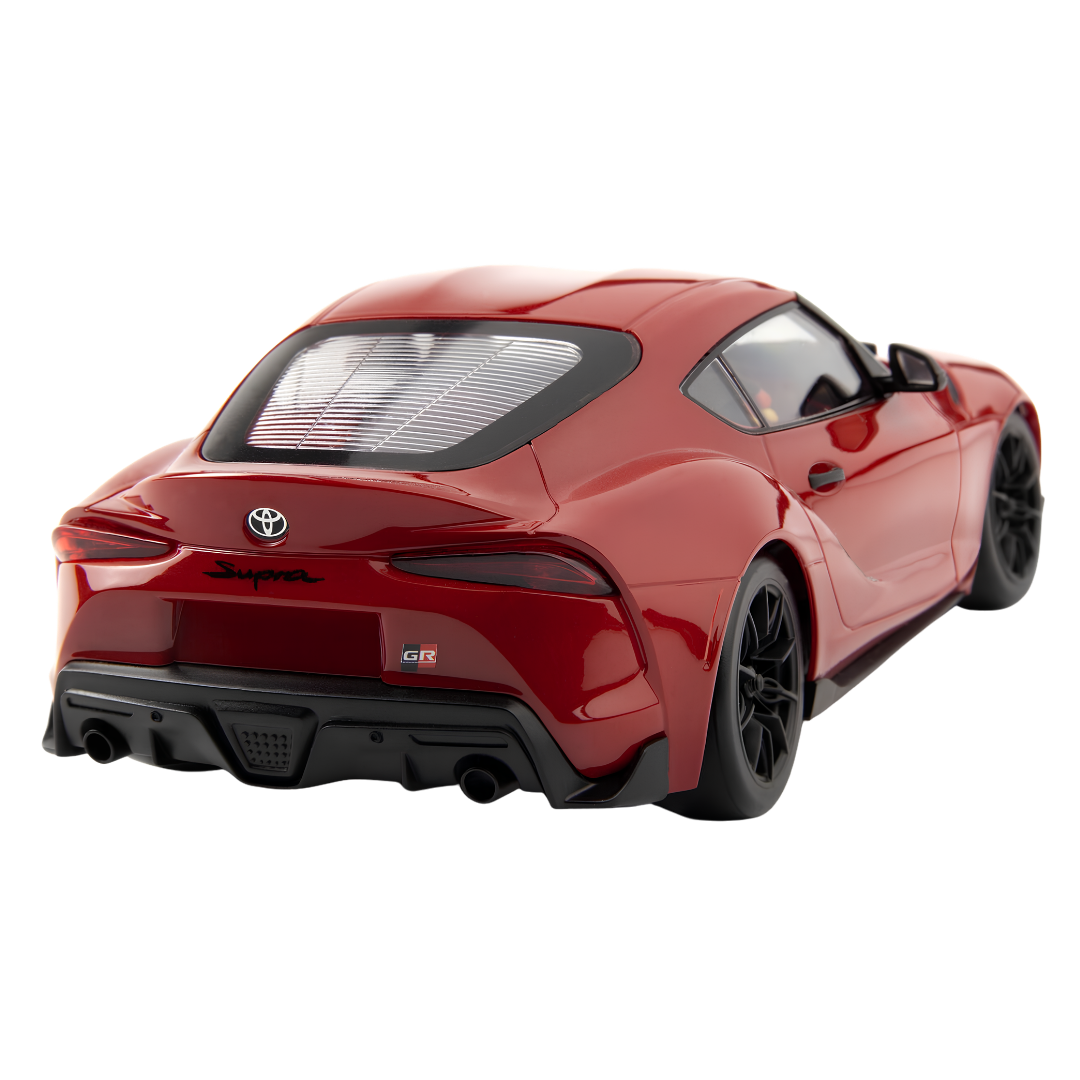

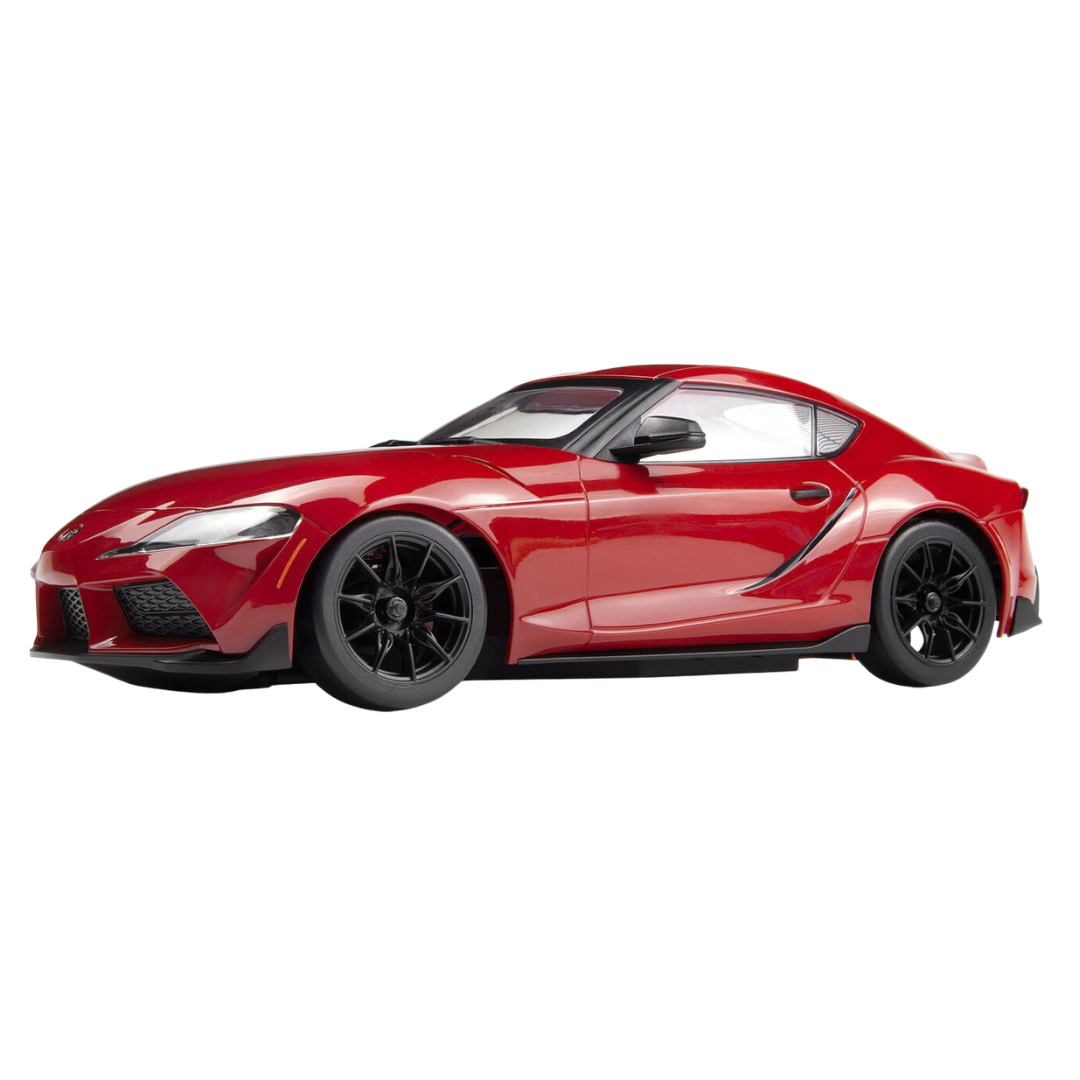

• Licensed Toyota GR Supra: Detailed officially licensed 2024 Toyota GR Supra body finished in Prominence Red
• 16-Piece Hardbody: Detailed hardbody construction with clear windows, separate light buckets and dedicated mounting components
• Magnetic Body Mounting: Keeps conventional body posts from protruding through the Supra body
• Up to 67.5° Steering Angle: Provides the counter-steering range required for high-angle RWD drifting
• Integrated Drift Gyro: SRL-805 combines the ESC, receiver, gyro and LED controller in one compact unit
• Transmitter Gyro Adjustment: Gyro gain can be adjusted directly using Channel 5 on the TF-805 transmitter

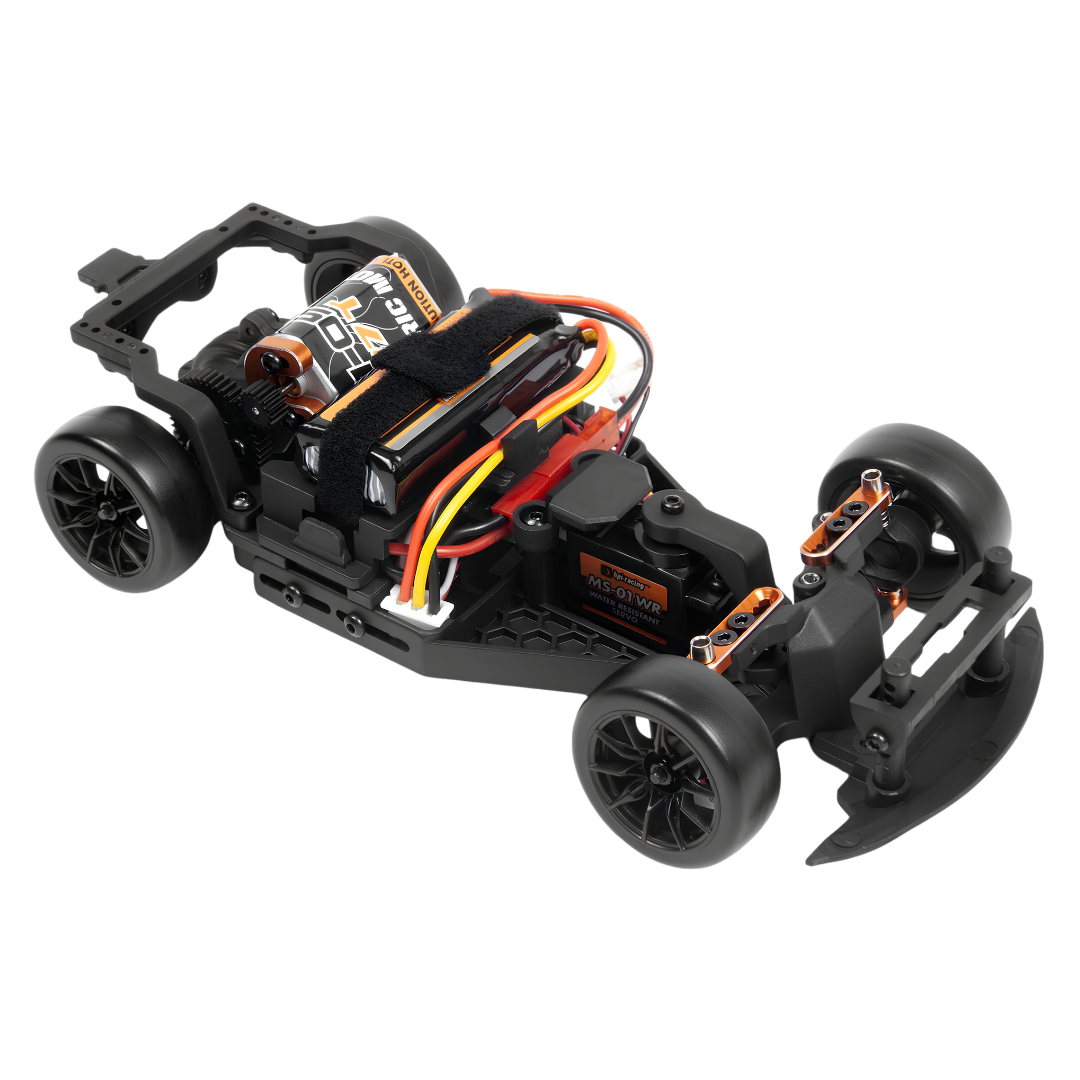

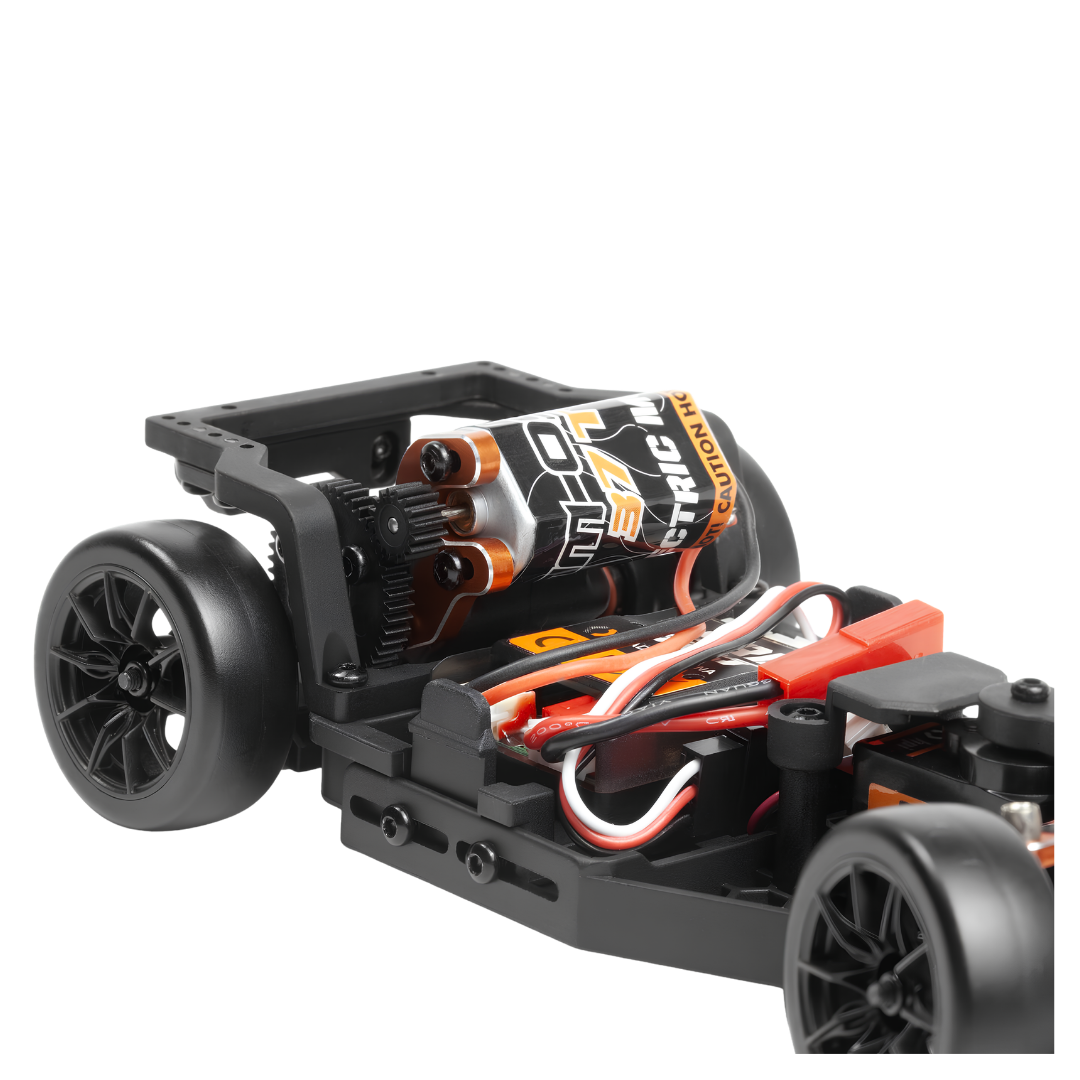

• Brushed Power System: HPI MM-050 37T brushed motor drives the rear-mounted transmission
• Rear 3-Gear Transmission: Compact rear-mounted drivetrain uses a spool differential and rear CVD driveshafts

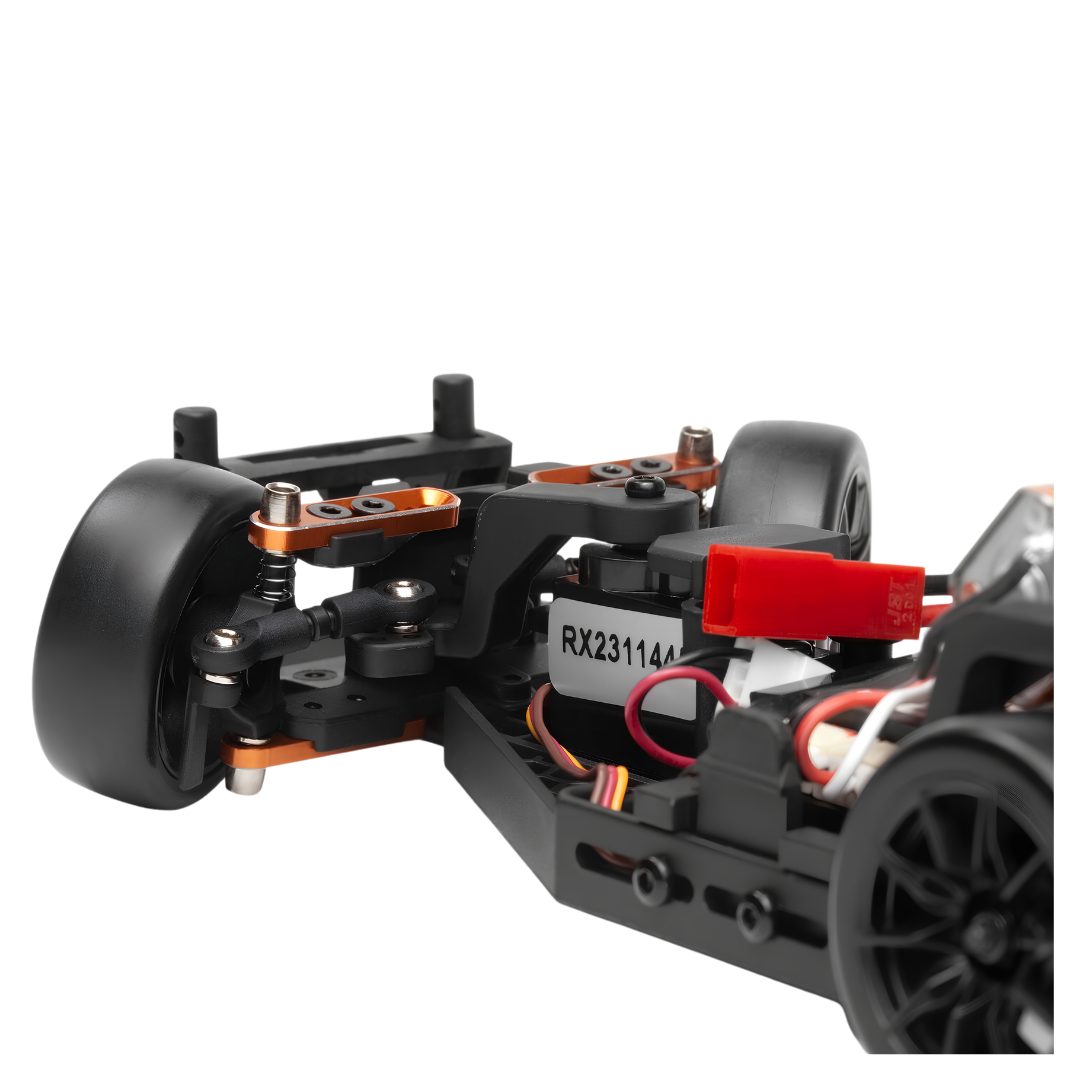

• Independent Front Suspension: Designed with adjustable steering links for drift-specific steering geometry
• T-Bar Rear Suspension: Compact rear suspension layout allows chassis flex to contribute to rear suspension behaviour

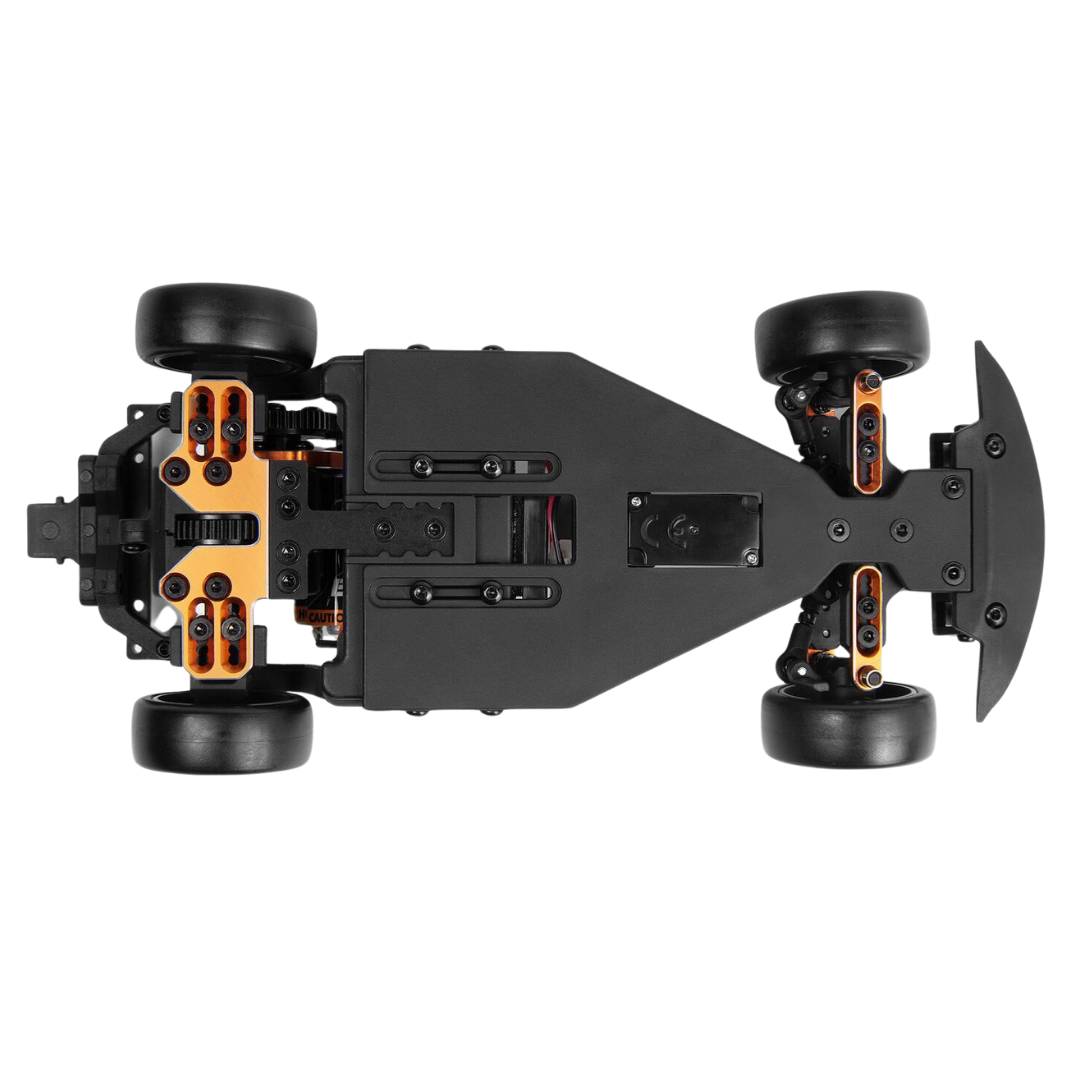

• Adjustable Wheelbase: Wheelbase can be configured from 95mm to 110mm with a standard setting of 102mm
• Adjustable Track Width: Front track adjusts from 76mm to 85mm and rear track from 70mm to 85mm
• Front and Rear LEDs: Integrated lighting adds scale detail and can be controlled from the transmitter
• Three Lighting Modes: Select On, Off or Daylight Running modes from the TF-805 transmitter
• Customisation Decals: Additional Stage-D24 drift decal sets are supplied for personalising the Supra
• RTR Battery and Charger: Includes a 2S 7.4V 360mAh LiPo battery and USB balance charger

Specifications

• Brand: HPI Racing
• Series: Stage-D24
• Model: 2024 Toyota GR Supra
• Colour: Prominence Red
• Product Type: RC Drift Car
• Scale: 1/24
• Build Type: Ready-To-Run / Fully Assembled
• Drive Type: 2WD Rear-Wheel Drive
• Power System: Electric Brushed
• Motor: HPI MM-050 37T Brushed Motor
• ESC / Receiver / Gyro: HPI SRL-805 4-in-1
• Steering Servo: HPI MS-01WR Micro Servo
• Servo Voltage: 6.0V
• Servo Torque: 0.85kg
• Servo Gears: Plastic
• Transmitter: HPI TF-805 5-Channel 2.4GHz
• Maximum Steering Angle: 67.5°
• Transmission: Rear-Mounted 3-Gear
• Rear Differential: Spool
• Rear Driveshafts: CVD
• Front Suspension: Independent
• Rear Suspension: T-Bar
• Battery: HPI Plazma 7.4V 360mAh 10C 2S LiPo
• Battery Part Number: 161293
• Battery Connector: JST BEC
• Charger: USB LiPo Balance Charger
• Length: 183mm
• Width: 80mm
• Height: 55mm
• Standard Wheelbase: 102mm
• Adjustable Wheelbase: 95mm to 110mm
• Adjustable Front Track Width: 76mm to 85mm
• Adjustable Rear Track Width: 70mm to 85mm
• Manufacturer Part Number: 161267
• Supplier SKU: HPI-161267
• GTIN / EAN: 5050864612678

Includes

• 1 x HPI Stage-D24 Assembled RWD Drift Car
• 1 x Officially Licensed 2024 Toyota GR Supra Prominence Red Hardbody
• 1 x HPI MM-050 37T Brushed Motor Installed
• 1 x HPI SRL-805 ESC / Receiver / Gyro / LED Controller Installed
• 1 x HPI MS-01WR Micro Steering Servo Installed
• 1 x HPI TF-805 5-Channel 2.4GHz Transmitter
• 1 x HPI Plazma 7.4V 360mAh 10C LiPo Battery
• 1 x USB LiPo Balance Charger
• 1 x Front and Rear LED Lighting System
• 1 x Stage-D24 Drift Decal Set
• 1 x Instruction Manual

Required To Complete

• 1 x 2A USB Power Supply for the Included Charger
• 4 x AA Batteries for the Transmitter

FAQ

Is the HPI Stage-D24 HPI-161267 rear-wheel drive? Yes. The Stage-D24 is a purpose-built 2WD rear-wheel-drive drift chassis rather than an AWD micro RC car converted for drifting.

Is the Toyota GR Supra body officially licensed? Yes. HPI identifies the body as an officially licensed 2024 Toyota GR Supra replica. HPI-161267 is the Prominence Red version, while HPI-161268 is Metallic Dawn Blue.

Is the Stage-D24 body polycarbonate? No. The supplied Toyota GR Supra is a detailed 16-piece hardbody with clear windows, separate light buckets and dedicated mounting components.

Does the Stage-D24 include a gyro? Yes. The HPI SRL-805 combines the ESC, receiver, drift gyro and LED controller into one unit. Gyro gain can be adjusted directly from Channel 5 on the supplied TF-805 transmitter.

What battery is included with HPI-161267? Current HPI parts documentation specifies the HPI Plazma 161293 7.4V 360mAh 10C 2S LiPo battery with JST BEC connector. A compatible USB balance charger is also included.

How much steering angle does the Stage-D24 have? HPI's current product information specifies up to 67.5 degrees of steering angle for the Stage-D24.

Can the Stage-D24 wheelbase be adjusted? Yes. The standard wheelbase is 102mm and can be adjusted from 95mm to 110mm, providing additional chassis setup and compatible body-fitment options.

Can the track width be adjusted? Yes. Front track width adjusts from 76mm to 85mm, while rear track width adjusts from 70mm to 85mm. HPI notes that the extreme rear settings require optional driveshaft sets.

Are lights included with the Stage-D24? Yes. Front headlights and rear tail lights are included. The lighting system can be controlled from the transmitter with On, Off and Daylight Running modes.

What is needed before driving the Stage-D24? The car, LiPo battery and USB balance charger are included. A 2A USB power supply and four AA batteries for the transmitter are required separately.

Important Notes

• Current HPI documentation specifies a 7.4V 360mAh 10C LiPo battery despite some early retailer descriptions stating 600mAh
• A 2A USB power supply and 4 AA transmitter batteries are required separately
• Extreme rear track-width settings require optional driveshaft components
• Follow appropriate LiPo charging, storage and handling procedures
