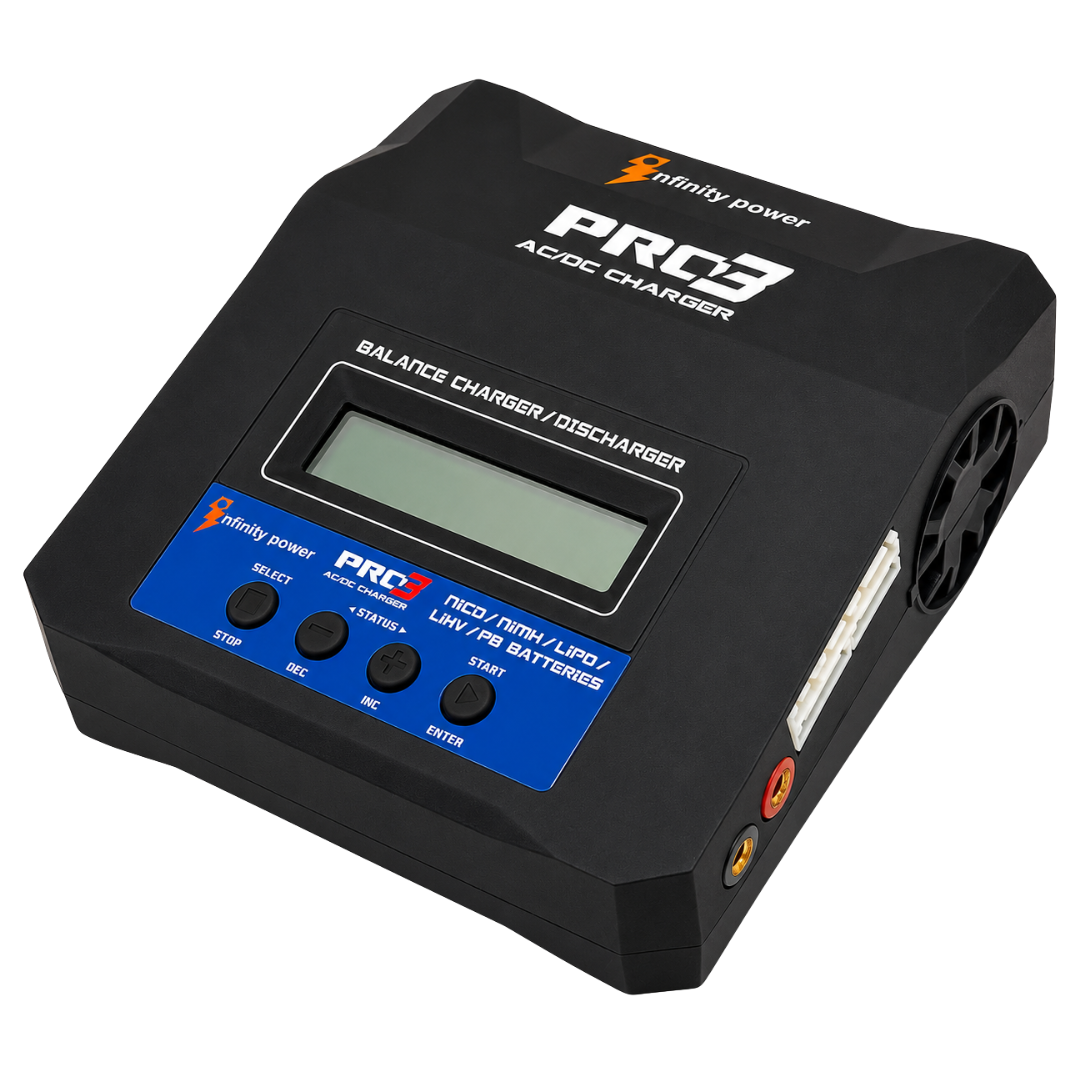

Infinity Power PRO3 AC/DC 80W 7A LiPo 2s-6s Battery Charger IP-PRO3

The Infinity Power PRO3 is an 80W AC/DC balance charger for RC LiPo, Li-ion, LiFe, LiHV, NiMH, NiCd and Pb batteries, giving hobbyists a flexible charging option for home, workshop and field use.

Features

• AC/DC Input: Operates from 100-240V AC mains power or 11.0-18.0V DC input for flexible use at home or trackside
• 80W Charge Output: Supports up to 7.0A charge current when the battery and power limits allow
• Multi-Chemistry Support: Suitable for LiPo, Li-ion, LiFe, LiHV, NiMH, NiCd and Pb battery types
• Integrated Balance Ports: Supports balanced charging for compatible lithium battery packs
• Lithium Cell Voltage Monitor: Helps users check lithium cell voltage during setup and charging
• Charge And Discharge Modes: Allows controlled charging and discharging for supported battery types
• Compact RC Charger: Practical size for RC cars, aircraft, boats, drones and general hobby battery charging

Specifications

• Brand: Infinity Power
• Model: PRO3
• SKU: IP-PRO3
• Product Type: AC/DC balance charger
• Input Voltage: AC 100-240V
• DC Input Voltage: 11.0-18.0V
• Maximum Circuit Power: 80W
• Maximum Discharge Power: 5W
• Charge Current Range: 0.1-7.0A
• Discharge Current Range: 0.1-1.0A
• Lithium Battery Support: 1-6 cell LiPo, Li-ion, LiFe and LiHV
• NiMH And NiCd Battery Support: 1-15 cells
• Lead-Acid Battery Support: 1-10 cells, 2V-20V
• Lithium Balancing Current: 300mA
• Net Weight: Approximately 400g
• Dimensions: 136 x 127 x 56mm

Includes

• 1 x Infinity Power PRO3 AC/DC 80W 7.0A charger
• 1 x AC mains power cable
• 1 x DC input lead with alligator clamps
• 1 x User instruction manual

FAQ

Can the Infinity Power PRO3 charge LiHV batteries? Yes. The Infinity Power PRO3 supports LiHV battery charging when the correct LiHV programme and cell count are selected.

Can this charger run from a car battery or field power supply? Yes. The Infinity Power PRO3 can run from an 11.0-18.0V DC input source using the supplied DC input lead.

Does this charger include a battery output lead for every connector type? Connector-specific battery output leads are not listed as included, so OZRC recommends checking your battery connector and using the correct charge lead or adaptor.

What batteries can this charger balance charge? The Infinity Power PRO3 can balance charge compatible 1-6 cell lithium packs, including LiPo, Li-ion, LiFe and LiHV batteries.

Important Notes

• Always select the correct battery chemistry, cell count and charge current before charging.
• Use a suitable balance lead when balance charging lithium battery packs.
• Do not charge damaged, swollen or unknown batteries.
• A connector-specific battery charge lead or adaptor may be required separately depending on your battery plug type.
