Koswork Low Friction RC Shock X-Rings 3mm Shaft 8pcs Grease KOS02001

The Koswork KOS02001 Low Friction X-Ring Set is designed for 3mm RC shock absorber shafts, helping reduce seal friction while maintaining effective shock oil retention. Ideal for compatible 1/10 scale off-road buggies and trucks, the set includes eight precision-sized X-rings and 1ml of specially formulated O-ring grease for smoother suspension movement and reliable shock maintenance.

Features

• Low Friction X-Ring Design: Helps minimise drag between the shock shaft and seal while maintaining effective oil sealing.
• 3mm Shock Shaft Compatibility: Designed for shock absorbers using compatible 3mm diameter shafts.
• Improved Oil Retention: Helps reduce shock oil leakage when installed in suitable shock seal cartridges.
• Smooth Suspension Operation: Reduced seal friction supports more consistent shock shaft movement and suspension response.
• Eight X-Rings Included: Provides enough seals for four shock absorbers when using two X-rings per shock.
• Special O-Ring Grease: Supplied with 1ml of lubricant formulated to help prevent seal swelling and deformation.
• Water-Resistant Lubrication: The included grease forms a protective layer to help resist moisture and corrosion.
• Popular RC Brand Applications: Recommended by Koswork for compatible Team Associated, TLR, Yokomo, Kyosho and Schumacher shock assemblies.
• 1/10 Off-Road Applications: Suitable for suspension maintenance and rebuilding on compatible racing buggies and trucks.
• Made in Taiwan: Manufactured by Koswork R/C Model.

Specifications

• Brand: Koswork
• Manufacturer Part Number: KOS02001
• Product Type: Low Friction Shock Shaft X-Ring Set
• Application: RC Shock Absorber Sealing
• Recommended Vehicle Scale: 1/10
• Recommended Vehicle Type: Off-Road Buggies and Trucks
• Compatible Shock Shaft Diameter: 3mm
• X-Ring Thickness: 1.78mm
• X-Ring Outer Diameter: 6.4mm
• Seal Profile: X-Ring
• X-Ring Quantity: 8 Pieces
• Included Lubricant: Special O-Ring Grease
• Grease Volume: 1ml
• Recommended Brand Applications: Compatible Team Associated, TLR, Yokomo, Kyosho and Schumacher Shocks
• Country of Manufacture: Taiwan

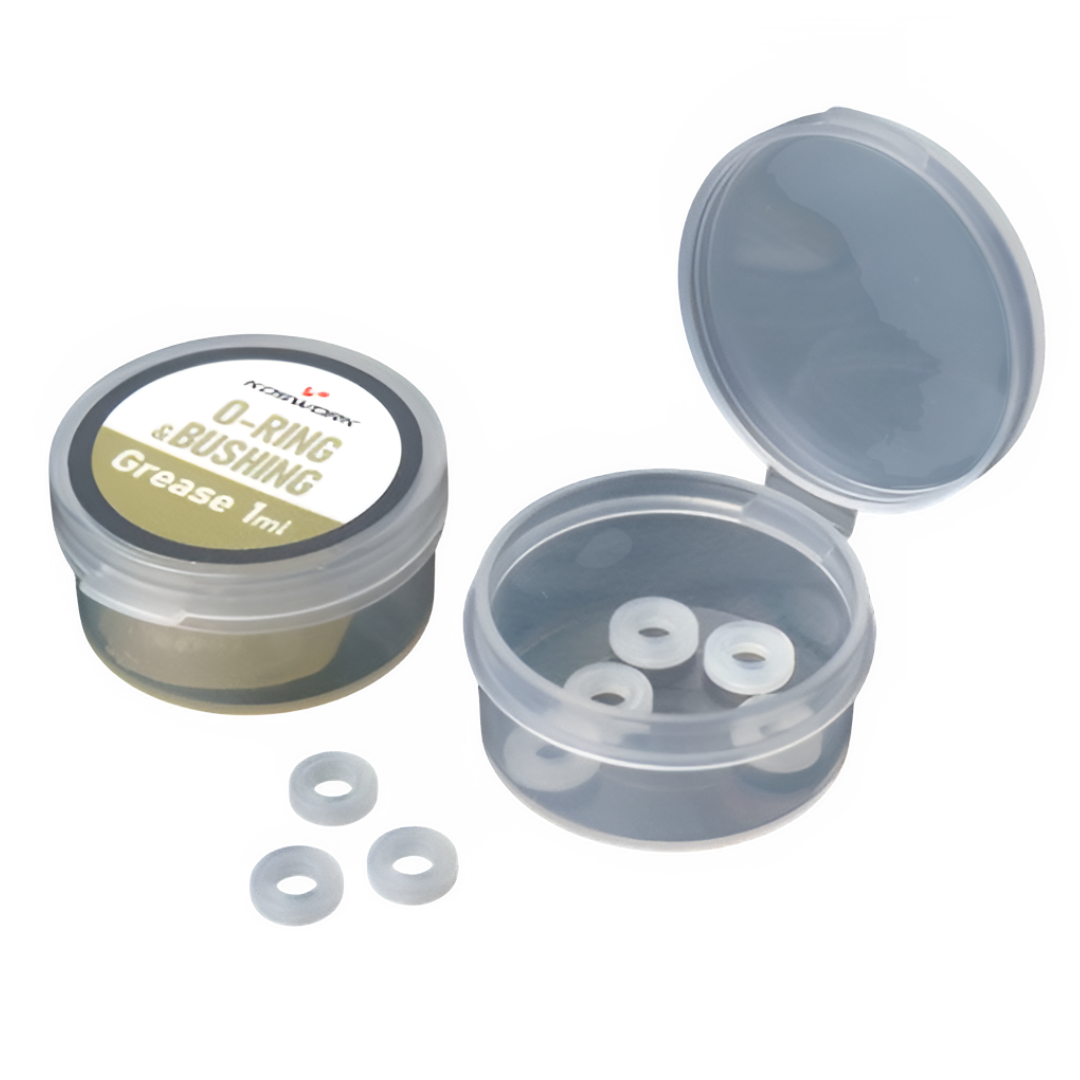

Includes

• 8 x Koswork Low Friction X-Rings for 3mm Shock Shafts
• 1 x 1ml Special O-Ring Grease

FAQ

Will Koswork KOS02001 X-rings fit my RC shocks? These X-rings are designed for compatible shock absorbers with 3mm diameter shafts. They measure 1.78mm thick with a 6.4mm outer diameter. Check both the shaft diameter and the shock seal cartridge dimensions before purchasing, as not every 3mm shock uses the same seal size.

Are these X-rings suitable for Team Associated and TLR shocks? Koswork recommends them for compatible Team Associated, TLR, Yokomo, Kyosho and Schumacher shock absorbers. However, fitment depends on the specific shock design rather than the vehicle brand alone.

What is the benefit of an X-ring compared with a standard O-ring? The X-shaped cross-section is designed to provide effective sealing while reducing friction against the moving shock shaft. Results depend on the shock cartridge, shaft condition, lubrication and correct installation.

Does the package include shock seal grease? Yes. The set includes 1ml of special O-ring grease formulated to lubricate the seals without causing the swelling or deformation associated with unsuitable lubricants.

How many shocks can one pack service? The package contains eight X-rings. This is enough for four shocks if each shock uses two X-rings. Check the assembly instructions for the number required by your particular shock absorbers.

Important Notes

• These X-rings are designed for compatible 3mm shock shafts and are not a universal fit for all shock absorbers.
• Confirm the seal cartridge dimensions as well as the shock shaft diameter before installation.
• Clean the shock shaft and seal housing thoroughly before fitting replacement seals.
• Inspect shock shafts for scratches, bending or wear that could damage new X-rings or cause oil leakage.
• Use the included grease according to the shock manufacturer's assembly instructions.
• The number of X-rings required per shock varies by design.
• Shock absorbers, shock oil, vehicles, tools and other accessories are not included.
