Kyosho KC10 Toyota Land Cruiser 60 Body Type 2 1/10 4WD RC Crawler Readyset 34801T2

The Kyosho KC10 Toyota Land Cruiser 60 Body Type 2 combines highly detailed scale styling with a purpose-built 1/10 electric crawler chassis. Featuring an officially licensed Toyota Land Cruiser 60 body and Kyosho's newly developed KC10 platform, this Readyset is designed for realistic trail driving, technical crawling and off-road exploration.

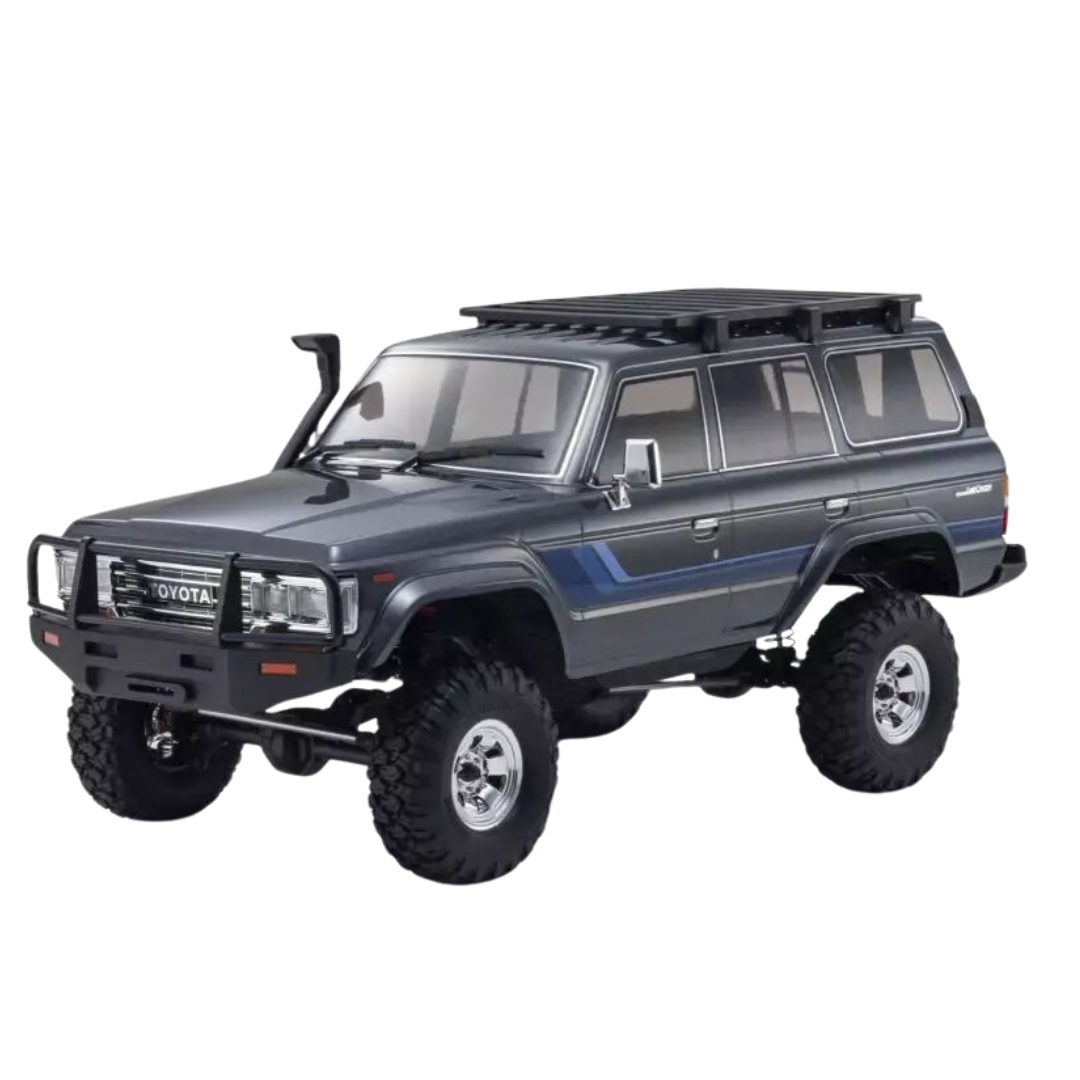

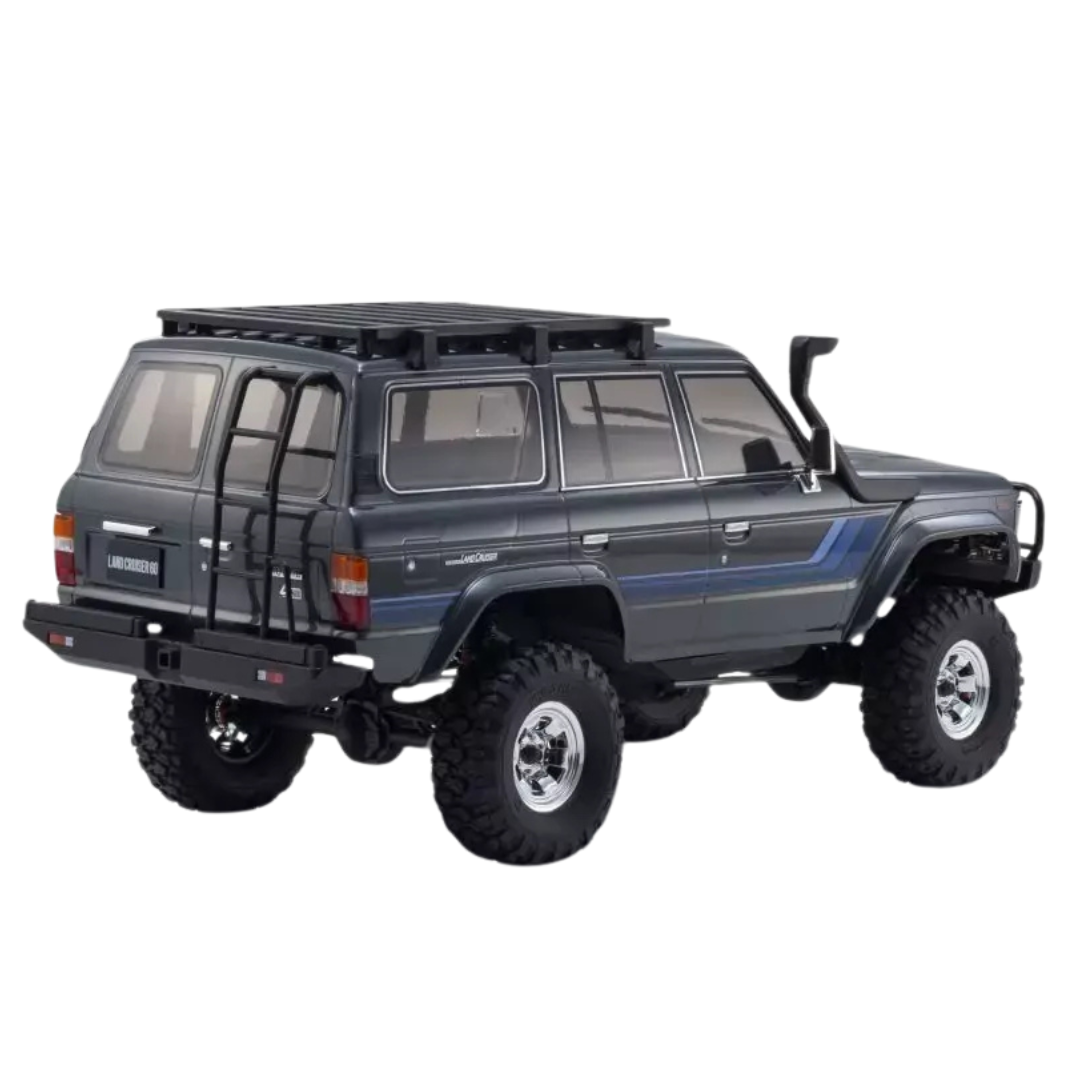

Body Type 2 recreates the later Land Cruiser 60 appearance with square headlights, door mirrors, overfender styling and a snorkel. Separate scale components including the roof rack and rear ladder add further realism, while a clipless body mounting system eliminates visible body pins and provides convenient chassis access.

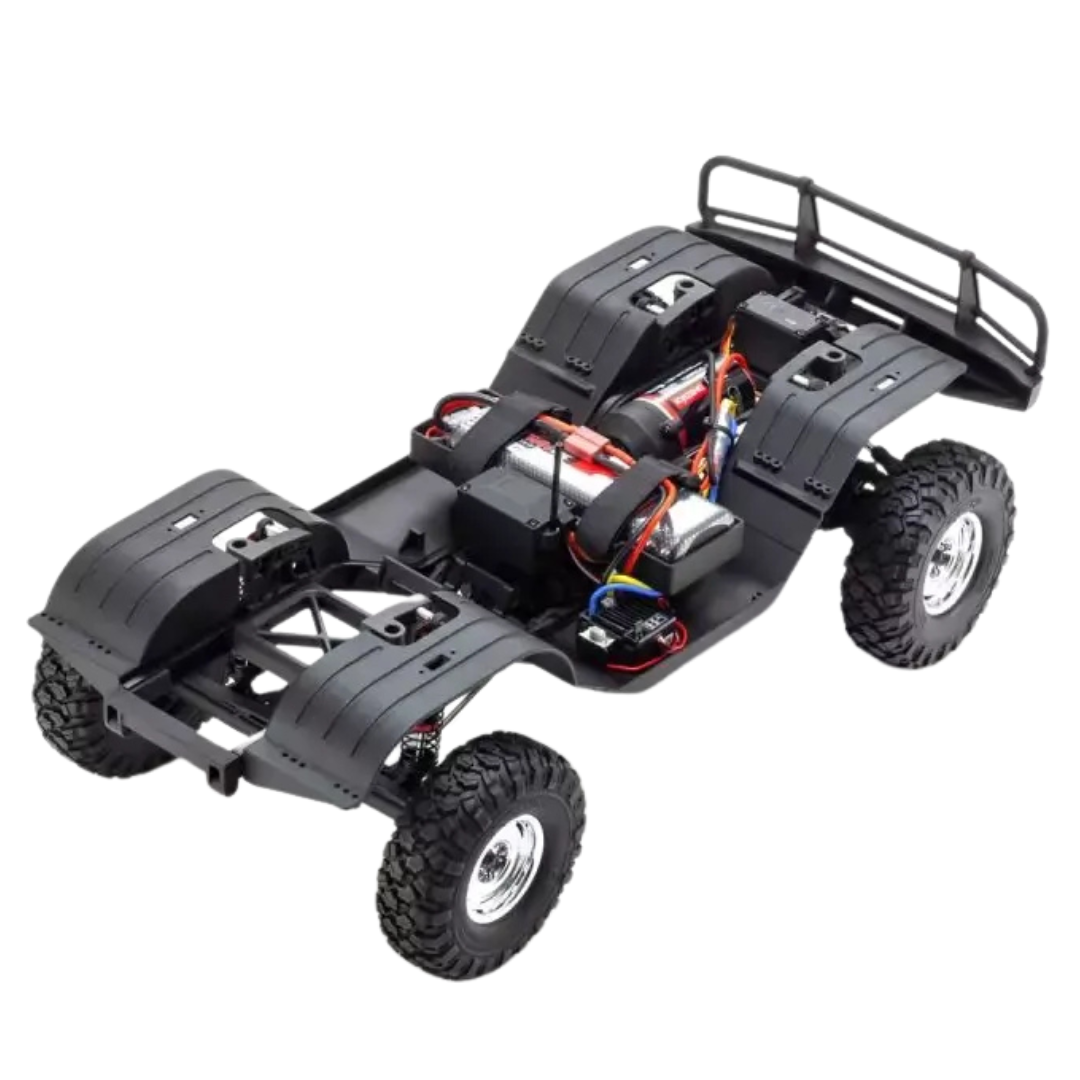

Underneath, the KC10 uses a pressed-steel ladder frame, shaft-driven 4WD, solid axles and a 3-link front / 4-link rear suspension system. CNC-machined steel hypoid ring and pinion gears, locked spool differentials and a low-geared drivetrain provide the traction and control required for demanding crawling terrain.

The gearbox is designed for future tuning with optional 2-speed and DIG systems. In standard form the transmission operates in low gear with DIG disabled. Installing the optional CLW001 2-Speed Kit enables high gear, while the optional CLW002 DIG Kit allows the rear wheels to be locked while maintaining front-wheel drive for extremely tight turning manoeuvres.

Features

• Official Toyota Land Cruiser 60: Highly detailed licensed body recreates the iconic full-size 4WD
• Body Type 2 Styling: Later Land Cruiser 60 appearance with square headlights, door mirrors, overfenders and snorkel
• KC10 Crawler Chassis: Purpose-designed 1/10 platform developed for scale trail driving and technical crawling
• Readyset Configuration: Factory assembled with body, motor, electronics and radio system installed
• Steel Ladder Frame: Press-formed steel main frame provides strength and chassis rigidity
• Shaft-Driven 4WD: Delivers dependable power to the front and rear solid axles
• Locked Differentials: Front and rear spool configuration provides consistent traction while crawling
• CNC Steel Hypoid Gears: Precision-machined ring and pinion gears provide durable and smooth drivetrain operation
• 3-Link Front Suspension: Front multi-link system with lateral rod provides articulation and realistic axle movement
• 4-Link Rear Suspension: Long-travel rear suspension supports stable articulation over uneven terrain
• Oil-Filled Shocks: Large-capacity dampers provide controlled suspension movement and threaded spring adjustment
• Full Ball Bearings: High-precision bearings reduce drivetrain friction for smooth operation
• 550-Size 32T Motor: Kyosho G32L brushed motor delivers strong low-speed torque for crawling
• 15kg Steering Servo: High-torque metal-gear servo provides steering power for demanding trail conditions
• 1.9 Inch Beadlock Wheels: Three-piece crawler wheels provide secure mechanical tyre retention
• Soft Compound All-Terrain Tyres: 110mm crawler tyres provide traction across rocks, dirt and trail surfaces
• Clipless Body Mounting: Eliminates exposed body pins for cleaner scale appearance
• Quick Chassis Access: Front quick-release system simplifies battery and chassis access
• Scale Roof Rack and Ladder: Separate body accessories add realistic Land Cruiser detail
• Inner Fenders: Moulded inner fenders improve scale appearance while helping shield chassis components from debris
• Optional LED Compatibility: Body includes light buckets for compatible optional Kyosho lighting
• 2-Speed Ready: Optional CLW001 kit enables selectable low and high transmission ratios
• DIG Ready: Optional CLW002 DIG system can lock the rear wheels while driving the front wheels for tight manoeuvring
• Central Battery Position: Main battery mounting location helps maintain balanced chassis weight distribution
• Secondary Battery Mount: Rear sub-battery position provides another weight distribution option

Specifications

• Brand: Kyosho
• Model: KC10 Toyota Land Cruiser 60 Body Type 2
• Manufacturer Part Number: 34801T2
• SKU: KYO-34801T2
• JAN / Barcode: 4548565521463
• Product Type: Electric RC Crawler
• Scale: 1/10
• Completion Level: Readyset
• Chassis: KC10
• Drivetrain: Shaft-Driven 4WD
• Differentials: Locked Spool
• Front Suspension: 3-Link with Lateral Rod
• Rear Suspension: 4-Link
• Motor: Kyosho G32L Brushed
• Motor Size: 550
• Motor Turns: 32T
• Radio: Kyosho Syncro KT-231P+
• Steering Servo: 15kg High-Torque Metal Gear
• Servo Output: 25T Serration
• Compatible Battery: 7.2V NiMH / 2S LiPo
• Battery Connector: S-Type
• Wheel Type: 1.9 Inch 3-Piece Beadlock
• Wheel Hex: 12mm
• Tyre Diameter: 110mm
• Tyre Width: 37mm
• Pinion Gear: 12T
• Spur Gear: 25T
• Spur Gear Module: 0.8
• Low Gear Ratio: 49.1:1
• Optional High Gear Ratio: 21.1:1 with CLW001
• Length: 556mm
• Width Excluding Mirrors: 236mm
• Overall Width: 251mm
• Height: 255mm
• Wheelbase: 317mm
• Front / Rear Tread: 208mm
• Approximate Weight: 3080g with 2S LiPo Installed
• Standard Maximum Speed: Approximately 5km/h
• Maximum Speed with Optional High Gear: Approximately 11km/h
• Maximum Climbing Angle: 50 Degrees
• Maximum Stable Tilt Angle: 38 Degrees
• Approximate Runtime: 80 Minutes with 4000mAh 2S LiPo
• Release Date: July 2026

Includes

• 1 × Kyosho KC10 Toyota Land Cruiser 60 Body Type 2 1/10 4WD Crawler
• 1 × Factory-Assembled KC10 Chassis with RC Electronics Installed
• 1 × Factory-Finished Toyota Land Cruiser 60 Body with Decals Applied

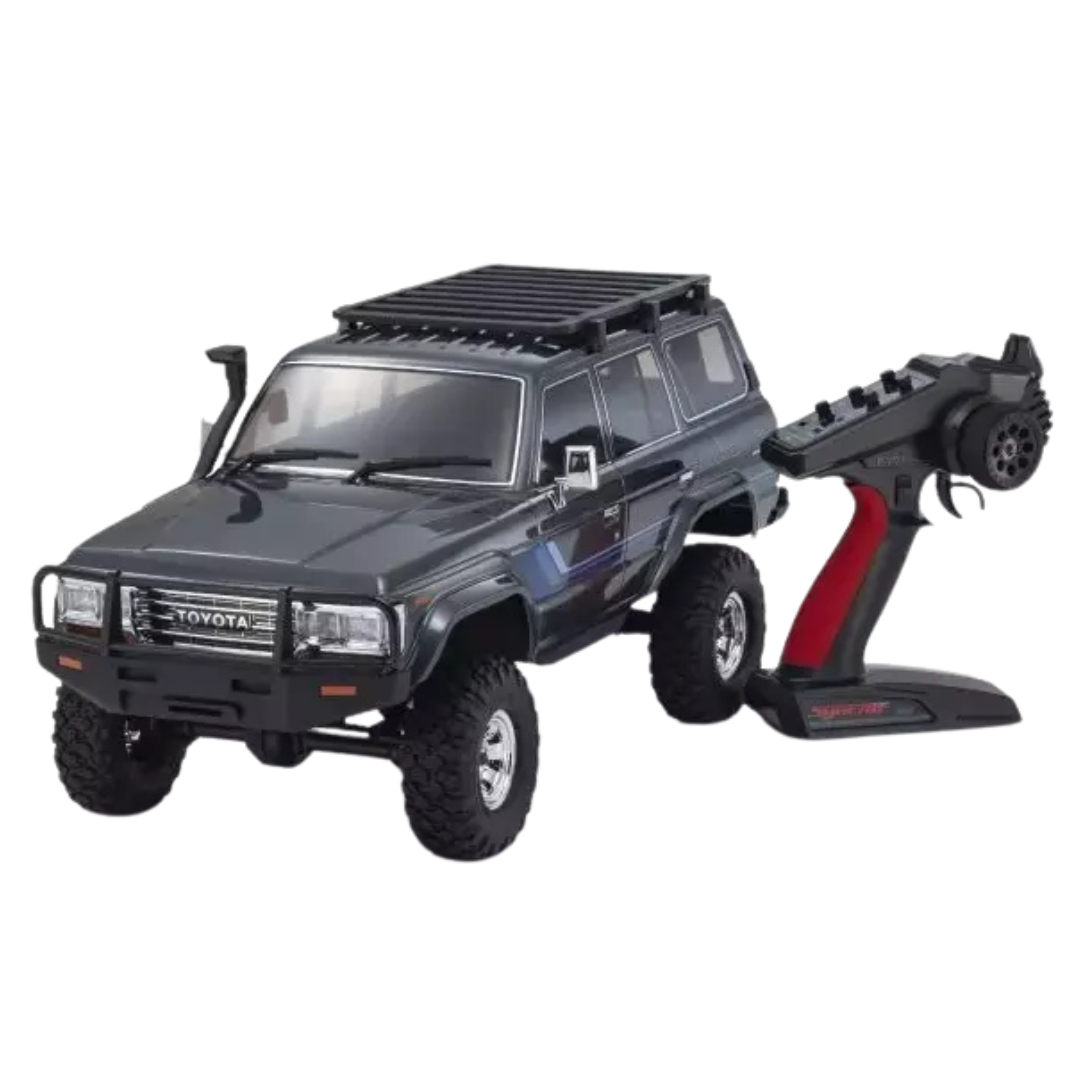

• 1 × Kyosho Syncro KT-231P+ 2.4GHz Transmitter
• 1 × G32L 550-Size 32T Brushed Motor Installed
• 1 × 15kg Metal-Gear Steering Servo Installed
• 1 × 1.5mm / 2.0mm Hex Wrench
• 1 × 4 / 5 / 5.5 / 7mm Cross Wrench
• Setting Adjustment Parts

Needed to Complete

• Compatible 7.2V NiMH or 2S LiPo Driving Battery
• Compatible Battery Charger
• 4 × AA Batteries for Transmitter

FAQ

Is the Kyosho KC10 Land Cruiser 60 34801T2 Ready-to-Run? It is supplied as a Kyosho Readyset with the vehicle, electronics and KT-231P+ transmitter included. A compatible driving battery, battery charger and four AA transmitter batteries are required separately before operation.

What is the difference between Body Type 1 and Body Type 2? Body Type 2 represents the later Land Cruiser 60 appearance and features square headlights, door mirrors and overfender styling. Type 1 recreates the earlier round-headlight Land Cruiser 60 with retro-style fender mirrors.

Does the KC10 have four-wheel drive? Yes. The KC10 uses a shaft-driven 4WD system with solid axles and locked spool differentials for dependable crawling traction.

Does it have a 2-speed transmission? The KC10 gearbox contains the internal gearing required for the 2-speed system, but the Readyset is supplied fixed in low gear. Install the optional Kyosho CLW001 2-Speed Kit to enable selectable high gear.

What is DIG on the KC10? DIG allows the rear wheels to be locked while the front wheels continue driving. This enables extremely tight turns and can be useful on technical crawling obstacles. The optional CLW002 DIG Kit is required to activate this function.

Can I use 2-speed and DIG together? Yes, but a separate 4-channel transmitter is required if you want to independently operate both the 2-speed transmission and DIG functions.

What motor is installed? The Readyset includes Kyosho's G32L 550-size 32-turn brushed motor, designed to provide strong low-speed torque for crawler use.

What battery does the KC10 use? Kyosho lists the KC10 as compatible with 7.2V NiMH and 2S LiPo driving batteries using the appropriate S-type connection.

Are the wheels beadlock? Yes. The KC10 uses 1.9-inch three-piece beadlock wheels, allowing the tyres to be mechanically retained rather than relying solely on adhesive.

Can lights be added? Yes. The Land Cruiser body includes light buckets that support compatible optional LED lighting. Kyosho lists the 97054-4HR LED light set as an option.

Is the body held on with conventional body clips? No. The KC10 uses a clipless mounting system to eliminate visible body pins and preserve the realistic appearance of the Land Cruiser body.

Important Notes

• Driving battery and charger are not included
• Four AA transmitter batteries are required separately
• This listing is specifically for Toyota Land Cruiser 60 Body Type 2, part 34801T2
• Body Type 2 features the later square-headlight Land Cruiser 60 appearance
• Standard transmission configuration is fixed in low gear
• CLW001 2-Speed Kit is required for selectable high gear
• CLW002 DIG Kit is required to activate the DIG function
• A separate 4-channel radio system is required to operate both optional 2-speed and DIG functions simultaneously
• Use a suitable charger and correct charging procedure for the selected driving battery
• Inspect drivetrain, wheel hardware and suspension components regularly after demanding crawler use
