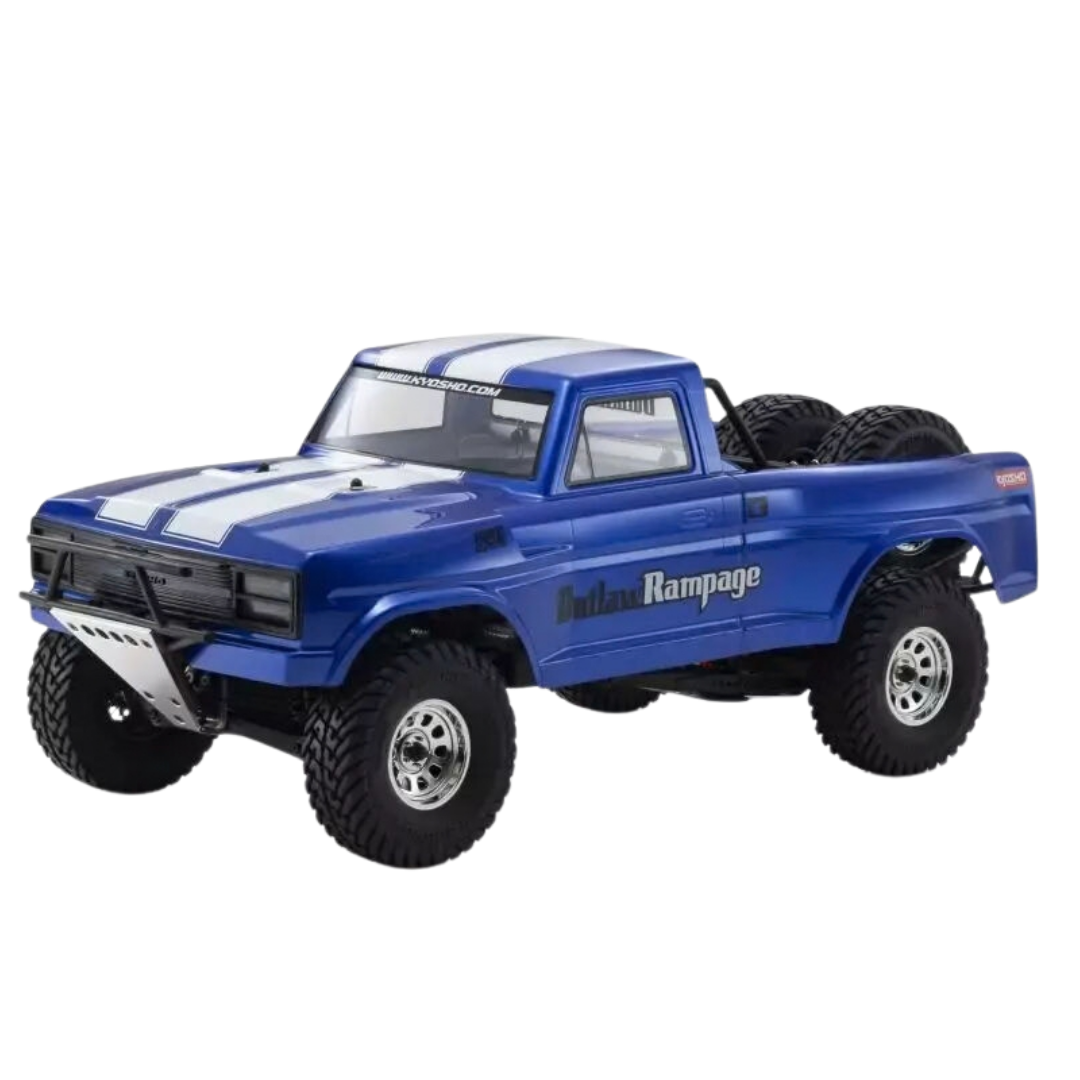

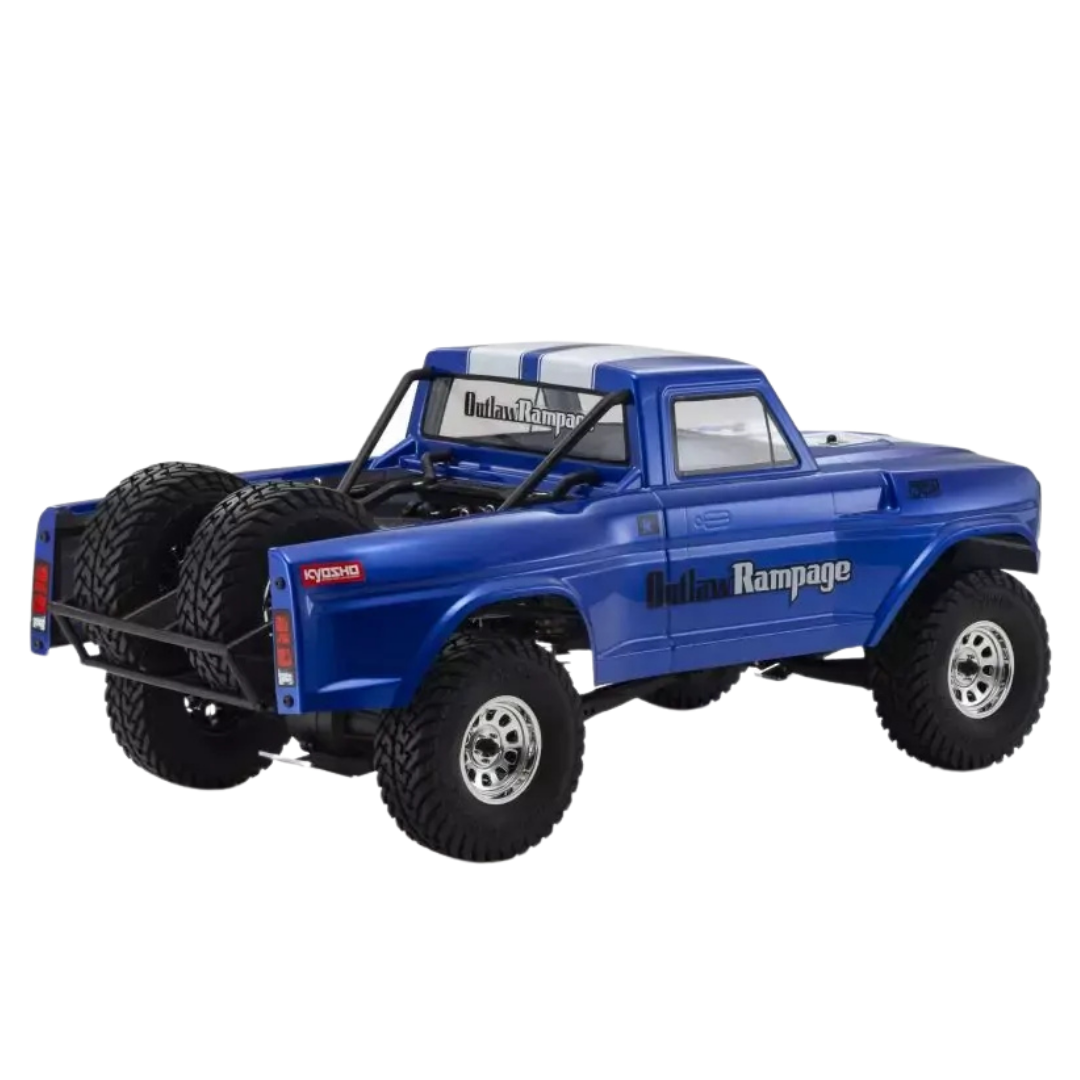

Kyosho Outlaw Rampage Pro 2.0 RC Truck 1/10 2WD ARR KYO-34365

The Kyosho KYO-34365 Outlaw Rampage Pro 2.0 is a 1/10 scale 2WD electric trophy truck supplied approximately 70% factory assembled for builders who want to select their own electronics and power system. Its 2RSA rear solid axle chassis combines long-travel off-road suspension, aluminium oil shocks, a revised V2 gearbox and realistic trophy truck styling, with a pre-cut clear polycarbonate body ready for custom painting.

Features

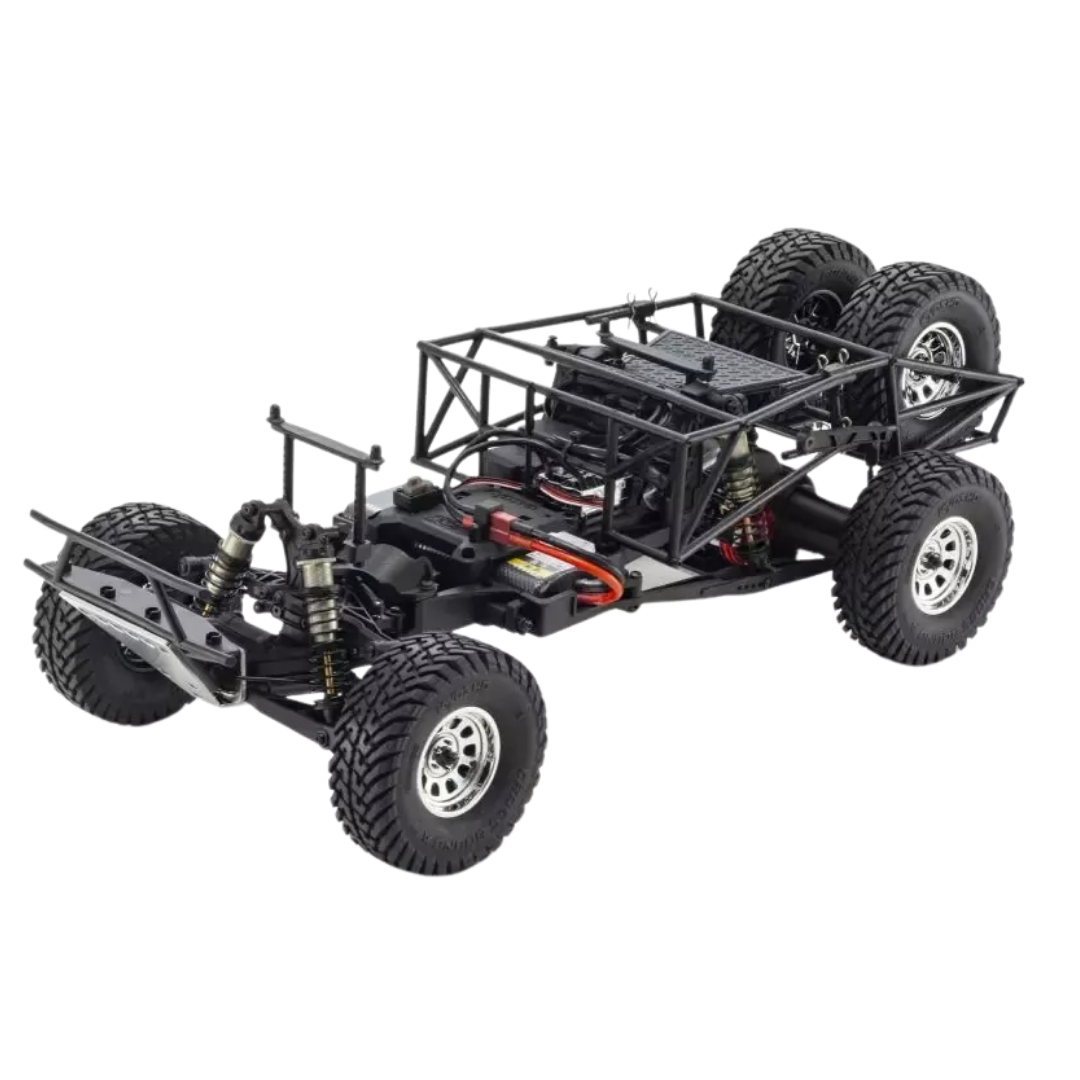

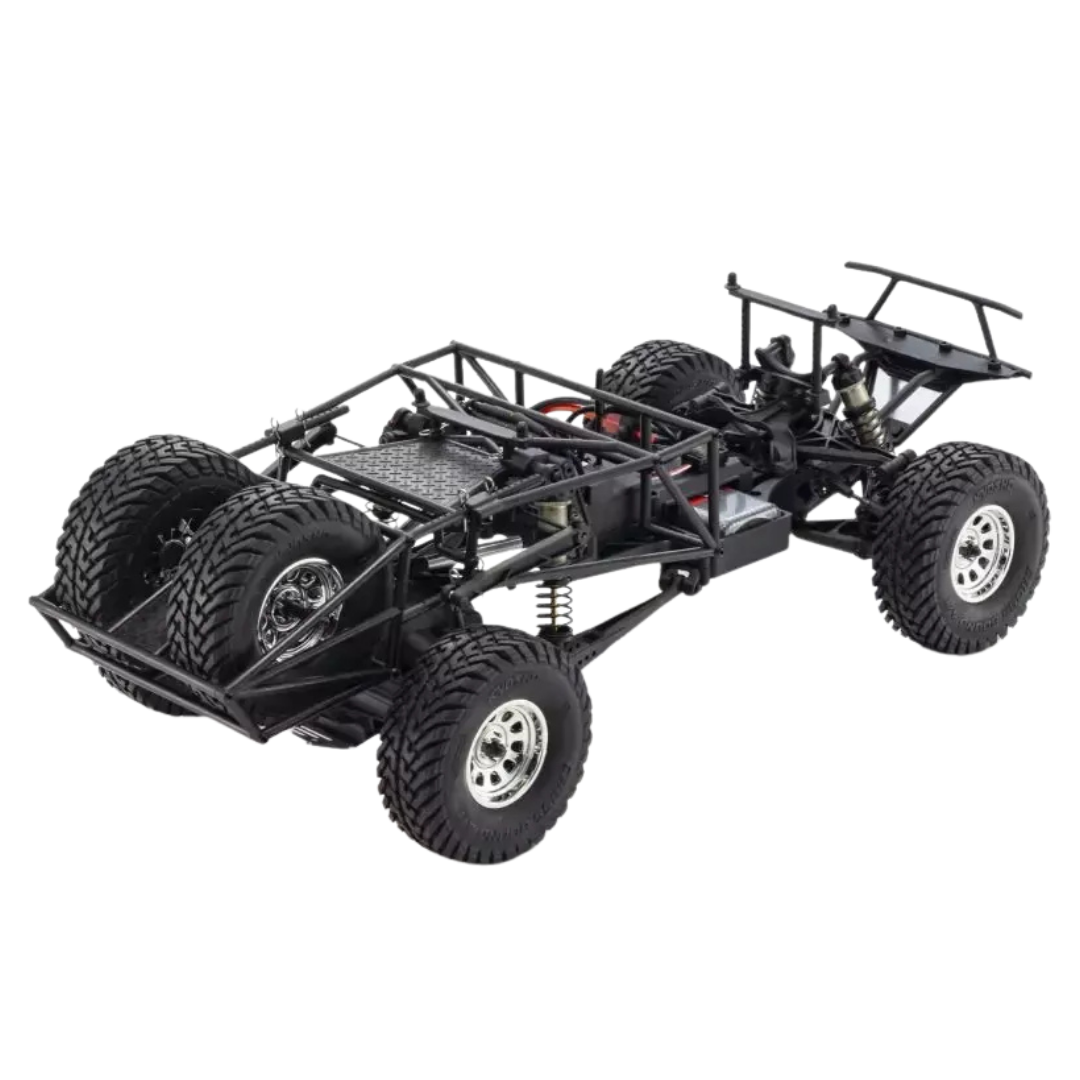

• 2RSA Trophy Truck Platform: Rear-wheel-drive layout combines independent front suspension with a four-link rear solid axle
• Approximately 70% Factory Assembled: ARR format reduces assembly work while allowing the motor, ESC, radio system and servo to be selected separately
• Revised V2 Gearbox: Updated counter and differential gears use revised materials and tooth profiles to improve durability and reduce drivetrain noise
• Brushed or Brushless Compatible: Chassis accepts suitable 540-class brushed or brushless motor systems
• Aluminium Oil Shocks: Large-capacity aeration shocks feature hard-anodised aluminium cases and titanium-coated shafts
• Four-Link Rear Suspension: Solid rear axle uses a four-link support system for realistic trophy truck movement and off-road capability
• Long-Arm Front Suspension: Double-wishbone front suspension provides long travel for rough terrain
• Suspension Tuning Options: Standard 2.2mm stabiliser bars are complemented by included 1.8mm and 2.6mm bars for setup changes
• Reinforced Front Components: Revised knuckle arms, hub carriers, suspension arms and steering components improve durability
• Full Ball Bearings: Ball-bearing-supported drivetrain helps reduce friction
• Revised Radio Tray: Redesigned layout provides additional ESC positioning flexibility and battery connector mounting options
• Dustproof Receiver Case: Enclosed receiver compartment protects the electronics while providing convenient maintenance access
• Quick Battery Access: Lever-lock battery holder allows faster battery installation and removal
• Aluminium Front Skid Plate: Protects the front chassis during off-road running and hard landings
• Functional Spare Tyres: Scale rear tyre carrier includes spare tyres that can be used for running
• Pre-Cut Clear Body: Polycarbonate trophy truck body arrives trimmed and drilled with window masks and pre-cut decals
• Two Grille Styles: Includes separate square-headlight and round-headlight grille options
• LED Ready: Compatible with optional Kyosho 97054-2 and 97054-4 LED light units without body modification

Specifications

• Brand: Kyosho
• Model: Outlaw Rampage Pro 2.0
• Series: 2RSA
• Product Type: RC Trophy Truck
• Scale: 1/10
• Completion Level: ARR Approximately 70% Factory Assembled
• Power Type: Electric
• Drive: 2WD Rear-Wheel Drive
• Rear Suspension: Solid Axle Four-Link
• Front Suspension: Double Wishbone
• Shock Type: Aluminium Oil-Filled Aeration
• Shock Shafts: Titanium Coated
• Drivetrain Bearings: Full Ball Bearings
• Motor Compatibility: 540 Class Brushed or Brushless
• Gear Ratio: 12.65:1
• Counter and Differential Gear Pitch: 32 Pitch
• Spur Gear Pitch: 48 Pitch
• Length: 561mm
• Width: 262mm with Body
• Height: 231mm with Body
• Wheelbase: 335mm
• Front / Rear Tread: 204mm
• Tyre Size Front / Rear: 108 x 38mm
• Approximate Weight: 2600g
• Body: Pre-Cut Clear Polycarbonate
• Manufacturer Part Number: 34365
• Supplier SKU: KYO-34365
• JAN / GTIN: 4548565522194

Includes

• 1 x Kyosho Outlaw Rampage Pro 2.0 1/10 2WD ARR Chassis Approximately 70% Assembled
• 1 x Pre-Cut and Pre-Drilled Clear Polycarbonate Trophy Truck Body
• Window Masking Sheets
• Pre-Cut Window Frame and Logo Decals
• Square-Headlight and Round-Headlight Grille Options
• Scale Wheels and Tyres
• 2 x Functional Spare Tyres
• 1 x Aluminium Front Skid Plate Installed
• 1 x Spare Plastic Front Skid Plate
• 1.5mm / 2.0mm / 2.5mm Hex Wrenches
• 4mm / 5mm / 5.5mm / 7mm Cross Wrench
• #10000 Differential Oil
• #350 Shock Oil
• Various Setup Spacers
• 1.2mm / 1.4mm Shock Pistons
• 1.8mm / 2.6mm Front and Rear Stabiliser Bars
• Body Posts
• Spare Tyre Mounting Screw and Nut

Required To Complete

• 2-Channel RC Car Transmitter and Compatible Receiver
• Steering Servo
• Suitable 540-Class Brushed or Brushless Motor
• ESC Compatible with the Selected Motor and Battery
• Suitable Drive Battery
• Compatible Battery Charger
• Transmitter Batteries
• Polycarbonate Body Paint
• Appropriate Assembly and Maintenance Tools

FAQ

Is the Kyosho Outlaw Rampage Pro 2.0 KYO-34365 a complete unassembled kit? No. Kyosho officially describes 34365 as an ARR, or Almost Ready to Run, model that arrives approximately 70% factory assembled. Final assembly, electronics installation and body painting are required.

Does the Kyosho Outlaw Rampage Pro 2.0 include electronics? No. The motor, ESC, steering servo, transmitter and receiver are sold separately, allowing the owner to select a suitable electronics package.

Can the Outlaw Rampage Pro 2.0 use a brushless motor? Yes. Kyosho specifies compatibility with both brushed and brushless 540-class motors. The selected ESC, battery and gearing should be appropriate for the chosen motor system.

Is the Outlaw Rampage Pro 2.0 four-wheel drive? No. The Outlaw Rampage Pro 2.0 is a 2WD rear-wheel-drive trophy truck. Its 2RSA chassis uses independent double-wishbone front suspension and a four-link solid rear axle.

Is the body painted? No. The polycarbonate body is supplied clear, pre-cut and pre-drilled. Window masks and pre-cut decals are included, but suitable polycarbonate paint is required separately.

What is different about the Outlaw Rampage Pro 2.0 drivetrain? The 2.0 version introduces revised V2 counter and differential gears with updated materials and tooth profiles. Kyosho states that these changes reduce drivetrain noise while significantly improving durability.

Does the Outlaw Rampage Pro 2.0 have oil shocks? Yes. It uses large-capacity aluminium aeration oil shocks with hard-anodised cases and titanium-coated shafts. Alternative shock pistons and suspension stabiliser bars are also supplied for setup tuning.

Are the spare tyres on the rear of the truck functional? Yes. Kyosho states that the rear-mounted spare tyres are functional and can be used for driving. Changing the number of spare tyres carried can also alter the truck's weight balance.

What battery does the Kyosho Outlaw Rampage Pro 2.0 require? Kyosho does not specify one mandatory battery chemistry or capacity for 34365 because the motor and ESC are owner-selected. The drive battery should be compatible with the chosen power system, chassis battery compartment and ESC.

Important Notes

• This is an ARR model supplied approximately 70% factory assembled, not an RTR vehicle
• Motor, ESC, steering servo, transmitter, receiver, drive battery and charger are sold separately
• Clear body requires suitable polycarbonate paint before finishing
• Product photography may show a painted and fully completed model for illustration
• Kyosho notes that white line decals shown on some painted example images are not included
• Select compatible electronics, battery and power-system components before completing the model
