Losi 5IVE-TE 3.0 RC Desert Truck 1/5 4WD Brushless RTR LOS05022

The Losi 5IVE-TE 3.0 is a 1/5 scale electric 4WD Ready-to-Run RC desert truck designed for large-scale off-road driving, featuring a Spektrum 12S-capable brushless system, 32mm big-bore suspension and an extended wheelbase for improved high-speed stability.

Features

• Large-Scale 4WD Platform: Built around Losi's 5IVE-T heritage with a four-wheel-drive drivetrain designed for demanding off-road driving.
• 12S Spektrum Brushless Power: Factory-installed Spektrum Firma 70120 560Kv brushless motor and 250A Smart ESC support 8S and 12S LiPo configurations.
• 50+ mph Performance: Manufacturer-rated for speeds exceeding 50 mph (approximately 80km/h) on 12S, or 35+ mph (approximately 56km/h) on 8S under suitable conditions.
• Large 70120 Motor: Features an 8mm motor shaft and dedicated aluminium heatsink with active cooling fans.
• 250A Smart ESC: Spektrum Firma brushless electronic speed controller supports 6S–12S operation with dual IC5 battery connectors.
• Pro-Line Mirage TT Tyres: Massive 8.5-inch diameter desert truck tyres provide off-road traction with realistic sidewall detailing.
• Licensed KMC KM549 Wheels: Officially licensed wheels feature Pro-Line Pro-Loc beadlock technology for secure tyre mounting and serviceable tyre replacement.

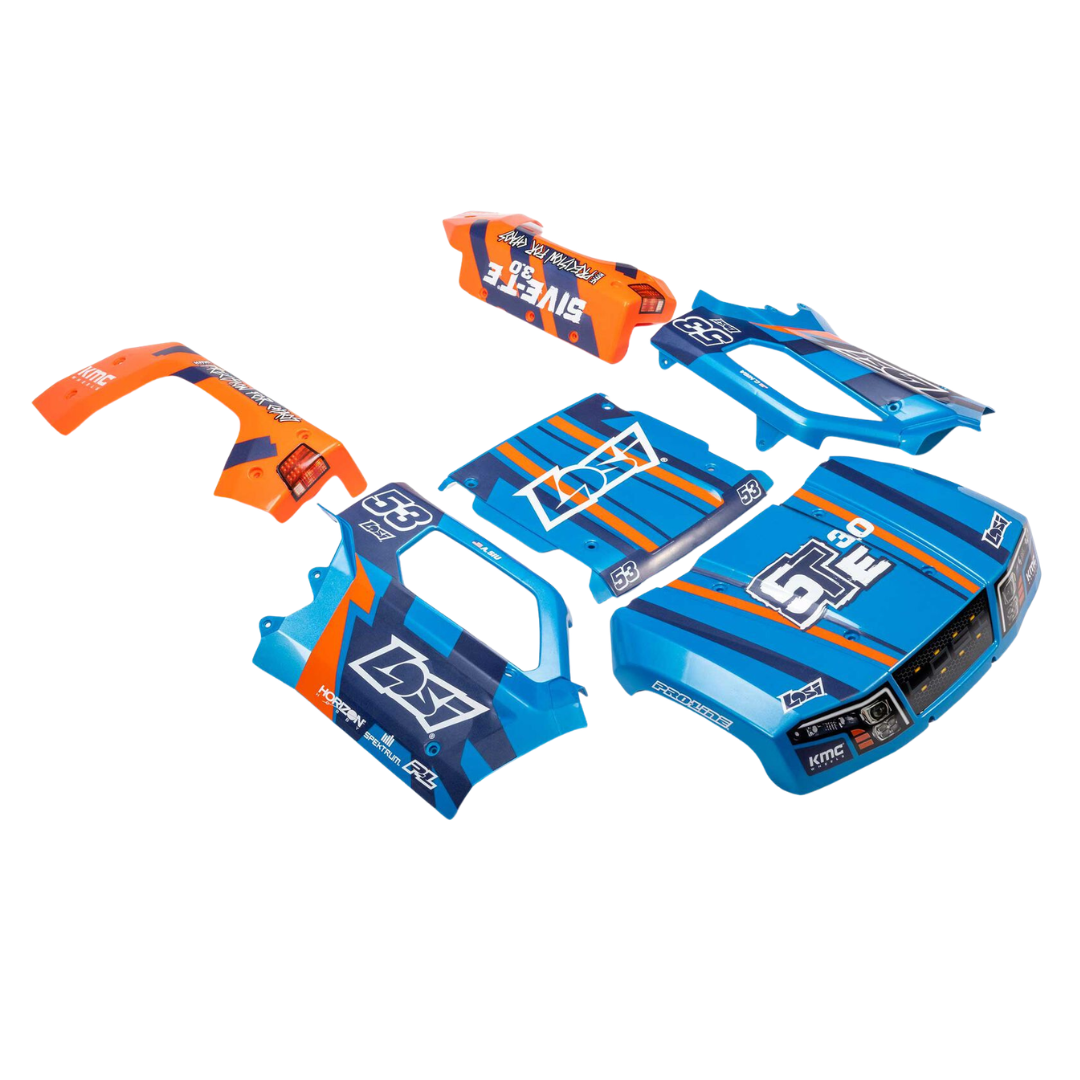

• Six-Piece Polypropylene Body: Injection-moulded body panels flex to absorb impacts and can be replaced individually when damaged.
• Extended Wheelbase: 660mm wheelbase helps improve high-speed stability while maintaining realistic desert truck proportions.
• 32mm Big-Bore Suspension: Oil-filled shocks feature increased fluid capacity and tapered pistons for controlled damping and rebound.
• Reinforced Suspension Arms: Redesigned front and rear suspension arms strengthen shock mounting areas and improve load distribution.
• Optimised Drivetrain: Straightened centre drivetrain layout and updated gearing improve power transfer under heavy loads.
• Serviceable Centre Differential: Easy-access differential mount simplifies maintenance and drivetrain tuning.
• Heavy-Duty Steering Servo: Spektrum 1/5 scale metal-top steering servo provides 1000 oz-in of rated torque for controlling the large front tyres.
• Spektrum DX3 Smart Radio: Included 3-channel transmitter offers adjustable throttle limiting at 50%, 75% or full output.
• AVC Stability Control: Spektrum SR6200A DSMR receiver includes Active Vehicle Control technology to assist steering and throttle stability over uneven terrain.
• Spektrum Smart Integration: Compatible Smart battery equipment supports transmitter battery level indication and telemetry functions.
• Ready-to-Run Assembly: Truck arrives assembled with the motor, ESC, steering servo and radio equipment installed.

Specifications

• Brand: Losi
• Model: 5IVE-TE 3.0
• Manufacturer Part Number: LOS05022
• SKU: LOS05022
• Product Type: Electric RC Desert Truck
• Scale: 1/5
• Drive System: 4WD
• Build Type: Ready-to-Run (RTR)
• Power Type: Electric Brushless
• Motor: Spektrum Firma 70120 560Kv Brushless (SPMXSM5600)
• Motor Shaft Diameter: 8mm
• ESC: Spektrum Firma 250A Smart Brushless (SPMXSE2250)
• ESC Voltage Capability: 6S–12S LiPo
• Recommended Running Configurations: 8S or 12S LiPo
• Battery Connections: Dual IC5
• Manufacturer-Rated Top Speed on 12S: 50+ mph (80+ km/h)
• Manufacturer-Rated Top Speed on 8S: 35+ mph (56+ km/h)
• Radio System: Spektrum DX3 Smart DSMR 3-Channel (SPM2340)
• Receiver: Spektrum SR6200A 6-Channel DSMR AVC (SPMSR6200A)
• Steering Servo: Spektrum 1/5 Scale Metal-Top 1000 oz-in 15T Servo (SPMSS1000MT)
• Stability Control: Spektrum AVC

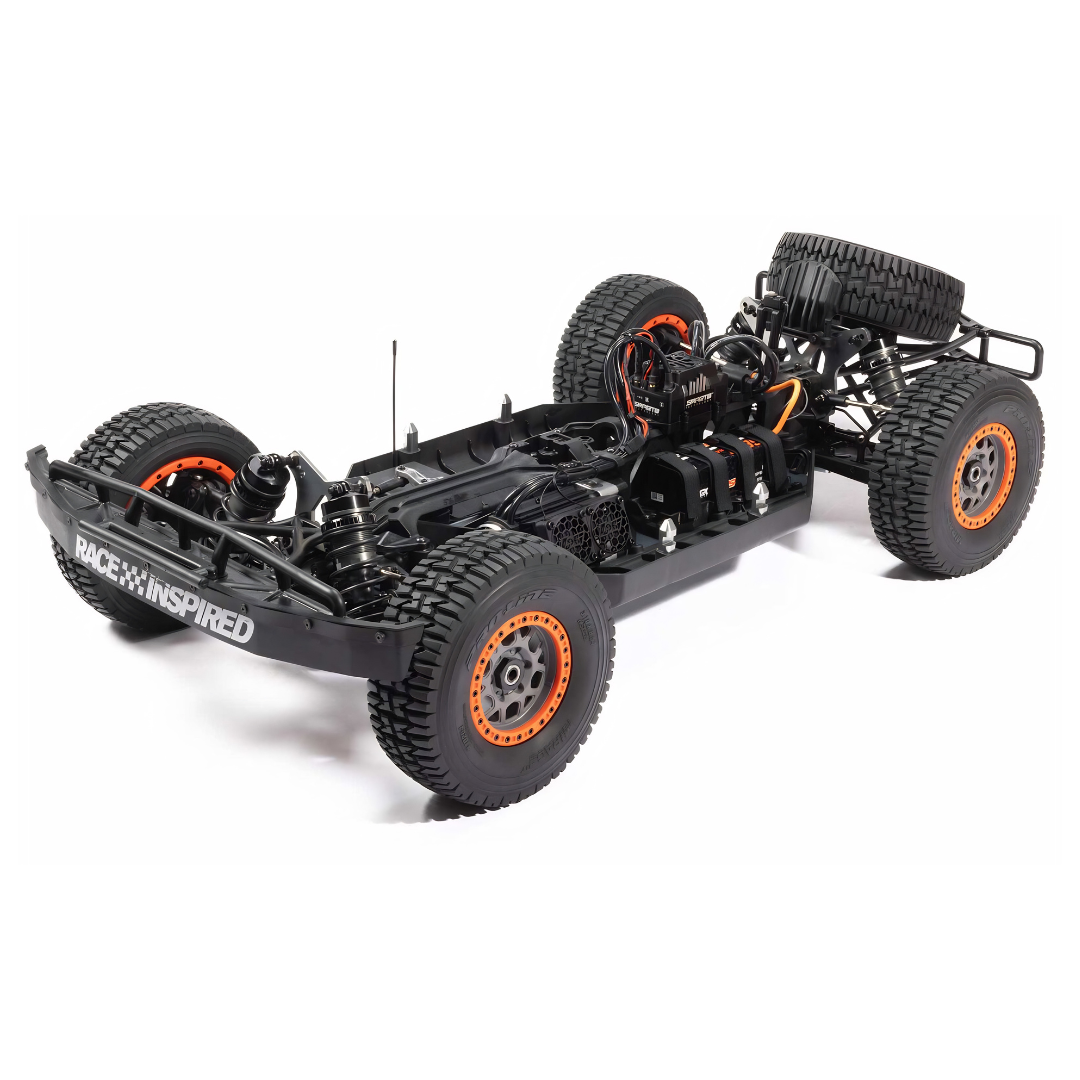

• Chassis Material: 6061-T6 Aluminium
• Suspension: Independent Front and Rear
• Shock Type: 32mm Big-Bore Oil-Filled
• Differential Type: Gear
• Ring and Pinion Gearing: 43/12T
• Spur Gear: 67T
• Pinion Gear: 17T
• Final Drive Ratio: 14.12:1
• Wheel Type: Licensed KMC KM549 with Pro-Line Pro-Loc Beadlocks
• Tyres: Pro-Line Mirage TT
• Tyre Diameter: Approximately 8.5 Inches (216mm)
• Wheel Hex Size: 24mm
• Body Material: Injection-Moulded Polypropylene
• Body Construction: Six-Piece Panel Design
• Overall Length: 1090mm
• Overall Width: 538mm
• Overall Height: 391mm
• Wheelbase: 660mm
• Approximate Weight Without Batteries: 23.3kg
• Approximate Weight With Recommended Dual 6S 7200mAh Batteries: 25.3kg
• Vehicle Batteries: Required Separately
• Charger: Required Separately

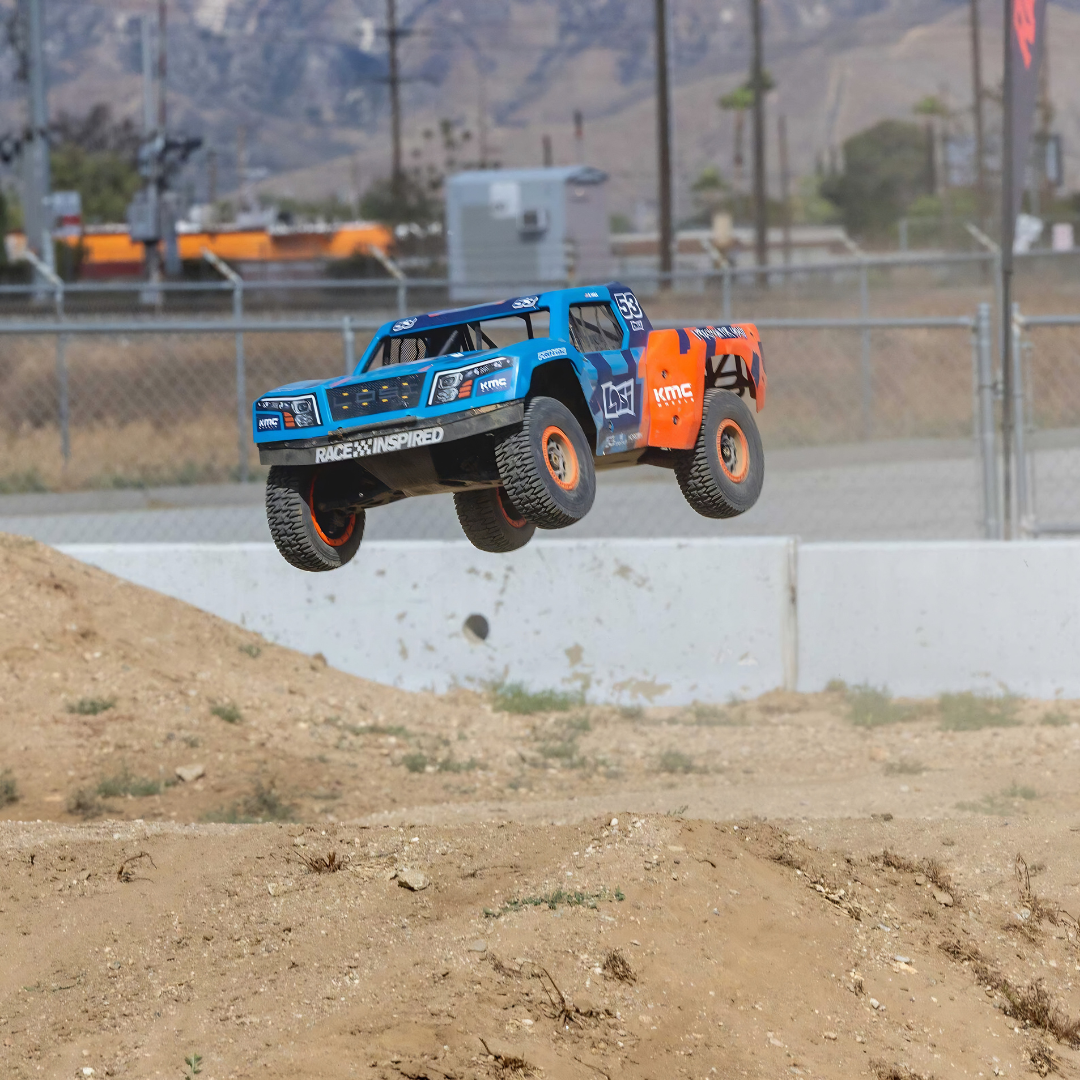

• Intended Use: Large-Scale Off-Road Driving and Desert Truck Bashing

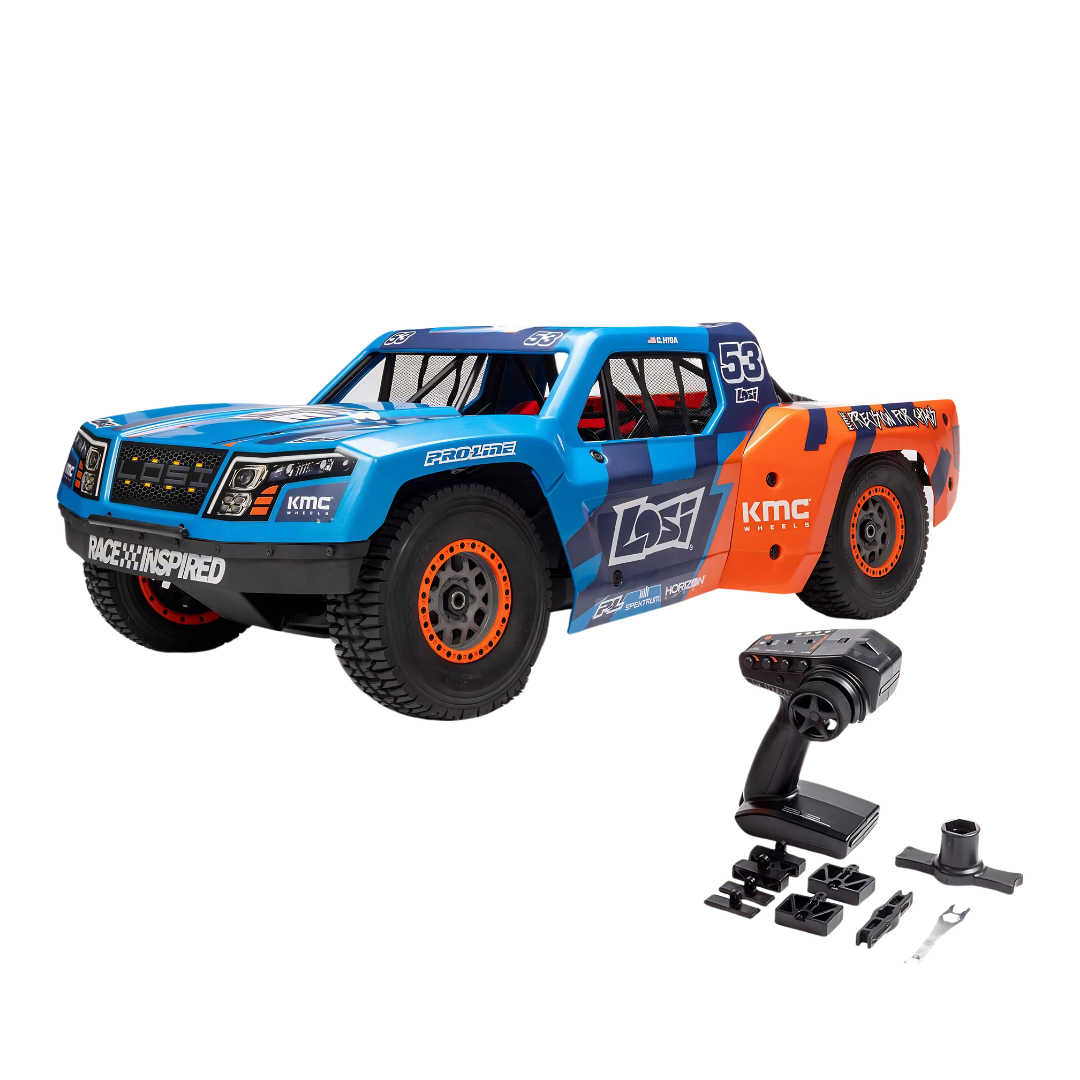

Includes

• 1 x Losi 5IVE-TE 3.0 1/5 Electric 4WD Desert Truck RTR
• 1 x Spektrum Firma 70120 560Kv Brushless Motor (Installed)
• 1 x Spektrum Firma 250A Smart ESC (Installed)
• 1 x Spektrum DX3 Smart DSMR 3-Channel Transmitter
• 1 x Spektrum SR6200A DSMR AVC Receiver (Installed)
• 1 x Spektrum 1000 oz-in Metal-Top Steering Servo (Installed)
• 4 x AA Transmitter Batteries
• 1 x Wheel Wrench
• 1 x Rod End Tool
• 1 x Turnbuckle Tool
• 1 x Multi-Wrench
• 2.5mm, 3mm and 4mm Allen Wrenches
• 1 x Instruction Manual

FAQ

How fast is the Losi 5IVE-TE 3.0? Losi rates the 5IVE-TE 3.0 for speeds exceeding 50 mph (approximately 80km/h) on 12S LiPo power and 35 mph (approximately 56km/h) on 8S. Actual speeds depend on the batteries, terrain and vehicle conditions.

What batteries does the Losi 5IVE-TE 3.0 require? For 12S operation, the Losi 5IVE-TE 3.0 requires two compatible 6S LiPo batteries with IC5 connectors. For 8S operation, it requires two compatible 4S LiPo batteries with IC5 connectors. A suitable LiPo charger is also required. These are sold separately.

Is the Losi 5IVE-TE 3.0 ready to drive out of the box? The 5IVE-TE 3.0 is supplied assembled with the motor, ESC, steering servo, receiver and transmitter included. Customers must supply suitable vehicle batteries and a compatible charger before driving.

Can beginners drive the Losi 5IVE-TE 3.0? The included Spektrum DX3 Smart transmitter allows throttle output to be limited to 50% or 75%. However, the Losi 5IVE-TE 3.0 is a heavy, high-powered 1/5 scale truck. OZRC recommends experienced adult supervision, a large clear driving area and reduced throttle settings while learning its handling characteristics.

Important Notes

• Vehicle batteries and charger are not included.
• For 12S operation, two compatible 6S LiPo batteries with IC5 connectors are required.
• For 8S operation, two compatible 4S LiPo batteries with IC5 connectors are required.
• Check battery dimensions and secure mounting before installation. Losi lists a maximum battery compartment dimension of 180 x 52mm.
• The Spektrum 250A ESC supports 6S–12S electrically, but Losi specifies 8S and 12S as the recommended vehicle configurations.
• Manufacturer speed figures are achieved under suitable conditions and are not guaranteed for every surface or battery setup.
• The truck weighs approximately 23.3kg without batteries. Operate only in a suitable clear area away from people, animals, traffic and obstacles.
• AVC stability assistance does not replace careful throttle control or responsible driving.
• Use LiPo-compatible charging equipment and follow the battery manufacturer's safety, handling and storage instructions.
