Losi 22S Dirt Late Model 1/10 2WD RC Dirt Oval Car RTR Blue LOS-2167T1

The Losi 22S Dirt Late Model is a 1/10 scale 2WD brushless RTR RC car designed for dirt and clay oval racing, giving drivers a factory-assembled platform with TLR 22-based geometry, durable running gear and realistic late-model styling.

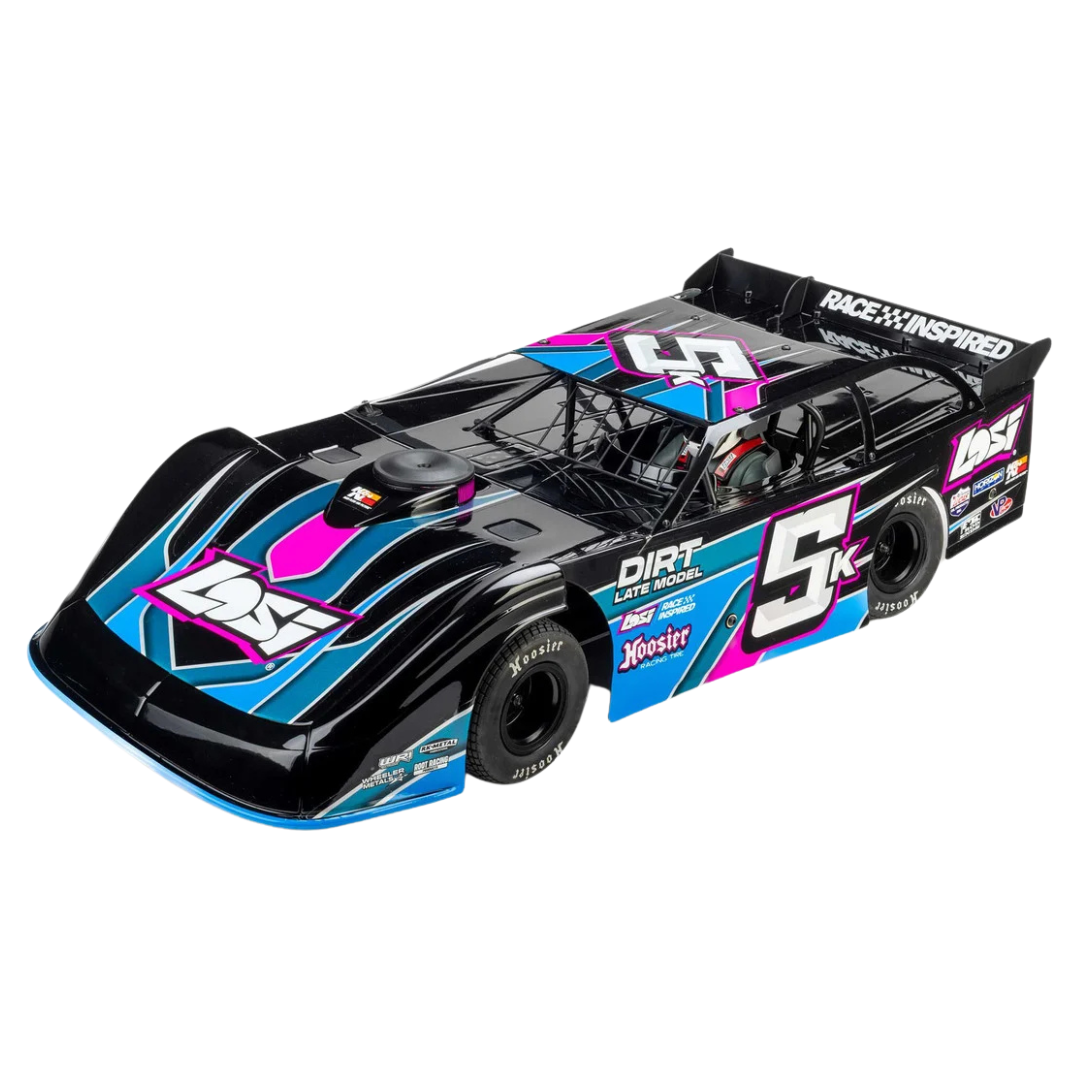

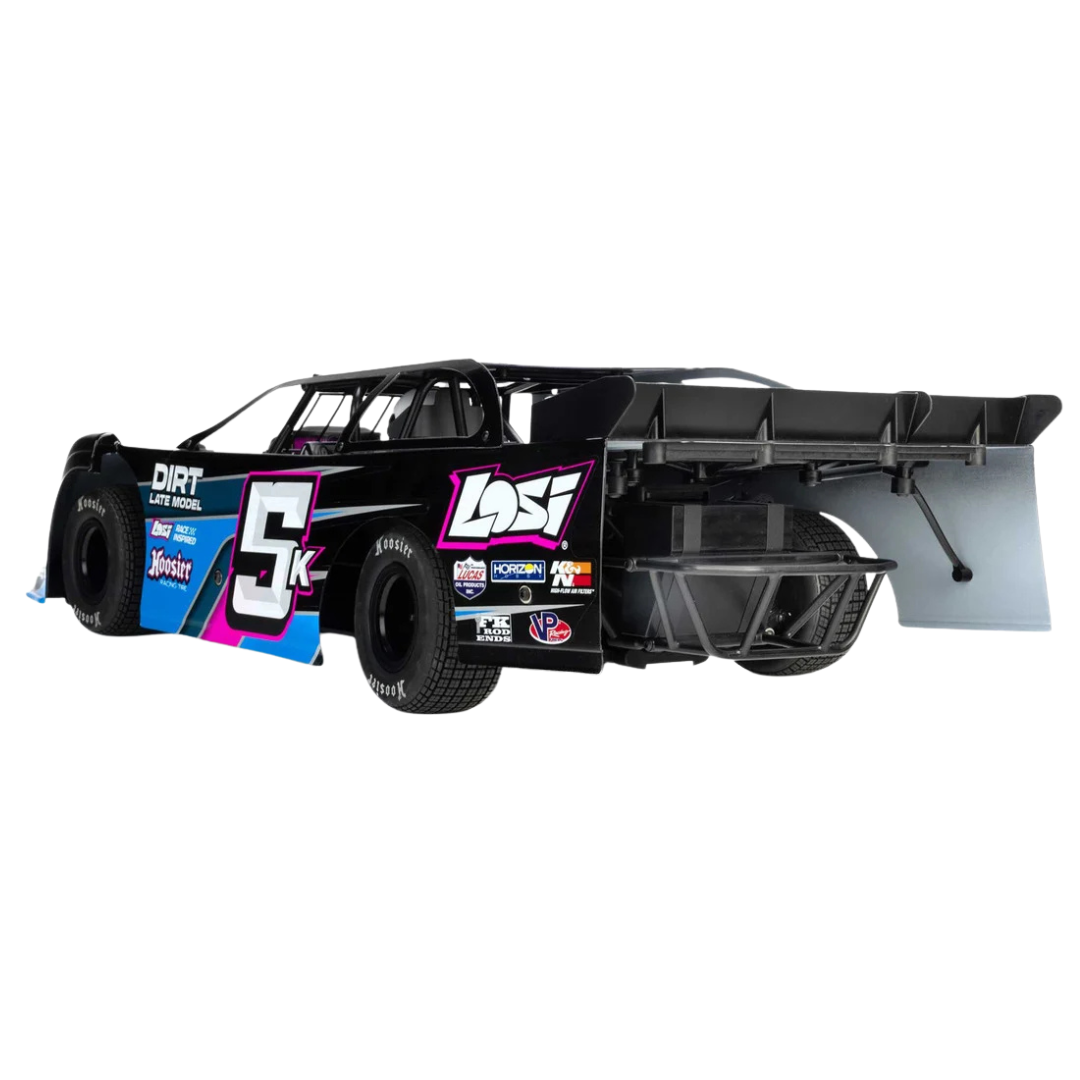

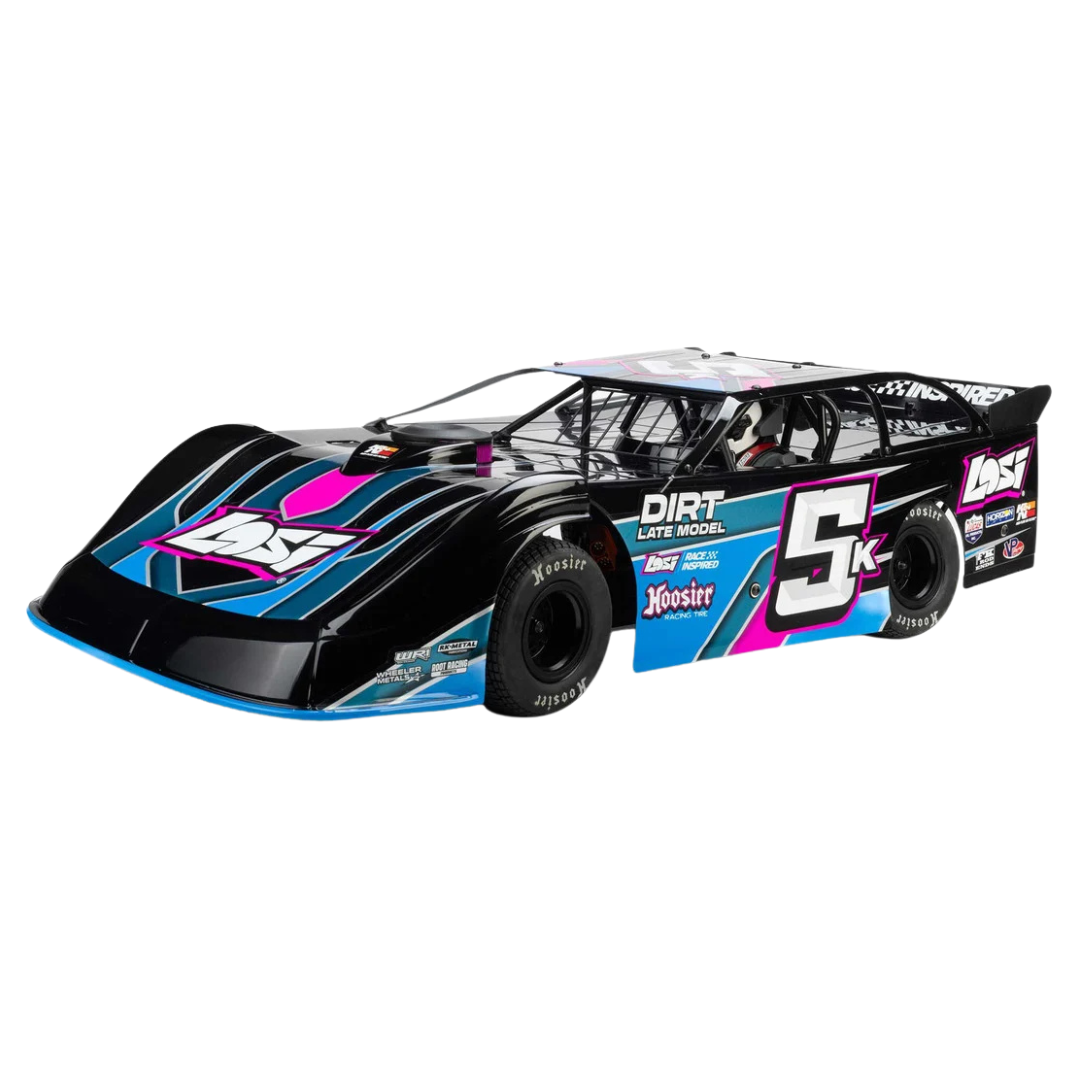

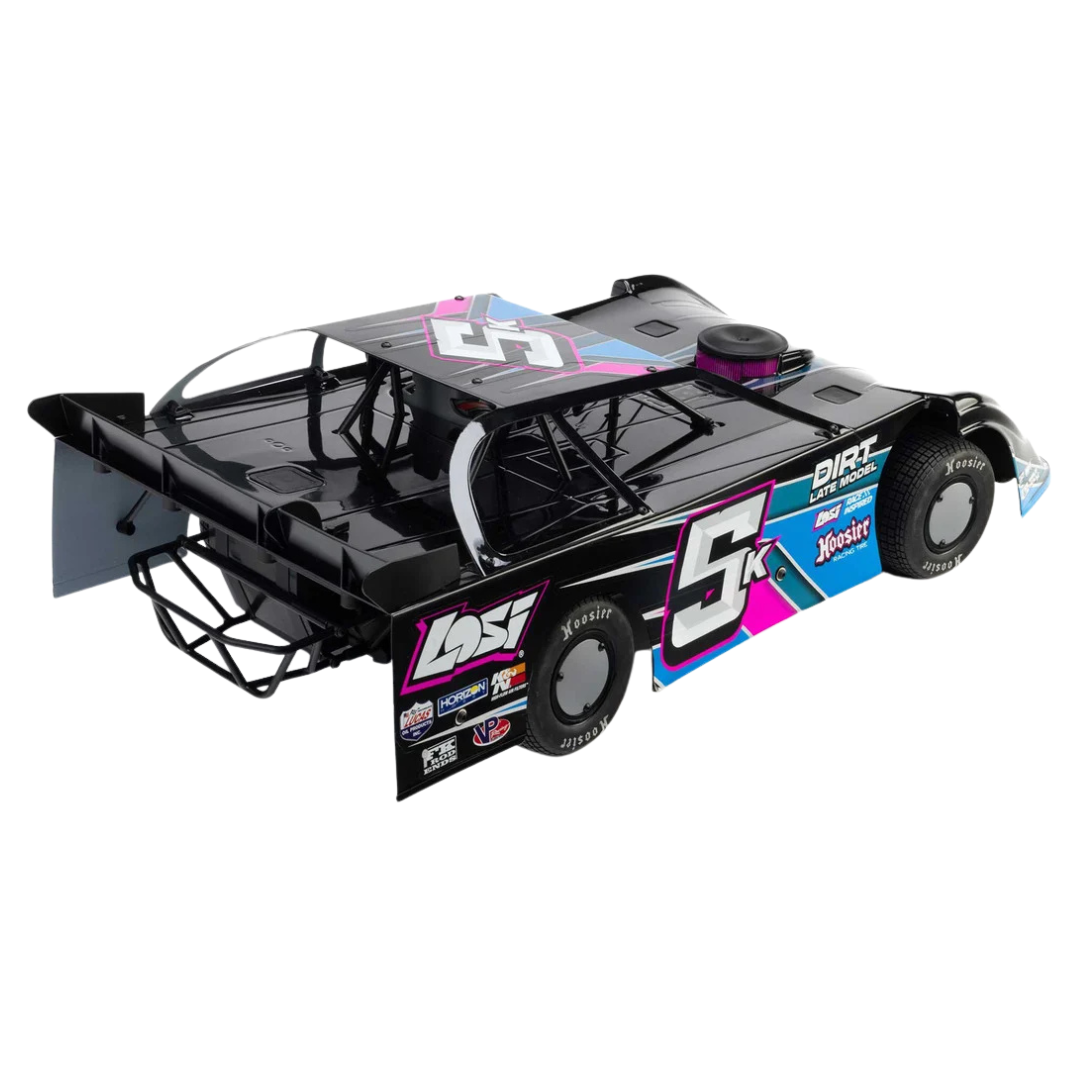

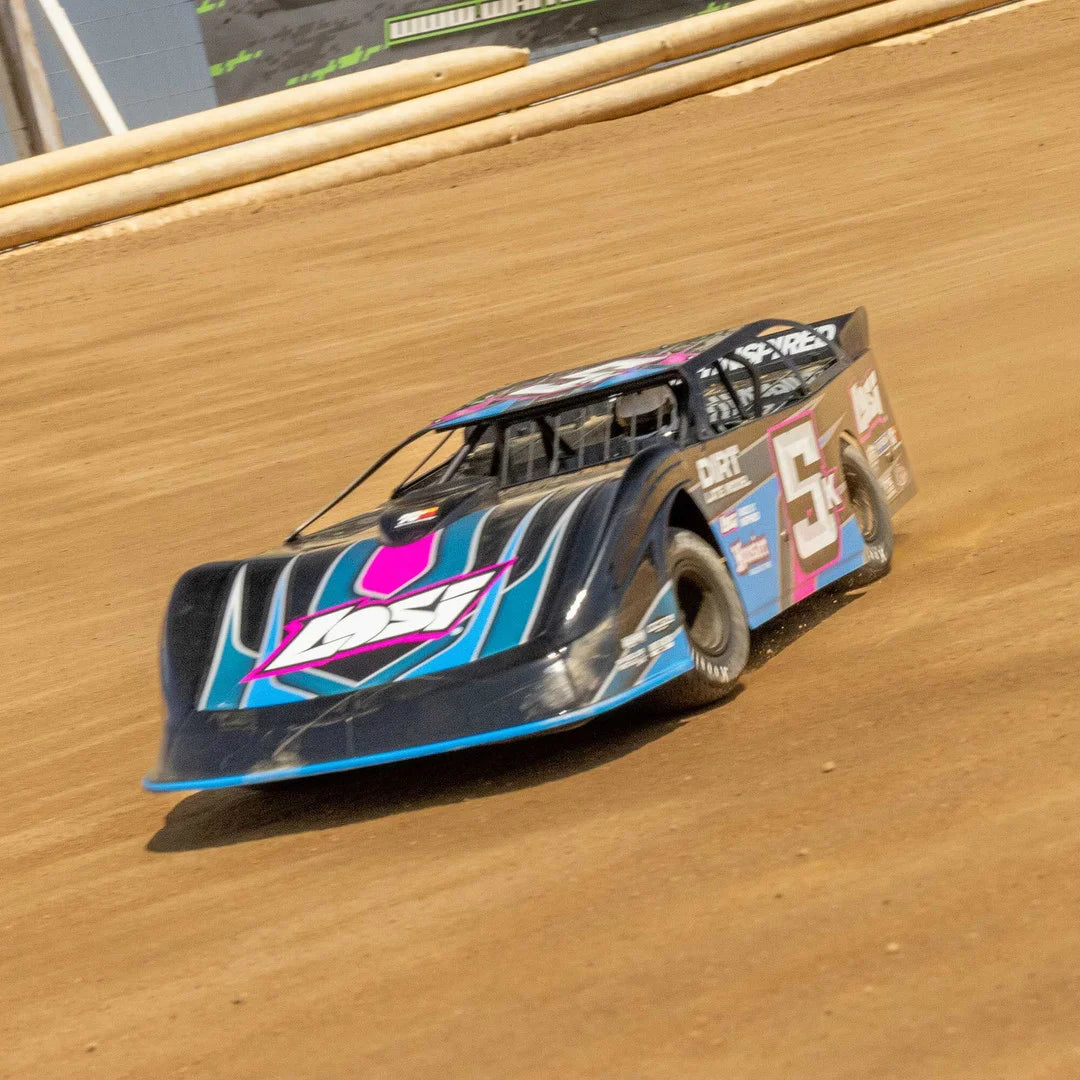

The low-profile closed-wheel body features the skew and twist used by full-size dirt late models, while the clipless body and roll-cage assembly lifts away for easier battery changes, maintenance and setup adjustments. A Spektrum 3300Kv brushless power system provides manufacturer-rated speeds above 25 mph when used with a suitable 2S LiPo battery.

Features

• Dirt Oval Design: Purpose-built for dirt and clay oval tracks with a low-profile closed-wheel late-model body
• TLR 22-Based Geometry: Uses competition-derived suspension and drivetrain geometry shared with the Losi 22S Sprint platform
• Brushless Power System: Spektrum Firma 3650 3300Kv brushless motor and Firma 45A Smart Lite ESC
• Adjustable Speed Limiting: The SLT2 transmitter can limit maximum throttle to 50% or 75% while drivers develop control

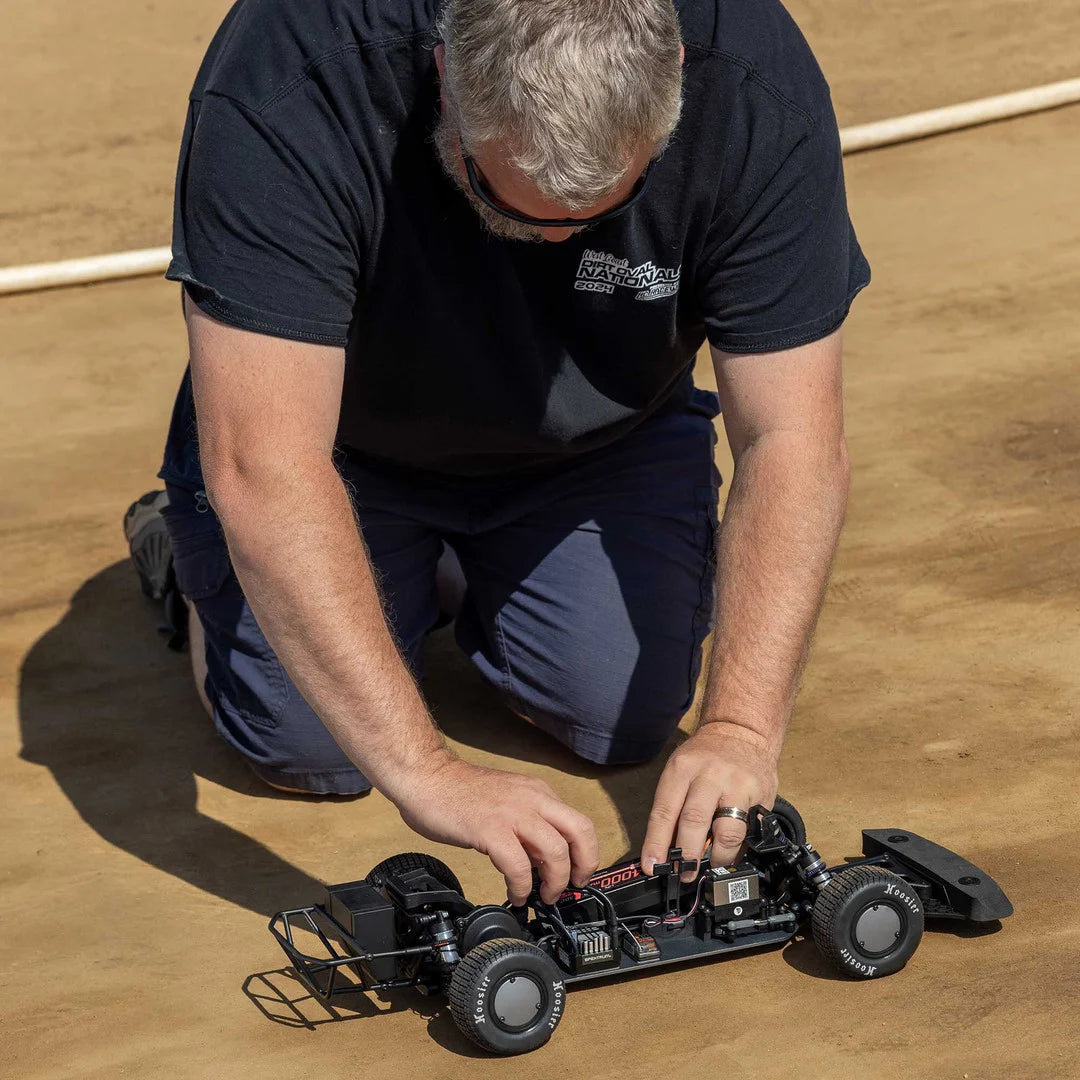

• Clipless Body Access: The complete body and roll-cage assembly releases through the moulded air-cleaner mechanism

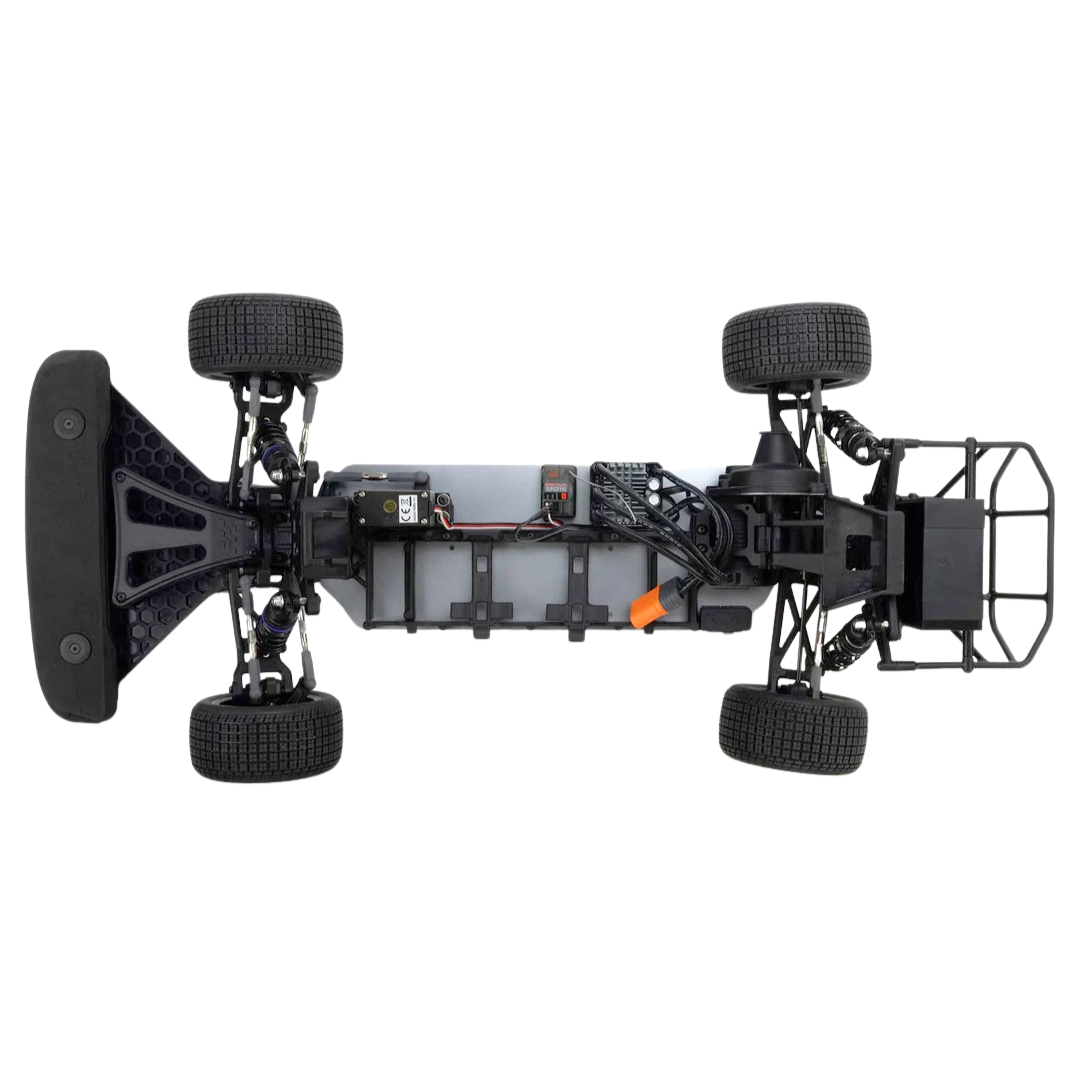

• Aluminium Chassis: 2.5 mm 6061-T6 aluminium chassis plate provides a rigid base for oval racing
• Metal Drivetrain: All-metal transmission with an adjustable dual slipper clutch and sealed gear differential

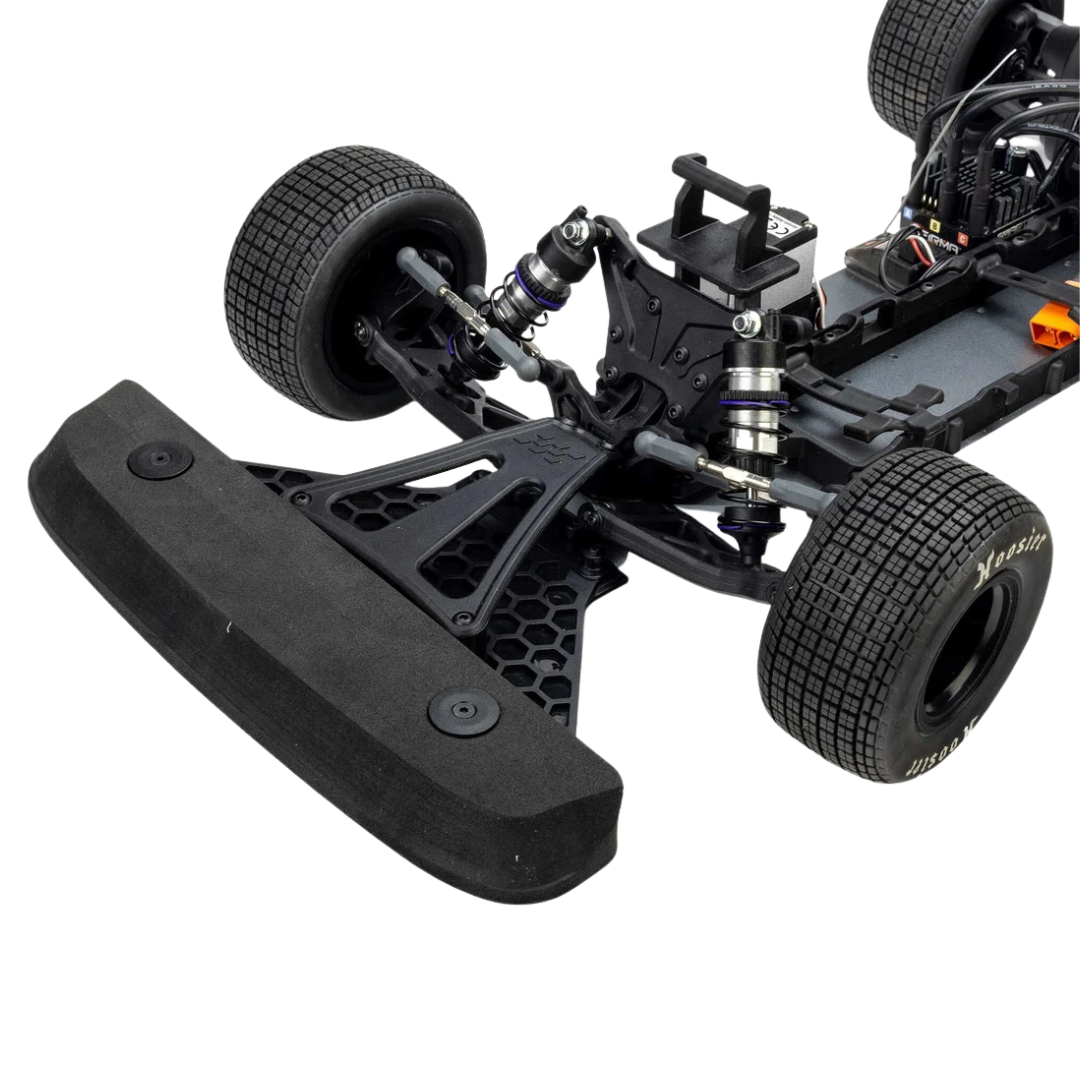

• Adjustable Suspension: Threaded aluminium shock bodies and adjustable steel turnbuckles support track setup changes
• Adjustable Battery Tray: Movable stops and elastomer retaining straps accommodate compatible full-length and shorty battery packs
• Scale Detailing: Hand-painted driver, race seat, steering wheel, dashboard, roll cage and detailed late-model body
• Licensed Wheels and Tyres: Scale-style Wide 5 wheels fitted with officially licensed soft-compound Hoosier tyres
• Customisable Appearance: Includes number and letter decal sheets, with downloadable body-panel templates available from Losi
• Option-Part Support: Accepts many compatible Losi, 22S Sprint and TLR-Tuned suspension and transmission parts

Specifications

• Brand: Losi
• Model: 22S Dirt Late Model
• Manufacturer Part Number: LOS-2167T1
• UPC/GTIN: 660132670917
• Colour: Blue
• Scale: 1/10
• Vehicle Type: Dirt oval late-model RC car
• Completion Level: Ready-To-Run
• Power Type: Electric
• Drivetrain: 2WD
• Drive Functions: Forward, brake and reverse
• Power System: 2S brushless
• Motor: Spektrum Firma 3650 3300Kv brushless motor
• Electronic Speed Controller: Spektrum Firma 45A Brushless Smart Lite ESC
• Battery Compatibility: 2S LiPo
• Battery Connector: IC5
• Radio: Spektrum SLT2 two-channel 2.4GHz transmitter
• Receiver: Spektrum SR215 DSMR two-channel receiver with transponder power port
• Steering Servo: Spektrum S684 25T waterproof metal-gear servo
• Chassis: 2.5 mm 6061-T6 aluminium
• Transmission: All-metal gear transmission
• Differential: Sealed gear differential with 3000 cSt differential fluid
• Slipper Clutch: Adjustable dual slipper
• Pinion Gear: 20T
• Spur Gear: 84T
• Internal Gear Ratio: 2.43:1
• Final Drive Ratio: 10.21:1
• Shock Oil: 30 wt front and 35 wt rear
• Wheel Hex: 12 mm
• Manufacturer-Rated Top Speed: More than 25 mph or approximately 40 km/h
• Length: 616 mm
• Width: 300 mm
• Height: 163 mm
• Weight: 2.5 kg without battery

Includes

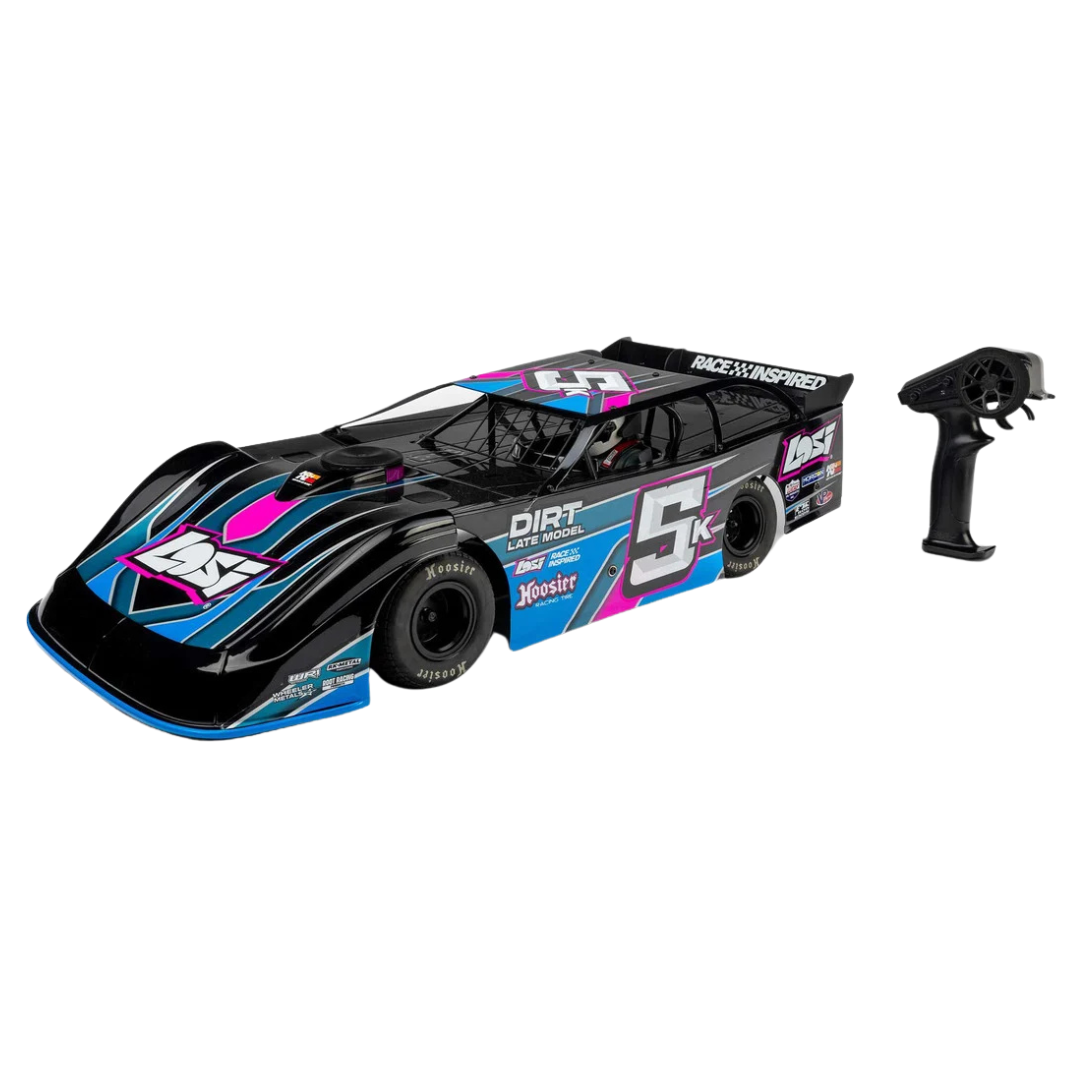

• 1 x Losi 22S Dirt Late Model 1/10 2WD RTR RC car in blue
• 1 x Spektrum SLT2 two-channel 2.4GHz transmitter
• 1 x Spektrum SR215 DSMR two-channel receiver, factory installed
• 1 x Spektrum Firma 45A Brushless Smart Lite ESC, factory installed
• 1 x Spektrum Firma 3650 3300Kv brushless motor, factory installed
• 1 x Spektrum S684 25T waterproof metal-gear steering servo, factory installed
• 4 x AA transmitter batteries
• 1 x Metal four-way nut driver
• Composite shock tools
• Custom number and letter decal sheets
• Instruction manual

FAQ

Does LOS-2167T1 include a battery and charger? No. The blue LOS-2167T1 version requires a compatible 2S LiPo battery with an IC5 connector and a suitable LiPo charger, both sold separately.

Is the Losi 22S Dirt Late Model fully assembled? Yes. The vehicle is supplied factory assembled with the motor, ESC, receiver and steering servo installed, but a drive battery and charger must be added before use.

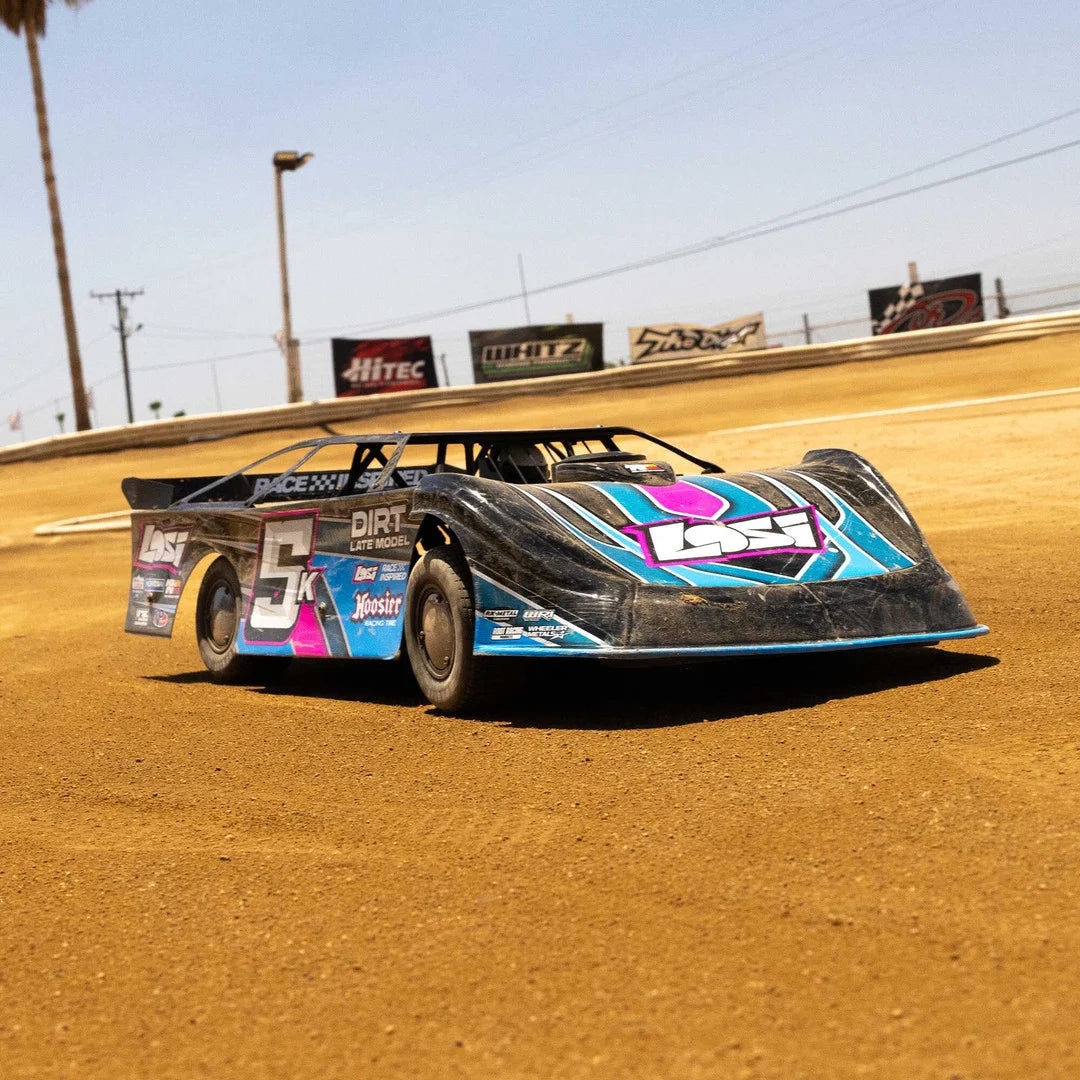

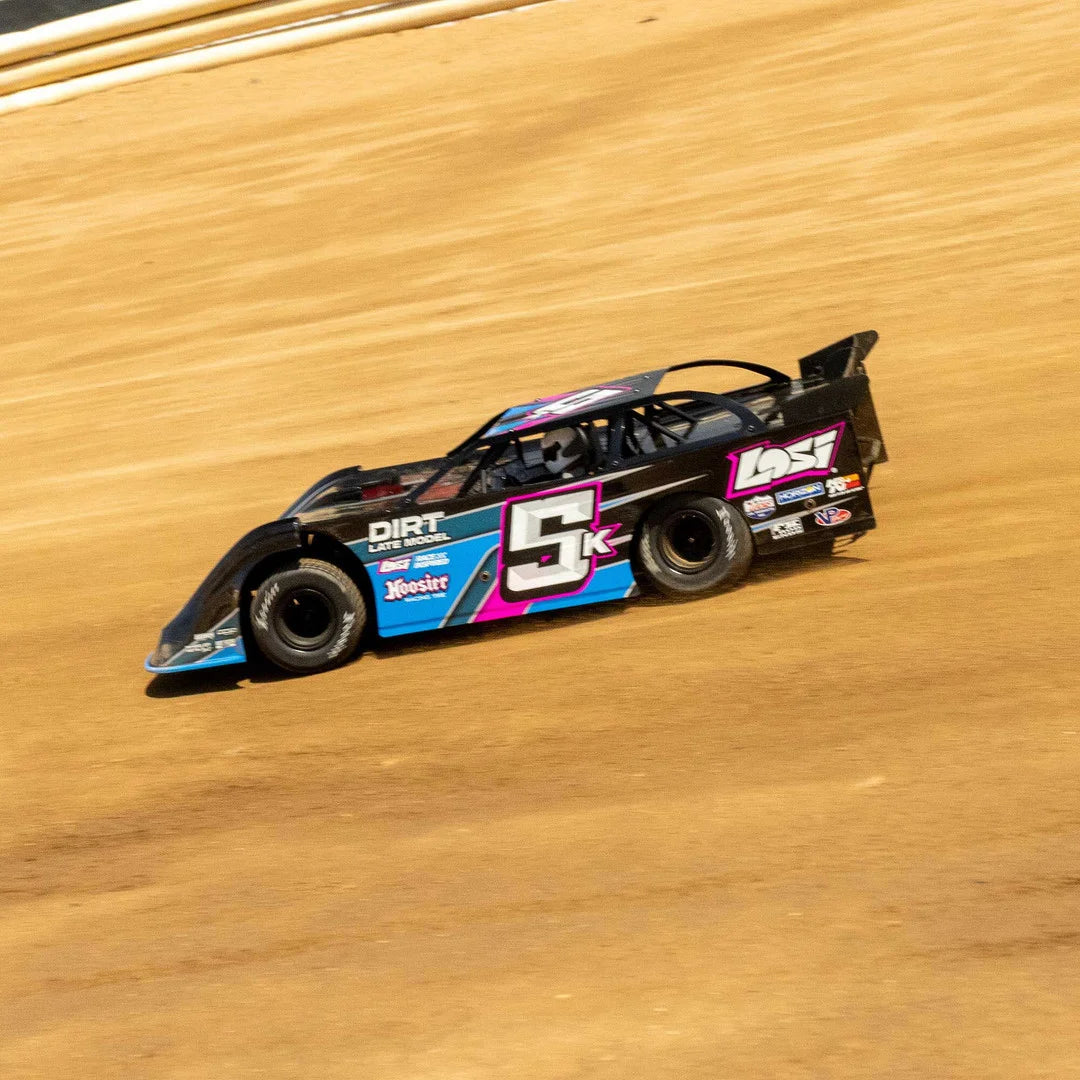

What type of track suits the Losi 22S Dirt Late Model? The vehicle is designed primarily for dirt and clay oval tracks, including flat or banked layouts. A simple oval can also be marked on a suitable smooth sealed surface.

Can Losi 22S Sprint option parts be used? Many suspension and transmission components are shared with the 22S Sprint platform. OZRC recommends confirming the individual part number before ordering because not every body or chassis-specific component is interchangeable.

Important Notes

• A compatible 2S LiPo battery fitted with an IC5 connector is required separately
• A LiPo-compatible battery charger is required separately
• The electronic power system is specified for 2S operation; do not substitute a higher-voltage battery
• This LOS-2167T1 blue version does not include the battery and charger supplied with the separate Summit Racing LOS-2168T1 package
• Always confirm battery dimensions and connector type before purchase, particularly when selecting a shorty battery pack
