Losi 22S Dirt Late Model 1/10 2WD RC Dirt Oval Car RTR Summit Racing LOS-2168T1

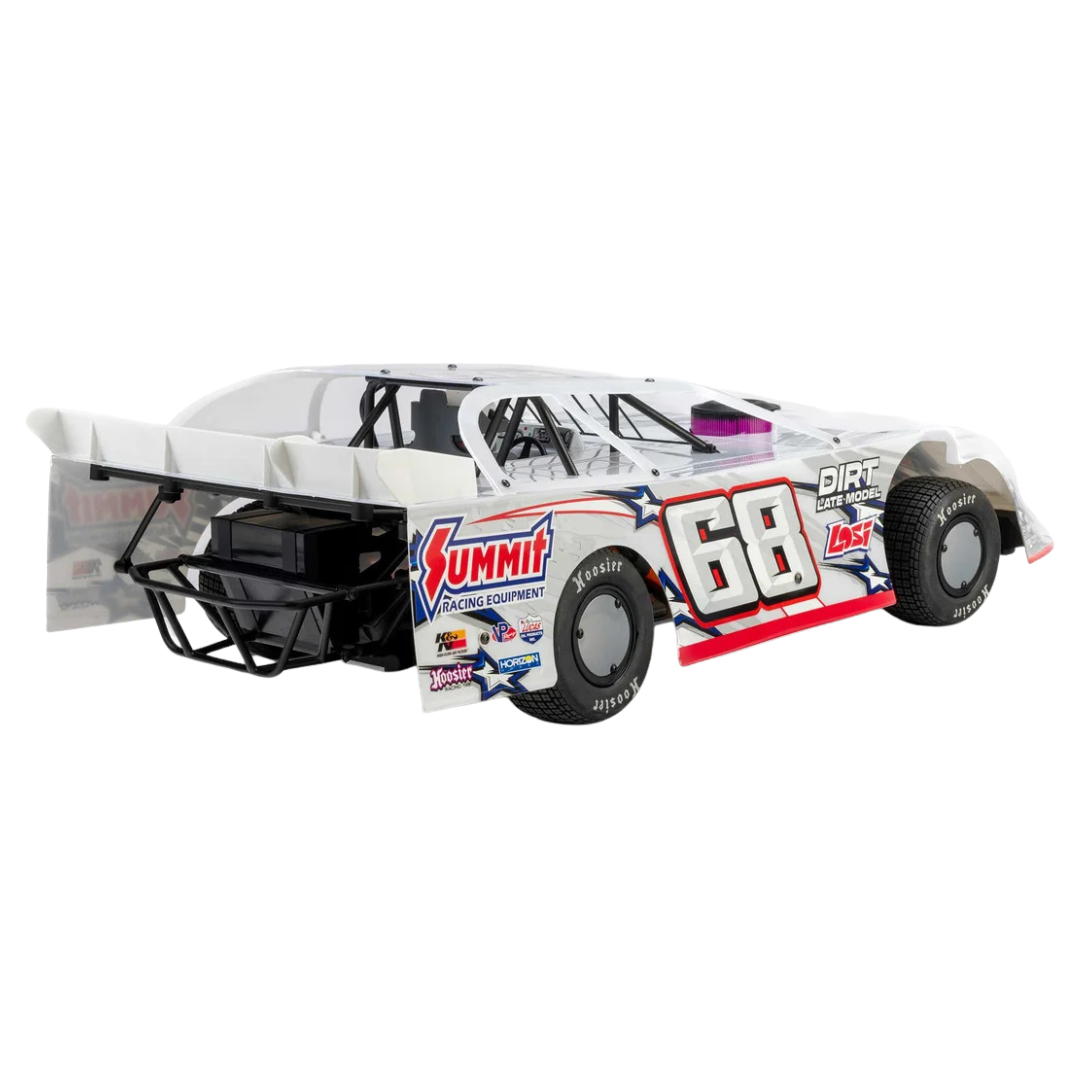

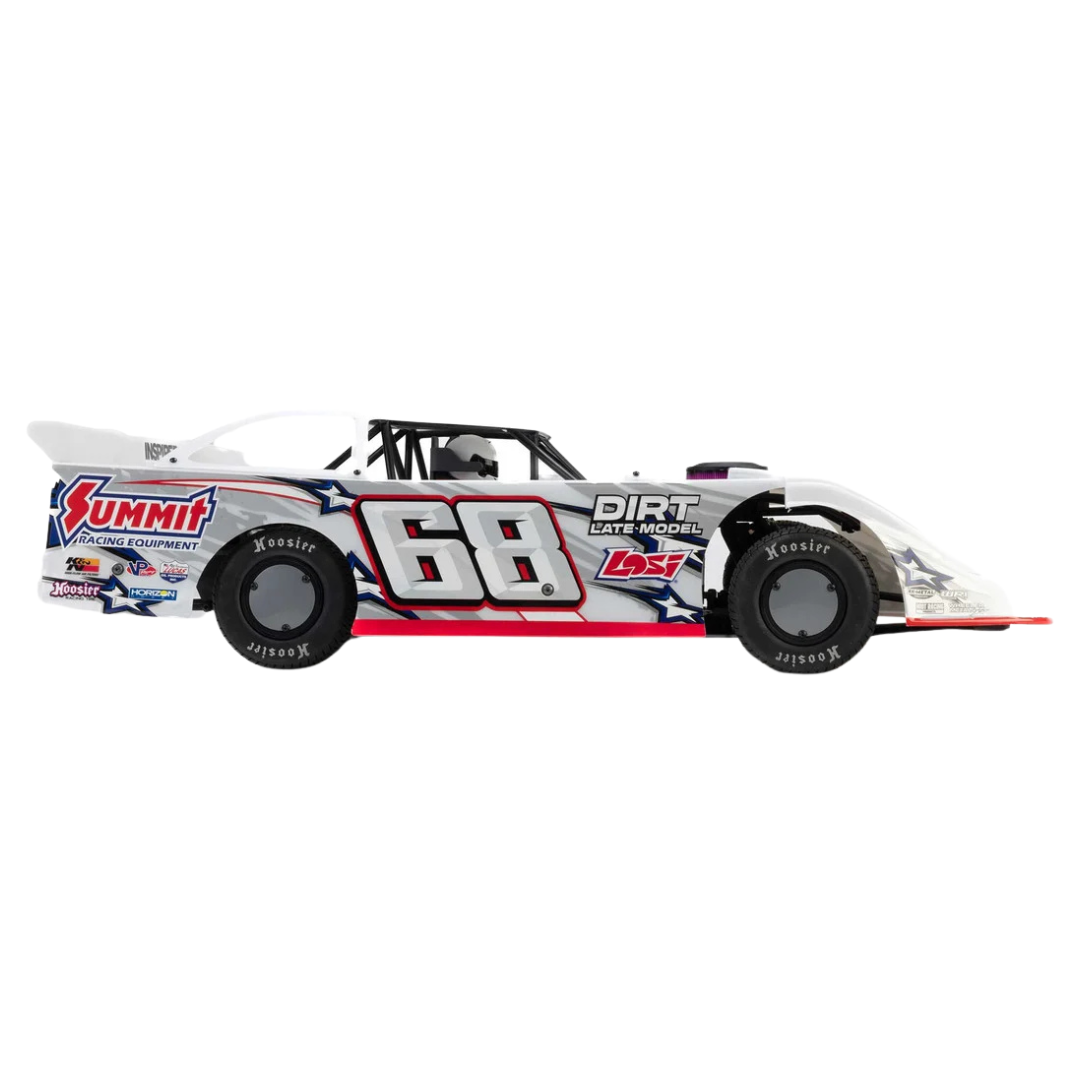

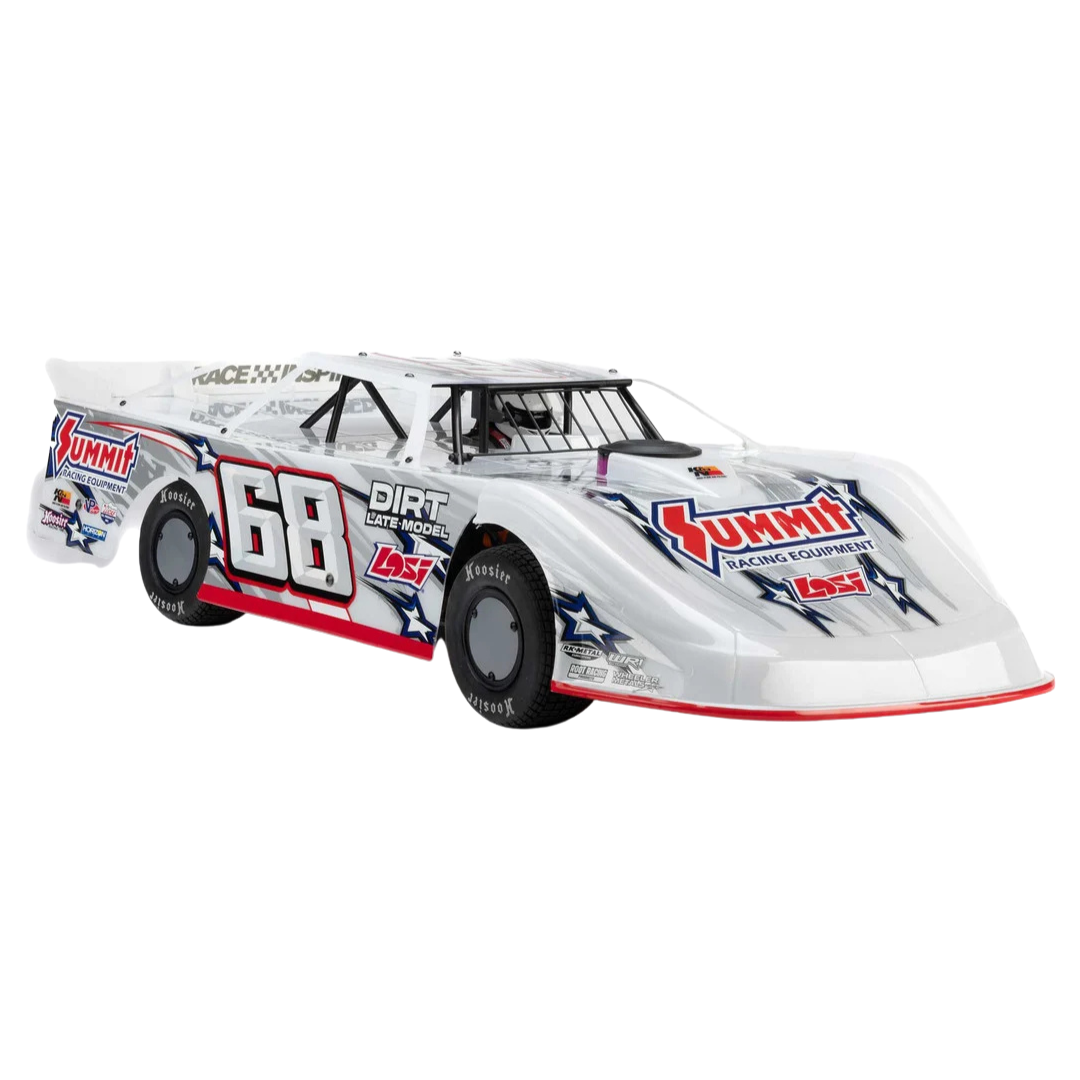

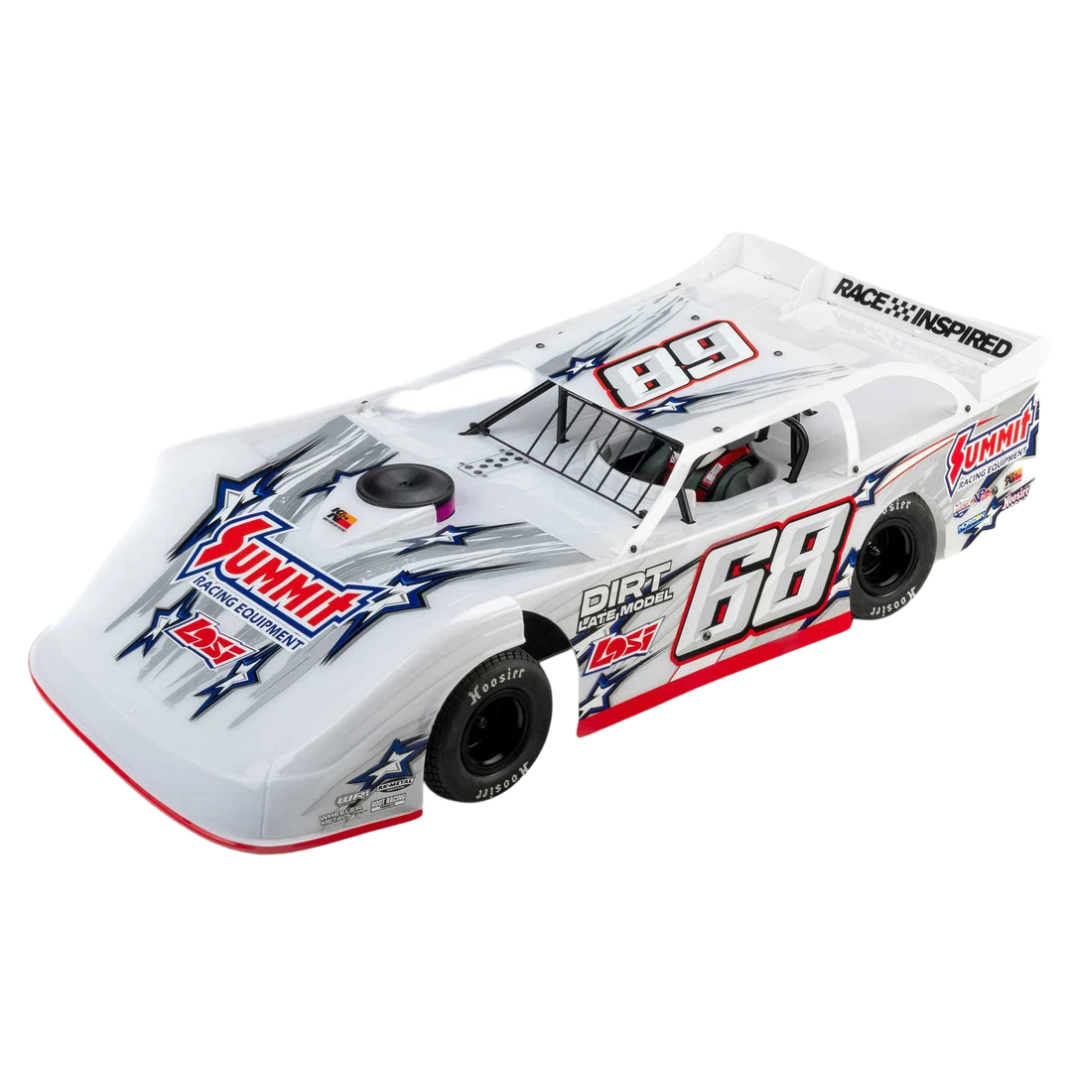

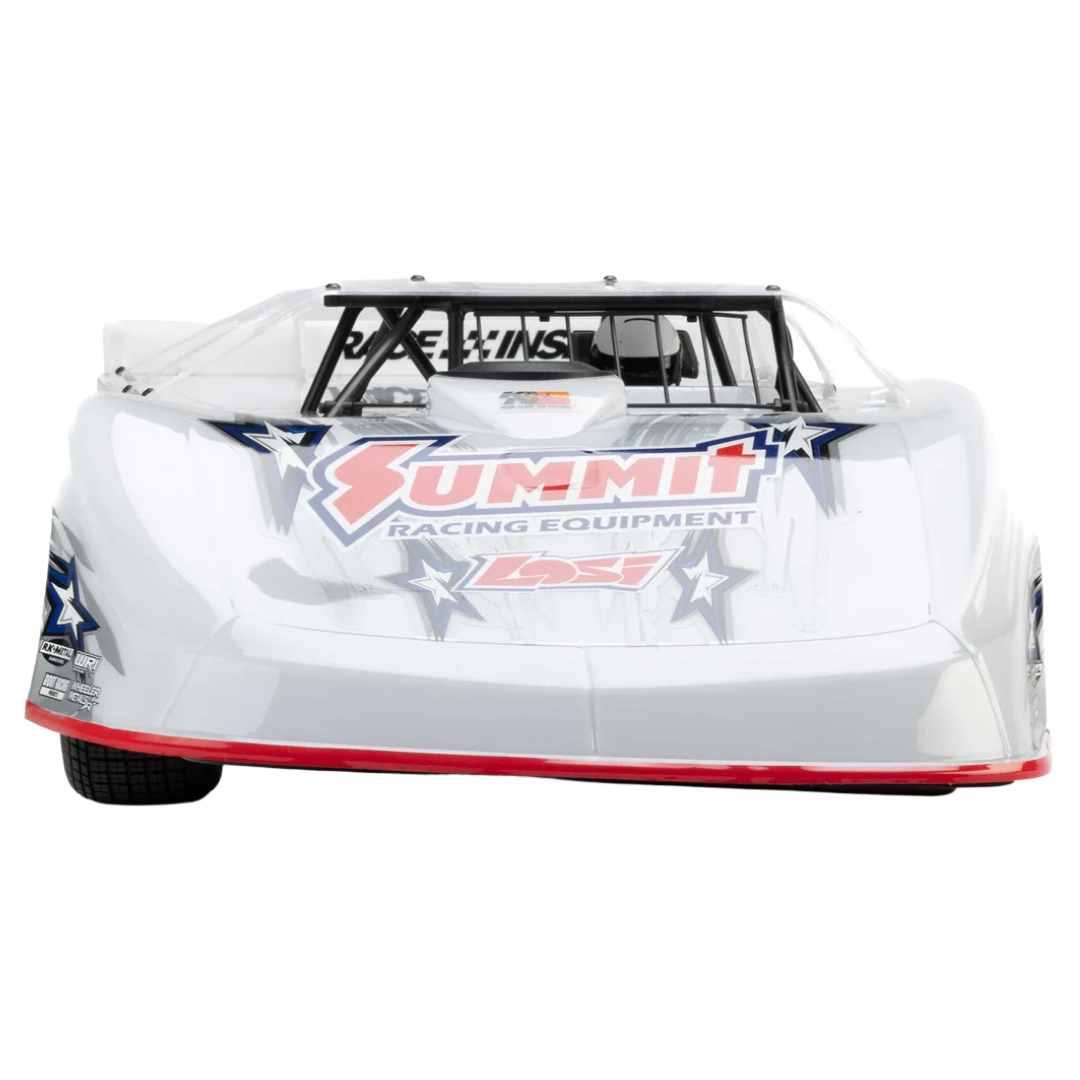

The Losi 22S Dirt Late Model is a 1/10 scale 2WD brushless RTR RC oval car designed for dirt, clay and marked hard-surface ovals, supplied with the radio system, Smart LiPo battery and charger needed to start racing.

Built around competition-proven TLR 22 geometry, the 22S Dirt Late Model combines a low centre of gravity with a durable aluminium chassis, adjustable suspension and a closed-wheel body that supports close side-by-side racing. This Summit Racing edition features an officially licensed livery, detailed driver compartment and clipless body mounting for quick battery changes and chassis access.

Features

• Ready-to-run package with transmitter, receiver, battery, charger and transmitter batteries
• Competition-proven TLR 22 suspension and drivetrain geometry
• Spektrum Firma 3650 3300Kv brushless motor
• Spektrum Firma 45A Smart Lite brushless ESC
• Manufacturer-rated speed of more than 25 mph, approximately 40 km/h
• Low centre of gravity for stable and predictable oval cornering
• Officially licensed Summit Racing livery

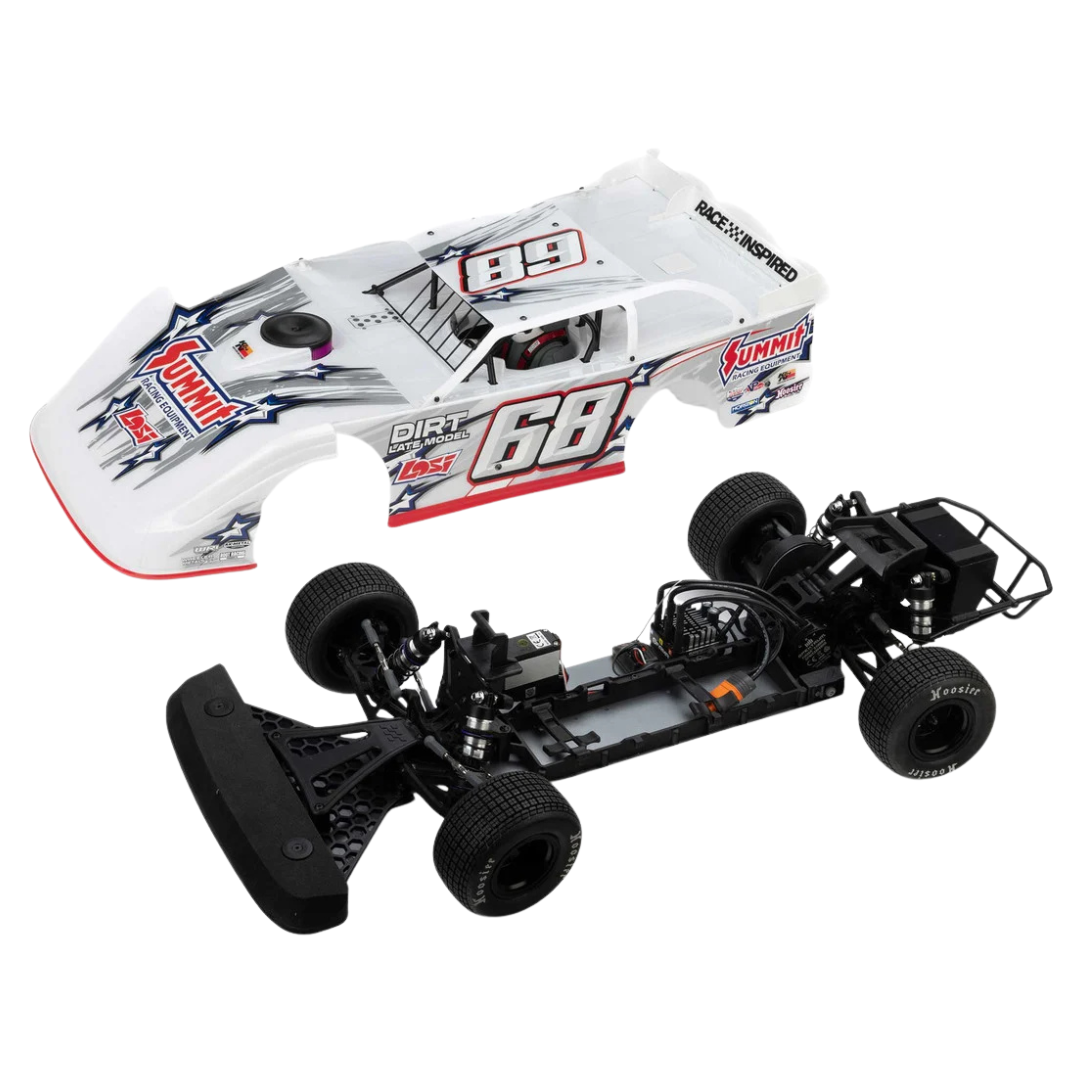

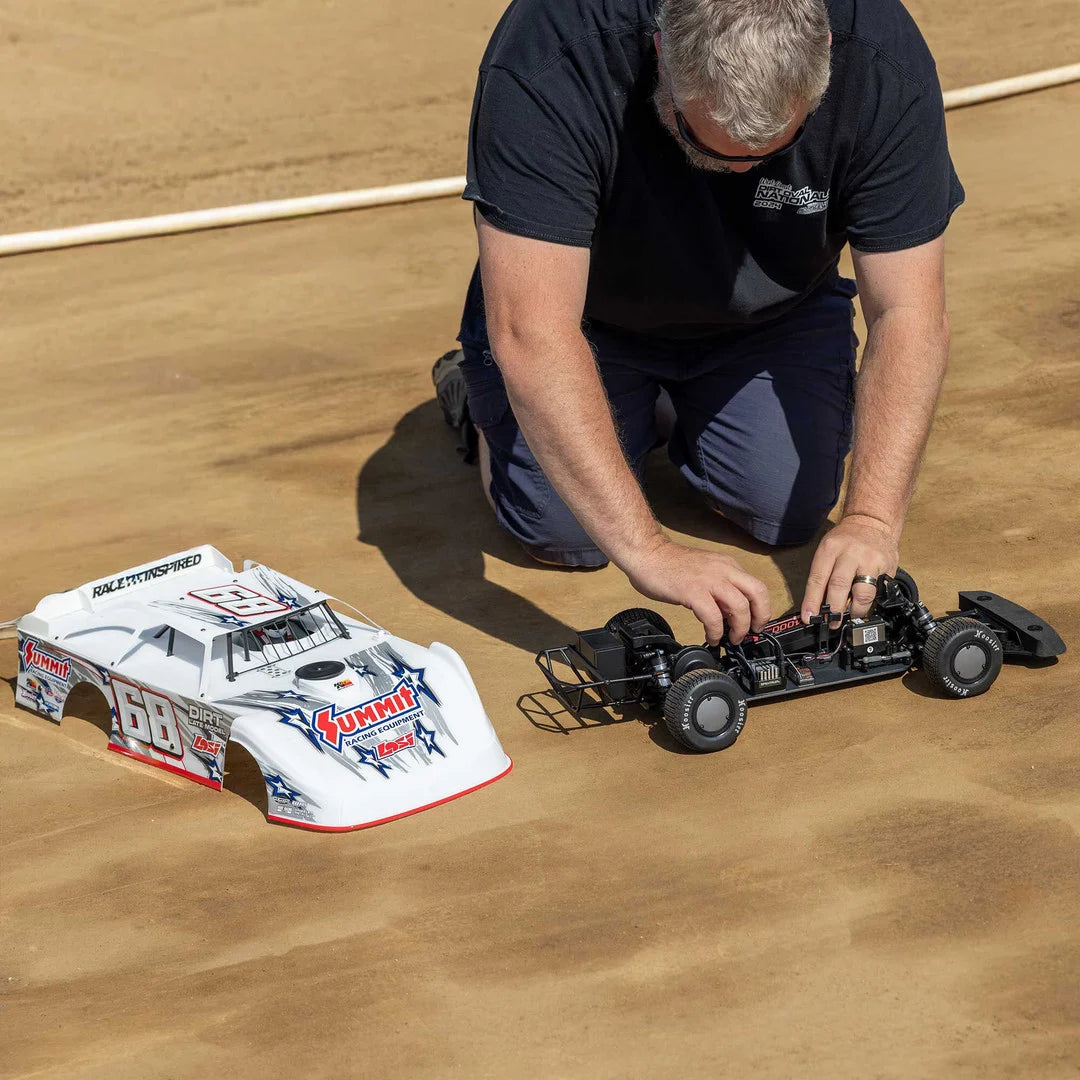

• Clipless body and roll-cage mounting system for easier chassis access

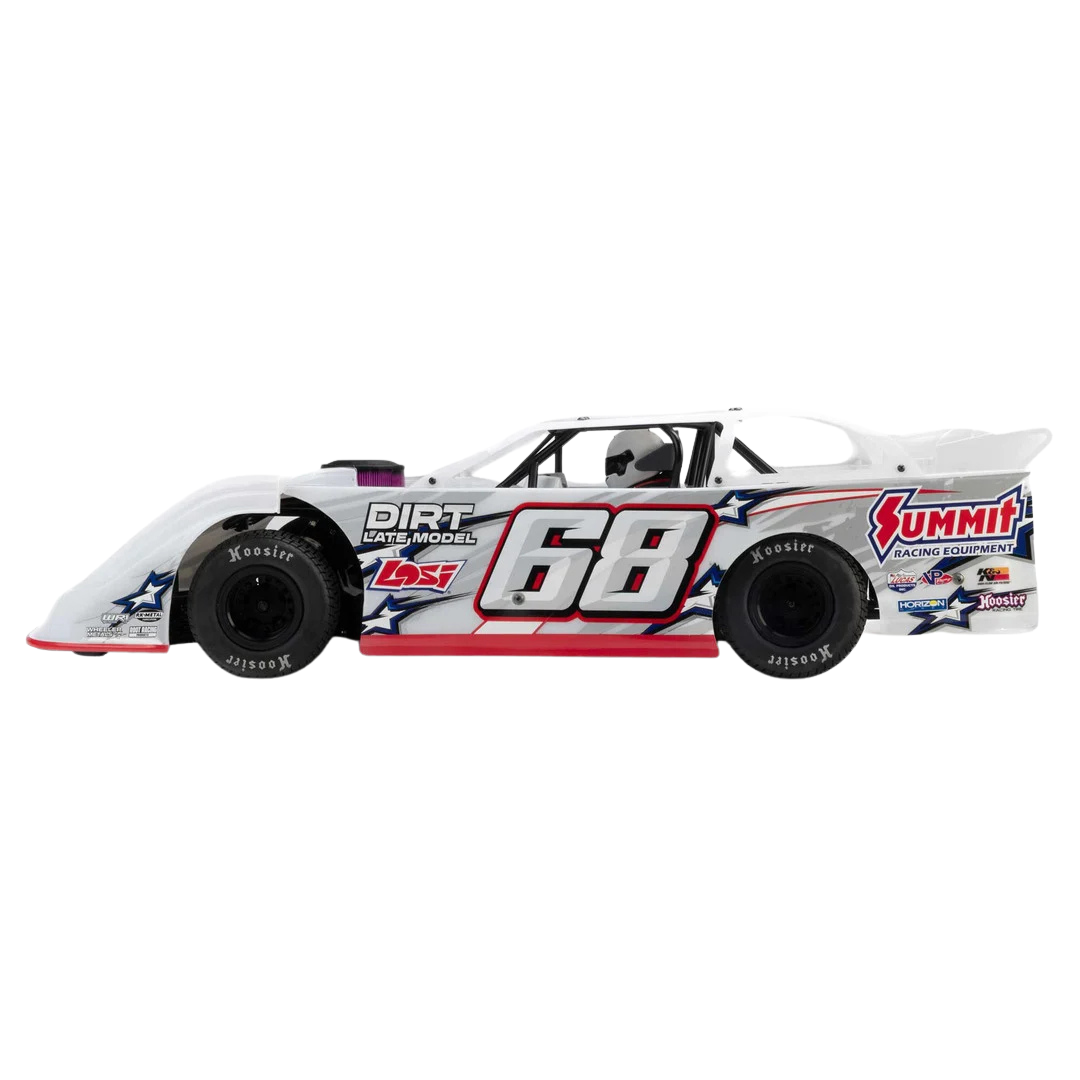

• Authentic late-model body with scale-correct skew and twist
• Hand-painted driver figure, race seat, steering wheel and detailed dash panel
• 2.5 mm 6061-T6 aluminium chassis
• Threaded aluminium shock bodies with adjustable spring collars
• Adjustable steel turnbuckles
• All-metal transmission with adjustable dual slipper clutch
• Sealed gear differential supplied with 3000 cSt differential fluid
• Adjustable battery tray suitable for supported full-length and shorty battery packs
• Officially licensed soft-compound Hoosier tyres on scale wide-five wheels
• Compatible with many existing Losi and TLR option parts used by the 22S platform
• Custom number and letter decal sheets included

Specifications

• Brand: Losi
• Model: 22S Dirt Late Model
• Manufacturer Part Number: LOS-2168T1
• Scale: 1/10
• Vehicle Type: Dirt oval late model RC car
• Completion Level: Ready-to-run
• Drivetrain: 2WD
• Power Type: Electric
• Motor Type: Brushless
• Motor: Spektrum Firma 3650 3300Kv
• ESC: Spektrum Firma 45A Brushless Smart Lite
• Battery: Spektrum Smart G2 7.4V 4000mAh 2S 30C hardcase LiPo
• Battery Connector: IC5
• Charger: Spektrum Smart S160 USB-C 1x60W charger with IC5 output
• Radio: Spektrum SLT2 2-channel 2.4GHz transmitter
• Receiver: Spektrum SR215 DSMR 2-channel sport receiver with transponder power port
• Steering Servo: Spektrum S684 waterproof metal-gear servo with 25T output
• Chassis: 2.5 mm 6061-T6 aluminium
• Differential: Sealed gear differential with 3000 cSt fluid
• Final Drive Ratio: 10.21:1
• Internal Gear Ratio: 2.43:1
• Pinion Gear: 20T
• Spur Gear: 84T
• Wheel Hex: 12 mm
• Tyres: Licensed Hoosier soft-compound oval tyres
• Shock Oil: 30 wt front and 35 wt rear
• Length: 616 mm
• Width: 300 mm
• Height: 163 mm
• Weight: 2494 g without battery
• Primary Colour: White with Summit Racing graphics

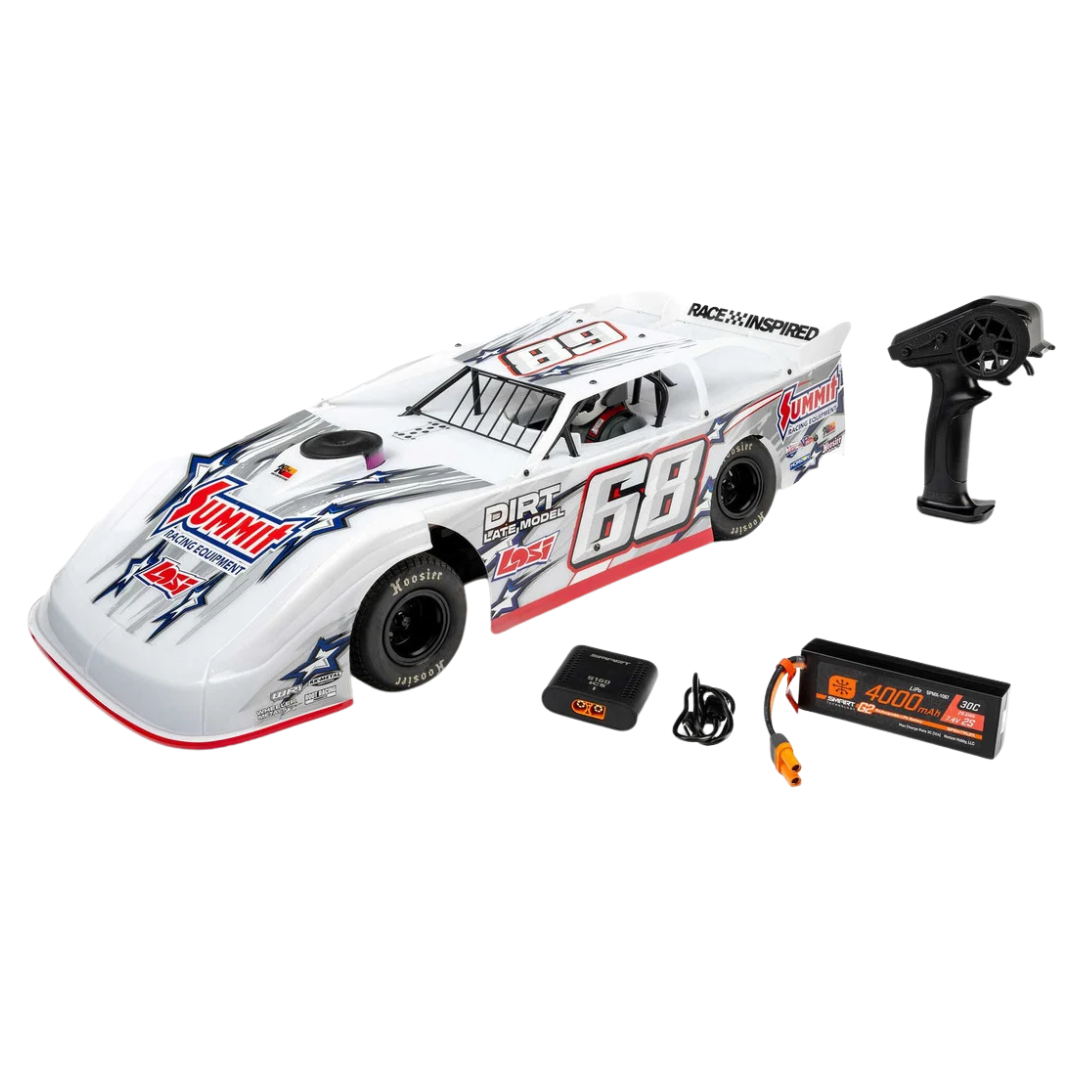

Includes

• 1 x Losi 22S Dirt Late Model 1/10 scale 2WD RTR RC car
• 1 x Spektrum SLT2 2-channel 2.4GHz transmitter
• 1 x Spektrum SR215 DSMR 2-channel sport receiver, factory installed
• 1 x Spektrum Firma 45A Brushless Smart Lite ESC, factory installed
• 1 x Spektrum Firma 3650 3300Kv brushless motor, factory installed
• 1 x Spektrum S684 waterproof metal-gear steering servo, factory installed
• 1 x Spektrum Smart G2 7.4V 4000mAh 2S 30C hardcase LiPo battery with IC5 connector
• 1 x Spektrum Smart S160 USB-C 1x60W charger with IC5 output
• 1 x USB-C charging cable
• 4 x AA transmitter batteries
• 1 x Custom number and letter decal set
• 1 x Metal four-way nut driver
• Composite shock tools
• Instruction manual

FAQ

Does the Losi 22S Dirt Late Model include a battery and charger? Yes. LOS-2168T1 includes a Spektrum Smart G2 4000mAh 2S LiPo battery and a Spektrum S160 USB-C Smart charger.

Is a USB-C wall power supply included? No. The S160 charger includes a USB-C cable, but a suitable USB-C power supply is required separately. The Spektrum SPMX-1027 65W power supply is available separately for maximum supported charging performance.

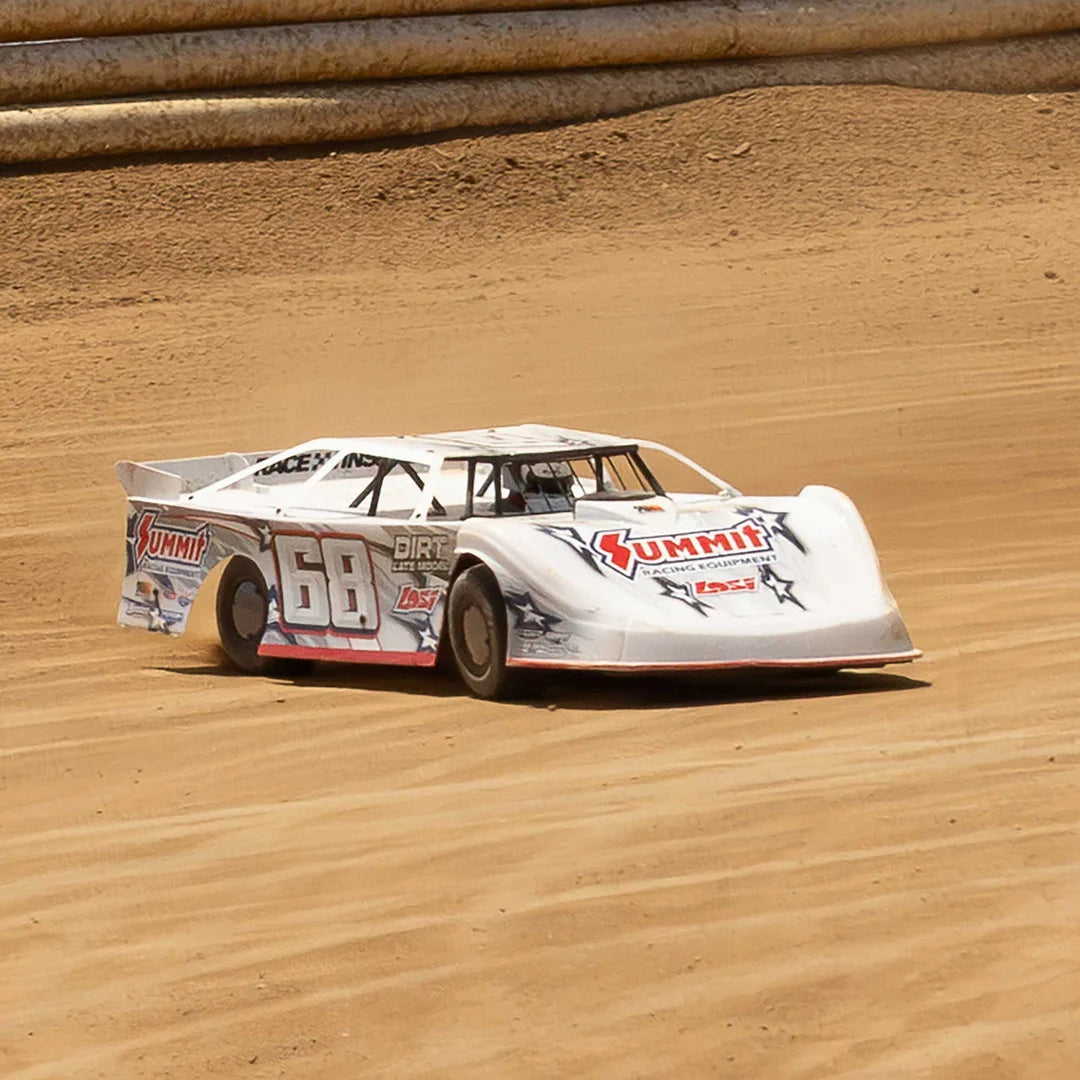

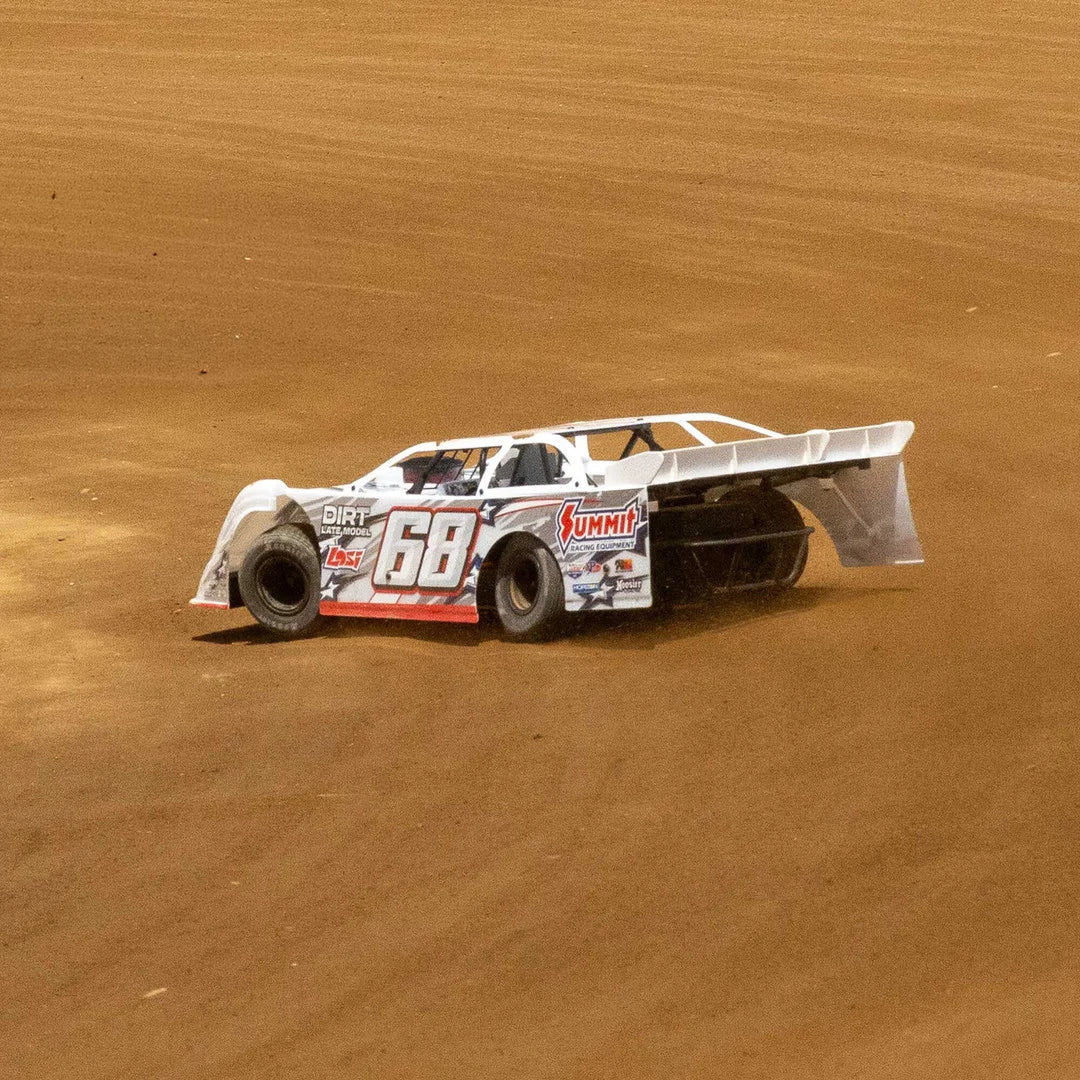

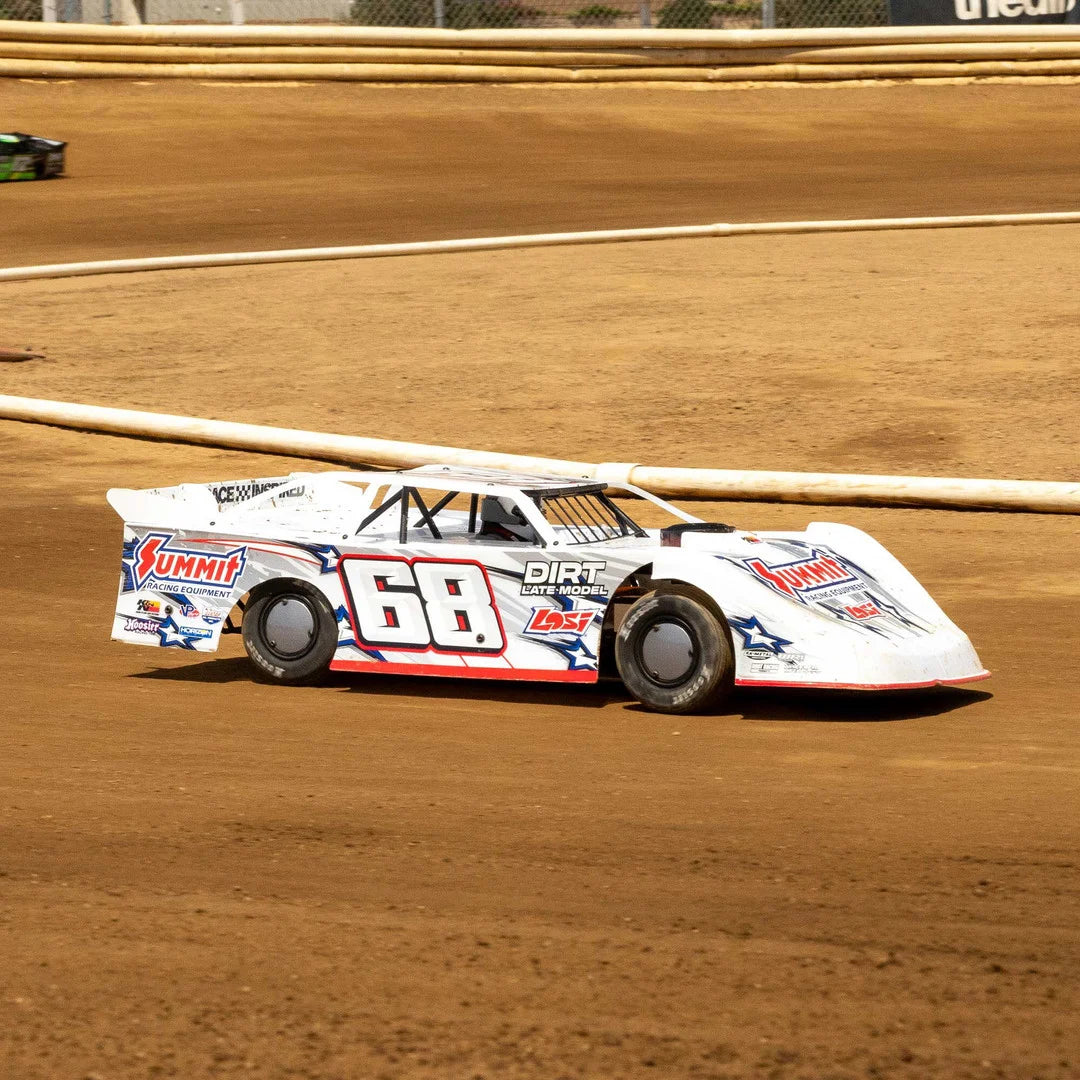

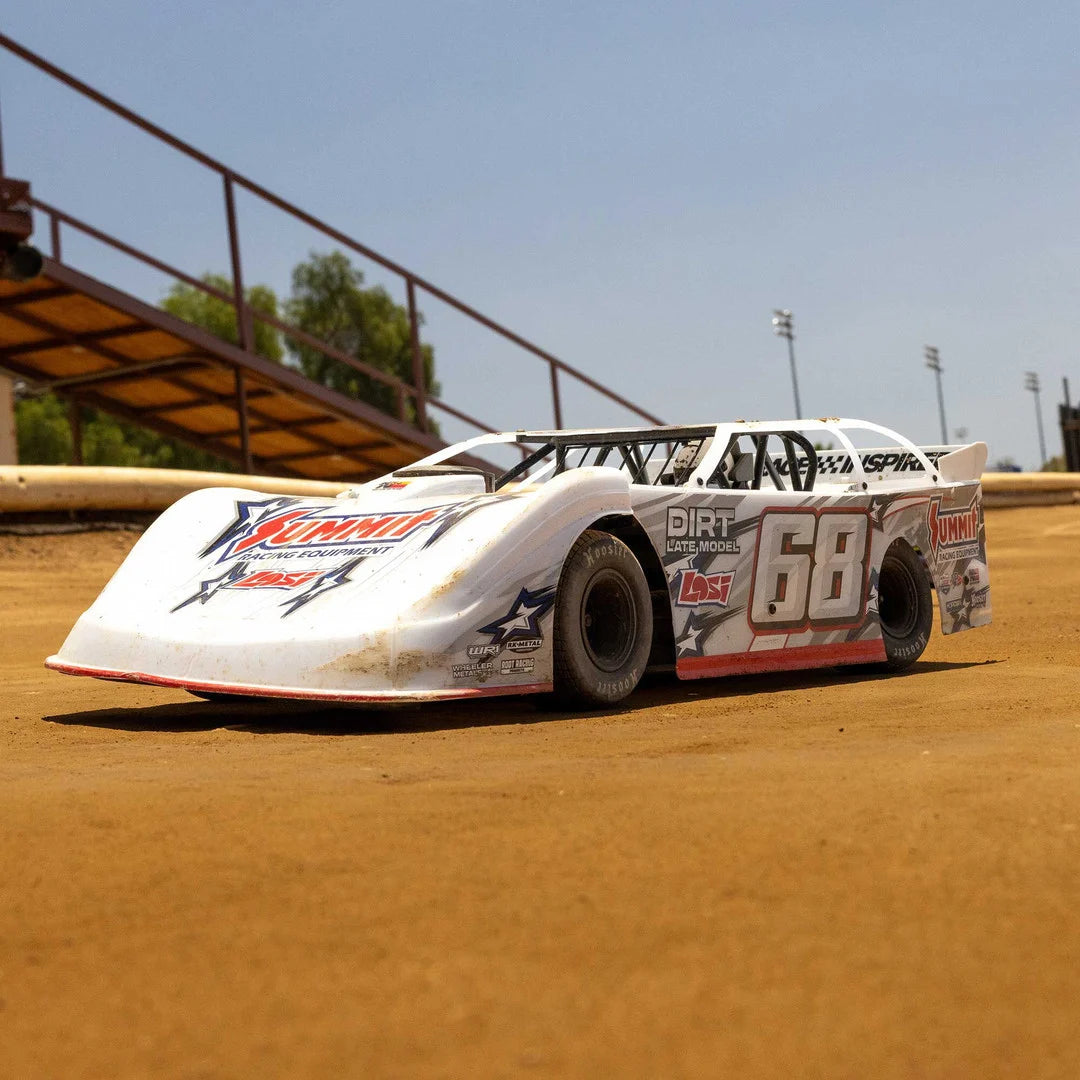

Where can the Losi 22S Dirt Late Model be driven? The car is designed primarily for dirt and clay RC oval tracks but can also be used on smooth marked ovals such as suitable driveways, parking areas and basketball courts.

Can 22S Sprint option parts be used? Many suspension and transmission parts are shared with the Losi 22S Sprint platform. OZRC recommends confirming the individual option-part number before ordering because not every Sprint component will suit the Dirt Late Model body or chassis installation.

Important Notes

• A USB-C wall power supply is not included with the S160 charger and is required to power it.
• Always charge the included LiPo battery using a compatible LiPo charger on a non-flammable surface and follow the battery and charger safety instructions.
• The quoted 35-minute charging time requires the separately available Spektrum SPMX-1027 65W USB-C power supply and may vary with battery condition and charging conditions.
• The supplied soft-compound tyres suit many dirt oval surfaces. Medium-compound tyres are available separately for higher-traction or higher-wear tracks.
• Check local club regulations before racing, as permitted motors, batteries, tyres and setup rules can vary between classes and tracks.
