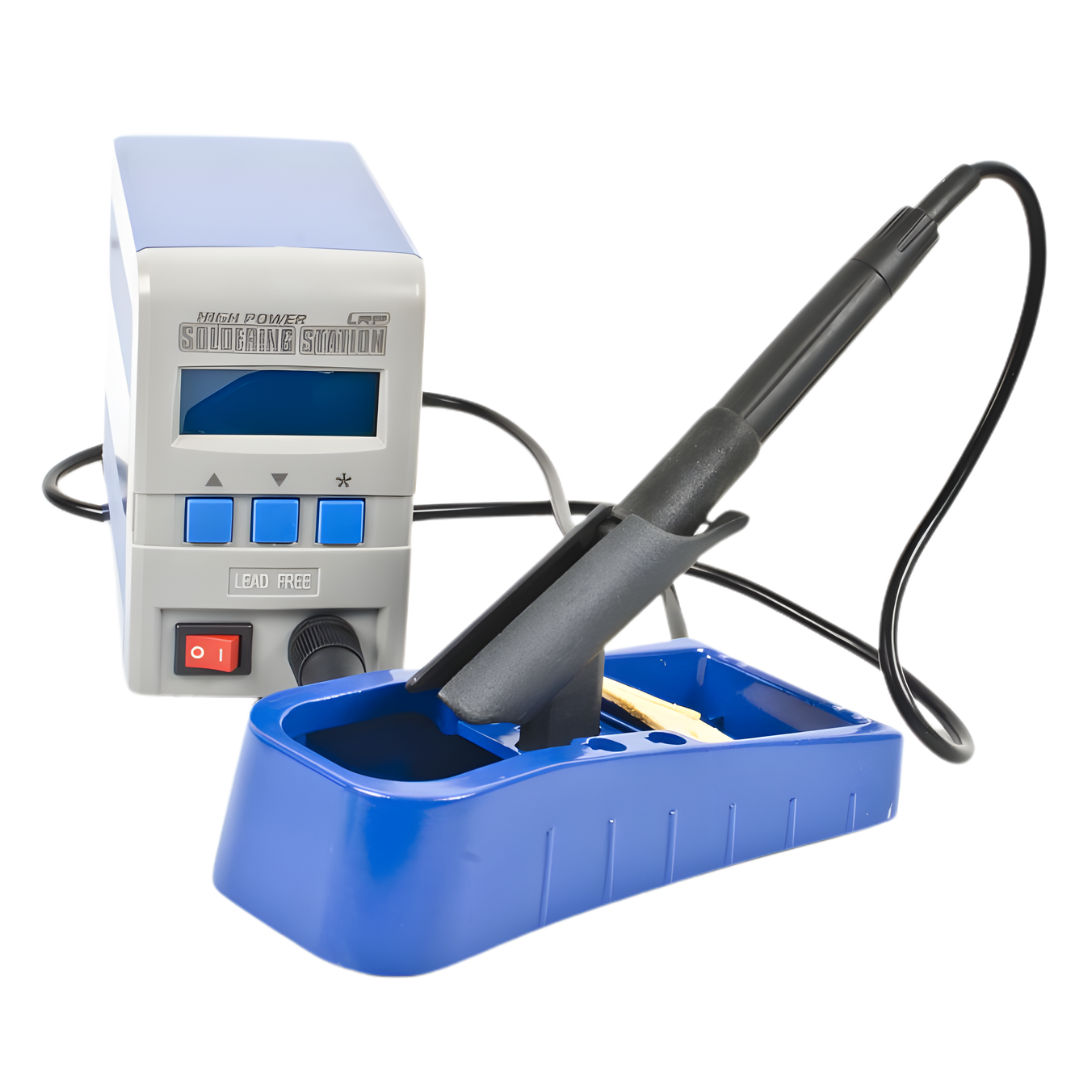

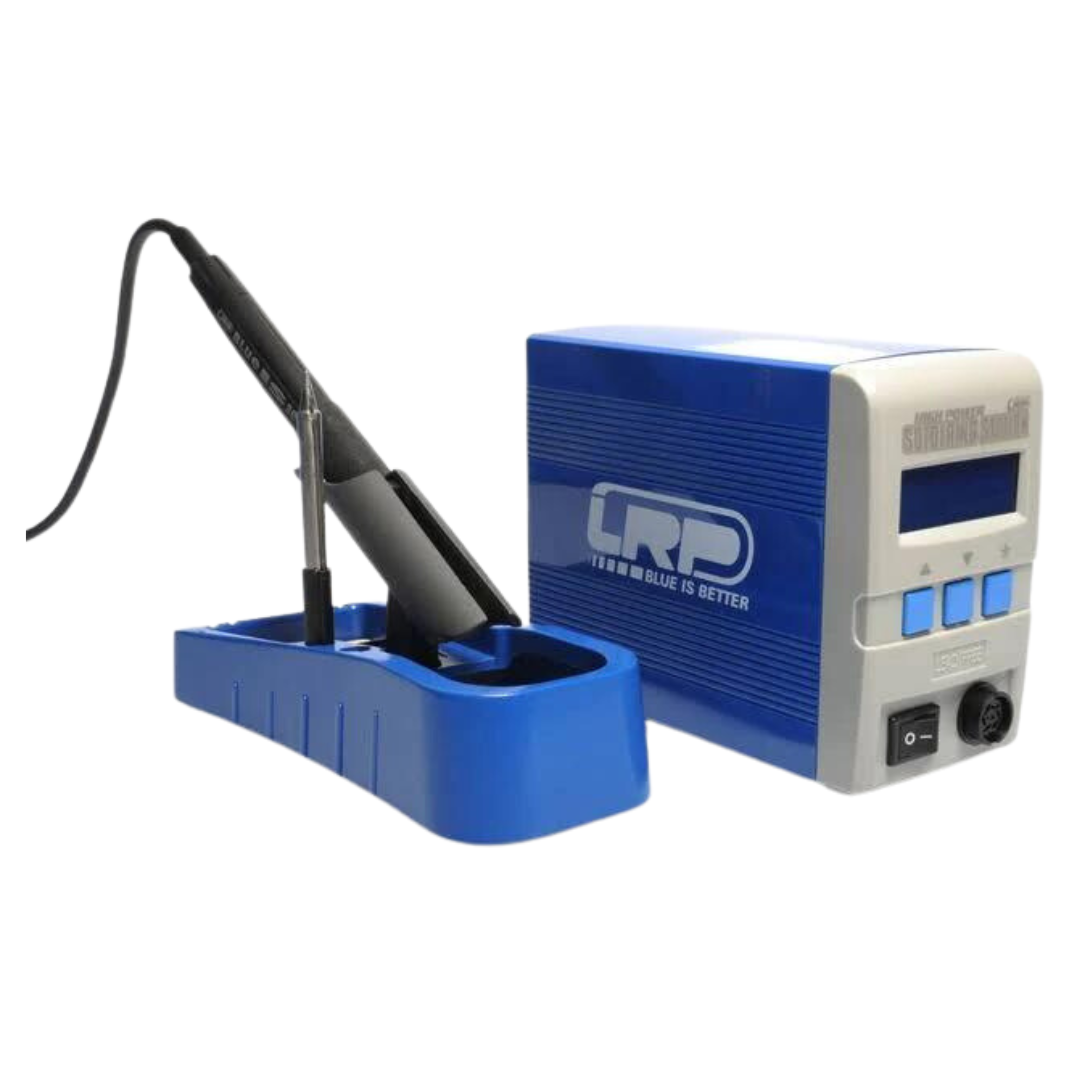

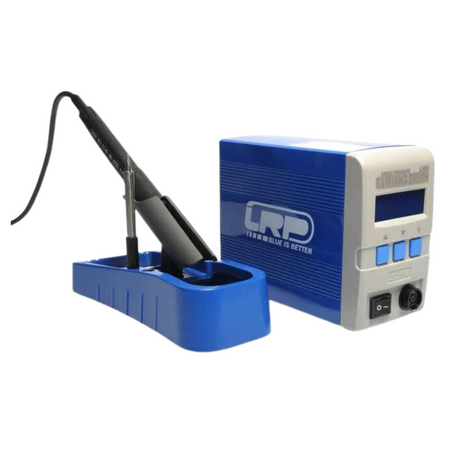

LRP HighPower 90W RC Soldering Station LRP-65800

The LRP HighPower 90W RC Soldering Station is a compact workshop and pit bench soldering station for RC hobbyists, giving builders the controlled heat needed for battery connectors, motor wires, ESC leads and general electronics soldering.

Designed for demanding radio control applications, this high power soldering station uses 90W output and a 400kHz electromagnetic heating element for fast heat-up and stable soldering performance. The digital control, blue backlit display and compact body make it a practical tool for RC maintenance, wiring repairs and custom electronics work.

Features

• RC-Focused Soldering Station: Designed for soldering batteries, motors, speed controls, connectors and wires
• 90W High Power Output: Provides strong heat performance for demanding RC soldering tasks
• 400kHz Electromagnetic Heating Element: Supports fast heat-up and quick recovery during soldering
• Wide Temperature Range: Adjustable operating temperature from 80°C to 480°C
• Digital Temperature Control: Microprocessor controlled regulation helps maintain consistent soldering performance

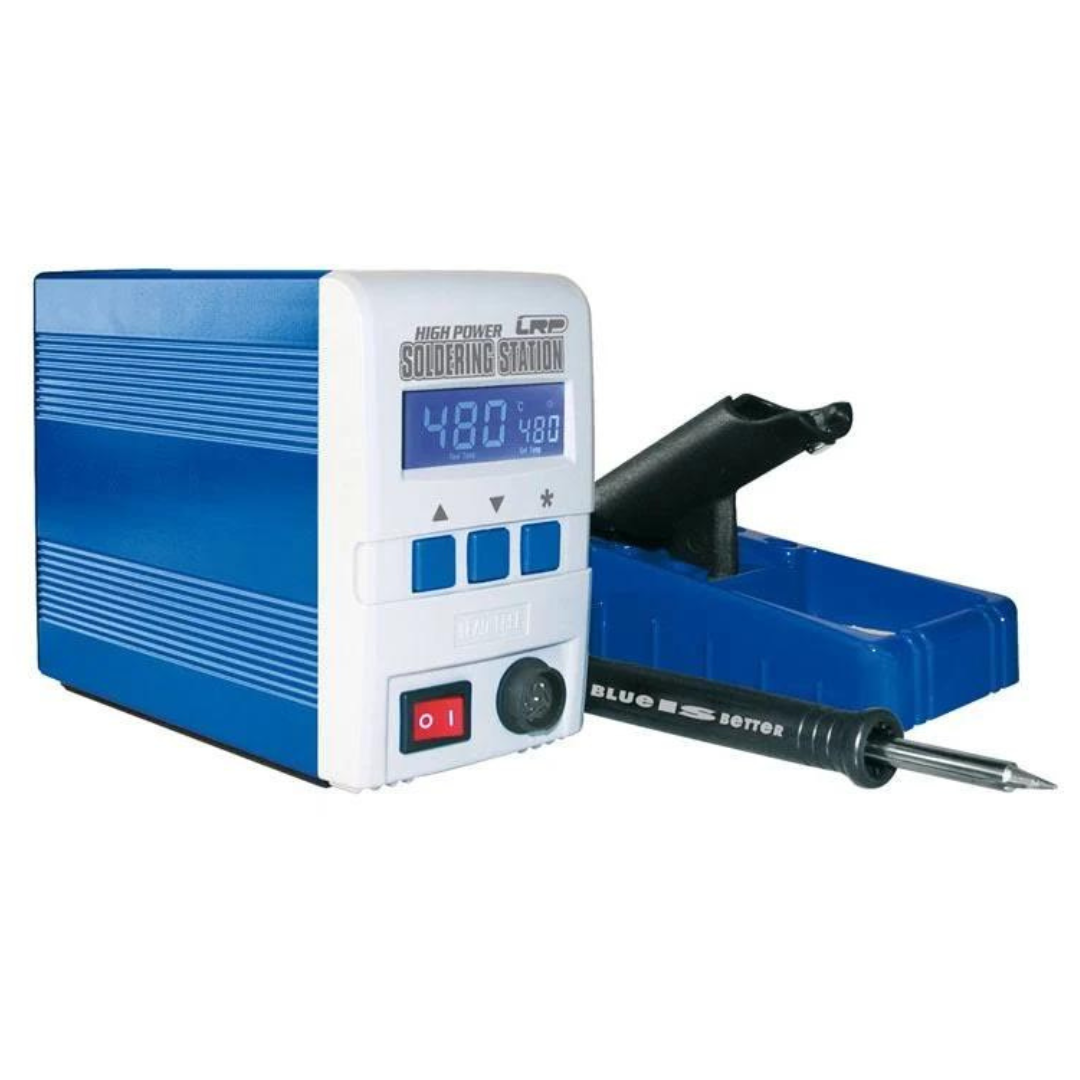

• Blue Backlit Display: Easy-to-read display for workshop and pit bench use
• Easy Tip System: Compatible tips can be changed quickly without tools
• Auto Sleep Function: Adjustable sleep function helps preserve tip life when the iron is not in active use
• Compact Workshop Design: Small 155 x 78 x 120mm footprint and 1kg weight make it practical for home bench or race pit use

Specifications

• Brand: LRP
• Part Number: 65800
• OZRC / Supplier SKU: LRP-65800
• Barcode: 4250068124552
• Product Type: High power soldering station
• Application: RC and electronics soldering
• Input Voltage Range: 100–240VAC
• Output Power: 90W
• Output Voltage: 48V
• Heating Element: 400kHz electromagnetic heating element
• Operating Temperature Range: 80°C to 480°C
• Sleep Temperature Range: 50°C to 250°C
• Auto Sleep Timer: 0–250 minutes
• Dimensions: 155 x 78 x 120mm
• Weight: 1.0kg
• Intended Use: Soldering RC battery connectors, motor wires, ESC leads and electronic components

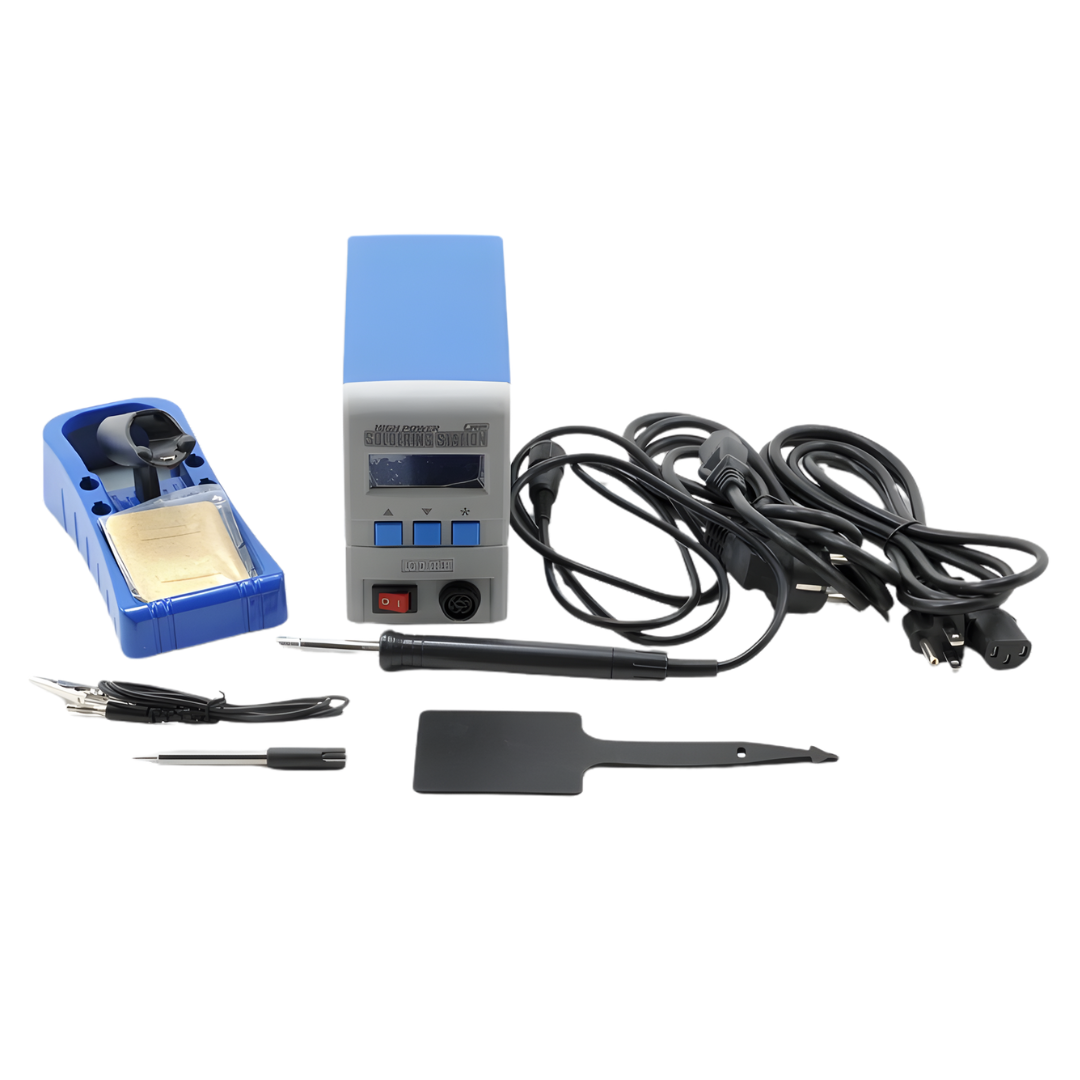

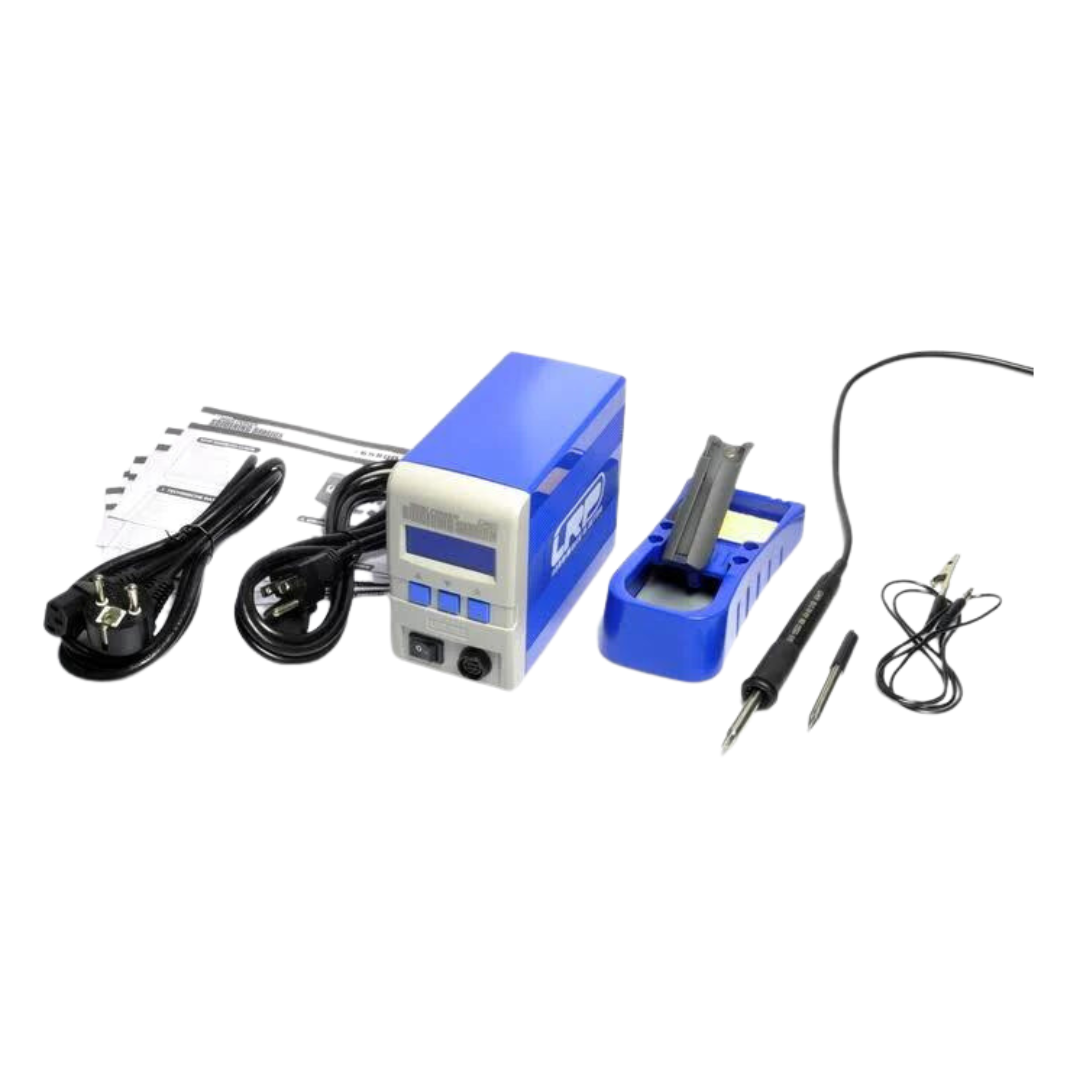

Includes

• 1 x LRP HighPower soldering station base unit
• 1 x Soldering iron / handle
• 1 x Stand and accessories as supplied by the manufacturer

FAQ

Is this soldering station suitable for RC battery connectors? Yes. The 90W output and fast-heating design make it suitable for common RC soldering tasks such as battery plugs, motor wires and ESC leads.

What temperature range does it offer? The LRP HighPower soldering station has an adjustable operating temperature range of 80°C to 480°C.

Does it have an auto sleep function? Yes. It includes an adjustable auto sleep timer to help preserve soldering tip life when the iron is not being used.

Can the soldering tips be changed? Yes. The Easy Tip system allows compatible tips to be changed quickly without tools.

Is solder included? No. Solder, flux, heat shrink, connectors and replacement tips are not included unless listed separately.

Important Notes

• Soldering irons become extremely hot during use. Always follow proper soldering safety practices.
• Solder, flux, heat shrink, RC connectors and replacement tips are not included unless listed separately.
• Use a suitable local mains power lead or adapter if required for your region.
• Always solder in a well-ventilated area and avoid inhaling fumes.
• Allow the soldering iron and tips to cool before handling, cleaning or storage.
• Use the correct soldering temperature and tip size for the connector, wire gauge and solder type being used.
