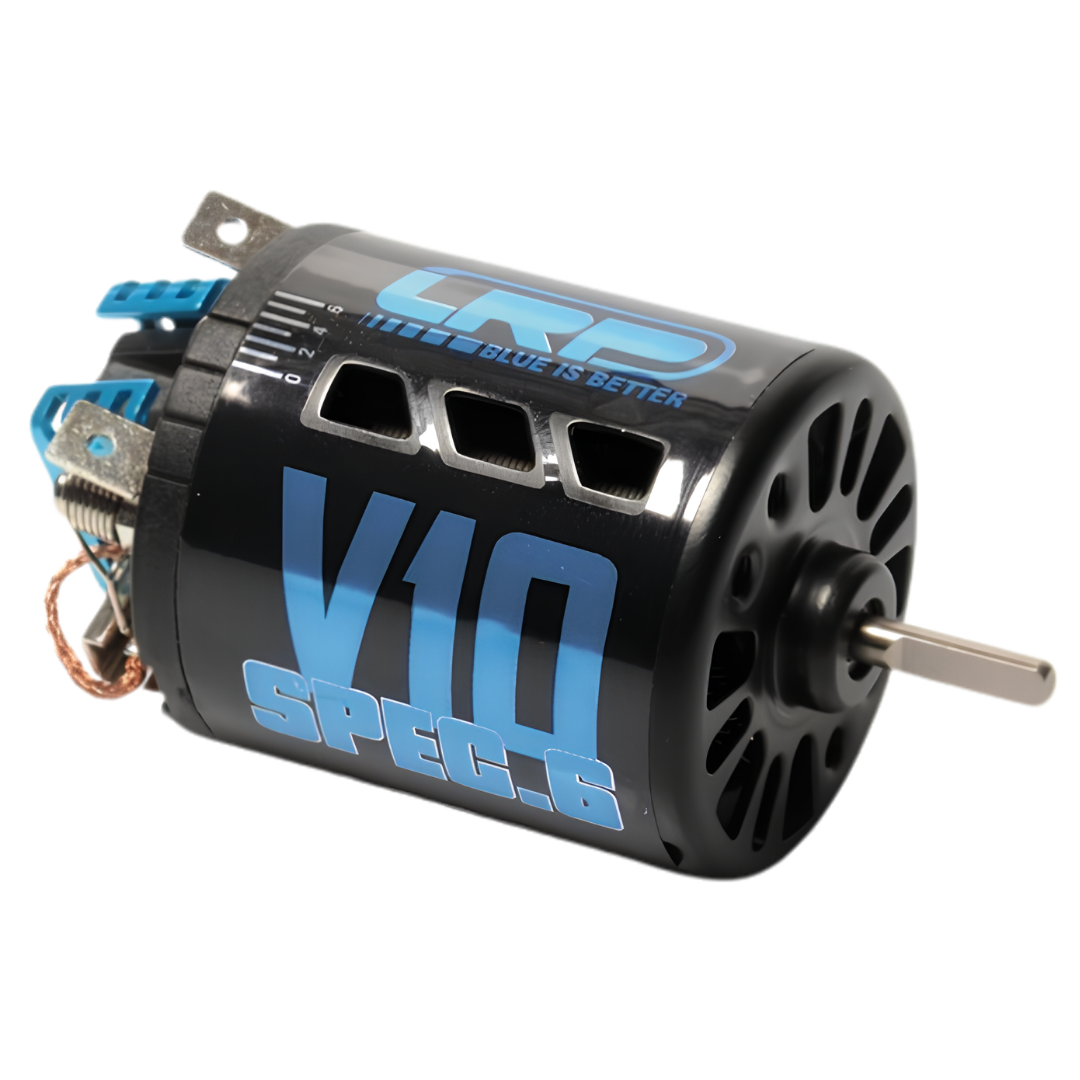

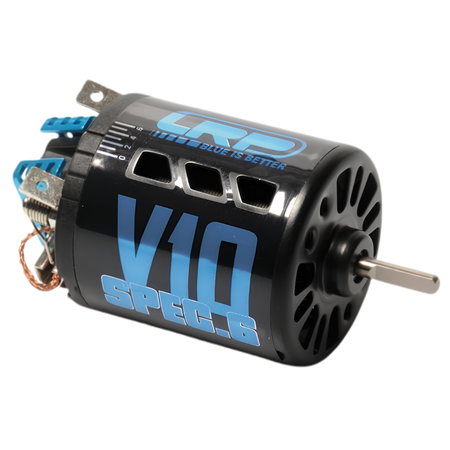

LRP V10 Spec.6 12x2T 540 Brushed RC Motor LRP-57126
Couldn't load pickup availability
The LRP V10 Spec.6 12x2T is a rebuildable 540-size brushed RC motor with adjustable timing, high-power precision winding, dual ball bearings and integrated cooling openings for strong consistent power delivery across a broad RPM range
Features
- 12x2T winding configuration
- 540-size brushed motor
- Adjustable motor timing for tuning power characteristics
- Fully rebuildable construction
- High-power precision winding
- High-power magnets
- Dual ball bearing support helps reduce friction losses
- Integrated housing air inlets assist heat dissipation
- SMD capacitor fitted for electrical noise suppression
- Replaceable brushes springs and bearings available separately
- Designed for a broad range of compatible brushed RC applications
Specifications
- Brand: LRP
- Series: V10 Spec.6
- Product Type: Brushed RC Motor
- Motor Size: 540
- Winding: 12x2T
- Motor Type: Brushed Timeable 2-Pole 3-Slot
- Voltage Input: 3.7V to 7.6V
- Speed at 7.2V: Approximately 36,000 RPM
- Shaft Diameter: 3.17mm
- Motor Diameter: 35.9mm
- Weight: 156g +/-5%
- Timing: Adjustable
- Bearings: Dual Ball Bearing
- Barcode: 4250068170733
- Manufacturer Part Number: LRP-57126
Includes
- 1 x LRP V10 Spec.6 12x2T Brushed Motor
Required To Complete
- Compatible Brushed Electronic Speed Controller
- Compatible Battery and RC Drivetrain
- Suitable Pinion Gear
- Motor Connectors and Wiring as Required
FAQ
Is the LRP V10 Spec.6 12x2T rebuildable? Yes, LRP specifies the V10 Spec.6 as fully rebuildable with replacement brushes springs and bearings available separately
Can the motor timing be adjusted? Yes, the motor is timeable so its power delivery characteristics can be tuned to suit the vehicle and driving application
What voltage range does LRP specify? The official specification lists an input range of 3.7V to 7.6V
How fast does the 12x2T version spin? LRP publishes approximately 36,000 RPM at 7.2V
What shaft size does the motor use? The motor uses a 3.17mm output shaft
Important Notes
- Use with a compatible brushed ESC capable of handling the motor load
- Correct gearing and timing are important for controlling motor temperature and current draw
- Motor performance varies with battery voltage gearing vehicle load and timing setting
