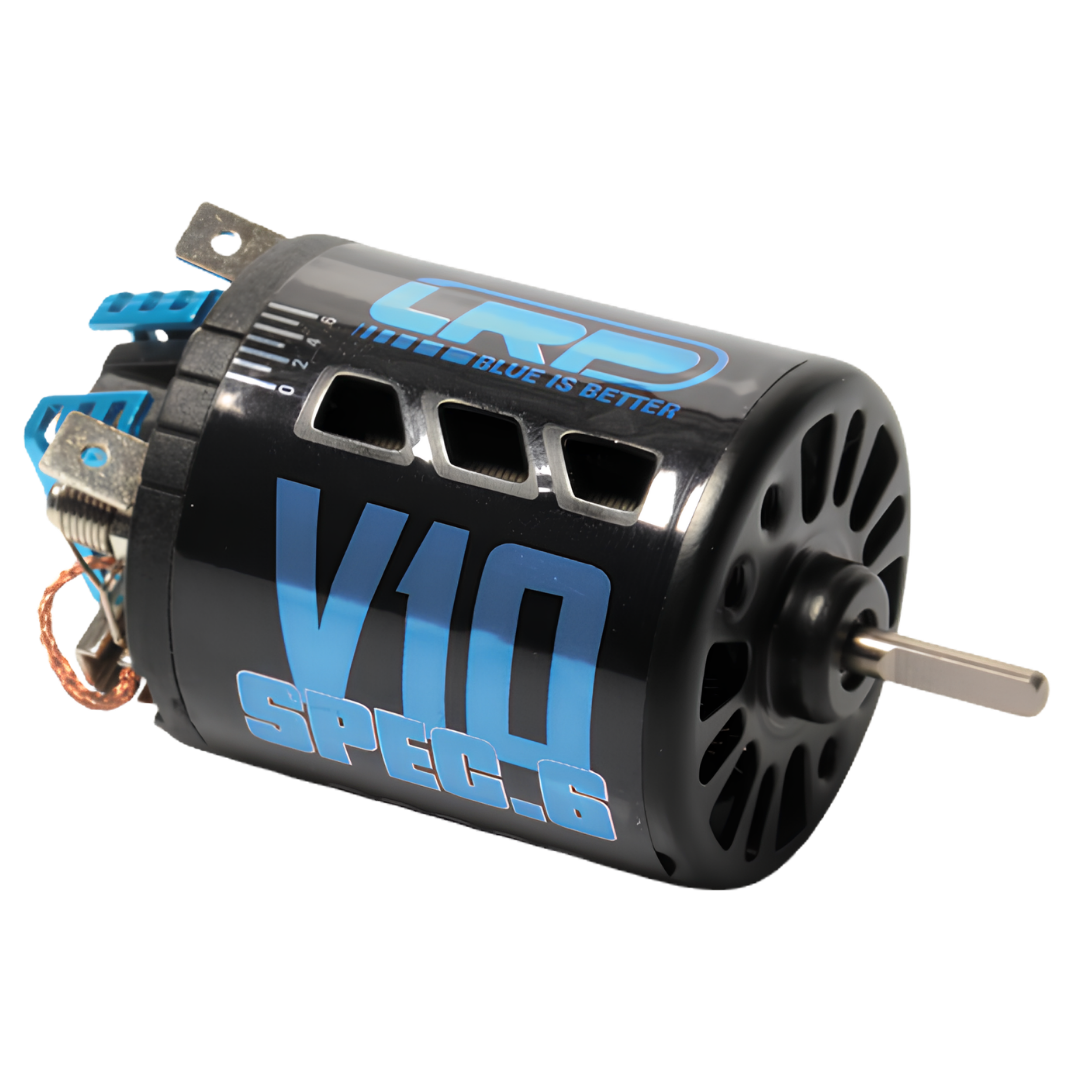

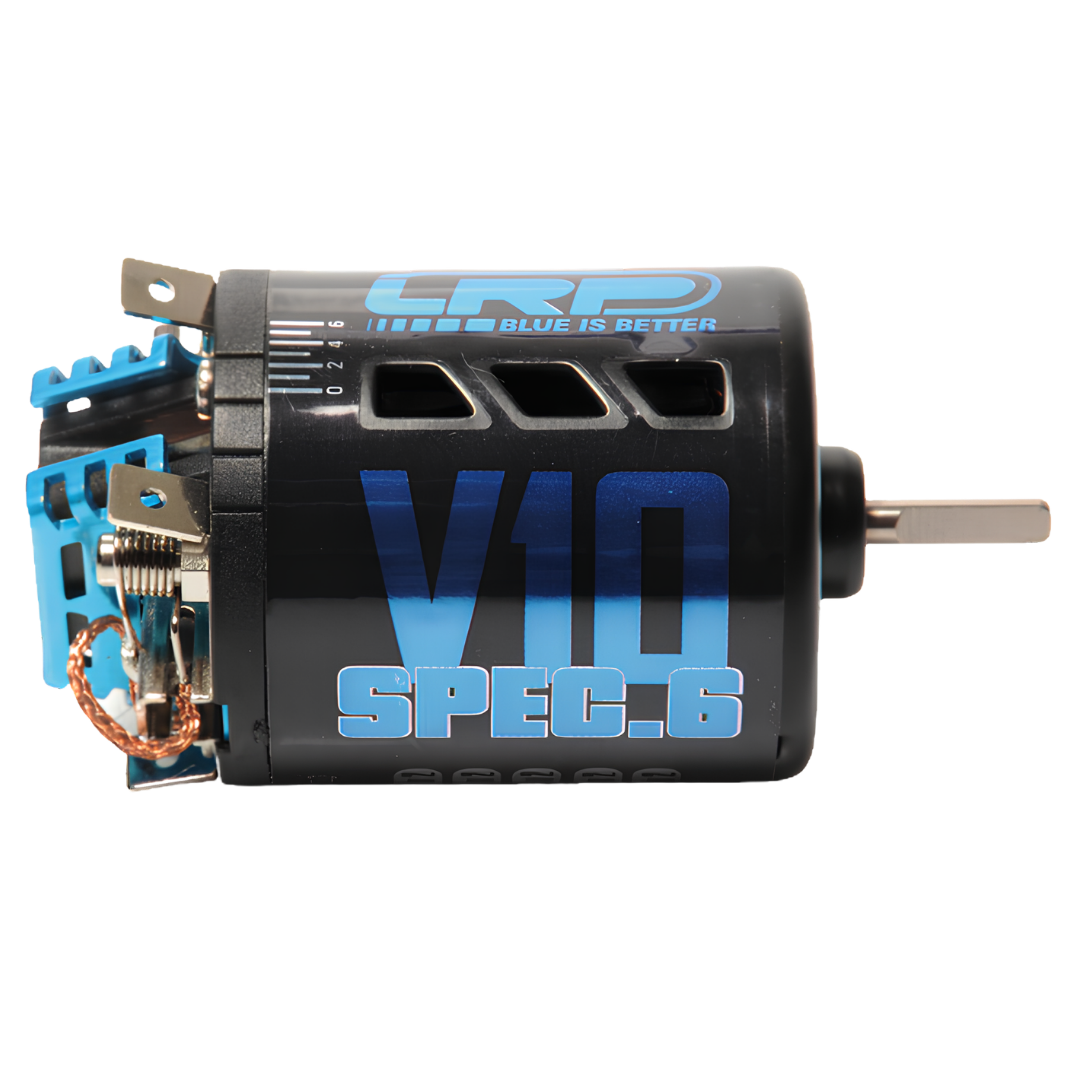

LRP V10 Spec.6 14x2T 540 Brushed RC Motor LRP-57146

ETA unavailable
SKU: LRP-57146
(0)
$54.95
✉️ Notify me when available!
Awesome! You'll be notified when this item is back in stock.
Please enter a valid email address.
Checking status...

CALL US EMAIL US
Ask the experts Staff

More from LRP

LRP Power Pack 3000mAh 7.2V 6 Cell NiMH Stickpack Battery Deans Plug LRP-71115U
LRP Power Pack 3000mAh 7.2V 6 Cell NiMH Stickpack Battery Deans Plug LRP-71115U $33.20
LRP G41 HV Ultra LCG Stock Spec 5100mAh LiPo 2S 7.6V 135C Hardcase LRP-432277
LRP G41 HV Ultra LCG Stock Spec 5100mAh LiPo 2S 7.6V 135C Hardcase LRP-432277 $123.45
LRP HighPower 90W RC Soldering Station LRP-65800
LRP HighPower 90W RC Soldering Station LRP-65800 $351.45
View All LRP

The LRP V10 Spec.6 14x2T is a rebuildable 540-size brushed RC motor with adjustable timing, high-power precision winding, dual ball bearings and integrated cooling openings for strong consistent power delivery across a broad RPM range

Features

  • 14x2T winding configuration
  • 540-size brushed motor
  • Adjustable motor timing for tuning power characteristics
  • Fully rebuildable construction
  • High-power precision winding
  • High-power magnets
  • Dual ball bearing support helps reduce friction losses
  • Integrated housing air inlets assist heat dissipation
  • SMD capacitor fitted for electrical noise suppression
  • Replaceable brushes springs and bearings available separately
  • Designed for a broad range of compatible brushed RC applications

Specifications

  • Brand: LRP
  • Series: V10 Spec.6
  • Product Type: Brushed RC Motor
  • Motor Size: 540
  • Winding: 14x2T
  • Motor Type: Brushed Timeable 2-Pole 3-Slot
  • Voltage Input: 3.7V to 7.6V
  • Speed at 7.2V: Approximately 33,500 RPM
  • Shaft Diameter: 3.17mm
  • Motor Diameter: 35.9mm
  • Weight: 156g +/-5%
  • Timing: Adjustable
  • Bearings: Dual Ball Bearing
  • Barcode: 4250068170740
  • Manufacturer Part Number: LRP-57146

Includes

  • 1 x LRP V10 Spec.6 14x2T Brushed Motor

Required To Complete

  • Compatible Brushed Electronic Speed Controller
  • Compatible Battery and RC Drivetrain
  • Suitable Pinion Gear
  • Motor Connectors and Wiring as Required

FAQ

Is the LRP V10 Spec.6 14x2T rebuildable? Yes, LRP specifies the V10 Spec.6 as fully rebuildable with replacement brushes springs and bearings available separately

Can the motor timing be adjusted? Yes, the motor is timeable so its power delivery characteristics can be tuned to suit the vehicle and driving application

What voltage range does LRP specify? LRP currently specifies an input range of 3.7V to 7.6V for the 57146 V10 Spec.6 14x2T

How fast does the 14x2T version spin? LRP currently publishes approximately 33,500 RPM at 7.2V

What shaft size does the motor use? The motor uses a 3.17mm output shaft

Important Notes

  • Use with a compatible brushed ESC capable of handling the motor load
  • Correct gearing and timing are important for controlling motor temperature and current draw
  • Motor performance varies with battery voltage gearing vehicle load and timing setting
