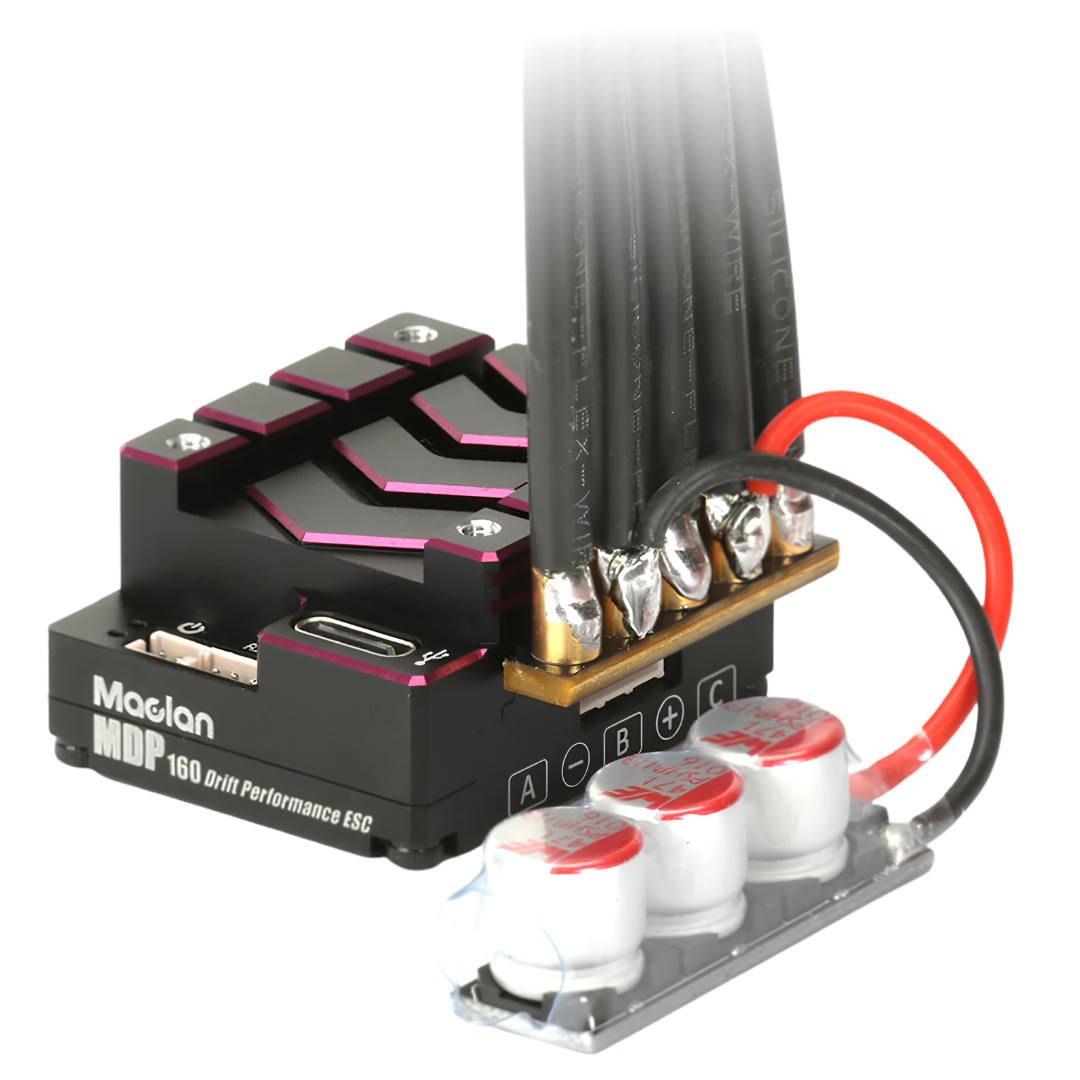

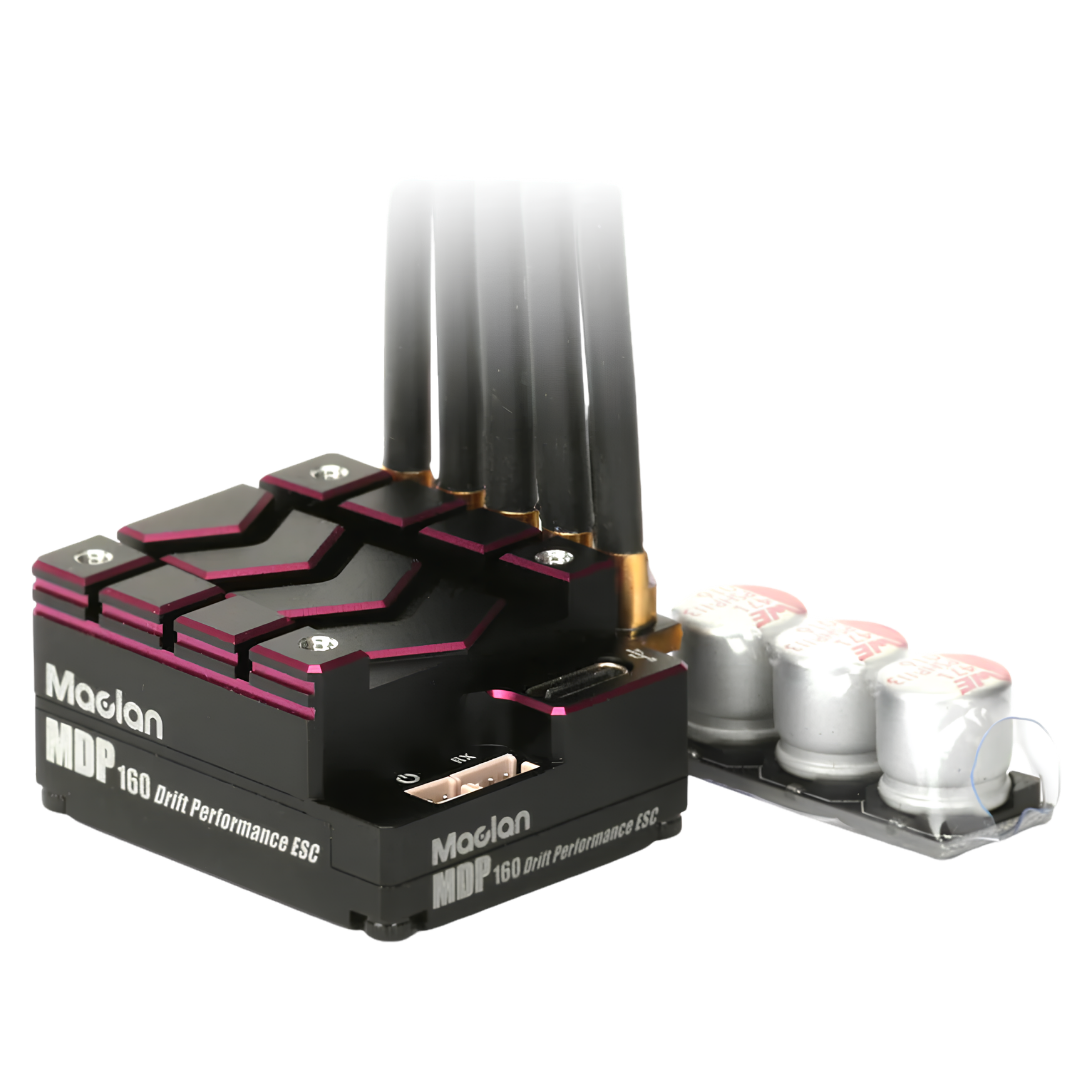

Maclan MDP 160 Sensored Drift ESC 160A Black Purple MCL2019

The Maclan MCL2019 MDP 160 is a 160A sensored brushless ESC developed specifically for 1/10 RC drifting, combining adjustable high-frequency PWM control, boost and turbo timing, factory 10.5T and 13.5T profiles, onboard USB-C programming and advanced data logging in a compact Black and Purple aluminium case

Features

• Drift-specific sensored brushless ESC
• 160A continuous current rating
• Designed for 2S LiPo power systems
• High-speed 32-bit CPU with 5-stage pipeline
• Adjustable throttle PWM frequency from 6.4kHz to 56kHz
• Customisable boost and turbo timing
• Built-in 10.5T and 13.5T drift profiles
• Motor RPM rev-limit function with full-scale style power-cut sound effect
• Motor temperature ESC temperature and low-voltage protection
• Onboard USB Type-C connection for programming firmware updates and data access
• Direct connection to Windows PC and compatible Android devices
• Optional Bluetooth programming for compatible Android and Apple iOS devices
• Compatible with Maclan Smart Link software and app
• Dual power-on operation using the included switch or switchless battery connection
• Detachable receiver switch fan and programming connections
• Aluminium housing for rigidity and heat dissipation
• 30 x 30 x 10mm high-voltage turbo cooling fan
• Factory pre-soldered power and motor wires
• Factory-installed external capacitor module
• Black and Purple finish

Specifications

• Brand: Maclan Racing
• Series: Drift Performance MDP
• Product Type: Sensored Brushless ESC
• Application: 1/10 RC Drift
• Mode: Sensored
• Continuous Current: 160A
• Battery Input: 2S LiPo
• CPU: 32-Bit 5-Stage Pipeline
• Throttle PWM Frequency: 6.4kHz to 56kHz
• Input Wires: 13AWG Black 200mm x 2
• Motor Output Wires: 13AWG Black 200mm x 2
• Cooling Fan: 30 x 30 x 10mm HV Turbo Fan
• Dimensions: 38 x 30 x 19mm Excluding Cooling Fan
• Weight: 45g Excluding Wires and Capacitor Module
• Programming Port: USB Type-C
• Colour: Black / Purple
• Manufacturer Part Number: MCL2019

Includes

• 1 x Maclan MDP 160 Drift Performance ESC Black / Purple
• Factory Pre-Soldered Wires and Capacitor Module
• 1 x Maclan ESC Power Switch MCL4242
• 1 x Maclan 20cm ESC Receiver Cable MCL4243
• 1 x Maclan USB 2.0 to Type-C Data Cable MCL4240
• 1 x Maclan ESC Turbo Fan MCL4246
• 1 x Download QR Code for Electronic User Manual
• 1 x Decal Sheet

Required To Complete

• Compatible Sensored Brushless Motor
• 2S LiPo Battery
• Compatible Receiver and Radio System
• Battery and Motor Connectors as Required for Installation

FAQ

Is the MDP 160 designed specifically for RC drifting? Yes, Maclan developed the MDP 160 around drift-specific firmware with adjustable throttle brake boost turbo and motor RPM behaviour

Can the ESC be programmed without a separate programmer? Yes, the onboard USB Type-C port can connect directly to a compatible Windows PC or Android device for programming firmware updates and data access

Does iPhone programming require an extra module? Yes, wireless programming from compatible Apple iOS devices requires the Maclan Bluetooth ESC Programmer sold separately

What battery does the MDP 160 support? Maclan specifies the MDP 160 for 2S LiPo input

Does MCL2019 include a cooling fan? Yes, the package includes Maclan MCL4246 30 x 30 x 10mm HV turbo fan

Does the ESC include a capacitor module? Yes, Maclan specifies the ESC as supplied with factory pre-soldered wires and a capacitor module

Can the ESC run without the power switch? Yes, Maclan allows switchless operation where the ESC powers on when the battery is connected and switches off when the battery is disconnected

Important Notes

• Use only with a compatible 2S LiPo system
• Bluetooth programming hardware is sold separately
• Correct motor gearing timing boost turbo and temperature protection settings should be verified before extended running
• Dimensions exclude the cooling fan and published weight excludes the wires and capacitor module
