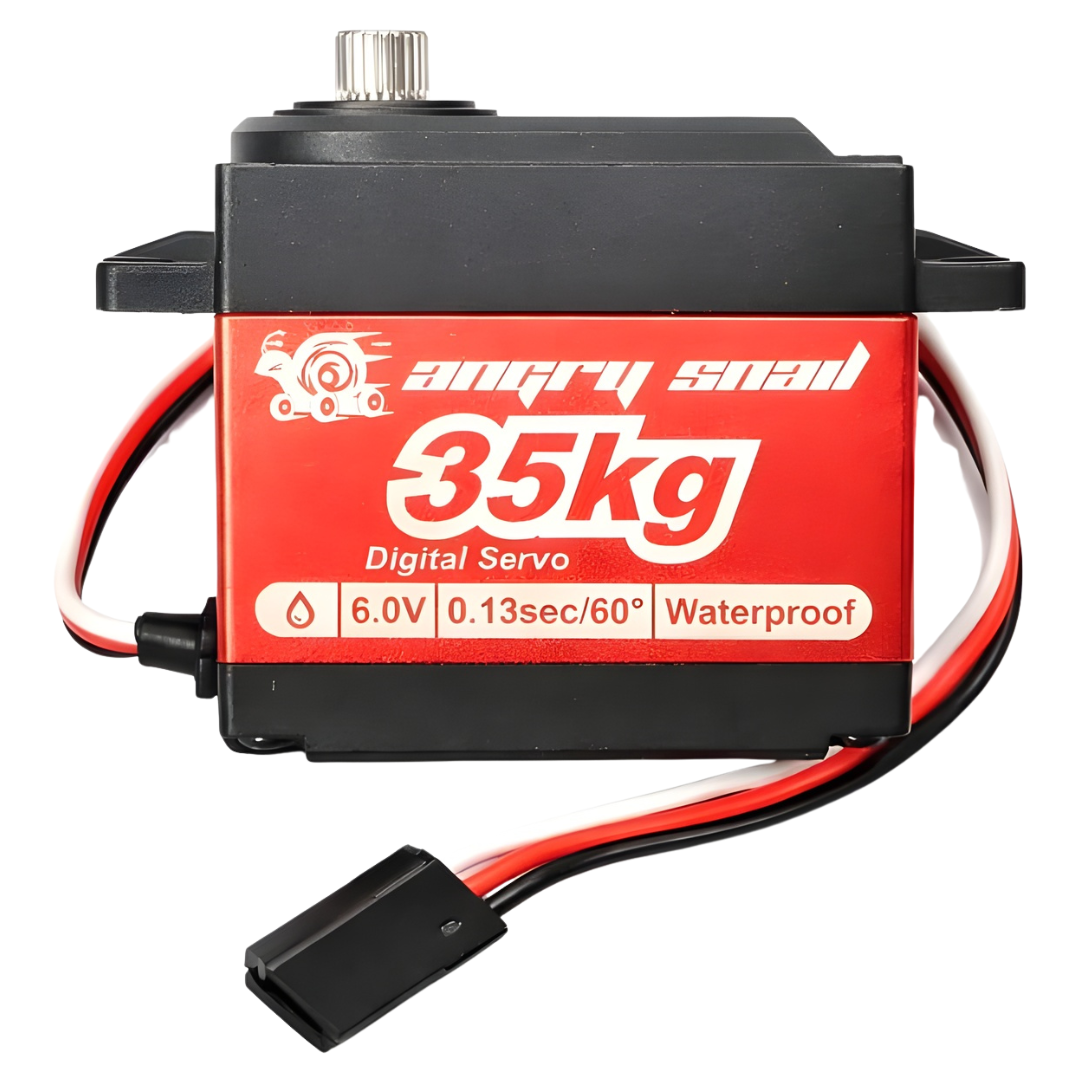

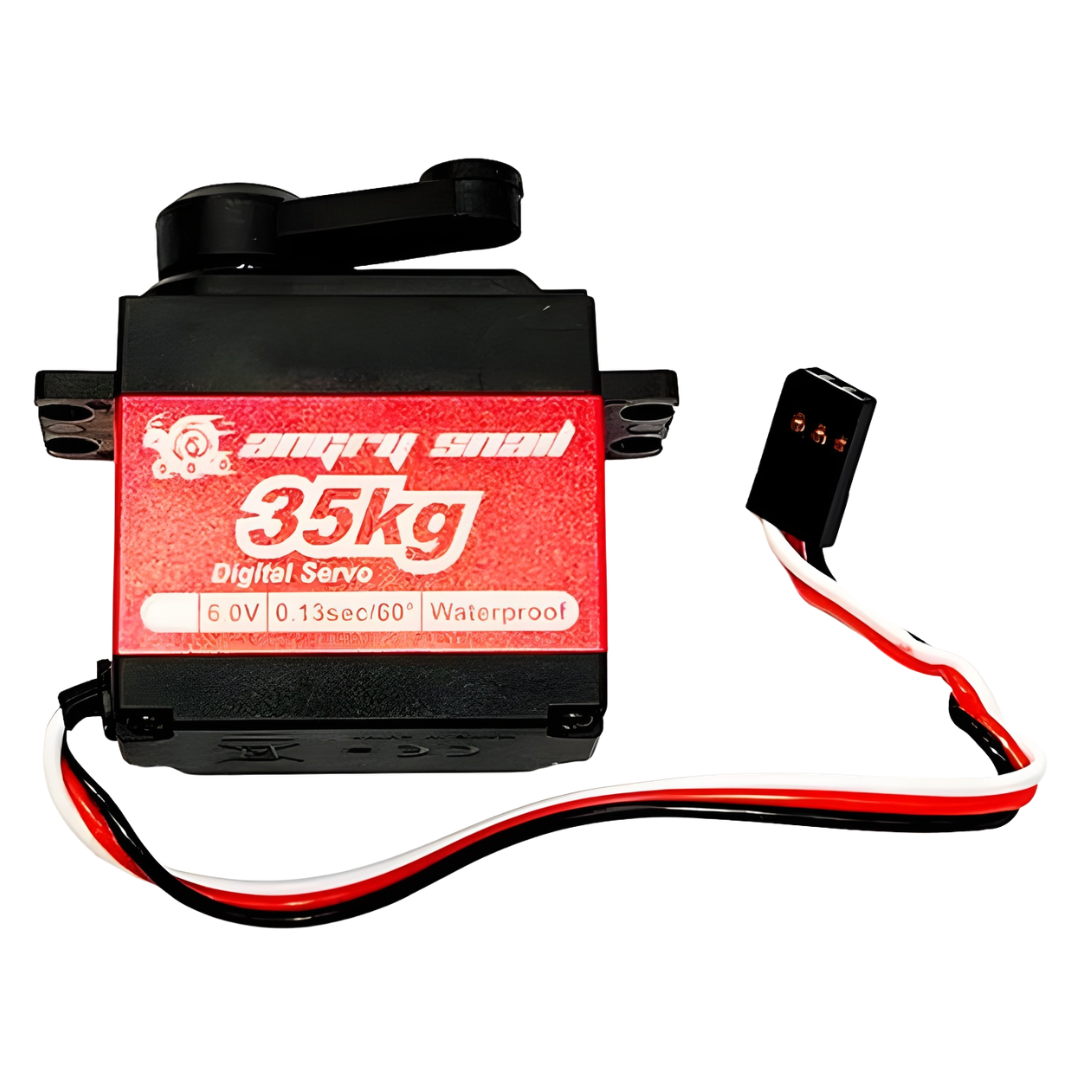

MJX 35kg Digital Servo Upgrade 0.13s 6.0V For MJX 10208 MJX-S3580R

The MJX S3580R is a high-torque digital steering servo designed for the MJX Hyper Go 10208. Rated at 35kg/cm with a 0.13 sec/60° operating speed at 6.0V, it provides the steering force and response required for the large tyres, high speeds and demanding off-road use of the 10208 platform.

Metal gearing provides additional drivetrain strength inside the servo, while the standard-size housing and 25T output spline make the S3580R a practical replacement for the original steering servo. It is ideal for replacing a worn or damaged unit or restoring steering performance during vehicle maintenance.

Features

• 35kg High Torque: Provides strong steering authority for the MJX Hyper Go 10208
• Fast Digital Response: Rated at 0.13 sec/60° at 6.0V
• Metal Gearing: Designed for durability under demanding off-road steering loads
• Digital Servo: Provides responsive steering control for high-speed driving and bashing
• 25T Output Spline: Standard 25-tooth servo output specification
• Standard-Size Housing: Designed around a conventional full-size RC steering servo format
• Direct 10208 Fitment: Designed as a replacement steering servo for the MJX Hyper Go 10208
• Replacement Upgrade: Suitable for replacing a worn, damaged or malfunctioning original servo

Specifications

• Brand: MJX / MJX Hyper Go
• Model: S3580R
• SKU / Part Number: MJX-S3580R
• Product Type: Digital Steering Servo
• Torque: 35kg/cm
• Speed: 0.13 sec/60° @ 6.0V
• Operating Specification: 6.0V
• Gear Type: Metal
• Output Spline: 25T
• Servo Size: Standard
• Approximate Length: 40mm
• Approximate Width: 20mm
• Approximate Weight: 60g
• Application: Steering
• Compatibility: MJX Hyper Go 10208

Compatibility

• MJX Hyper Go 10208
• MJX Hyper Go 10208 V2 applications using S3580R

Includes

• 1 × MJX S3580R 35kg Digital Steering Servo

FAQ

Does the MJX S3580R fit the Hyper Go 10208? Yes. The S3580R is specifically listed as a 35kg steering servo for the MJX Hyper Go 10208.

How much torque does the S3580R produce? The servo is rated at 35kg/cm, providing substantial steering force for the large tyres and off-road use of the 10208.

How fast is the MJX S3580R? The listed operating speed is 0.13 seconds per 60 degrees at 6.0V.

Does the S3580R have metal gears? Yes. Supplier specifications identify the S3580R as a metal-geared steering servo.

What servo spline does it use? The S3580R uses a 25T output spline.

Is this a replacement for a failed 10208 steering servo? Yes. The S3580R is suitable for replacing the steering servo in compatible MJX Hyper Go 10208 vehicles.

What should I check if the new servo jitters or does not respond? Check that the servo plug is fully seated in the correct receiver connection and that its polarity is correct. Also inspect the connector for bent or damaged pins and verify the steering system moves freely without mechanical binding.

Should the steering endpoints be checked after installation? Yes. After replacing a steering servo, check steering trim and endpoints to ensure the servo is not attempting to drive the steering mechanism beyond its mechanical limits. Incorrect adjustment can place unnecessary load on the servo.

Important Notes

• Check your vehicle uses S3580R before purchase
• Servo is supplied individually
• Confirm connector orientation and polarity before powering the vehicle
• Centre the servo electronically before installing the servo horn
• Set steering trim and endpoints correctly after installation
• Do not allow the servo to continuously push against the mechanical steering limits
• Check steering linkage and servo saver movement for binding before operation
