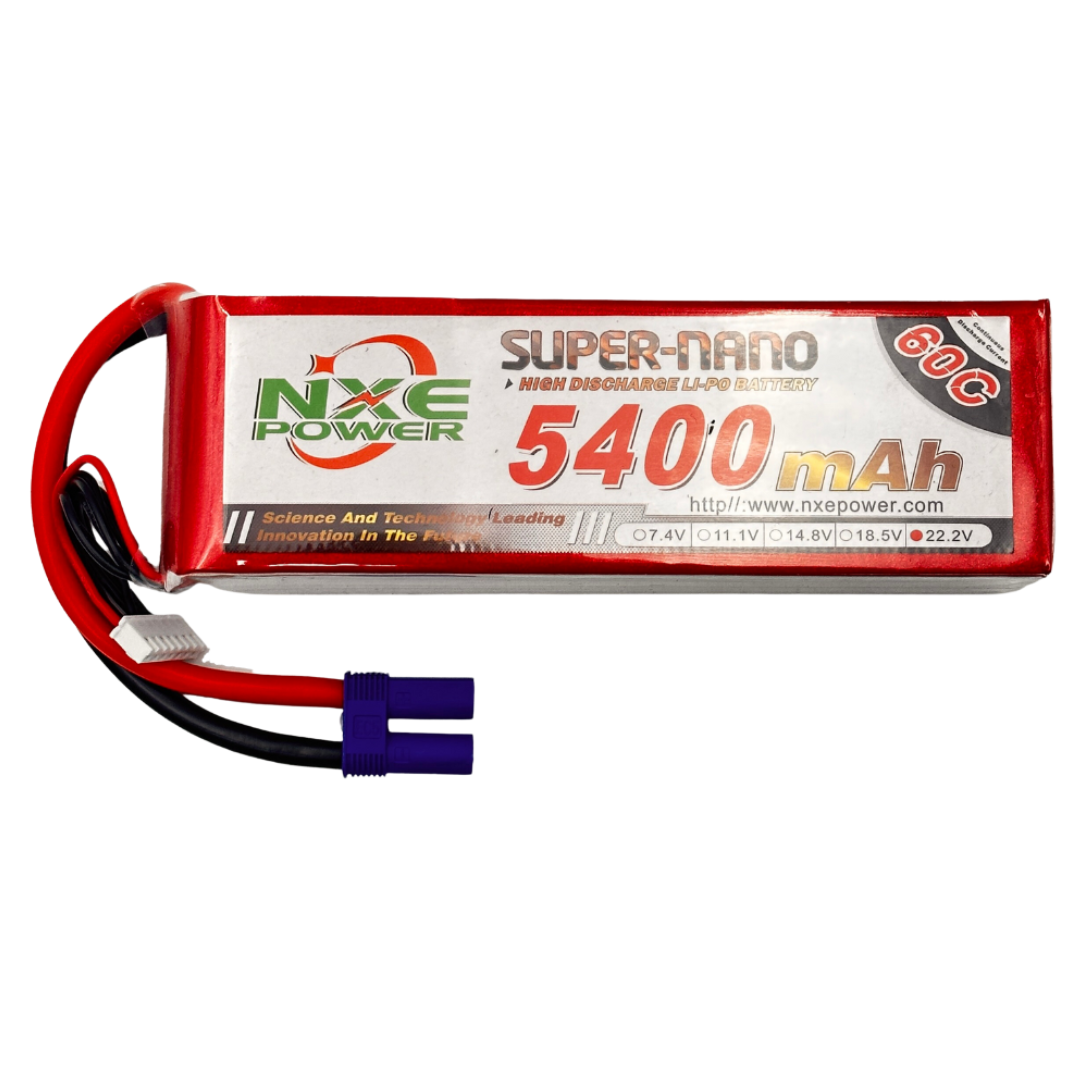

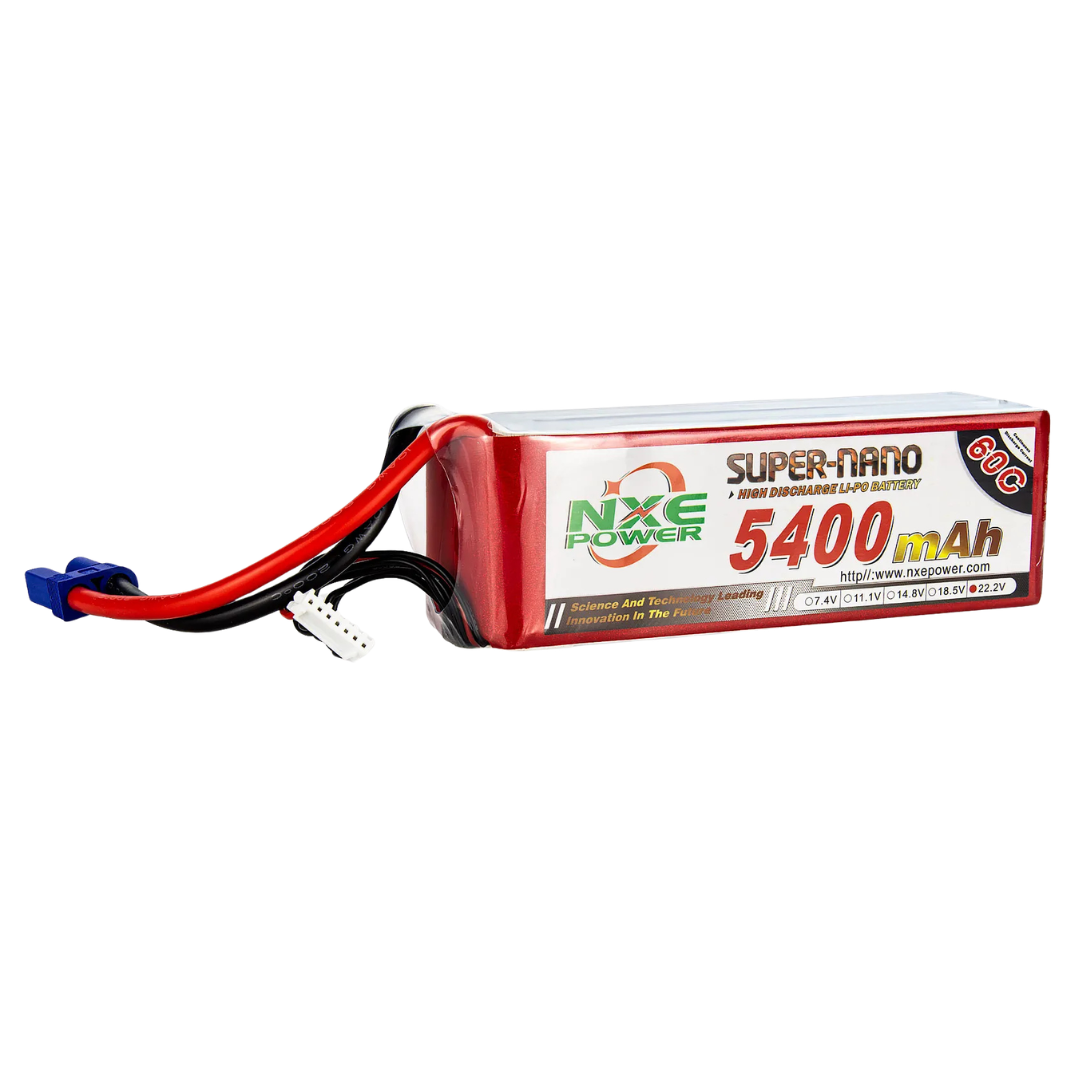

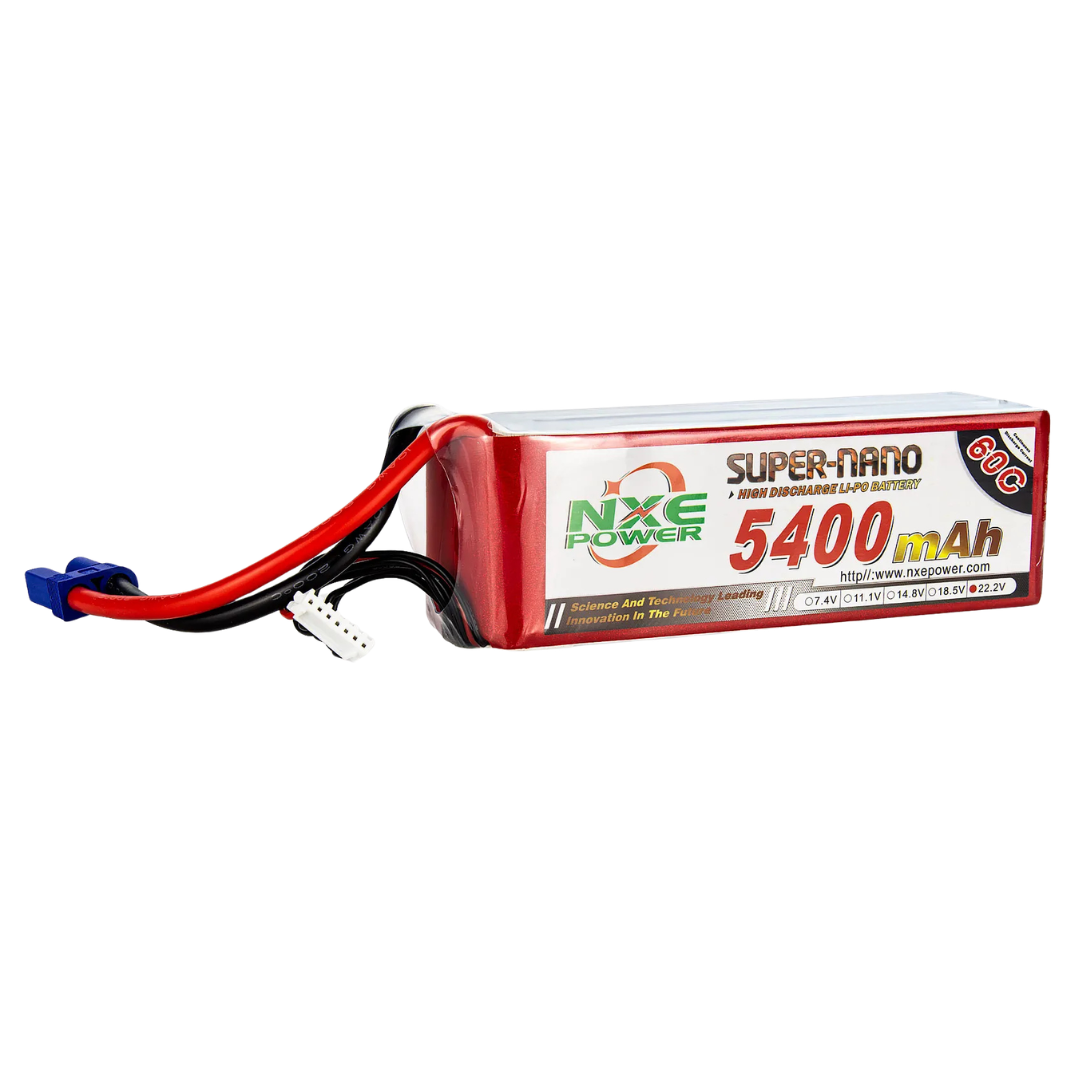

NXE Power 5400mAh 22.2V 60C 6S Soft Case LiPo Battery EC5

The NXE Power 5400mAh 22.2V 60C Soft Case LiPo Battery is built to deliver reliable power and consistent performance for high-demand RC applications. Featuring a 6S (22.2V) configuration, 60C continuous discharge rating and heavy-duty EC5 connector, this battery provides strong acceleration, stable voltage and extended run times for compatible RC cars, boats and other high-performance models.

Features

• High-capacity 5400mAh 6S LiPo battery
• 60C continuous discharge rating for strong, consistent power delivery
• Soft case design reduces weight while maintaining durability
• Factory-fitted EC5 connector for high-current applications
• JST-XH balance connector for safe charging and cell balancing
• Heavy-duty 10AWG silicone wire minimises resistance
• Suitable for a wide range of high-performance RC vehicles and models

Specifications

• Brand: NXE Power
• Product Type: Lithium Polymer (LiPo) Battery
• Capacity: 5400mAh
• Voltage: 22.2V (6S)
• Continuous Discharge: 60C (324A)
• Maximum Continuous Current: 324A
• Battery Case: Soft Case
• Discharge Connector: EC5
• Balance Connector: JST-XH
• Recommended Charge Rate: 1–3C
• Maximum Charge Rate: 5C
• Wire Gauge: 10AWG
• Dimensions: 150 × 48 × 50mm
• Weight: 800g

Includes

• 1 × NXE Power 5400mAh 22.2V 60C 6S Soft Case LiPo Battery with EC5 Connector

FAQ

What connector does this battery use? The battery is fitted with a factory-installed EC5 connector and a JST-XH balance plug.

What charger do I need? You will need a LiPo-compatible balance charger capable of charging a 6S (22.2V) LiPo battery using the EC5 discharge lead and JST-XH balance connector.

What vehicles is this battery suitable for? This battery is suitable for compatible RC vehicles and models designed to accept a 6S LiPo battery with the listed dimensions and EC5 connector.

Can I fast charge this battery? A charge rate of 1–3C is recommended for maximum battery life. Charging up to 5C is supported when using an appropriate charger.

Important Notes

• Verify your vehicle supports a 22.2V (6S) LiPo battery before use.
• Check battery dimensions and connector compatibility prior to purchase.
• Always charge using a quality LiPo balance charger and connect the JST-XH balance lead during charging.
• Never charge or store the battery unattended.
• Store the battery at storage voltage in a cool, dry location when not in use.
• Discontinue use immediately if the battery becomes swollen, damaged or overheated.
