OZRC 2322 3500KV Brushless Motor 45A ESC Upgrade Kit 1/12 RC MN82 MN99 MN78
Couldn't load pickup availability
Easy instal into the mn82 gearbox and it also fits the stock wpl gearbox with the mn spacer and the pinion gear from the stock wpl motor
Haven't tried it yet but seems like a tiny motor for a 1/12. Compared to a 1/10 it looks like a 1/18 or 1/24 motor.
Product is as described in add. Good quality. Super fast delivery. Great transaction would buy again.
Excellent system for the mn platforms. Almost plug and play. You do not need to remove the inner seats/ cab simply relocate the circuit board for the lights closer to the cab and you won't have to chop any of the inner body out at all. The lower kv motor is great if you need a bit more torque with having metal upgrades to stop the motor from cogging under torque load. The higher kv motor for higher rpm but less torque under slow speeds.
The motor is excellent, but the included brass pinion was noisy and unusable. After replacing it with a steel one, it became quiet, so I think it's a matter of material quality.
It arrived very well packaged.
Transformed my mn78 completely. Now has super slow crawling performance
Very good strength, easy installation, good control at low RPM, but I do not recommend installing it on an MN88 with plastic axles because it damages them as it cannot withstand the torque, but it is very good. Now I am waiting for new axles to test it properly.
Works with stock batteries.
The controller and motor were received in good condition, and delivery was fast. Now I can upgrade the MN82. Thank you.
You’re gonna wait for a while if you’re stateside, but the build quality is great. The esc is a little cheap looking, but it’s still great. However. I put it on the mn82t tow truck, and when you go to operate the winch, some crosstalk happens on the stock electronics and the motor jerks around. Probably just need to upgrade the rcvr and txr, but all in all, good little motor. Oh, buy a new battery, it has the t connector on it.
It doesn't work... it's broken
I think it's just the type of mn. Also, the pinion is not fixed without glue and cannot be replaced.

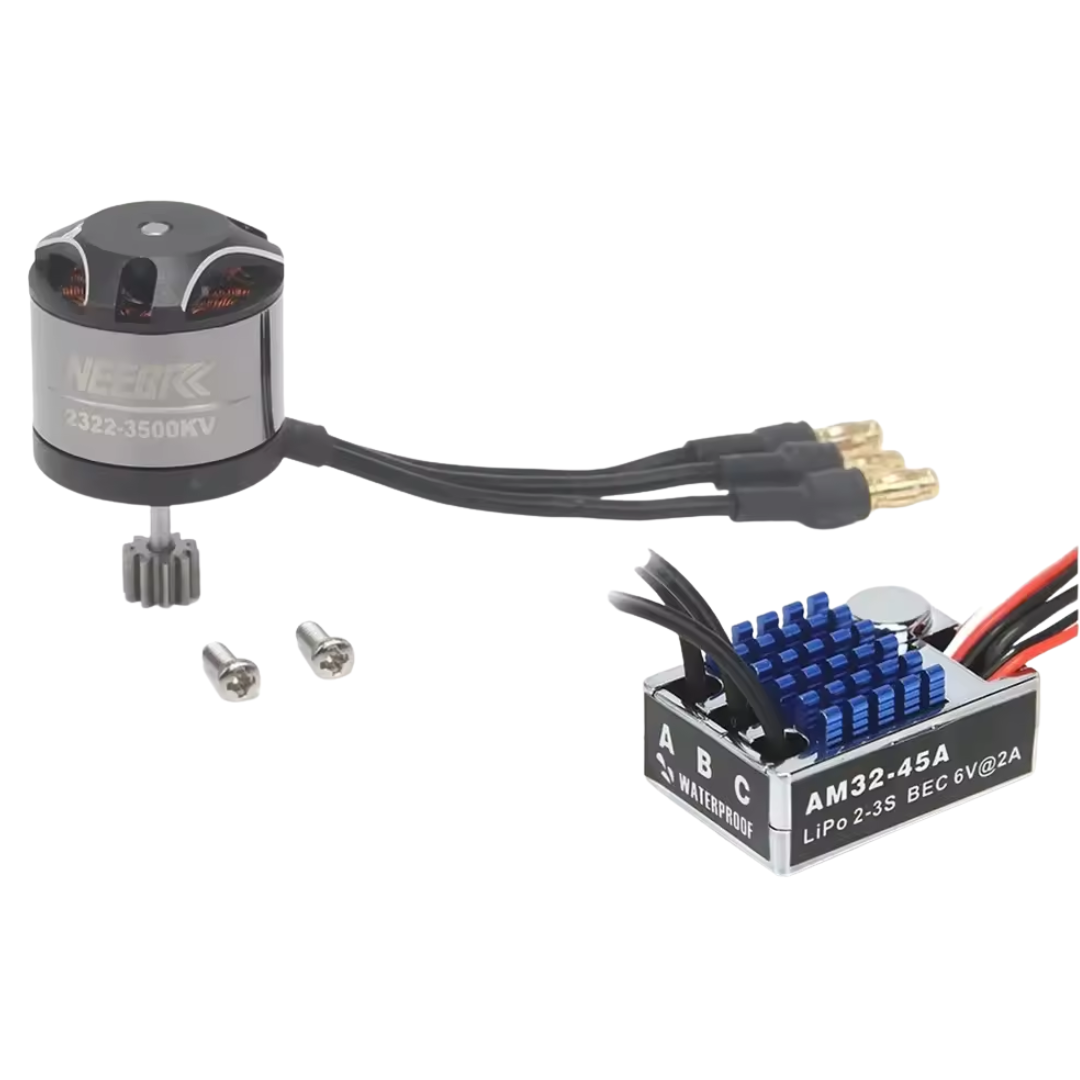

High-performance brushless upgrade kit designed for OZRC MN series 1/12 scale crawler vehicles. This combo includes a powerful 2322 3500KV brushless motor and a 45A AM32 ESC, delivering smooth low-speed control, strong torque for climbing, and improved overall efficiency compared to standard brushed systems.
Features
- 3500KV Brushless Motor: Provides strong torque and efficient power delivery for RC crawlers
- Simulated FOC Control: Excellent low-speed linearity for precise throttle control
- Powerful Climbing Performance: High torque output ideal for technical terrain
- AM32 45A ESC: Smooth sine-wave start for controlled acceleration
- Low Speed Torque Compensation: Improves crawling stability and control
- Waterproof Treatment: Added protection for outdoor and off-road driving
- Adjustable Parameters: ESC settings can be tuned using compatible software
- Low Resistance MOS Tubes: Improved durability and impact resistance
Specifications
- Motor Model: 2322 External Climbing Motor
- KV Rating: 3500KV
- Rated Voltage: 7.4V DC
- Supported Battery: 1–3S LiPo
- No Load Current: ≤1.3A
- No Load Speed: 26000 ±5 percent RPM
- Internal Resistance: 42mΩ ±3 percent at 25°C
- Motor Configuration: 12N14P
- Motor Weight: 32.5g
- Motor Direction: CCW or CW viewed from output shaft
- Pinion Gear: 10T
- ESC Model: AM32 45A
- ESC Voltage: 7.4–11.1V
- ESC Battery Support: 2–3S LiPo
- Continuous Current: 45A
- Start Mode: Sine start
- ESC Size: 38.5 × 28 × 18.5mm
- ESC Case Material: Plastic
- ESC Colour: Blue
- Battery Connector: SM3.0 or T Plug
Includes
- 2322 3500KV Brushless Motor
- AM32 45A Electronic Speed Controller
- 10T Motor Pinion Gear
Important Notes
- Designed for OZRC MN82 MN99 and MN78 1/12 scale RC vehicles
- Ensure compatibility with your drivetrain and battery before installation
- Professional installation recommended for optimal performance
