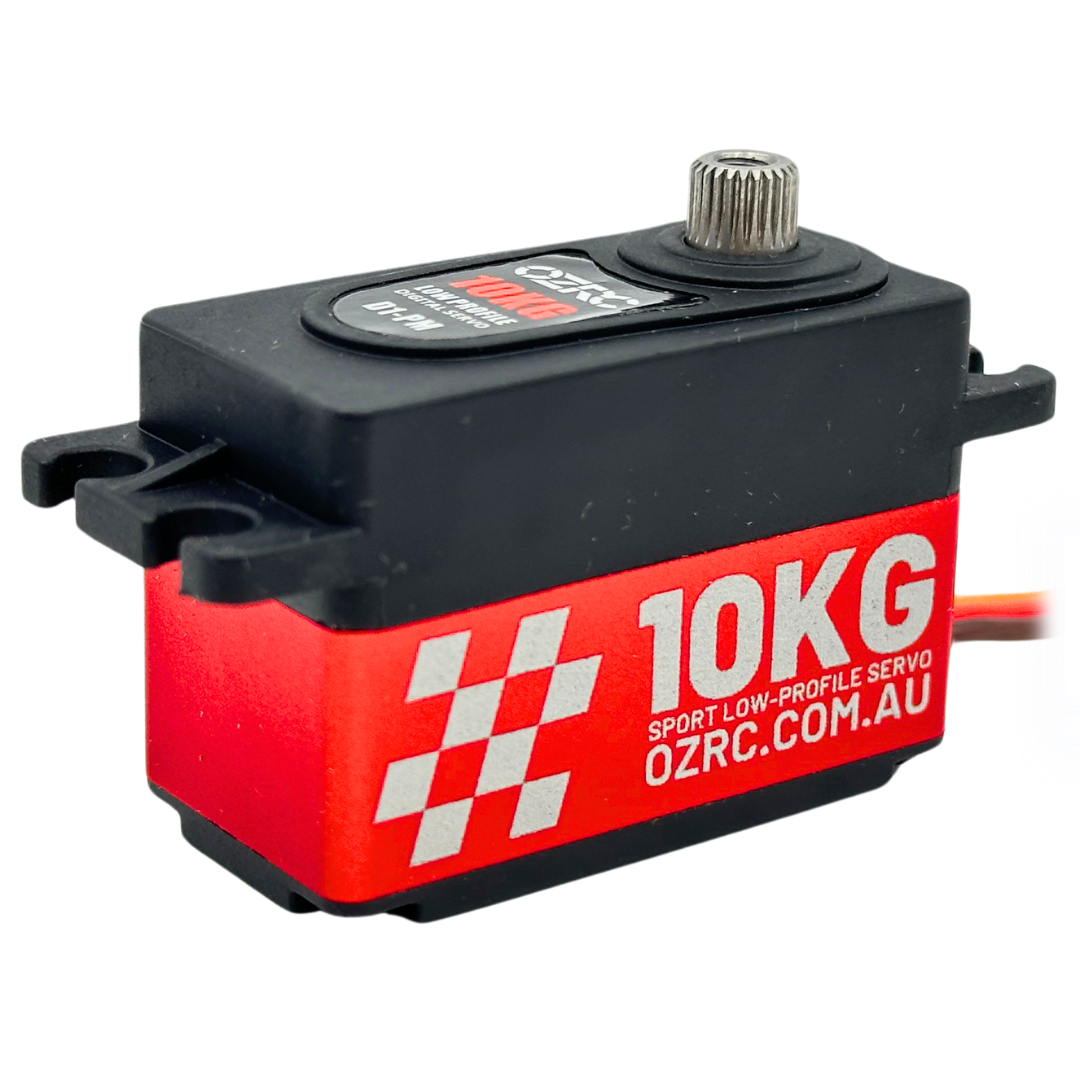

OZRC 10kg Sport Low Profile Servo 25T Metal Gear Brushed Digital OZD1-PM

The OZRC 10kg Sport Low Profile Servo is a 25T metal gear digital servo for compatible RC cars needing a compact steering or control servo with strong torque, fast response and standard Futaba/JR-style wiring.

This low-profile servo suits builds where space is tighter than a standard-height servo installation. The full metal gear set helps improve durability, while the 25T spline and included servo horns make it suitable for many compatible 1/10 touring, drift, buggy and on-road RC applications where the servo size, spline and torque rating match the vehicle requirements.

Features

• Low-Profile Servo Design: Compact height suits compatible RC vehicles with limited servo clearance
• Full Metal Gear Set: Metal gears provide improved durability compared with plastic gear servos
• Digital Brushed Servo: Digital control supports responsive steering and consistent positioning
• Strong Torque Output: Rated at 10.0kgf.cm at 4.8V and 16kgf.cm at 6.0V
• Fast Servo Speed: Rated at 0.085sec/60° at 4.8V and 0.072sec/60° at 6.0V
• 25T Output Spline: Compatible with 25T servo horns and servo savers where fitment matches

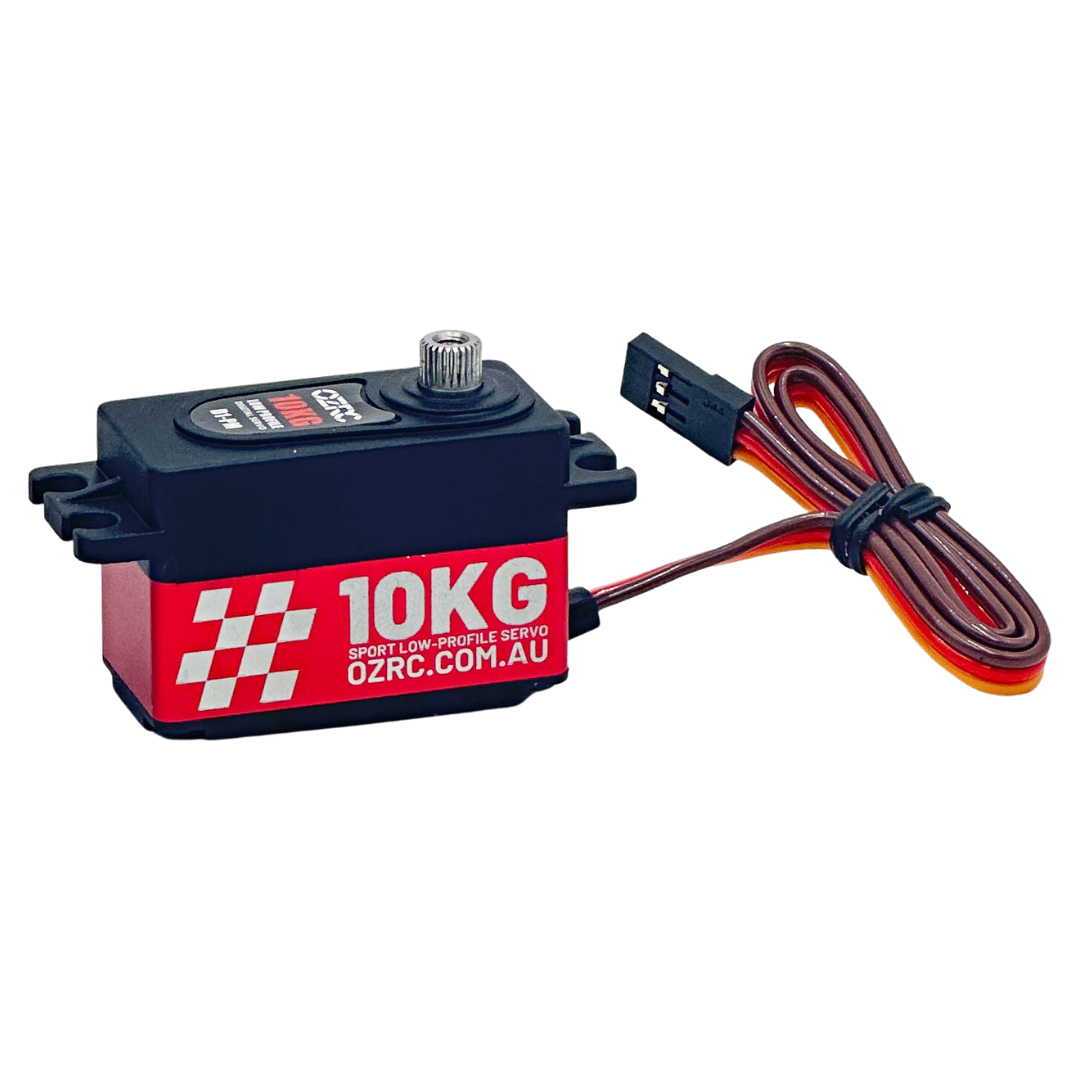

• Futaba/JR-Style Connector: Uses a 3-wire connector for broad receiver compatibility
• Red And Black Case: Easy to identify in a chassis or pit box
• Mounting Accessories Included: Supplied with sleeves, screws and servo horns for installation options

Specifications

• Brand: OZRC
• Model: 10kg Sport Low Profile Servo
• SKU: OZD1-PM
• Product Type: RC digital servo
• Servo Type: Low profile brushed digital servo
• Gear Type: Full metal gear set
• Spline: 25T
• Torque At 4.8V: 10.0kgf.cm
• Torque At 6.0V: 16kgf.cm
• Speed At 4.8V: 0.085sec/60°
• Speed At 6.0V: 0.072sec/60°
• Connector: 3-wire Futaba/JR-style connector
• Weight: 48g
• Colour: Red and black
• Application: Compatible RC car steering and control servo use where size, voltage, spline and torque requirements match

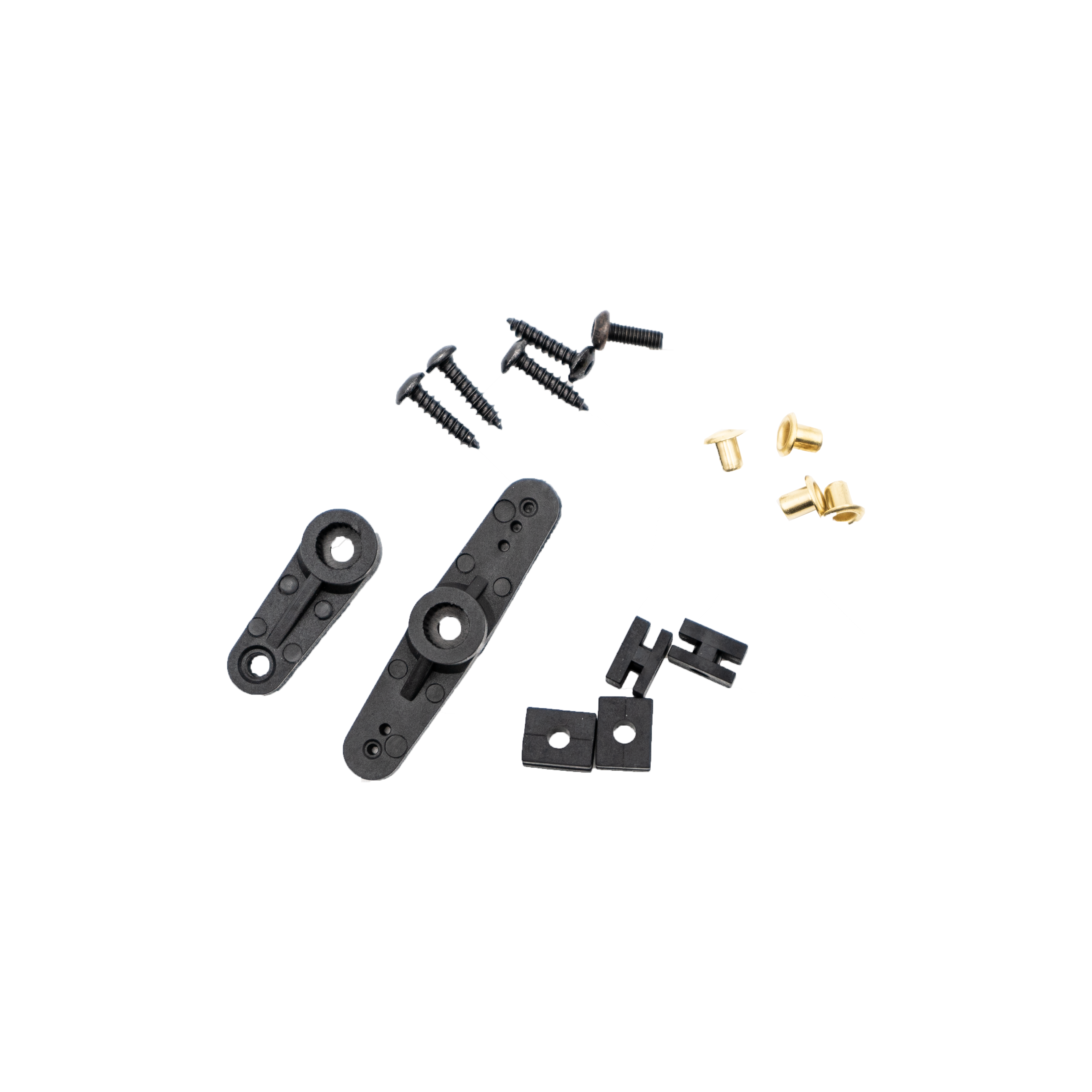

Includes

• 1 x OZRC 10kg Sport low profile servo
• 4 x Metal sleeves
• 4 x Rubber sleeves
• 4 x Coarse thread screws
• 4 x M3 machine thread screws
• 4 x Servo horns

FAQ

What spline does this servo use? The OZRC OZD1-PM servo uses a 25T output spline, so it should be matched with 25T servo horns or servo savers.

What voltage should this servo be used on? The supplied ratings are listed at 4.8V and 6.0V. OZRC recommends checking your receiver or ESC BEC output before installation.

Will this fit my RC car? OZRC recommends checking the servo bay dimensions, horn spline, mounting position and required torque before ordering, as low-profile servo fitment varies between vehicles.

Are servo horns included? Yes. The OZRC OZD1-PM servo includes four servo horns plus mounting sleeves and screws.

Important Notes

• Check servo dimensions and mounting clearance before ordering, especially in low-profile on-road, touring and drift chassis.
• Use only with compatible receiver or ESC BEC voltage within the servo’s intended operating range.
• Ensure the servo horn or servo saver is 25T before installation.
• Centre the servo before fitting the horn to avoid incorrect steering trim or linkage travel.
• Do not force the steering linkage past its mechanical end points, as this can damage the servo gears or electronics.
• RC vehicle, receiver, servo saver, extension leads, tools and linkage hardware are not included unless shown separately.
