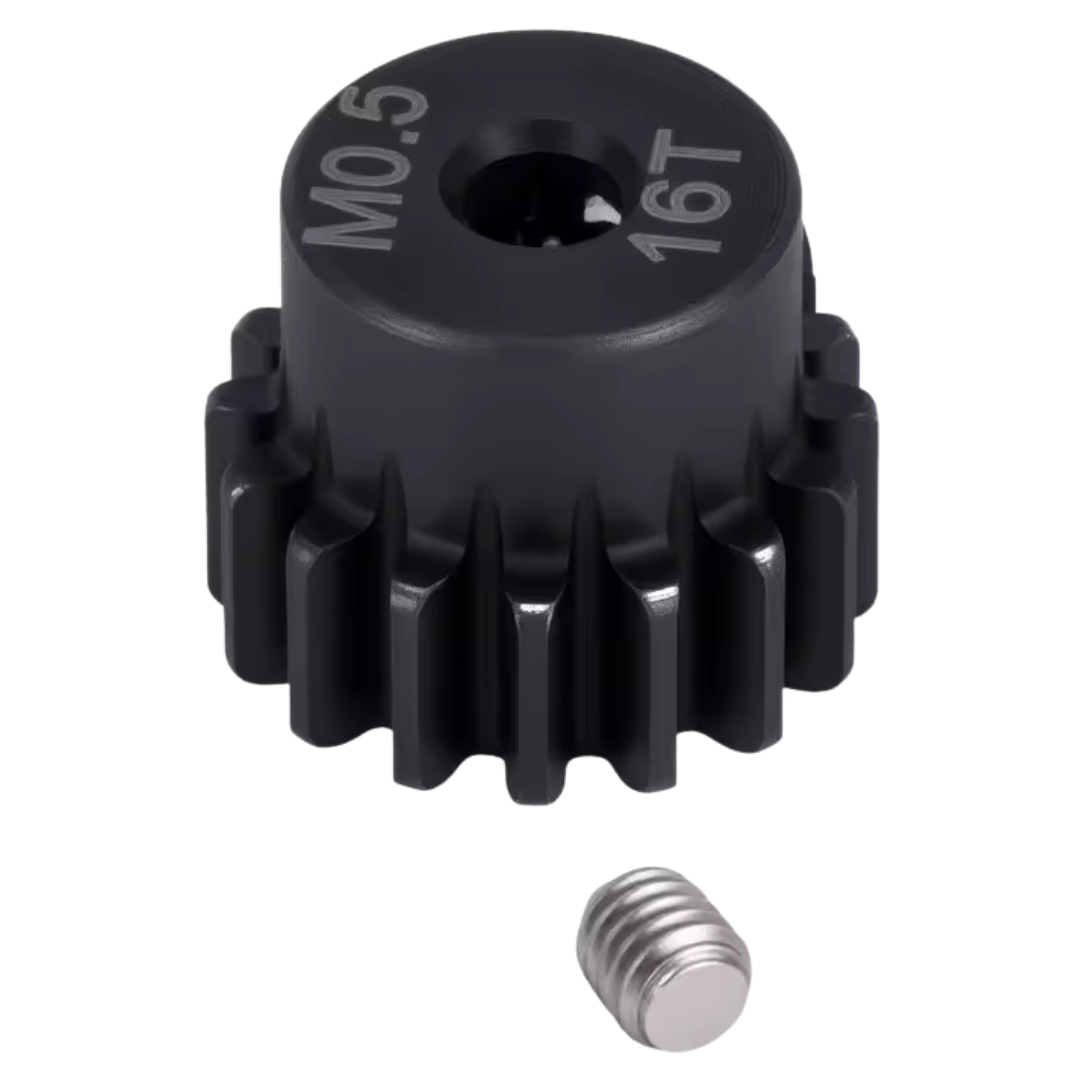

OZRC M0.5 2mm Shaft Metal Pinion Gear 16T Suits Losi Mini-B Micro-B 69721000241

The M0.5 2mm Shaft Metal Pinion Gear is an aftermarket motor pinion for compatible Losi Mini-B, Micro-B and other RC vehicles using a 2mm motor shaft and M0.5 spur gear, allowing the gearing to be adjusted for different speed and acceleration requirements.

Features

• M0.5 Gear Pitch: Designed to mesh with compatible 0.5 module spur gears used in a range of micro and mini RC drivetrains
• 2mm Shaft Bore: Fits compatible motors with a 2mm output shaft

• Gearing Adjustment: Tooth counts allow the motor gearing to be tuned to suit the vehicle, motor and intended use
• Metal Construction: Provides a durable replacement or upgrade option for compatible RC drivetrain applications
• Compact RC Fitment: Suitable for compatible small-scale RC buggies and other vehicles using the same shaft diameter and gear module

Specifications

• Product Type: Motor pinion gear
• Gear Module: M0.5
• Motor Shaft Bore: 2mm

• Material: Metal
• Quantity: 1 pinion gear per selected option
• Fitment Requirement: Compatible 2mm motor shaft and M0.5 spur gear
• Application: RC car drivetrain and motor gearing

Includes

• 1 x M0.5 2mm shaft metal pinion gear in the selected tooth count

FAQ

Does this pinion fit the standard Losi Micro-B motor? The pinion has a 2mm bore, while the standard Losi Micro-B brushed motor is reported to use a smaller 1.5mm shaft. OZRC recommends confirming the fitted motor has a 2mm shaft before ordering for a Micro-B.

Will this fit a Losi Mini-B? The M0.5 gear pitch and 2mm bore are commonly used with Losi Mini-B motor setups. The motor shaft diameter and available adjustment for the selected tooth count should still be checked before installation.

Which tooth count should I choose? A smaller pinion generally produces lower gearing with stronger acceleration and reduced motor load, while a larger pinion raises the gearing for greater speed potential but can increase motor load and temperature.

Important Notes

• Confirm the motor has a 2mm output shaft before ordering
• The mating spur gear must use M0.5 module teeth
• The Losi Micro-B is a 1/24 scale platform; the Losi Mini-B is the corresponding 1/18 scale buggy platform
• A 2mm-bore pinion is not a direct fit to the standard 1.5mm-shaft Micro-B motor
• Check pinion and spur gear mesh after installation and monitor motor temperature when changing gearing
