OZRC Multi-mode RC Remote AUX Channel On Off Switch PWM Controlled

ETA unavailable
SKU: OZRC0061
$29.95

Need some help? call us! ph: 07 3265 4547

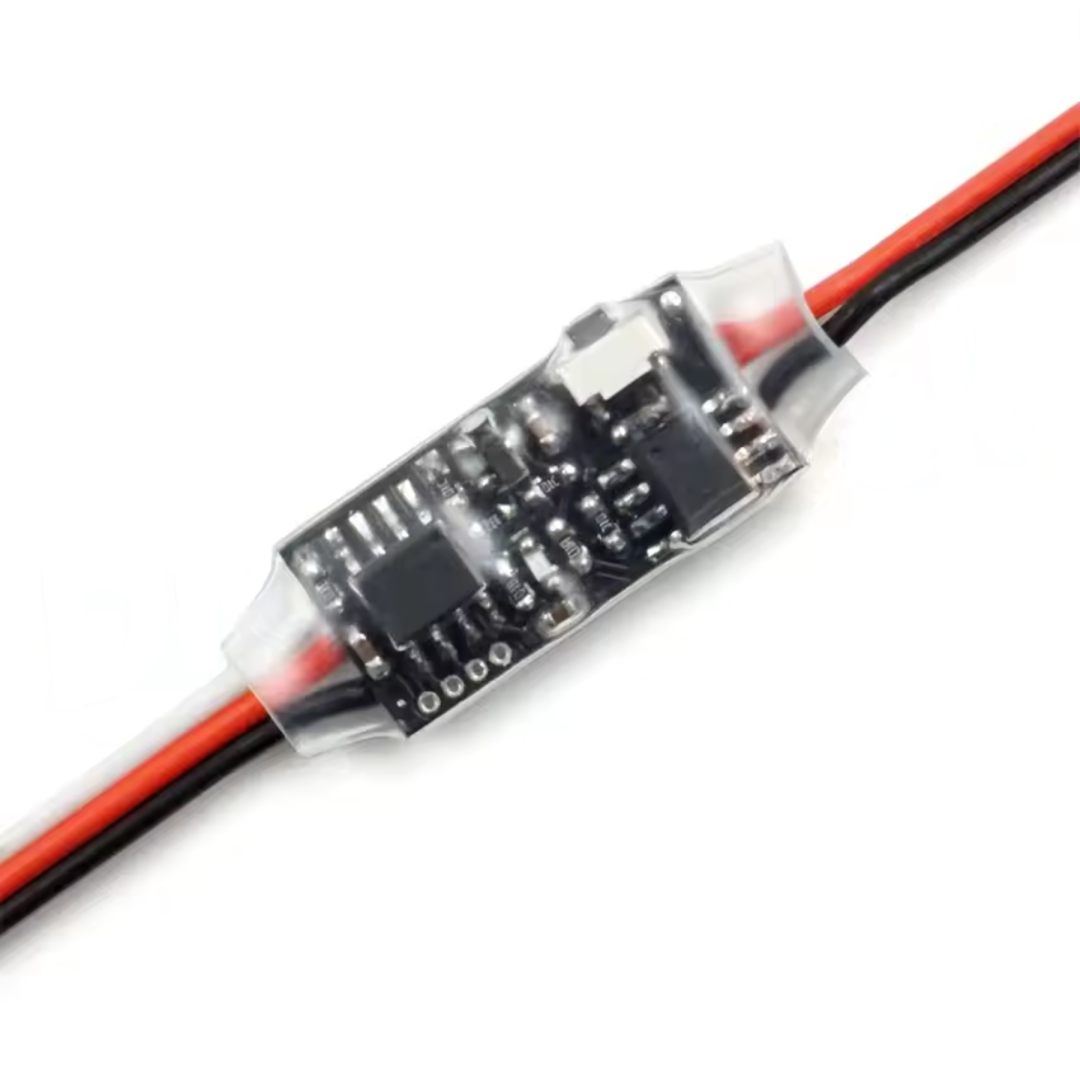

Versatile electronic AUX on/off switch module for RC cars and models, offering multiple LED output modes via PWM signal control. Ideal for managing lights, smoke systems, or other auxiliary features with precision.

Features

  • Lightweight and compact switch for controlling auxiliary RC functions

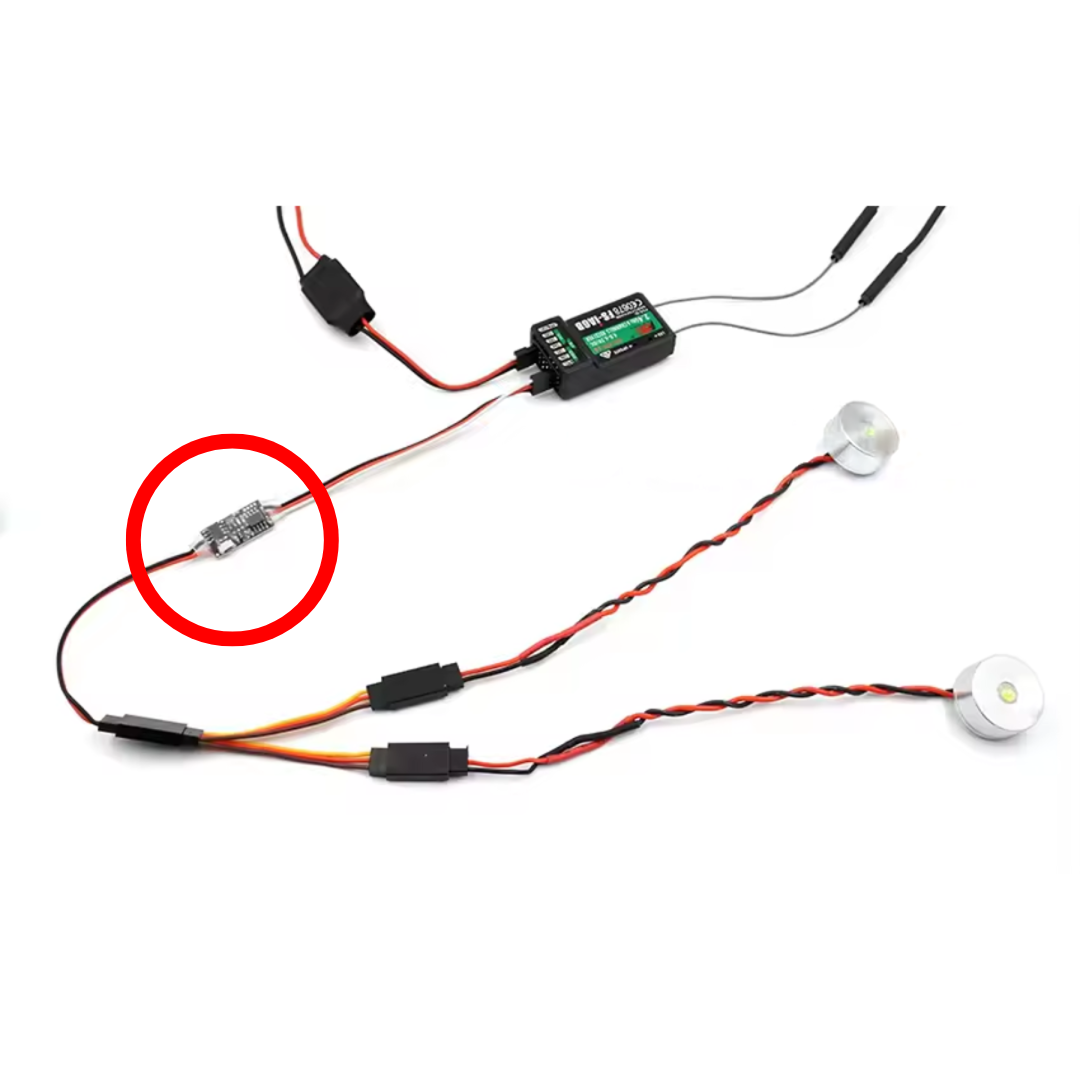

  • Connects to a spare receiver channel to manage lights, smoke, or other systems
  • Status LED indicates on/off condition and selected working mode
  • Remembers last active mode after power cycling
  • Five operating modes triggered by PWM signal input:
    • Mode 1: Solid on
    • Mode 2: Slow blink
    • Mode 3: Fast blink
    • Mode 4: Double flash
    • Mode 5: Breathing effect

Specifications

  • Input Voltage: 3.9V to 15V
  • Output Voltage: Matches input voltage
  • Maximum Output Current: 4A
  • Weight: 4g
  • Cable Length: 25cm
  • Input Connector: JR plug
  • Output Connector: Futaba socket

Includes

  • 1 x RC Remote Electronic AUX Channel On/Off Switch
  • 1 x Y Cable
