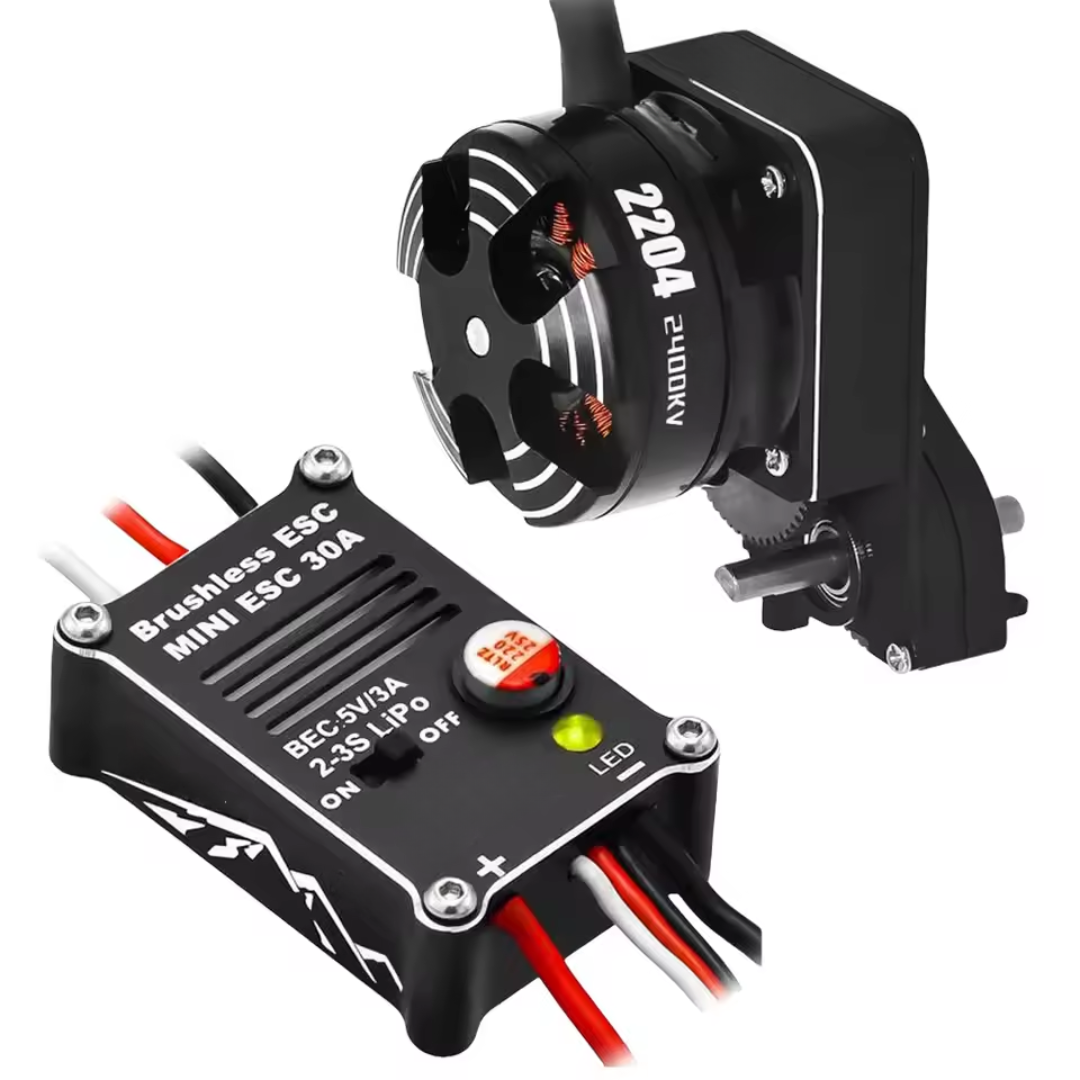

OZRC Upgrade 2204 2400KV Outrunner Motor With Transmission and 30A ESC for SCX24

Upgrade your 1/24 scale crawler with this high-performance 2204 2400KV brushless outrunner motor set, complete with a transmission mount and GP-M30 30A sensored brushless ESC. Perfect for SCX24 platforms, it delivers smooth low-speed control and strong high-speed acceleration.

Features

• Flexible battery compatibility: Supports PH2.0 and JST connectors
• Integrated gearbox and ESC: Streamlines setup and boosts efficiency
• Consistent performance: Operates with 2S–3S LiPo and 3–6 cell NiMH batteries
• Low-speed torque: Sensored motor ensures stable crawling control
• High-speed boost: Strong acceleration and responsive throttle
• Onboard BEC: 5V / 3A for powering receivers and servos

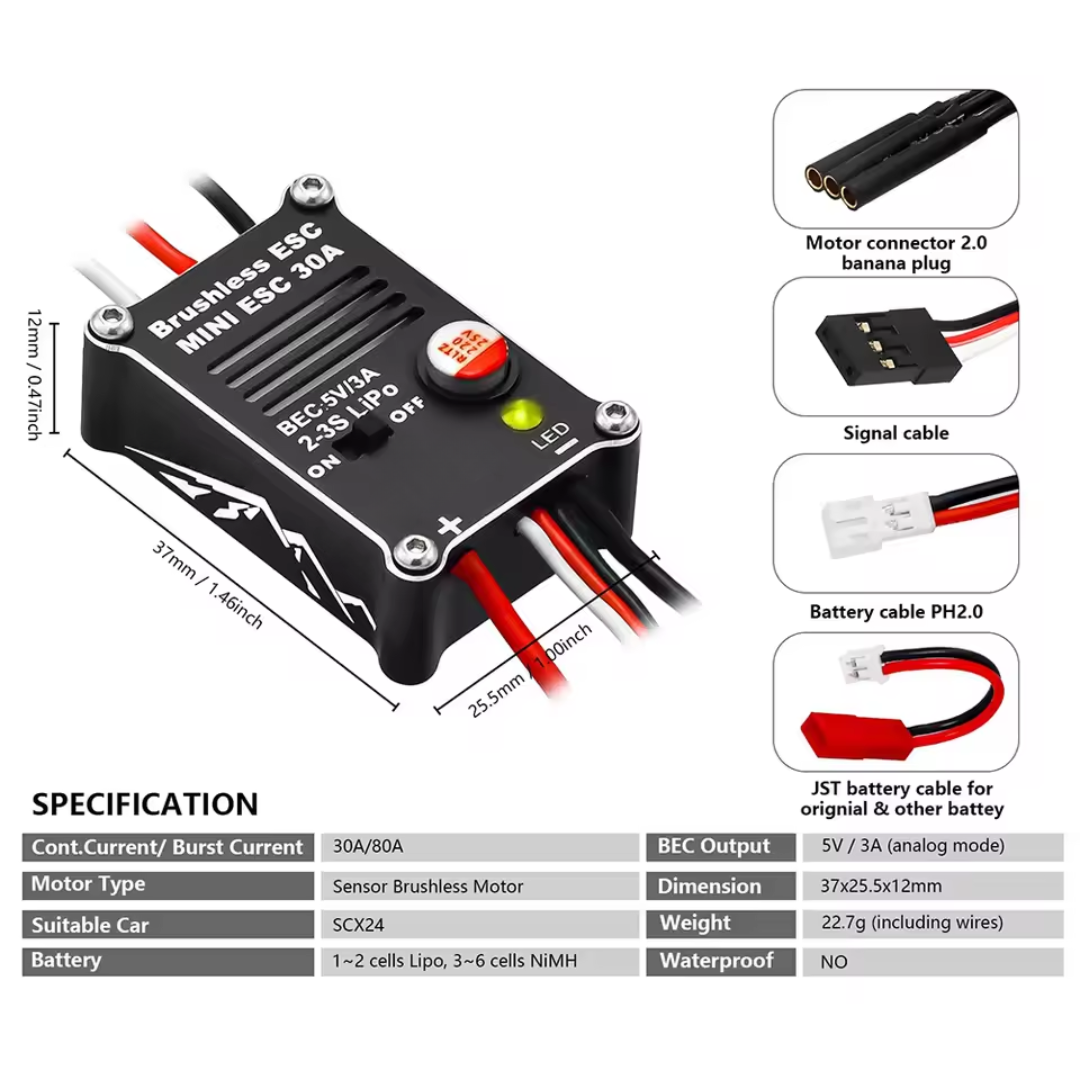

Specifications

• Motor Type: 2204 2400KV brushless outrunner
• ESC Model: GP-M30 sensored brushless ESC
• Continuous/Burst Current: 30A / 80A
• BEC Output: 5V / 3A (analog mode)
• Supported Battery Types: 2S–3S LiPo, 3–6 cell NiMH
• ESC Dimensions: 37 x 25.5 x 12 mm
• ESC Weight: 22.7 g (including wires)
• Motor Connector: 2.0 mm banana plug
• Signal Connector: Standard 3-pin servo plug
• Battery Connector: PH2.0 and JST supported
• Waterproof: No
• Suitable Vehicle: 1/24 scale crawlers such as SCX24

Includes

• 1 x 2204 2400KV brushless outrunner motor
• 1 x Transmission mount
• 1 x GP-M30 30A sensored brushless ESC
