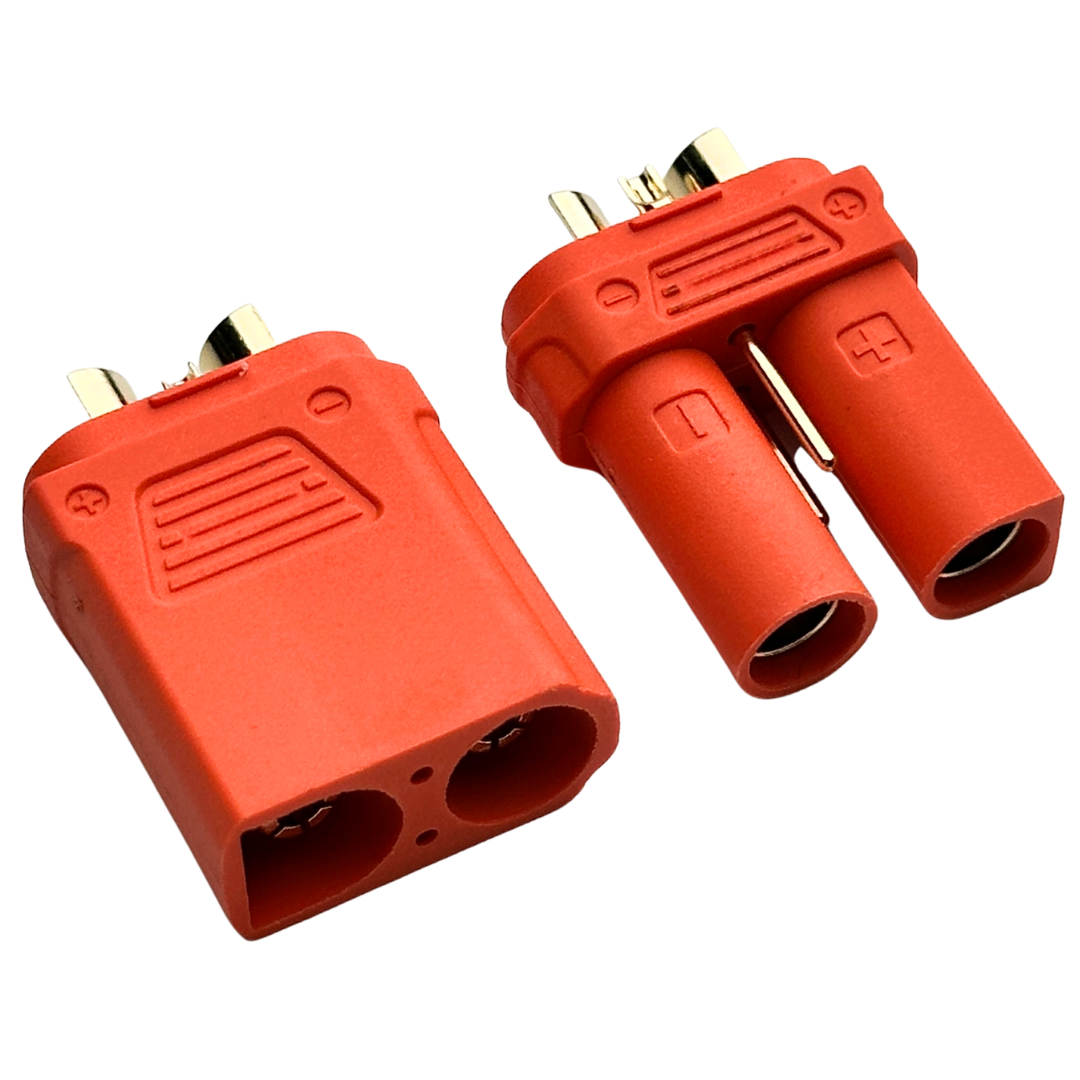

OZRC5 5mm 120A RC Battery Connector Plug Orange Male Female Pair (EC5 / IC5 Compatible)

The OZRC5 5mm 120A Plug is a high-current RC battery connector designed for demanding RC vehicles including cars, boats and aircraft. Built around a proven 5mm gold-plated bullet connector platform, it delivers reliable high current transfer while adding practical upgrades such as dual data pins and a removable rear cap for easier installation without heat shrink.

Features

• High current OZRC5 battery connector for RC vehicles
• 5mm gold plated bullet contacts for efficient power transfer
• Up to 120A continuous current capability
• Suitable for high power LiPo systems up to 12S
• Integrated removable rear cap for simplified installation
• No heat shrink required
• Dual auxiliary data pins
• Polarised anti reverse connector design
• High temperature nylon housing for durability

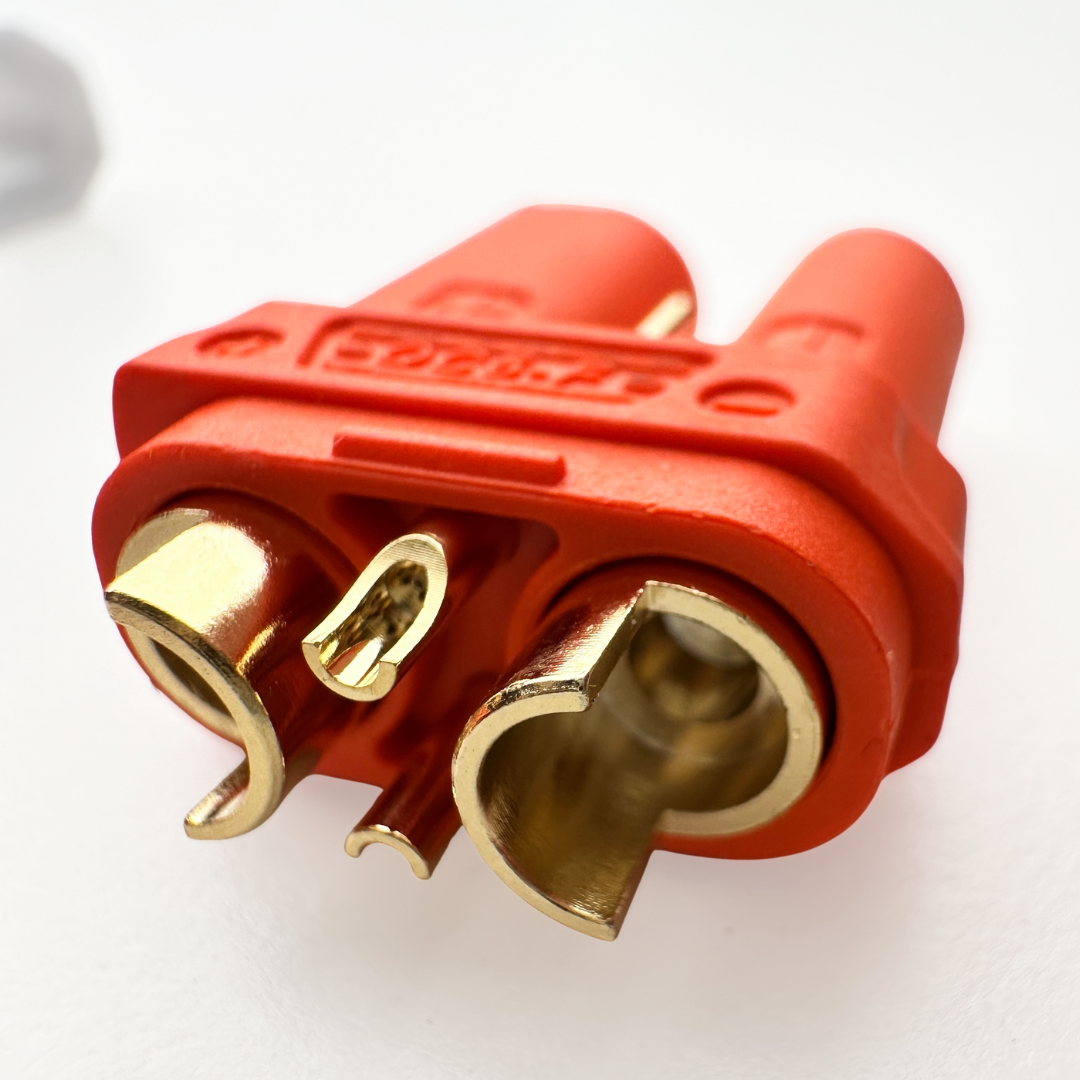

• Solder installation with no crimp tools required

Specifications

• Connector Type: OZRC5 High Current Battery Connector
• Main Bullet Diameter: 5mm gold plated
• Continuous Current Rating: Up to 120A
• Burst Current: 150A to 200A short bursts
• Voltage Compatibility: 2S to 12S LiPo systems
• Recommended Power Wire: 10 to 12 AWG
• Data Pin Diameter: 1.0mm
• Number of Data Pins: 2
• Signal Wire Size: 22 to 26 AWG recommended
• Installation Method: Solder
• Housing Material: High temperature nylon
• Connector Colour: Orange

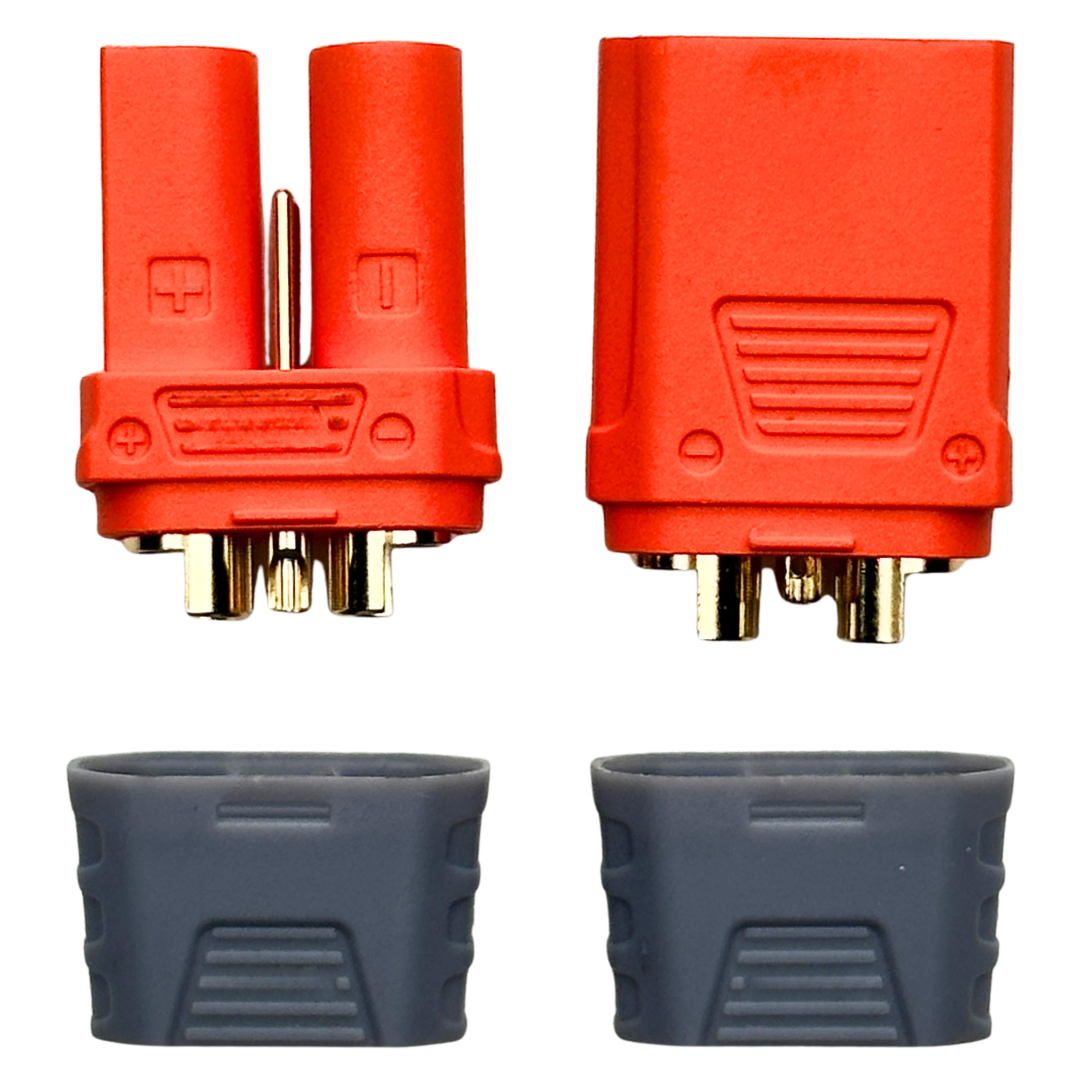

Includes

• 1 x OZRC5 Male Connector
• 1 x OZRC5 Female Connector
• 2 x Rear Housing Caps

Important Notes

• Standard 5mm bullet contacts compatible with EC5/IC5 style connectors
• OZRC5 uses dual 1 mm data pins, while genuine Spektrum IC5 uses a single centre pin
• Female IC5 may not mate with OZRC5 male if the IC5 centre pin is installed
• Limitation mainly affects Spektrum Smart batteries or chargers; ESC/device side (female connectors) typically unaffected
