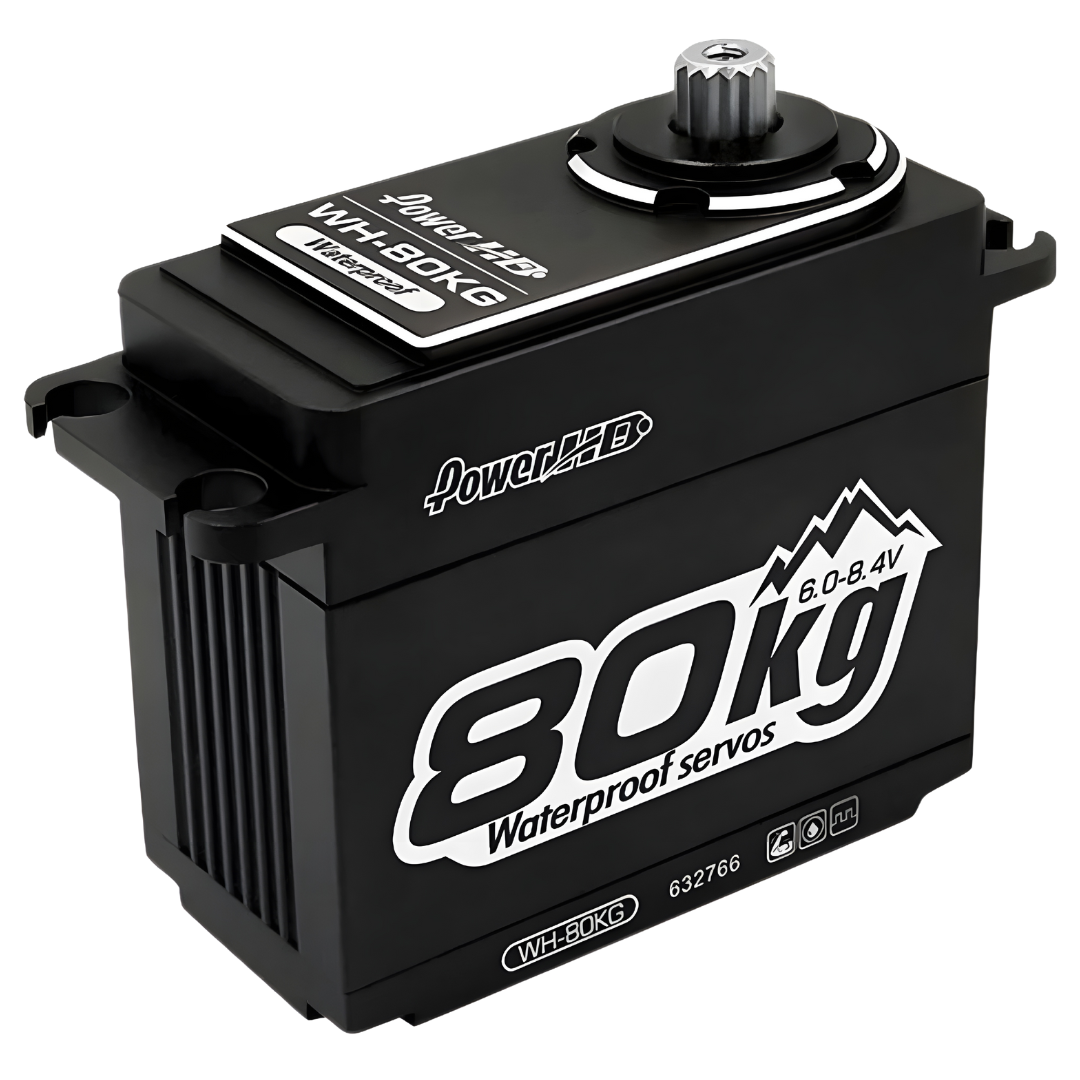

Power HD WH-80V1 1/5 HV 80kg Metal Geared Waterproof Servo PHD-WH-80V1

The Power HD WH-80V1 is a high-voltage, high-torque digital servo designed for demanding 1/5 and 1/6 scale RC applications. Delivering up to 80kg-cm of torque at 8.4V, it is suitable for steering duties in large-scale on-road cars, off-road vehicles, crawlers, monster trucks and short-course trucks.

A full aluminium case helps protect the internal components while assisting with heat dissipation. Steel gears, dual ball bearings and waterproof construction provide the strength and reliability required for heavy vehicles and demanding driving conditions.

Features

• High-torque digital servo for large-scale RC vehicles
• Delivers up to 80kg-cm of torque at 8.4V
• Designed for high-voltage 7.4V to 8.4V operation
• Suitable for 1/5 and 1/6 scale on-road and off-road applications
• Full aluminium upper, centre and lower case
• Steel gear train for increased strength and durability
• Waterproof construction for use in demanding conditions
• Dual ball bearings provide smooth and consistent operation
• 15-tooth, 7.6mm output spline
• Suitable for high-load steering applications

Specifications

• Brand: Power HD
• Model: WH-80V1
• Manufacturer Part Number: PHD-WH-80V1
• Product Type: High-voltage digital servo
• Recommended Scale: 1/5 and 1/6
• Operating Voltage: 7.4–8.4V DC
• Torque:
  • 75kg-cm at 7.4V
  • 80kg-cm at 8.4V
• Speed:
  • 0.18 sec/60° at 7.4V
  • 0.16 sec/60° at 8.4V
• Gear Material: Steel
• Case Material: Aluminium
• Output Spline: 15T, 7.6mm
• Bearing Type: Dual ball bearing
• Water Resistance: Waterproof
• Control Signal: 1520μs
• Operating Frequency: Up to 333Hz
• Standard Operating Travel: 90° at 1000–2000μs
• Maximum Travel: Approximately 135° at 800–2200μs
• Neutral Position: 1500μs
• Operating Temperature: -20°C to 60°C
• Dimensions: Approximately 59.4 × 29.5 × 54.4mm
• Weight: Approximately 200g

Includes

• 1 × Power HD WH-80V1 servo
• Mounting hardware

FAQ

Can this servo be powered directly from a standard 6V receiver system? No. The specified operating-voltage range is 7.4V to 8.4V. A compatible high-voltage receiver supply, BEC or receiver battery is required.

Does this servo use a standard 25T servo horn? No. The WH-80V1 uses a large-scale 15-tooth output spline measuring approximately 7.6mm. Confirm that your existing servo horn matches this spline before installation.

Is the WH-80V1 suitable for 1/5 scale steering? Yes. Its high torque, aluminium case and steel gears make it suitable for steering in compatible large-scale on-road and off-road vehicles. Physical mounting dimensions, spline type and electrical requirements should be checked before purchase.

Is the servo waterproof? Yes. The WH-80V1 features waterproof construction; however, connectors, extension leads and other electronics must also be protected from water.

Can I set the servo travel beyond 90 degrees? The standard operating travel is approximately 90 degrees. Travel may reach approximately 135 degrees with a compatible transmitter or programmer using the specified pulse range. Always check for steering binding before increasing travel.

Important Notes

• Requires a regulated 7.4V to 8.4V power supply capable of handling the current demands of a high-torque large-scale servo.
• Uses a 15T, 7.6mm output spline; standard 23T, 24T and 25T servo horns are not compatible.
• Check the servo dimensions and mounting-hole positions against your vehicle before ordering.
• Set steering endpoints carefully to prevent linkage binding, excessive current draw and servo damage.
• Do not exceed the specified maximum operating voltage of 8.4V.
• A servo horn is not listed as included unless supplied separately by the distributor.
