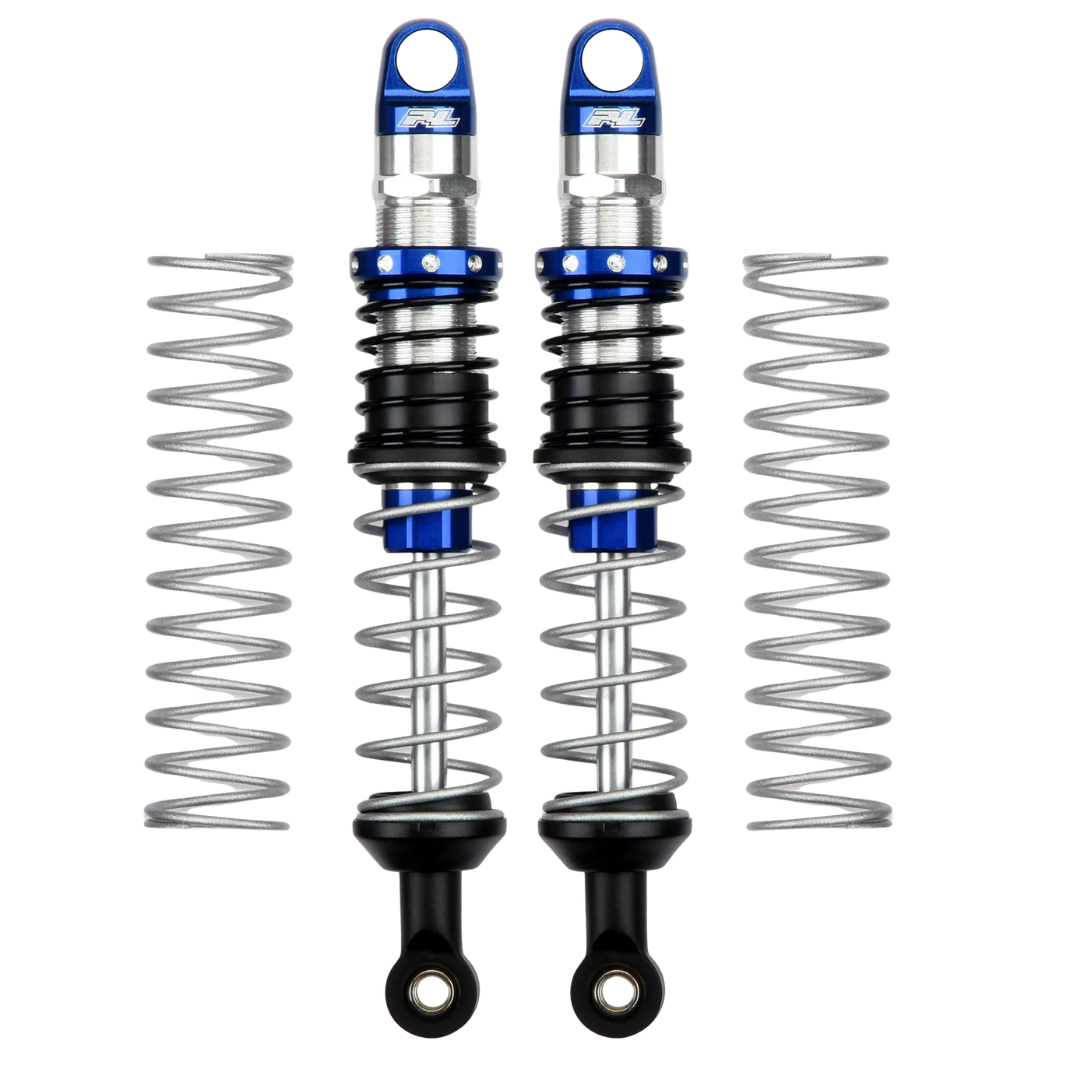

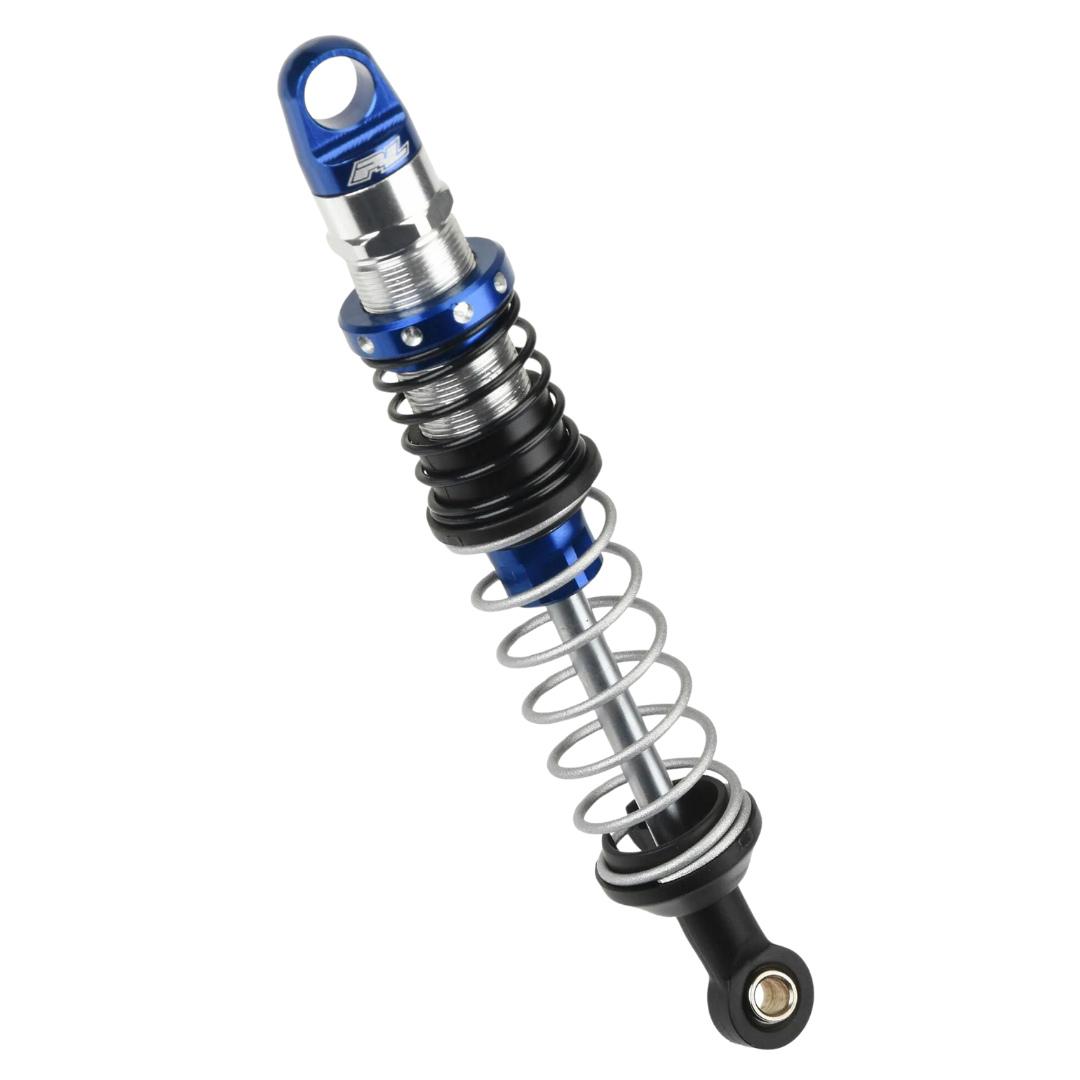

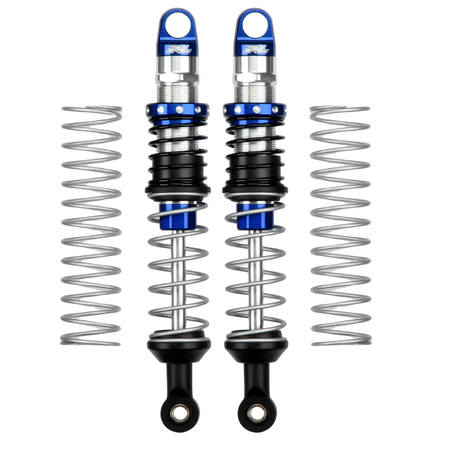

Pro-Line Pro-Spec Scaler Shocks 90mm 95mm Rock Crawler PR6316-01

The Pro-Line PR6316-01 Pro-Spec Scaler Shocks are premium aluminium front or rear crawler shocks designed for most 1/10 rock crawlers needing smooth suspension action, scale appearance, and adjustable 90mm to 95mm length options.

Features

• Pro-Spec Scaler Design: Built for 1/10 rock crawlers and scale rigs needing smooth, controlled suspension movement
• 90mm To 95mm Length Options: Standard rod ends provide 90mm extended length, while included +5mm rod ends increase the length to 95mm
• CNC Machined Aluminium Parts: Shock caps, collars, bodies, and bottom caps are CNC machined for accurate fit and consistent performance
• Hard Chrome Coated Shafts: Steel shock shafts feature a hard chrome coating for smooth action and durability
• Low Friction X-Ring Seal: Single X-ring shaft seal helps reduce friction and limit oil leakage
• Pre-Assembled Design: Shocks come mostly pre-built and only require suitable shock oil before use
• Scale Dual Rate Springs: Includes scale-looking dual rate springs, with optional single rate spring setup also supported
• Chrome And Blue Finish: Bright chrome and blue anodising gives the shocks a clean, high-quality crawler appearance
• Front Or Rear Use: Designed for use on the front or rear of many compatible 1/10 crawler platforms

Specifications

• Brand: Pro-Line Racing
• Part Number: PR6316-01
• Alternate Part Number: PRO631601
• Product Type: Scale crawler shock set
• Scale: 1/10 scale
• Vehicle Type: Rock crawler / scaler
• Position: Front or rear
• Quantity: 2 shocks
• Shock Material: CNC machined aluminium
• Shaft Material: Hard chrome coated steel
• Seal Type: Low friction X-ring seal
• Standard Extended Length: 90mm
• Standard Collapsed Length: 64mm
• Extended Length With +5mm Rod Ends: 95mm
• Collapsed Length With +5mm Rod Ends: 69mm
• Fitment: Most 1/10 rock crawlers where 90mm to 95mm shocks are suitable

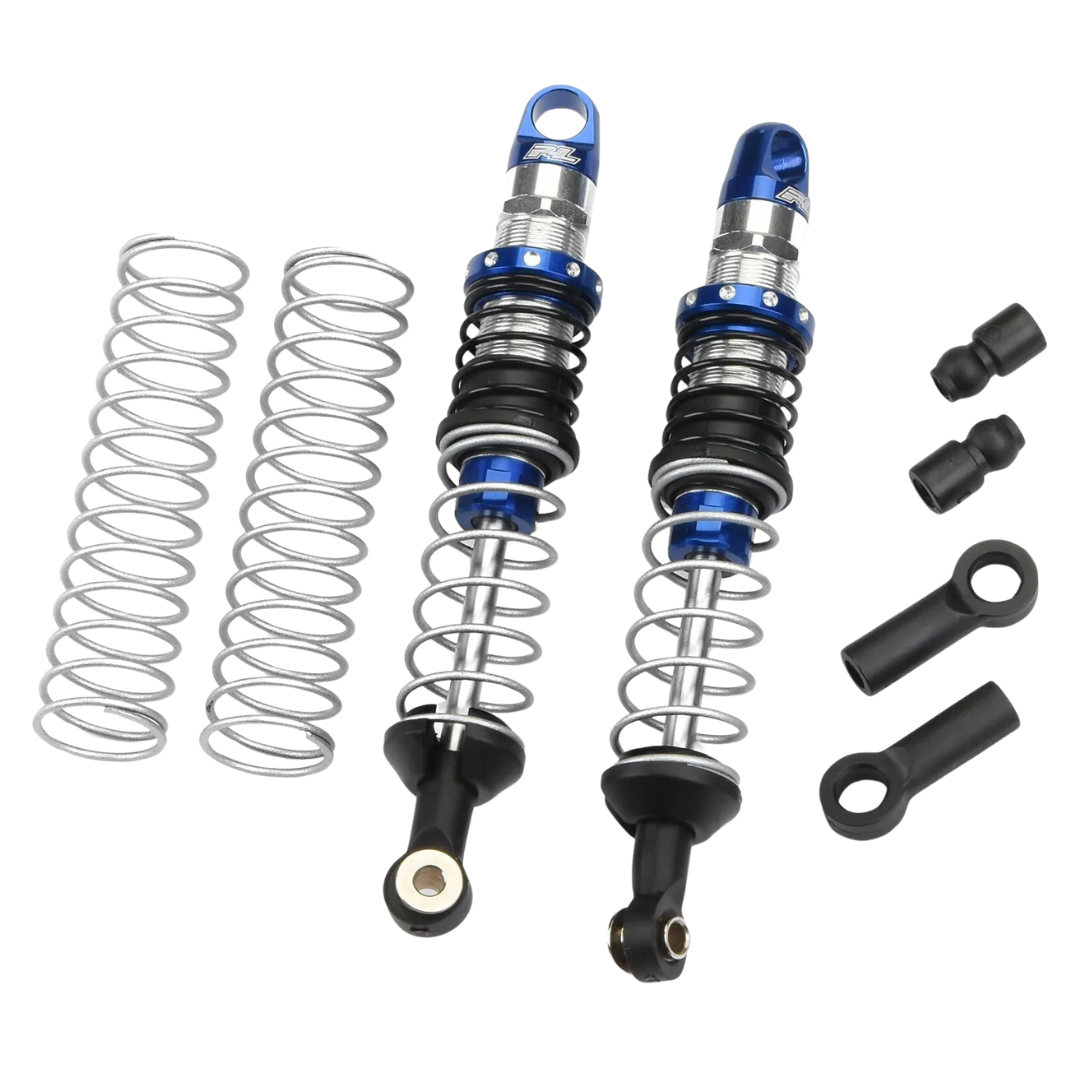

Includes

• 2 x Pro-Line Pro-Spec Scaler Shocks, 90mm to 95mm
• 2 x +5mm shock ends
• 2 x Upper pivot balls

Needed To Complete

• Suitable shock oil
• Compatible 1/10 crawler mounting hardware if not already fitted to your vehicle

FAQ

Do the Pro-Line PR6316-01 shocks come filled with oil? No. The shocks come mostly pre-assembled, but suitable shock oil is required before installation and use.

What length are these shocks? The Pro-Line PR6316-01 shocks are 90mm extended and 64mm collapsed with standard rod ends, or 95mm extended and 69mm collapsed using the included +5mm shock ends.

How many shocks are included? This set includes two Pro-Spec Scaler shocks.

Will these fit my crawler? These shocks are designed to fit most 1/10 rock crawlers, but OZRC recommends checking your required shock length, mounting style, spring clearance, and suspension travel before ordering.

Can these be used on the front and rear? Yes. Pro-Line lists these as front or rear scaler shocks for compatible rock crawlers.

Important Notes

• Shock oil is required separately before use.
• Check your vehicle’s original shock length, mounting hardware, spring clearance, and suspension geometry before installation.
• This listing is for one pair of shocks only. Vehicle, wheels, tyres, shock oil, tools, and additional mounting hardware are not included unless supplied in the original manufacturer pack.
• After filling, bleed the shocks carefully and check for smooth rebound, equal length, and secure mounting before driving.
