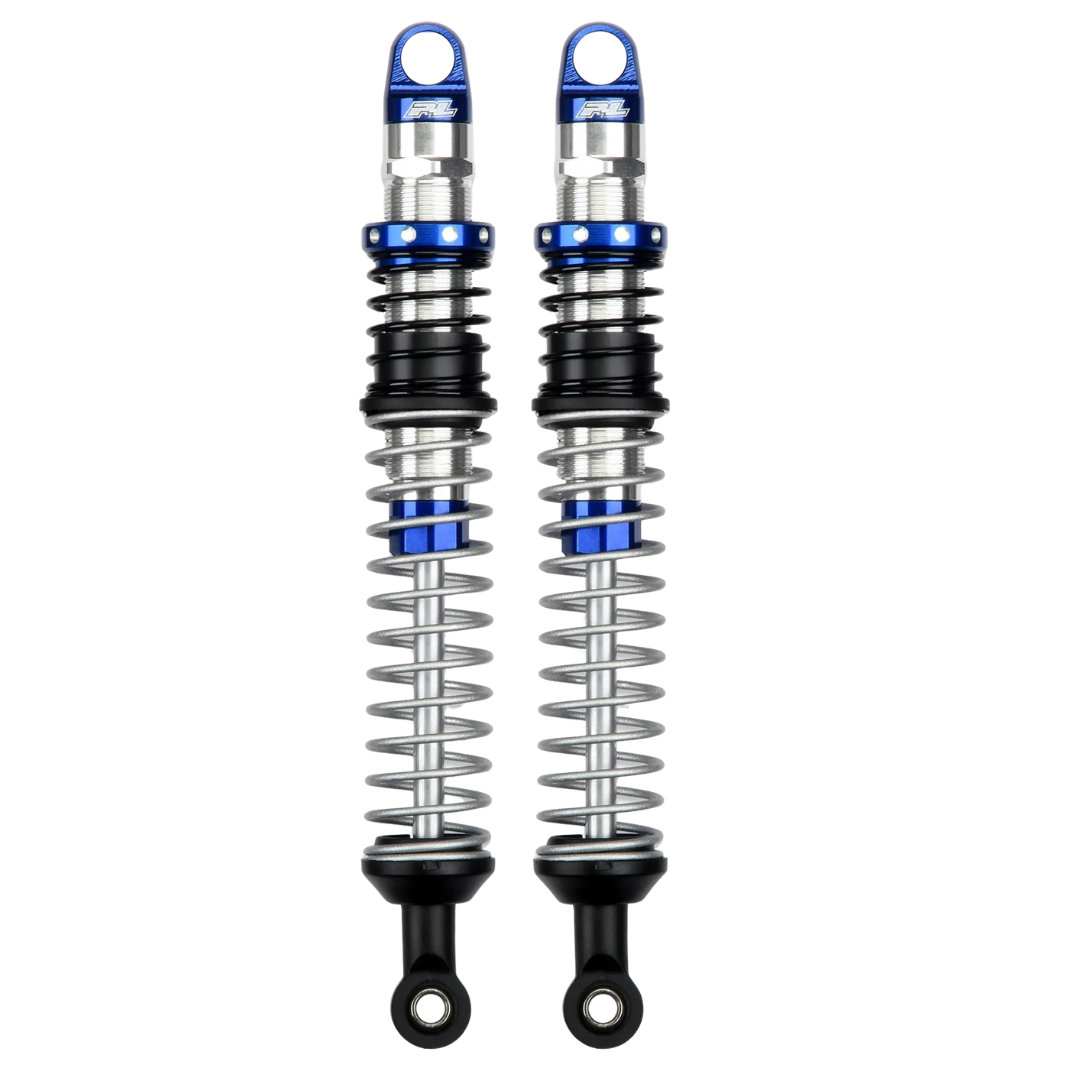

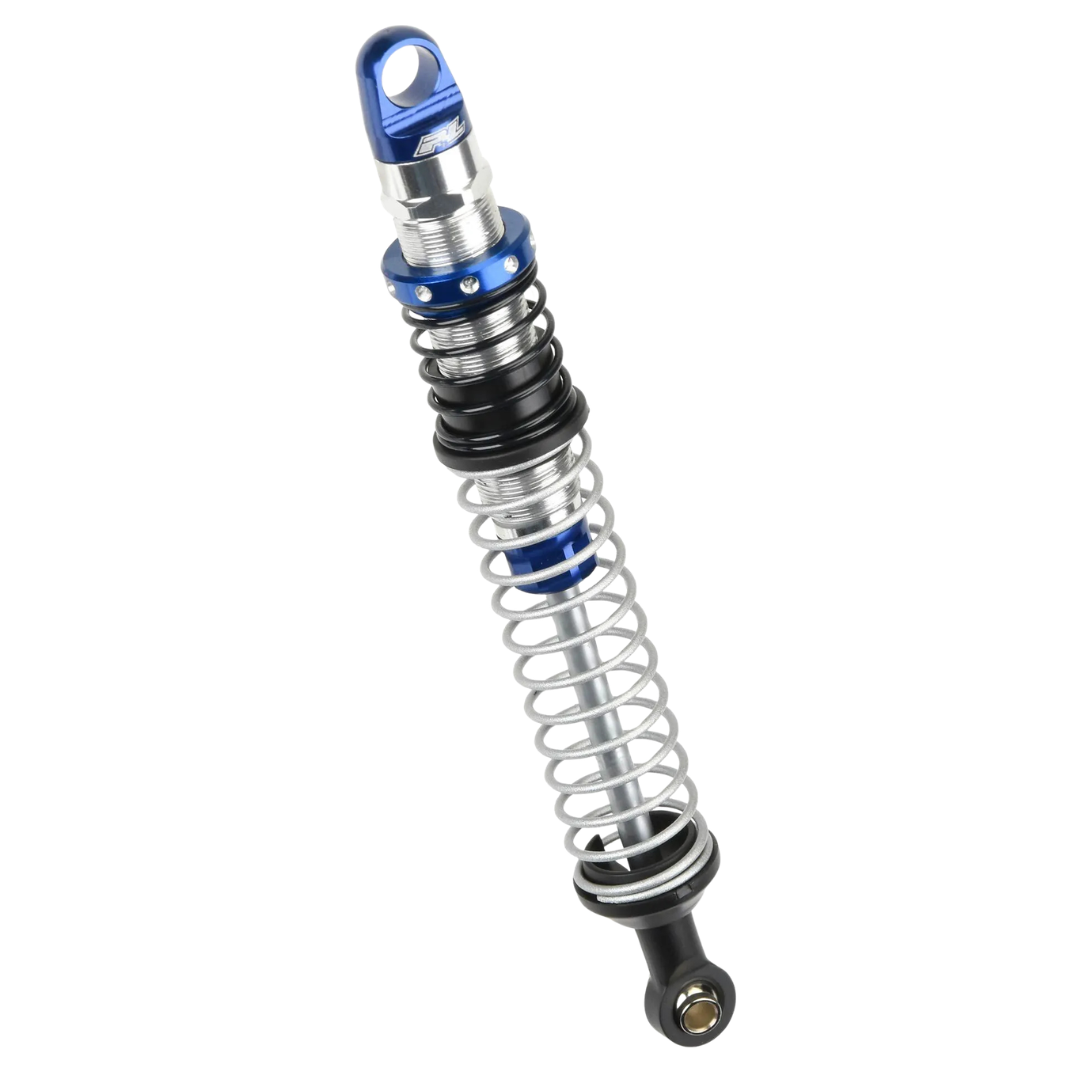

Pro-Line Pro-Spec Scaler Shocks 105-110mm 1/10 2pcs PRO631602

The Pro-Line Pro-Spec Scaler Shocks are a 105-110mm aluminium shock upgrade for 1/10 RC rock crawlers, providing low-friction damping, tunable ride height and scale-focused suspension performance for front or rear crawler applications.

These shocks feature CNC machined aluminium caps, collars, bodies and bottom caps, combined with hard chrome coated steel shock shafts and single X-Ring shaft seals. They are supplied mostly pre-assembled, so crawler builders can fill them with suitable shock oil and install them on compatible 1/10 scale rock crawling rigs.

Features

• 1/10 Crawler Fitment: Designed for front or rear use on many compatible 1/10 rock crawler vehicles
• 105-110mm Adjustable Length: Standard 105mm extended length with included +5mm shock ends to increase length
• CNC Machined Aluminium Parts: Shock caps, collars, bodies and bottom caps are machined for precise fit and durability
• Hard Chrome Coated Shafts: Steel shock shafts are hard chrome coated for smooth action and wear resistance
• Single X-Ring Shaft Seal: Low-friction sealing helps reduce leakage and maintain smooth shock movement
• Pre-Assembled Design: Supplied mostly built, requiring shock oil before use
• Scale Crawler Styling: Bright chrome and blue anodised finish gives a clean scale performance appearance
• Optional Longer Shock Ends: Included +5mm rod ends allow extra length adjustment for compatible setups
• Rebuildable Design: Compatible with Pro-Line rebuild kit PRO606001 for future servicing

Specifications

• Brand: Pro-Line Racing
• Part Number: PRO631602
• Manufacturer Reference: 6316-02 / PR6316-02
• Product Type: Pro-Spec Scaler shock set
• Scale: 1/10
• Vehicle Type: Rock crawler
• Application: Front or rear suspension
• Material: CNC machined aluminium shock components with hard chrome coated steel shafts
• Seal Type: Single X-Ring shaft seal
• Extended Length: 105-110mm
• Collapsed Length: 72-77mm
• Length Adjustment: Includes +5mm shock ends
• Finish: Chrome and blue anodised
• Rebuild Kit: Pro-Line PRO606001, sold separately
• Assembly: Mostly pre-assembled, shock oil required before use
• Quantity: 2 shocks
• Vehicle Compatibility: Most 1/10 rock crawlers where 105-110mm shocks suit the chassis and suspension geometry

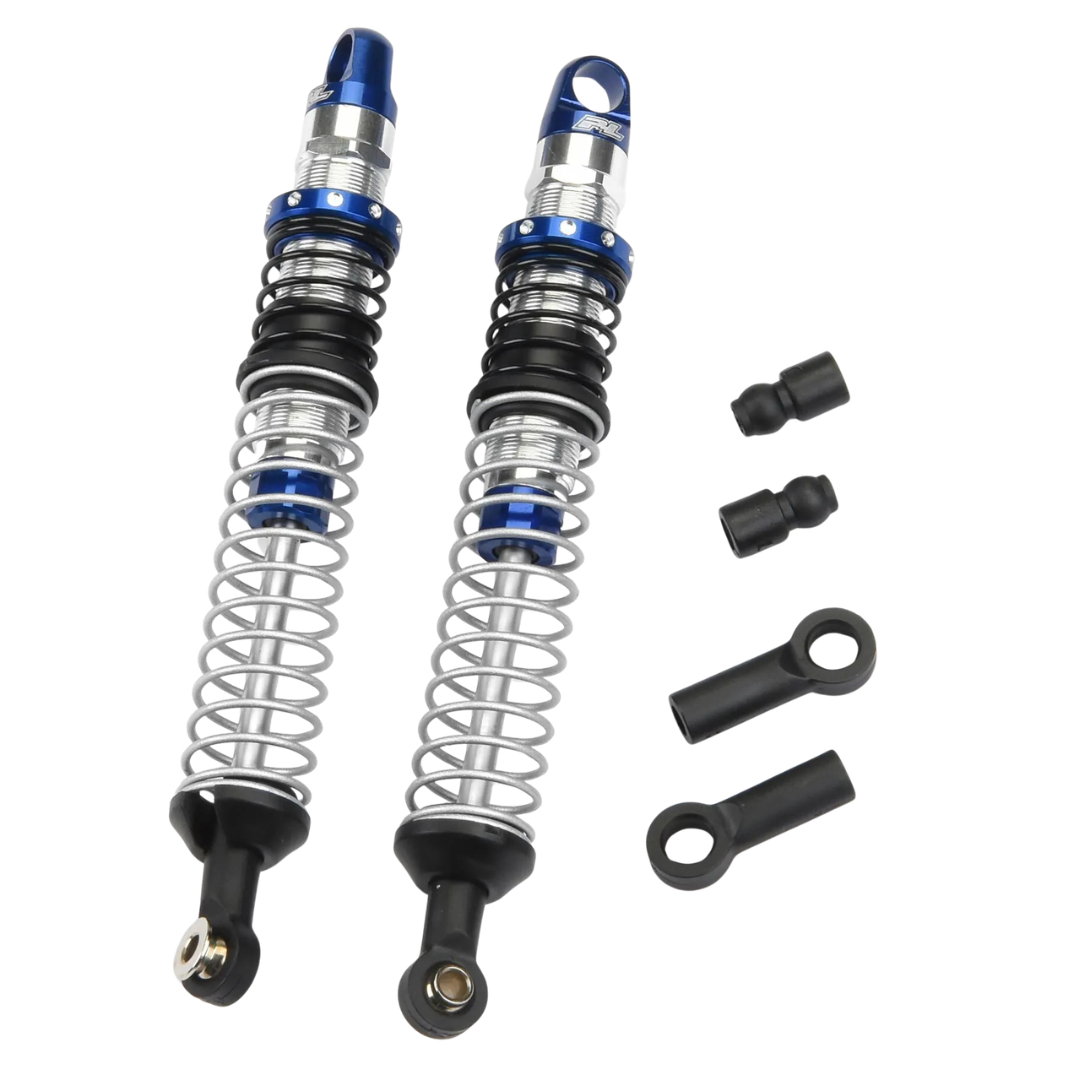

Includes

• 2 x Pro-Line Pro-Spec Scaler Shocks 105-110mm
• 2 x +5mm shock ends
• 2 x Upper pivot balls

FAQ

What length are these Pro-Line Pro-Spec Scaler shocks? These shocks are 105mm extended with the standard ends and 110mm extended when using the included +5mm shock ends. The collapsed length range is 72-77mm.

Do these shocks fit the front or rear? They can be used front or rear on compatible 1/10 rock crawlers when the 105-110mm length suits the vehicle setup.

Is shock oil included? No. The shocks are supplied mostly pre-assembled, but shock oil must be added before use.

Are these suitable for every 1/10 crawler? Not automatically. OZRC recommends checking your current shock length, mounting style, tyre clearance and suspension travel before fitting.

Can these shocks be rebuilt? Yes. Pro-Line lists PRO606001 as the rebuild kit for these Pro-Spec Scaler shocks.

Important Notes

• Shock oil is not included and must be added before use.
• Check your crawler’s required shock length before ordering.
• These are 105-110mm shocks, not the shorter 70-75mm Pro-Spec Scaler version.
• Vehicle fitment depends on chassis layout, shock mounts, links, tyres and body clearance.
• Rebuild kit PRO606001 is sold separately.
• This listing includes two shocks only. Vehicle, wheels, tyres, tools and shock oil are not included.
