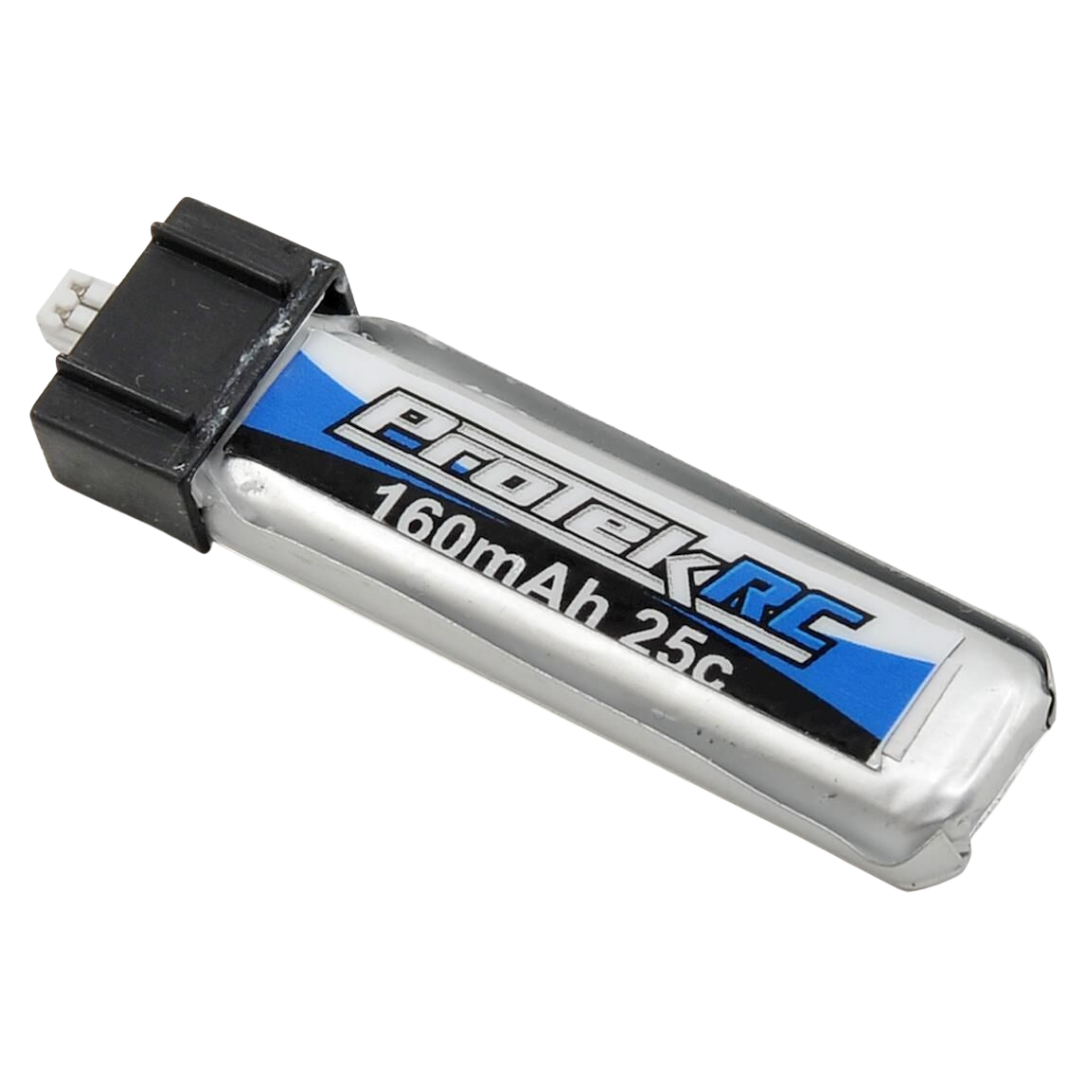

ProTek RC 1S High Power Micro Heli/Airplane 25C LiPo Battery (3.7V/160mAh) – PTK-5184

The ProTek RC 1S High Power Micro Heli/Airplane 25C LiPo Battery is a compact, lightweight lithium polymer battery designed for compatible micro RC helicopters and airplanes. Featuring a 3.7V nominal voltage, 160mAh capacity, and 25C continuous discharge rating, this single-cell battery delivers up to 4.0A of continuous discharge current for compatible micro aircraft. It features a Molex connector and is listed as compatible with selected E-flite and ParkZone aircraft designed for smaller 70mAh to 150mAh battery packs. Its 4g weight makes it a lightweight power option for suitable micro RC models.

Features

• High-Power 25C Discharge Rating: Provides a maximum continuous discharge current of 4.0A, supporting the power requirements of compatible micro RC helicopters and airplanes.

• 160mAh Battery Capacity: Offers more capacity than a typical 70mAh to 150mAh micro aircraft battery, potentially providing longer operating times when the model supports this battery.

• 1S Lithium Polymer Design: Uses a single lithium polymer cell with a nominal voltage of 3.7V for compatible micro RC applications.

• Lightweight Construction: Weighs approximately 4g, helping minimize additional weight in small RC aircraft.

• Compact Dimensions: Measures approximately 43 x 12 x 5mm, allowing installation in compatible battery compartments.

• Molex Connector: Features a Molex connector for compatible aircraft and charging equipment.

• Micro Aircraft Compatibility: Listed for selected E-flite and ParkZone models that use compatible micro battery connections and support the battery's dimensions and specifications.

Specifications

• Brand: ProTek RC

• Product Type: RC Lithium Polymer Battery

• Battery Chemistry: Lithium Polymer (LiPo)

• Cell Count: 1S

• Nominal Voltage: 3.7V

• Capacity: 160mAh

• Continuous Discharge Rating: 25C

• Maximum Continuous Discharge Current: 4.0A

• Connector Type: Molex

• Maximum Charge Rate: 1C (160mA)

• Weight: 4g

• Dimensions: 43 x 12 x 5mm (1.75 x 0.5 x 0.25 inches)

• Manufacturer Part Number: PTK-5184

• Supplier SKU: PTK-5184

• Barcode / UPC: 610074799917

Includes

• 1 x ProTek RC 1S 3.7V 160mAh 25C LiPo Battery

Required To Complete

• 1 x Compatible LiPo battery charger that supports single-cell 3.7V batteries and the battery's Molex connector or an appropriate compatible charging lead.

• 1 x Compatible micro RC helicopter or airplane designed for a 1S 3.7V battery.

• 1 x Compatible battery charging bag or other appropriate LiPo charging safety equipment.

FAQ

What is the voltage and capacity of this battery? It has a nominal voltage of 3.7V and a capacity of 160mAh.

What does 1S mean? 1S means the battery contains one lithium polymer cell connected in series. Its nominal voltage is 3.7V.

What is the maximum continuous discharge current? The battery has a 25C continuous discharge rating, equivalent to a maximum continuous current of 4.0A at its rated capacity.

Which RC models can use this battery? It is listed for selected E-flite and ParkZone micro helicopters and airplanes that use compatible 70mAh to 150mAh battery packs. Confirm the connector, battery compartment dimensions, weight balance, and manufacturer-approved battery specifications before purchasing.

Can I use this battery to replace a 70mAh or 150mAh battery? Potentially, provided the aircraft supports the 3.7V voltage, compatible connector, physical dimensions, and additional battery weight. A higher-capacity battery is not automatically compatible with every model.

What connector does this battery use? It uses a Molex connector. Verify the exact connector configuration and polarity required by your aircraft and charger before connecting it.

What charger do I need? Use a LiPo-compatible charger that supports 1S batteries and the correct charging connection. The specified maximum charge rate is 1C, or 160mA. Do not use a NiMH- or NiCd-only charger.

Does this battery include a charger? No charger is listed as included. A compatible charger must be purchased separately if you do not already have one.

Important Notes

• Confirm that your aircraft supports a 1S 3.7V LiPo battery before use.

• Check connector type, polarity, physical dimensions, and battery compartment clearance before installation.

• The maximum specified charging rate is 160mA (1C). Do not exceed this rate.

• Always charge the battery using a suitable LiPo charger, in an appropriate fire-resistant charging location, and never leave it unattended while charging.

• Disconnect the battery from the aircraft before charging.

• Avoid overcharging, excessive discharge, puncturing, crushing, or exposing the battery to excessive heat.

• Allow the battery to cool before recharging if it becomes warm during use.

• Battery compatibility and flight time depend on the aircraft's power requirements, condition, and operating conditions.

• Charger, aircraft, and other accessories are not included unless explicitly stated by the seller.
