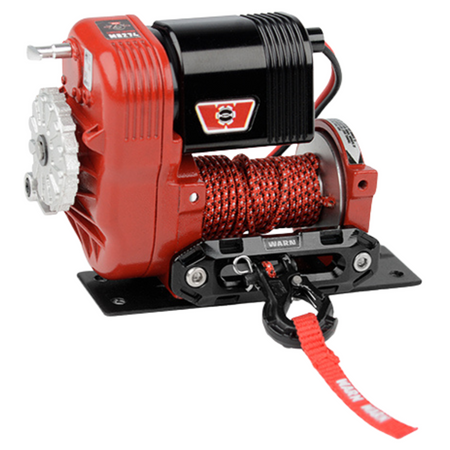

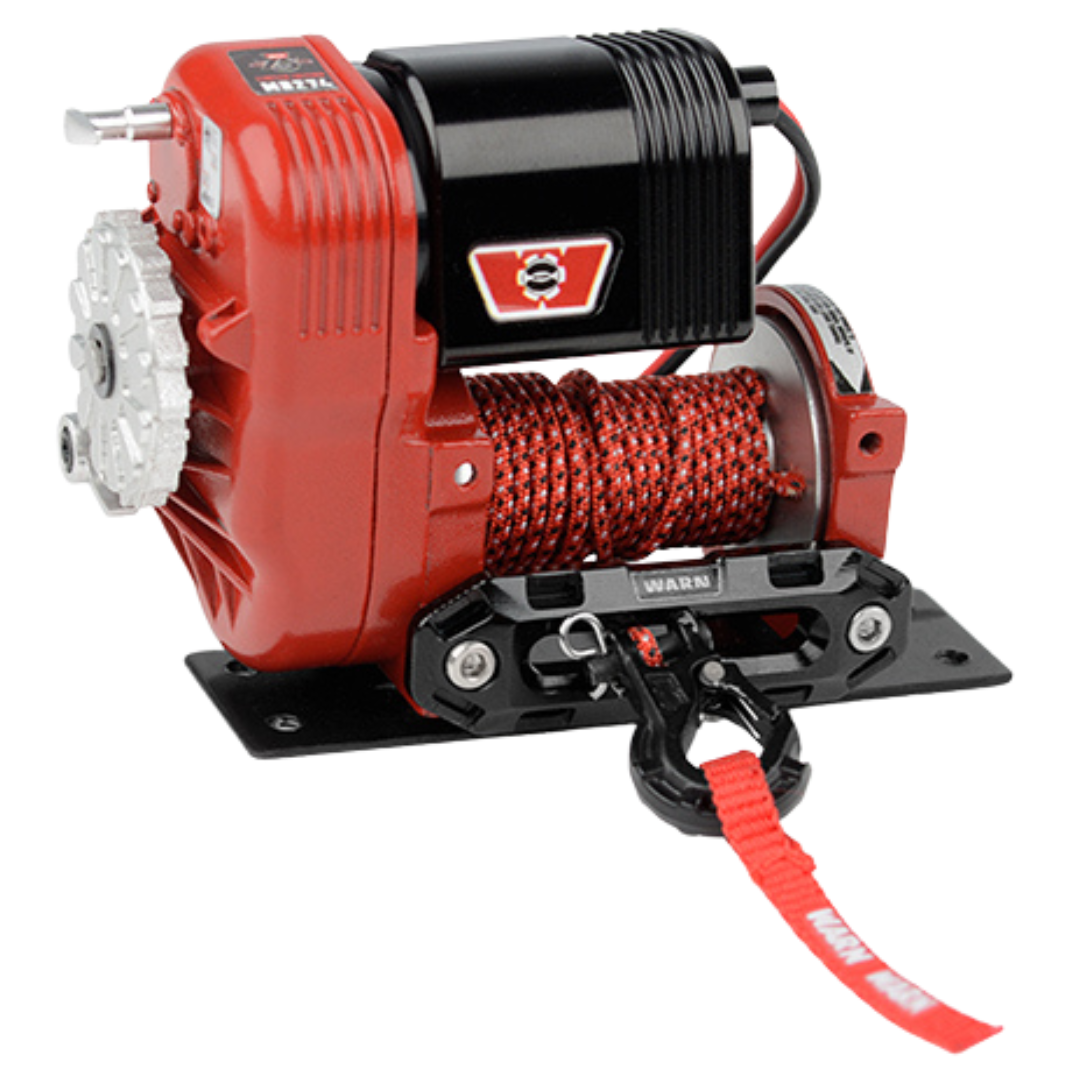

RC4WD 1/10 Warn 8274 Winch 75th Anniversary Edition For RC Crawlers Z-E0027

Celebrate decades of off-road innovation with the RC4WD 1/10 Warn 8274 Winch 75th Anniversary Edition. This officially licensed winch offers ultra-realistic scale details, a powerful pull rating, and exceptional build quality with CNC machined aluminium parts and a spring-loaded hook. Ideal for scale RC builds requiring performance and authenticity.

Features

• Officially licensed Warn 8274 design with 75th Anniversary branding
• CNC machined billet and cast aluminium construction for durability
• Working spring-loaded Warn hook for realistic recovery action
• Free spool capability for manual rope operation
• Pre-installed synthetic winch rope with 1.0m (3.28ft) length
• Highly detailed finish with full Warn decals installed
• Supports 6V–12.4V input and 3-cell LiPo compatibility

Specifications

• Rated Voltage: 6V
• Operating Voltage: 6V–12.4V
• Dead Lift Load Limit: 50lbs / 22.6kg
• Rolling Drag Load Limit: 70lbs / 31.7kg
• Winch Rope Dead Lift Limit: 25lbs / 11.3kg
• Winch Rope Rolling Drag Limit: 37lbs / 16.8kg
• Rope Length: 1.0m / 3.28ft (pre-installed)
• Dimensions: 65.0 x 27.0 x 45.0mm
• Weight: 120g / 4.23oz

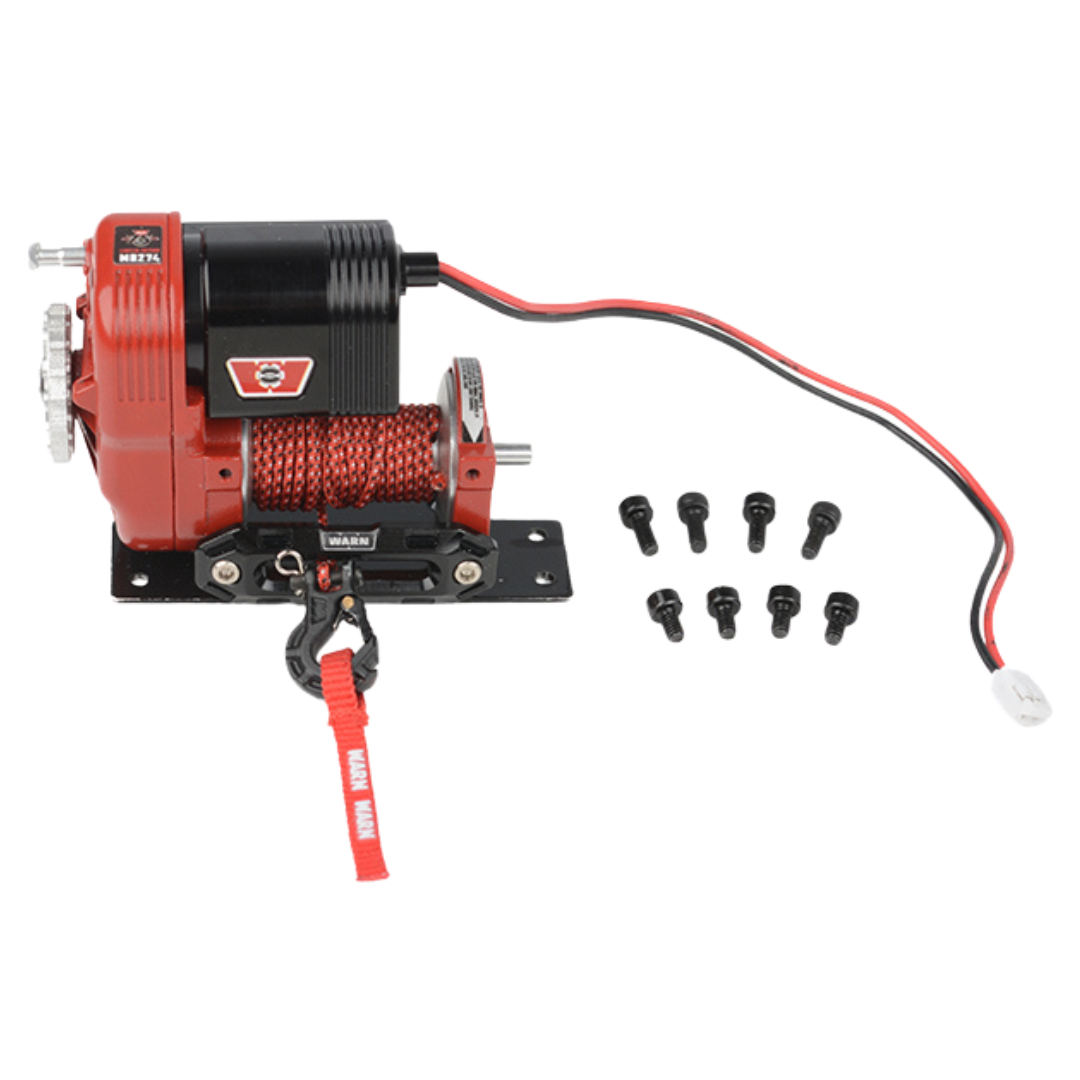

Includes

• 1x RC4WD 1/10 Warn 8274 Winch (75th Anniversary Edition)
• 4x M2.5 x 4mm Socket Head Cap Screws (Black)
• 4x M2.5 x 6mm Socket Head Cap Screws (Black)
• 1x RC4WD Warn Winch Pull Tag
• 1x Warn Decal Sheet Set

Important Notes

• Requires RC4WD Wired Winch Controller (Z-S1089) or Wireless Controller Set (Z-E0130) for operation
• Do not exceed load limits to prevent damage
