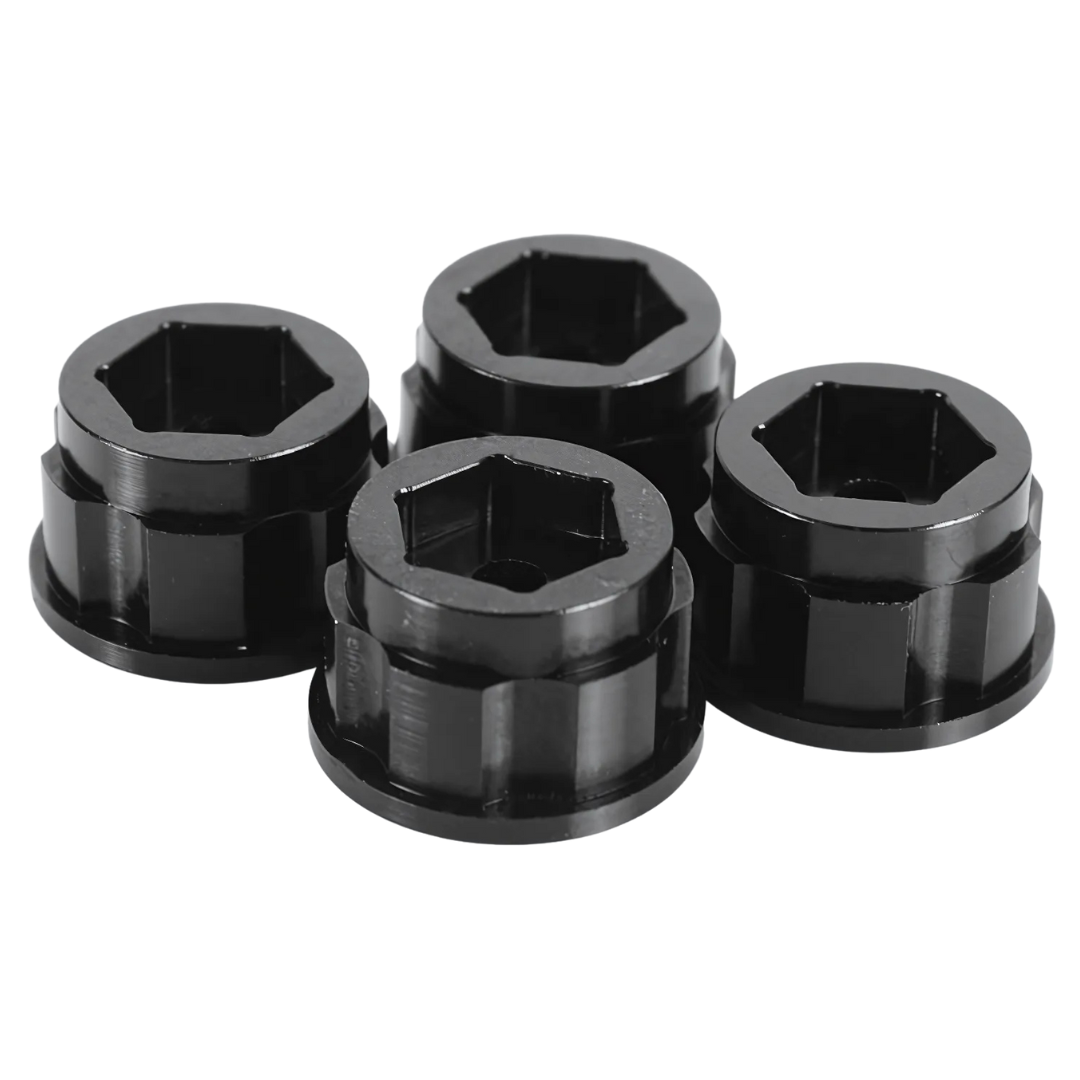

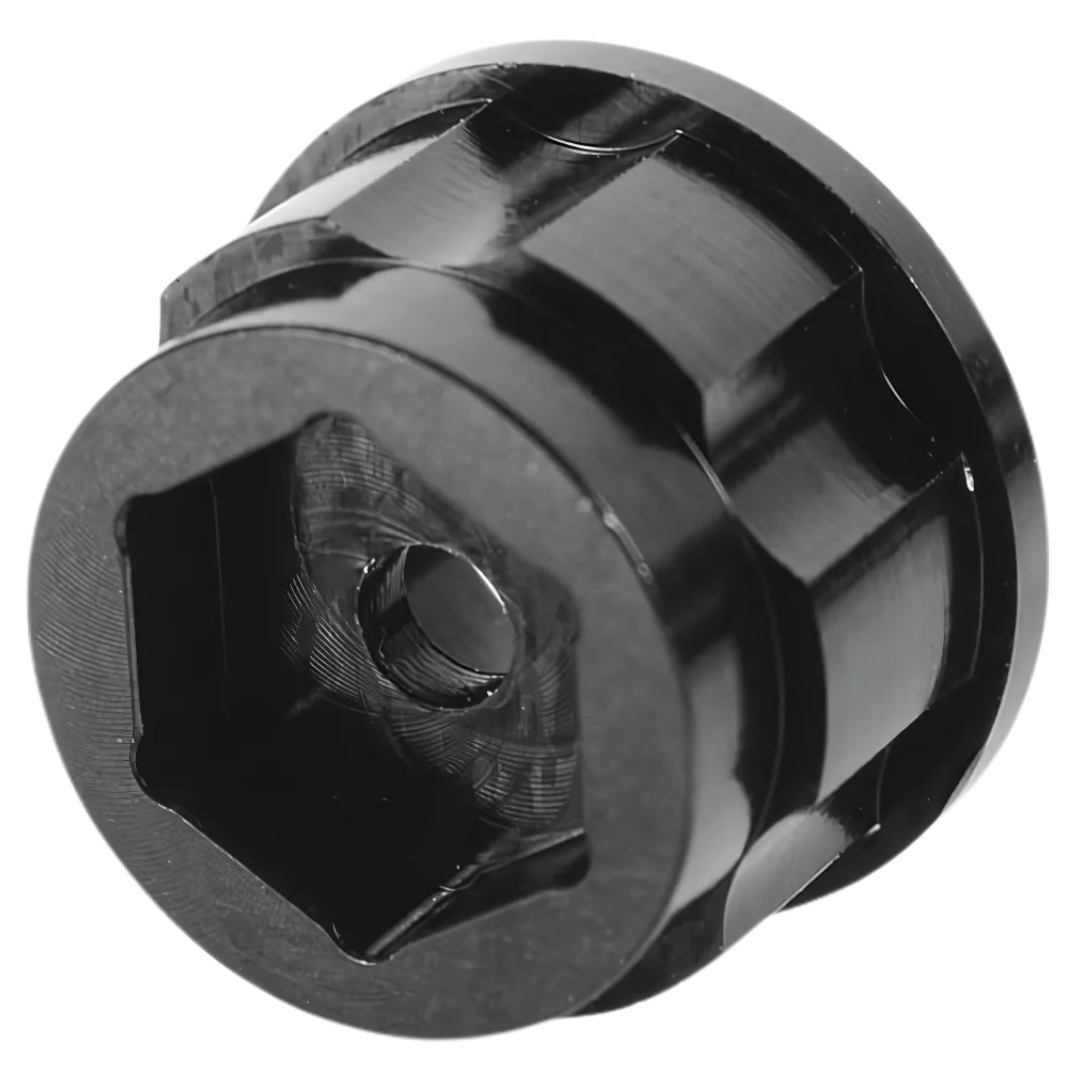

RC4WD 1.9/2.2 6-Lug Wheel Hex Hubs +9mm Offset 4pcs Z-S0780

Give your RC crawler or scale trail truck a wider, more aggressive stance with the RC4WD 1.9/2.2 Inch 6-Lug Steel Wheel Hex Hub +9mm Offset Set. Designed for compatible RC4WD stamped steel and beadlock wheels, these precision CNC-machined aluminium hubs increase the wheel offset by 9mm compared with standard RC4WD hub references Z-S0268 and Z-S0530.

By moving compatible wheels further outward, the Z-S0780 hubs can help achieve a wider track width, improve the appearance of scale crawler builds and provide additional clearance where required by the wheel and chassis combination. The finished wheel backspacing is approximately 1.75mm, while each hub measures 14.2mm thick.

Compatible with selected RC4WD 1.9-inch and 2.2-inch six-lug wheel designs, including Wagon, Pro10, Raceline Monster and Mickey Thompson styles, this four-piece set is ideal for customising your rock crawler's wheel fitment without replacing the complete wheel assemblies.

Features

• RC4WD Genuine Wheel Hub Upgrade: Official replacement and optional offset hubs for compatible six-lug RC4WD wheels.
• Additional +9mm Offset: Moves compatible wheels approximately 9mm further outward compared with reference hubs Z-S0268 and Z-S0530.
• Wider Track Width: Helps create a wider wheel stance on compatible RC crawlers and trail trucks.
• CNC-Machined Construction: Precision-manufactured metal hubs designed for accurate wheel mounting.
• Aluminium Material: Machined aluminium construction provides a durable, lightweight wheel-mounting component.
• Six-Lug Wheel Interface: Designed for compatible RC4WD six-bolt stamped steel and beadlock wheel designs.
• 12mm Hex Application: Suitable for compatible 12mm-hex axle arrangements when installed with the correct wheel and axle hardware.
• 1.9-Inch Wheel Compatibility: Supports selected RC4WD 1.9-inch stamped steel and beadlock wheels.
• 2.2-Inch Wheel Compatibility: Also supports selected RC4WD 2.2-inch six-lug wheel designs.
• Low Backspacing: Provides approximately 1.75mm finished backspacing on the specified compatible wheels.
• 14.2mm Hub Thickness: Offset configuration designed to reposition the wheel relative to its standard hub.
• Adjustable Vehicle Stance: Allows builders to alter wheel position by changing the hub style rather than purchasing another wheel set.
• Scale Crawler Customisation: Suitable for compatible trail trucks, scale crawlers and custom off-road builds.
• Four-Piece Set: Includes four matching hubs for a complete vehicle's wheel installation.
• Alternative Offsets Available: RC4WD offers different offset hubs, including the separately sold +6mm Z-S0779 option.

Specifications

• Brand: RC4WD
• Manufacturer Part Number: Z-S0780
• SKU: Z-S0780
• Product Type: Optional Wheel Hex Hub Set
• Application: Compatible RC4WD Six-Lug Stamped Steel and Beadlock Wheels
• Wheel Size Compatibility: Selected 1.9-Inch and 2.2-Inch Wheels
• Wheel Mounting Pattern: Six-Lug
• Axle Hex Application: 12mm, Subject to Wheel and Axle Compatibility
• Material: CNC-Machined Aluminium
• Additional Offset: +9mm Relative to RC4WD Hubs Z-S0268 and Z-S0530
• Installed Backspacing: Approximately 1.75mm
• Hub Thickness: 14.2mm (0.55 Inch)
• Hub Outside Diameter: Approximately 23mm, Retailer-Reported
• Centre Hole Diameter: Approximately 4mm, Retailer-Reported
• Suitable Vehicle Category: Compatible Scale RC Crawlers and Trail Trucks
• Package Quantity: 4 Wheel Hubs
• Wheels Included: No
• Tyres Included: No

Compatible RC4WD Wheel Examples

• 1.9-Inch Six-Lug Wagon Stamped Steel Beadlock Wheels, Including Z-W0002, Z-W0128 and Z-W0130
• 1.9-Inch Pro10 Stamped Steel Beadlock Wheels, Including Z-W0073 and Z-W0074
• 1.9-Inch Raceline Monster Beadlock Wheels, Including Z-W0140 and Z-W0185
• 2.2-Inch Raceline Monster Beadlock Wheels, Z-W0174
• 2.2-Inch Mickey Thompson Mickey Metal MT-28 Wheels, Z-W0141
• 2.2-Inch Six-Lug Wagon Stamped Steel Beadlock Wheels, Including Z-W0146 and Z-W0190

Includes

• 4 x RC4WD 1.9/2.2-Inch Six-Lug Steel Wheel Hex Hubs with +9mm Additional Offset (Z-S0780)

FAQ

What does the RC4WD Z-S0780 +9mm offset do? These hubs reposition compatible RC4WD wheels approximately 9mm further outward compared with the manufacturer's reference hubs Z-S0268 and Z-S0530. This allows a wider wheel stance without changing the axle assembly.

Does +9mm offset mean the hubs add 9mm to each side? When fitted in place of the reference hubs, each compatible wheel moves approximately 9mm outward. If all four wheels use the same reference setup, this can increase the total track width by approximately 18mm per axle. Actual results depend on the original wheel and hub configuration.

Will these hubs fit both 1.9-inch and 2.2-inch wheels? Yes, but only selected compatible RC4WD six-lug wheel designs. Wheel diameter alone does not establish compatibility. Check the exact wheel part number before purchasing.

Are these compatible with RC4WD Wagon wheels? Yes. RC4WD lists selected six-lug Wagon stamped steel beadlock wheels in both 1.9-inch and 2.2-inch sizes as compatible with Z-S0780.

Will the hubs fit RC4WD Raceline Monster or Mickey Thompson wheels? They fit specified Raceline Monster and Mickey Thompson wheel models listed by RC4WD. Not every wheel sold under these names necessarily uses the same mounting arrangement, so check the exact wheel SKU.

Can I use these hubs on a 12mm-hex RC crawler? They are intended for compatible wheel and 12mm axle-hex arrangements. The crawler's axle hex size must match, and the wheel must accept the six-lug hub design. Some RC4WD stamped wheels also require separate 12mm axle hexes.

Are these complete 1.9-inch or 2.2-inch wheels? No. Z-S0780 includes four optional wheel hubs only. Wheels, tyres and other wheel components are sold separately.

What is the difference between RC4WD Z-S0780 and Z-S0779? Z-S0780 provides an additional +9mm offset and measures 14.2mm thick. Z-S0779 is the alternative +6mm version, with approximately 11.1mm thickness and 4.75mm finished backspacing.

Will wider wheel offset improve crawler stability? A wider track can improve side-to-side stability in some situations, but results depend on the vehicle's centre of gravity, suspension, tyre size and terrain. Moving the wheels outward can also increase steering and axle component loads.

How many hubs come in the package? Four matching +9mm offset wheel hubs are included, allowing a complete four-wheel installation on a compatible RC crawler.

Are mounting screws or 12mm axle hexes included? RC4WD's published package contents specify four hubs only. Additional screws, wheel hardware or 12mm axle hexes should be treated as separate items unless confirmed on the retail packaging.

Important Notes

• This product contains four wheel hubs only, not complete wheels.
• The +9mm offset is relative to RC4WD reference hubs Z-S0268 and Z-S0530, not a universal wheel-offset measurement.
• Compatible with selected RC4WD 1.9-inch and 2.2-inch six-lug wheels. Not every six-lug or 12mm-hex wheel is supported.
• Confirm your exact wheel model and mounting pattern before purchasing.
• Some compatible stamped steel wheels may require separately available RC4WD 12mm Axle Wheel Hexes Z-S0239.
• Check axle thread engagement, wheel nut fitment and sufficient mounting security after installation.
• Ensure adequate tyre-to-body, tyre-to-link and steering-knuckle clearance throughout suspension and steering movement.
• Increasing track width may alter steering geometry and increase loading on axle or steering components.
• Re-use existing mounting hardware only where suitable; replacement screws may be required separately.
• The +6mm Z-S0779 hubs are a different product and are sold separately.
• Wheels, tyres, axle hexes, RC crawler and tools are not included.
