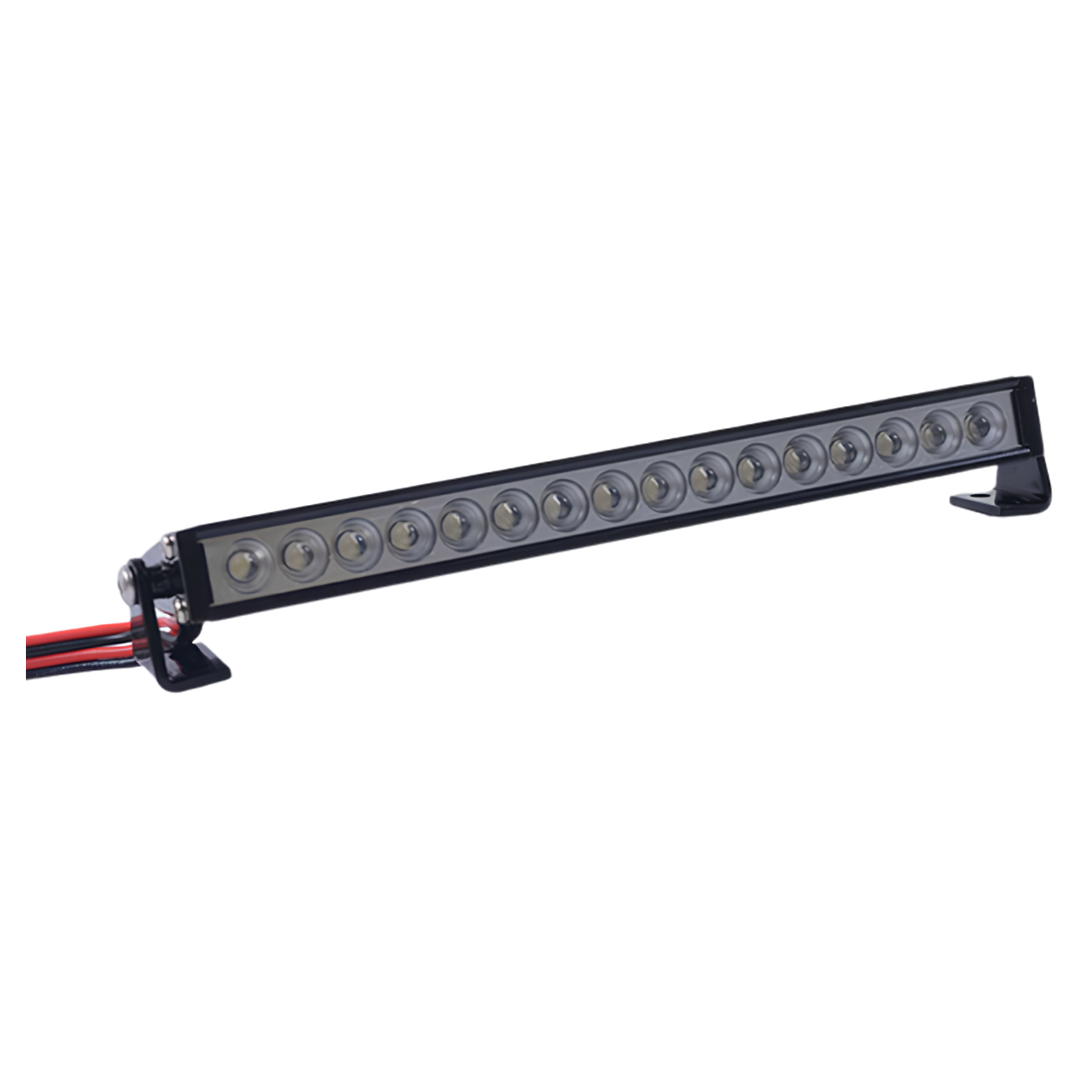

RC4WD Baja Designs S8 1/10 LED Light Bar 100mm Z-E0064

The RC4WD Baja Designs S8 is an officially licensed 1/10 scale 100 mm LED light bar designed for scale crawlers and custom RC builds, providing functional high-output lighting with adjustable mounting brackets and direct 2S or 3S LiPo power capability

Features

• Officially licensed Baja Designs S8 scale light bar
• Designed for 1/10 scale crawlers and custom RC applications
• 16 individual LED bulbs provide functional forward lighting
• 100 mm light bar width suits compact roof, bumper and custom mounting positions
• Moulded housing with aluminium construction
• Reversible L-shaped mounting brackets suit a range of installations
• Adjustable brackets allow the light angle to be rotated after mounting
• Side ventilation assists with heat dissipation

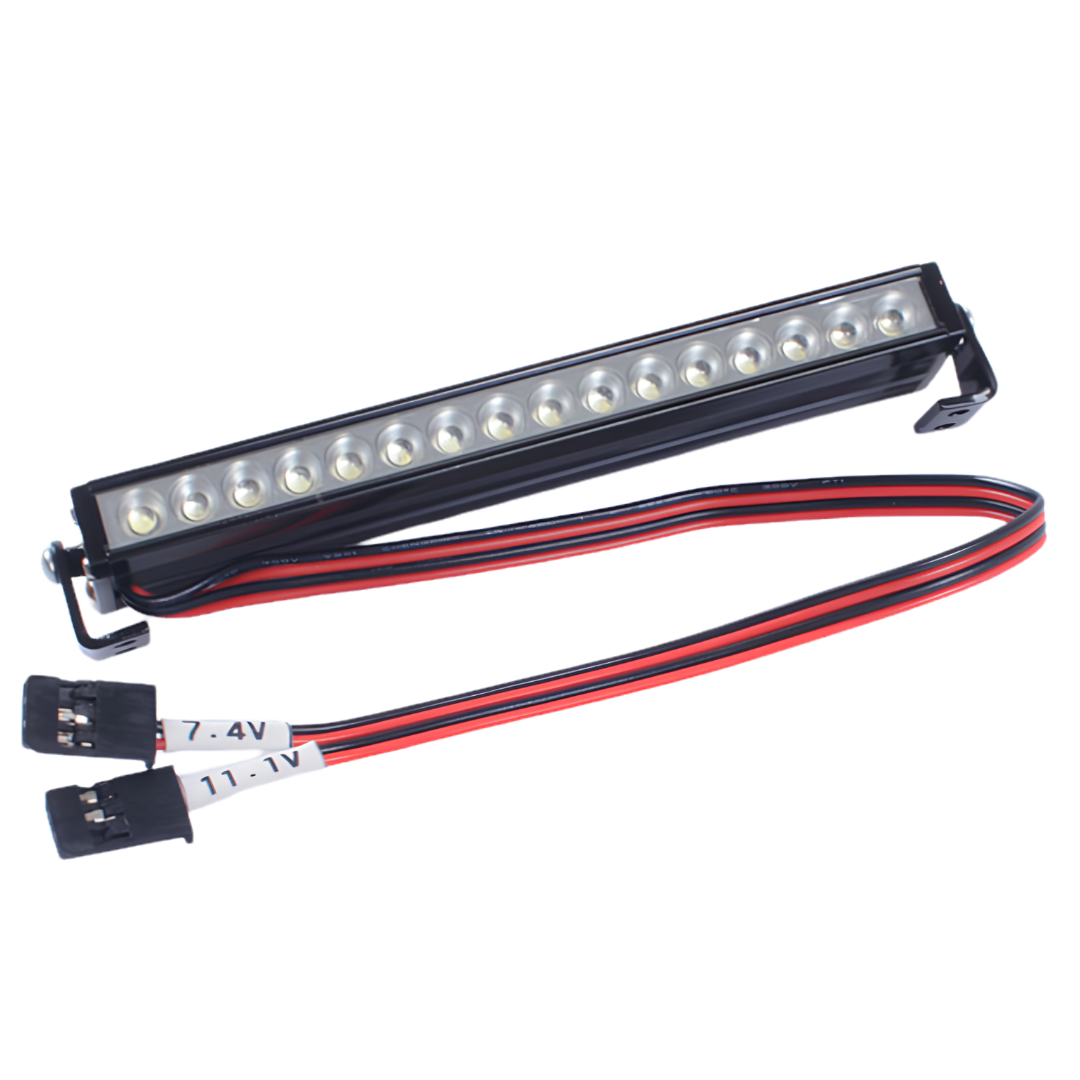

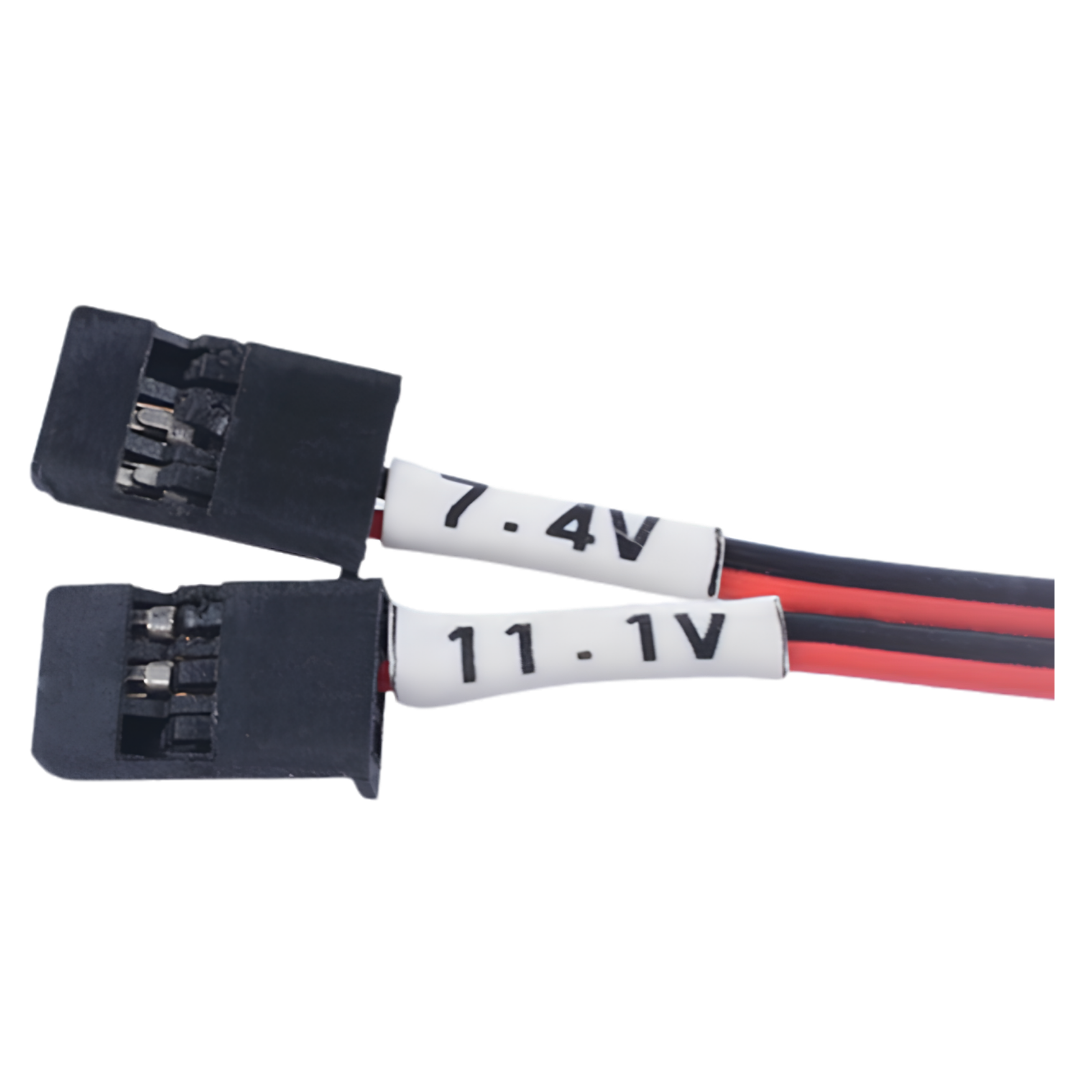

• Standard receiver-style plug simplifies connection
• Designed to operate directly from 2S or 3S LiPo power
• 2.5 mm mounting holes

Specifications

• Brand: RC4WD
• Licensed Brand: Baja Designs
• Model: S8
• Product Type: LED Light Bar
• Part Number: Z-E0064
• Scale: 1/10
• LED Quantity: 16
• Light Bar Width: 3.93 in (100 mm)
• Overall Length: 4.4 in (111.2 mm)
• Light Bar Height: 0.39 in (10 mm)
• Overall Height: 0.63 in (16 mm)
• Mounting Hole Size: 2.5 mm
• Weight: 1.37 oz (39 g)
• Operating Battery: 2S 7.4V or 3S 11.1V LiPo

Includes

• 1 x RC4WD Baja Designs S8 100 mm LED Light Bar
• Adjustable mounting brackets
• Mounting hardware
• 1 x Baja Designs decal sheet

FAQ

Can the RC4WD S8 light bar run directly from a LiPo battery? Yes, RC4WD specifies that Z-E0064 should be connected directly to a 2S 7.4V or 3S 11.1V LiPo battery for proper operation

Can the Z-E0064 light bar be powered from the receiver? The light bar uses a standard receiver-style plug, but RC4WD notes that many receivers cannot provide enough power for full brightness, so direct battery power or a suitable BEC is recommended

Is the mounting angle adjustable? Yes, the reversible L-shaped brackets allow the light bar angle to be adjusted after installation

Will the 100 mm S8 light bar fit any 1/10 crawler? Fitment depends on available mounting space and bracket position, so OZRC recommends checking the 111.2 mm overall length and 100 mm light bar width against the intended mounting location before installation

Important Notes

• RC4WD specifies direct 2S 7.4V or 3S 11.1V LiPo power for proper operation
• A receiver connection may not provide enough current for maximum light output
• Use medium-grade threadlock on the L-bracket nuts to help prevent loosening and maintain the selected light angle
• RC vehicle and battery are not included
• Confirm mounting clearance and power compatibility before installation
