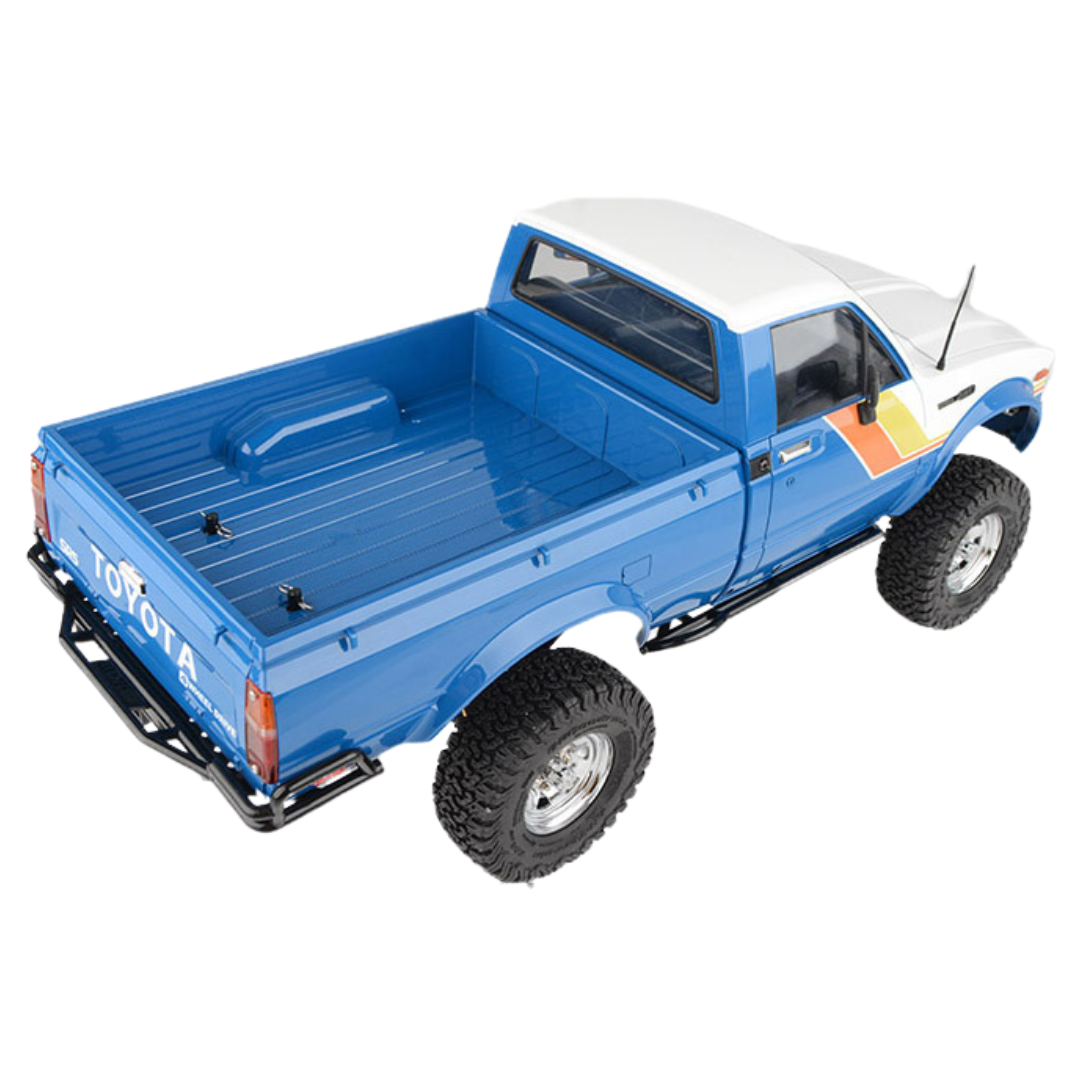

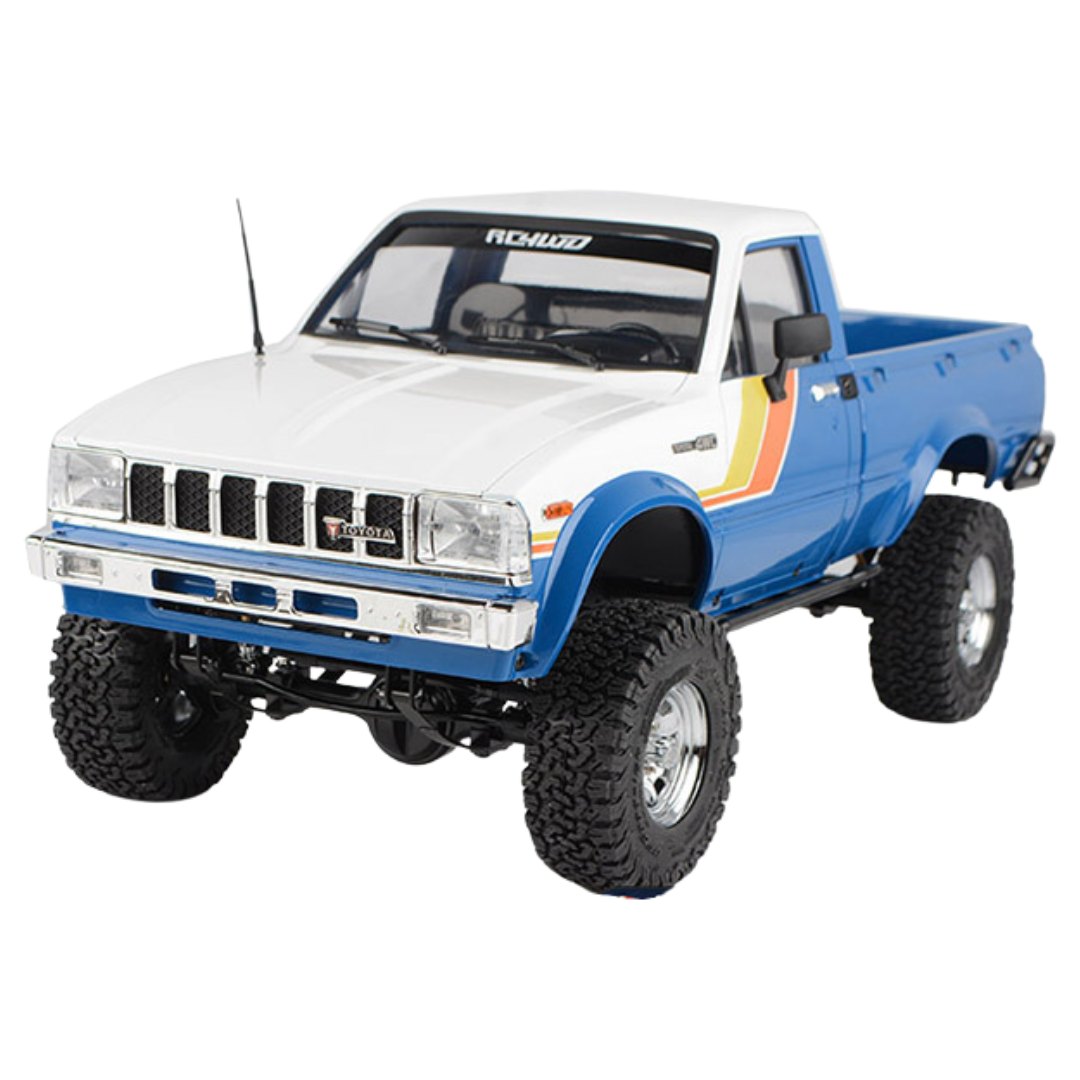

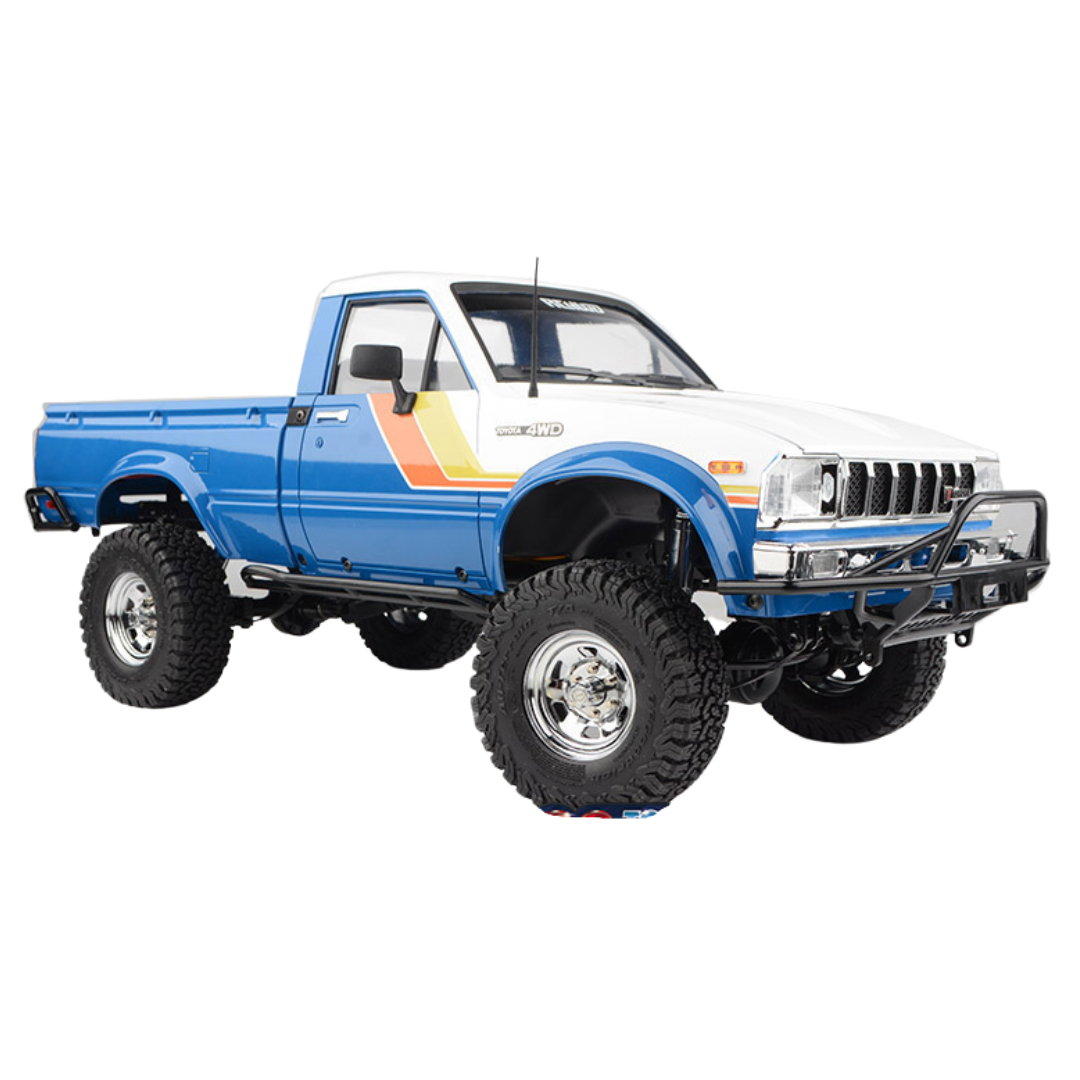

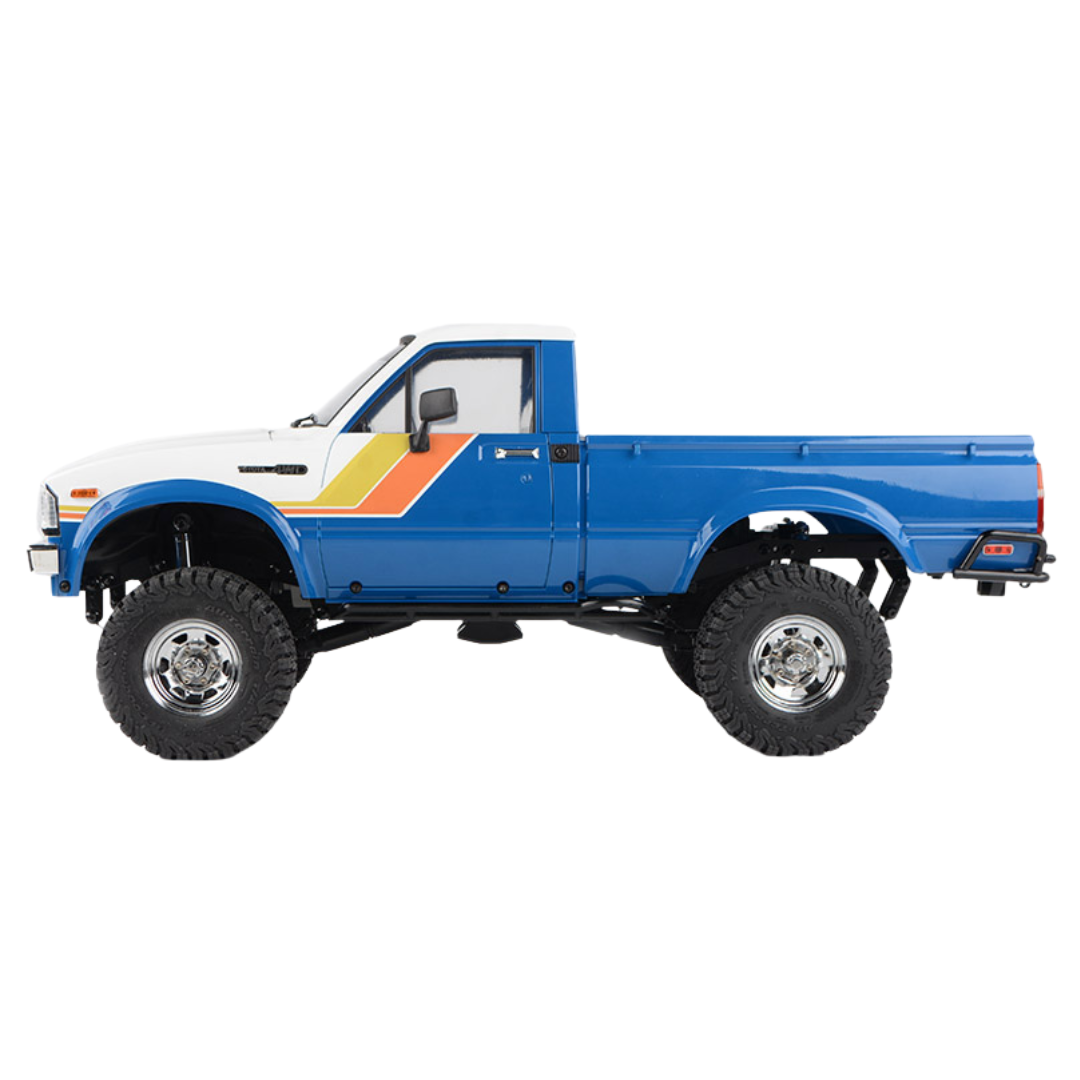

RC4WD Trail Finder 2 1982 Toyota Pickup RC Crawler 1/10 RTR Blue Z-RTR0069

The RC4WD Trail Finder 2 Z-RTR0069 is a 1/10 scale 4WD ready-to-run trail crawler featuring an officially licensed blue 1982 Toyota Pickup hard body and a highly scale-focused leaf-sprung chassis. Updated Yota II axles with XVDs, Ultimate Scale shocks, a detailed 22R engine bay and included RTR electronics combine realistic presentation with a capable trail-ready drivetrain.

Features

• Officially Licensed Toyota Body: Detailed 1982 Toyota Pickup hard body finished in blue
• Scale Hard Body: Features a moulded interior, Toyota detailing and an opening bonnet
• Detailed 22R Engine Bay: Includes an engine dress-up kit beneath the opening bonnet
• LED Lighting: Basic LED lighting system is pre-installed for added scale realism
• Leaf-Spring Suspension: Super Soft Flex leaf springs provide authentic scale suspension operation
• Over or Under Axle Setup: Updated suspension mounting locations provide additional leaf-spring setup options
• Ultimate Scale Shocks: 60mm front and 80mm rear shocks use X-ring seals for smooth operation and improved oil retention
• Yota II Axles: Ultimate Scale cast axles feature updated front XVD universal shafts
• Scale Drivetrain: R3 single-speed transmission works with a centre-mounted Hammer transfer case
• 45T Brushed Motor: RC4WD 540-size crawler motor provides controlled trail-focused power
• Waterproof ESC: Outcry III brushed electronic speed controller supports the included drivetrain
• Metal-Gear Steering Servo: Twister high-torque digital servo provides steering control
• Steel Beadlock Wheels: Chrome 1.7-inch stamped steel SR5 beadlock wheels use 12mm hexes
• Licensed BFGoodrich Tyres: Equipped with RC4WD BFGoodrich All-Terrain T/A KO2 1.7-inch scale tyres
• Scale Accessories: Includes Marlin Crawler side sliders, rear tube bumper and front inner fenders
• RTR Package: Includes 2.4GHz radio system, 3000mAh NiMH battery, NiMH peak charger and transmitter batteries

Specifications

• Brand: RC4WD
• Model: Trail Finder 2
• Body: Officially Licensed 1982 Toyota Pickup Hard Body
• Colour: Blue
• Product Type: RC Trail Crawler
• Scale: 1/10
• Drive: 4WD
• Assembly Level: Ready-to-Run
• Length: 538mm / 21.2in
• Width: 214mm / 8.4in
• Height: 203mm / 8.0in
• Wheelbase: 284mm / 11.2in
• Ground Clearance: 45mm / 1.8in

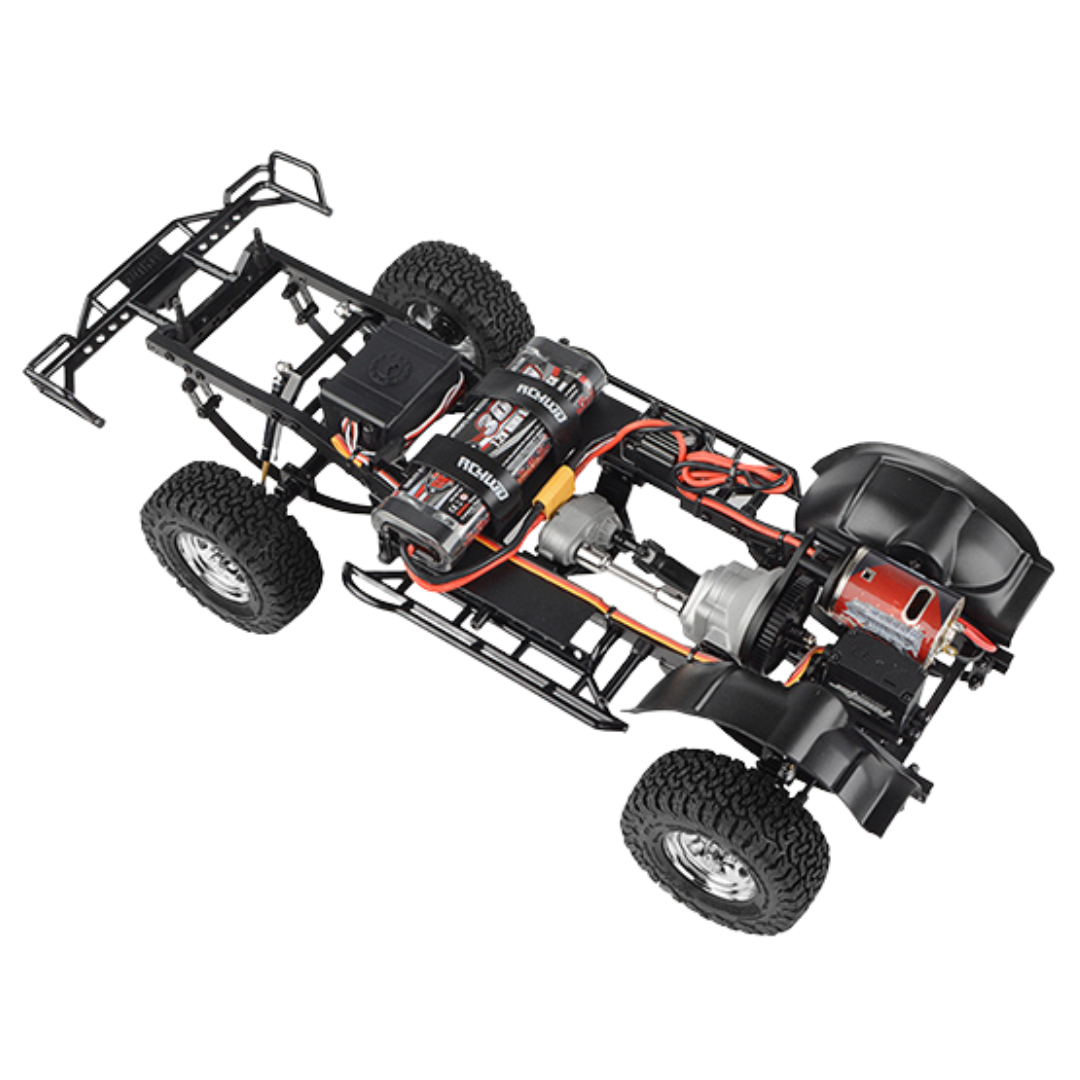

• Chassis: Billet Aluminium Trail Finder 2
• Suspension: Leaf Spring
• Shocks: Ultimate Scale 60mm Front / 80mm Rear
• Axles: Yota II Ultimate Scale Cast Axles with Front XVDs
• Axle Ratio: 2.67:1
• Axle Width at Hex: 178.2mm
• Transmission: R3 Scale Single Speed
• Transmission Internal Ratio: 1.78:1
• Pinion / Spur: 14T / 64T
• Transfer Case: Centre-Mounted Hammer
• Transfer Case Ratio: 1.47:1
• Final Drive Ratio: 31.9:1
• Motor: 540 Crawler Brushed Motor 45T
• ESC: RC4WD Outcry III Waterproof Brushed ESC
• Steering Servo: RC4WD Twister High-Torque Metal-Gear Digital Servo
• Radio: RC4WD XR3 3-Channel 2.4GHz Transmitter and Receiver
• Included Battery: 6-Cell 3000mAh NiMH with XT60 Connector
• ESC Battery Compatibility: 2S-3S LiPo or 5-9 Cell NiMH
• Wheels: Stamped Steel 1.7in Beadlock SR5 Chrome
• Wheel Hex: 12mm
• Wheel Width: 23mm / 0.90in
• Wheel Outer Diameter: 47mm / 1.85in
• Tyres: RC4WD BFGoodrich All-Terrain T/A KO2 1.7in Scale Tyres
• Tyre Outer Diameter: 91.4mm / 3.59in
• Tyre Width: 34.3mm / 1.35in
• Manufacturer Part Number: Z-RTR0069

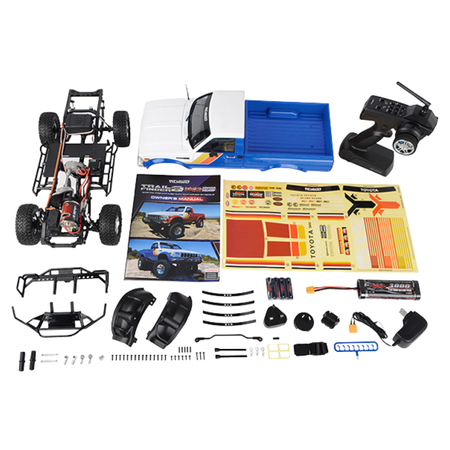

Includes

• 1 x RC4WD Trail Finder 2 1/10 4WD RTR Chassis
• 1 x Pre-Painted Blue 1982 Toyota Pickup Hard Body
• 1 x 540 45T Brushed Crawler Motor
• 1 x Outcry III Waterproof ESC
• 1 x Twister High-Torque Metal-Gear Digital Steering Servo
• 1 x XR3 3-Channel 2.4GHz Transmitter and Receiver System
• 1 x 6-Cell 3000mAh NiMH Battery with XT60 Connector
• 1 x Universal NiMH Peak Battery Charger
• 4 x AA Transmitter Batteries
• 1 x Product Manual

FAQ

Is the RC4WD Z-RTR0069 ready to run? Yes. Z-RTR0069 is the RTR version and includes the installed motor, ESC, steering servo and radio system along with a 6-cell 3000mAh NiMH battery, NiMH peak charger and four AA transmitter batteries.

Is the Toyota body officially licensed? Yes. RC4WD states that the 1982 Toyota Pickup hard body supplied with Z-RTR0069 is officially licensed by Toyota.

Does the Toyota body have an interior and engine bay? Yes. The hard body includes a detailed interior and an opening bonnet revealing a scale Toyota 22R-style engine bay with dress-up components.

What motor is installed in the Trail Finder 2 Z-RTR0069? RC4WD installs a 540-size 45-turn brushed crawler motor connected to an R3 single-speed transmission and centre-mounted Hammer transfer case.

What battery is included with Z-RTR0069? The RTR package includes a 6-cell 3000mAh NiMH battery with an XT60 connector and a compatible universal NiMH peak charger.

Can the Trail Finder 2 Z-RTR0069 run a 3S LiPo battery? The installed RC4WD electronics are specified for 2S-3S LiPo or 5-9 cell NiMH input, and the current RC4WD manual specifically mentions 3S LiPo operation. A suitable LiPo battery and LiPo-compatible charger are required separately when changing from the included NiMH system.

Does the Trail Finder 2 use leaf springs? Yes. The Trail Finder 2 uses Super Soft Flex leaf springs for scale suspension behaviour. This updated version provides over- or under-axle mounting options, with the factory configuration placing the leaf springs under the axles for a lower ride height and centre of gravity.

Are the wheels true beadlocks? Yes. RC4WD specifies 1.7-inch stamped steel SR5 beadlock wheels with 12mm hex mounting. They are fitted with licensed BFGoodrich All-Terrain T/A KO2 scale tyres.

Does Z-RTR0069 have a two-speed transmission? No. This model is supplied with RC4WD's R3 single-speed transmission. It should not be confused with Trail Finder 2 configurations equipped with other transmission arrangements.

Important Notes

• This listing is for the blue Z-RTR0069 RTR version
• The included charger is intended for the supplied NiMH battery; a suitable LiPo charger is required if changing to LiPo power
• RC4WD specifies 2S-3S LiPo or 5-9 cell NiMH compatibility for the installed electronics
• Always verify battery dimensions, connector compatibility and ESC settings before using an alternative battery
• Scale hard-body components and accessories can be damaged by heavy impacts; this vehicle is designed with a strong emphasis on realistic trail crawling
