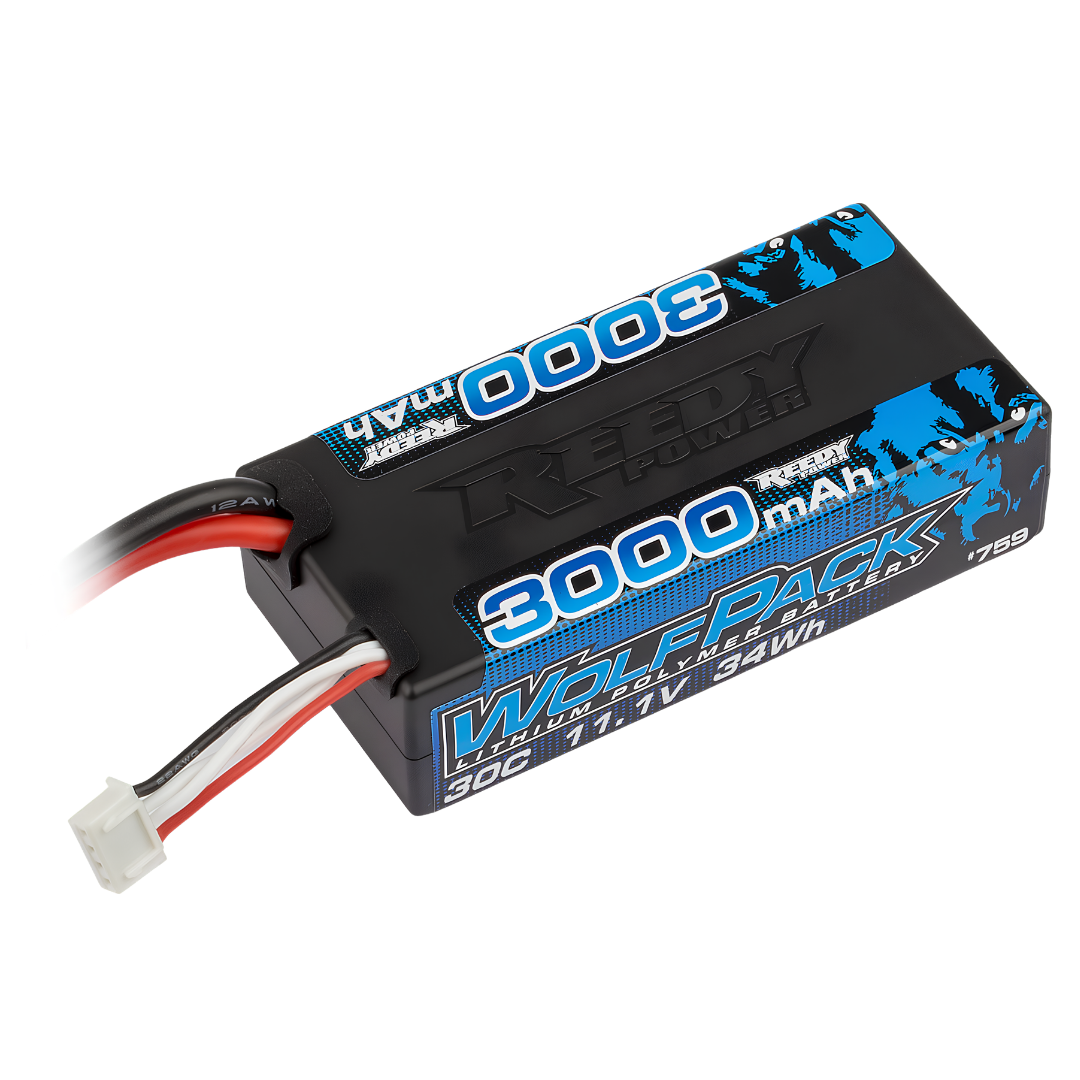

Reedy WolfPack 3S 3000mAh 11.1V 30C Shorty LiPo T-Plug 0759

The Reedy WolfPack ASS0759 is a 3S 11.1V 3000mAh hardcase shorty LiPo battery for compatible RC vehicles requiring a compact 3S power pack. Its 30C continuous discharge rating, 55C burst capability, low-resistance T-plug and durable hard case make it particularly suitable for trail trucks, crawlers and other vehicles designed around a shorty battery configuration.

Features

• 3S LiPo Configuration: 11.1V nominal voltage provides 3S power for compatible RC vehicles
• 3000mAh Capacity: Balances useful runtime with a compact shorty battery format
• 30C Continuous Rating: Provides up to 90A theoretical continuous discharge based on the published capacity and C rating
• 55C Burst Rating: Higher short-duration discharge capability for demanding acceleration loads
• Hardcase Construction: Durable outer case provides additional physical protection for the LiPo cells
• Shorty Form Factor: Compact 95.7mm battery length suits compatible shorty battery compartments
• T-Plug Connector: Factory-fitted low-resistance T-style main power connector
• 12-Gauge Silicone Leads: Heavy-gauge flexible wiring supports high-current RC applications
• XH Balance Connector: Integrated balance lead allows individual cell balancing with a compatible LiPo charger
• Protected Wire Exit: Rubber gasket protects the wire insulation and helps reduce moisture entry around the case opening

Specifications

• Brand: Reedy
• Series: WolfPack
• Product Type: RC LiPo Battery
• Battery Chemistry: Lithium Polymer LiPo
• Cell Configuration: 3S
• Nominal Voltage: 11.1V
• Capacity: 3000mAh / 3.0Ah
• Nominal Energy: 33.3Wh
• Continuous Discharge Rating: 30C
• Burst Discharge Rating: 55C
• Maximum Charge Rate: 6.0A
• Case Type: Hardcase Shorty
• Main Connector: T-Plug
• Balance Connector: XH
• Wire Gauge: 12AWG
• Length: 95.7mm
• Width: 46.8mm
• Height: 24.7mm
• Weight: 217g
• Manufacturer Part Number: 759
• Supplier SKU: ASS0759
• UPC: 784695007598

Includes

• 1 x Reedy WolfPack 3S 3000mAh 11.1V 30C Hardcase Shorty LiPo Battery with T-Plug ASS0759

FAQ

Is the Reedy ASS0759 a 2S or 3S battery? ASS0759 is a 3S LiPo battery with a nominal voltage of 11.1V. Reedy part 758 is the related 2S 7.4V version, so the two should not be confused when selecting a battery.

What connector does the Reedy ASS0759 use? The battery is factory fitted with a low-resistance T-plug main connector using 12-gauge silicone wire. It also has an integrated XH balance connector.

Is the Reedy WolfPack ASS0759 a hardcase battery? Yes. The LiPo cells are enclosed in a durable hard case designed to provide increased physical protection in RC vehicle applications.

What are the dimensions of ASS0759? The battery measures 95.7mm long, 46.8mm wide and 24.7mm high. OZRC recommends checking the vehicle battery tray dimensions and cable clearance before ordering.

What is the maximum charge rate for ASS0759? Reedy specifies a maximum charge current of 6.0A. A compatible LiPo balance charger configured for a 3S 11.1V battery must be used.

What does the 30C rating mean? The published 30C continuous rating combined with the 3.0Ah capacity corresponds to a theoretical maximum continuous discharge of 90A. Actual suitability also depends on the vehicle, ESC, motor, gearing, connectors and operating conditions.

What vehicles is this battery designed for? Reedy describes the shorty pack as particularly suitable for trail trucks, crawlers and other vehicles designed around a shorty battery configuration. Team Associated also lists compatibility with several models including the SR10, RB10 and Apex2 platforms.

Can ASS0759 be used in any RC car that accepts a shorty battery? No. The vehicle must support a 3S 11.1V LiPo battery as well as the pack's physical dimensions and connector. Always verify the ESC, motor and vehicle voltage rating before installation.

Important Notes

• Use only a LiPo-compatible balance charger configured for a 3S battery
• Never exceed the manufacturer's specified 6.0A maximum charge current
• Confirm the RC vehicle and ESC are rated for 3S 11.1V LiPo operation before use
• Check battery tray dimensions and connector compatibility before ordering
• Do not charge or use a LiPo battery that is swollen, punctured, damaged or otherwise compromised
• Follow appropriate LiPo charging, storage and handling procedures
