Rlaarlo TK07 1/7 Brushless ARTR RC Crawler Green R-TK07G-BS

The Rlaarlo TK07 is a large 1/7 scale brushless RC crawler in Green with a 2600KV sensored FOC power system, selectable front rear or four-wheel drive, remote front and rear differential locks and a 2-speed transmission, supplied ARTR without a battery or charger

Features

• 1/7 scale large-format RC crawler

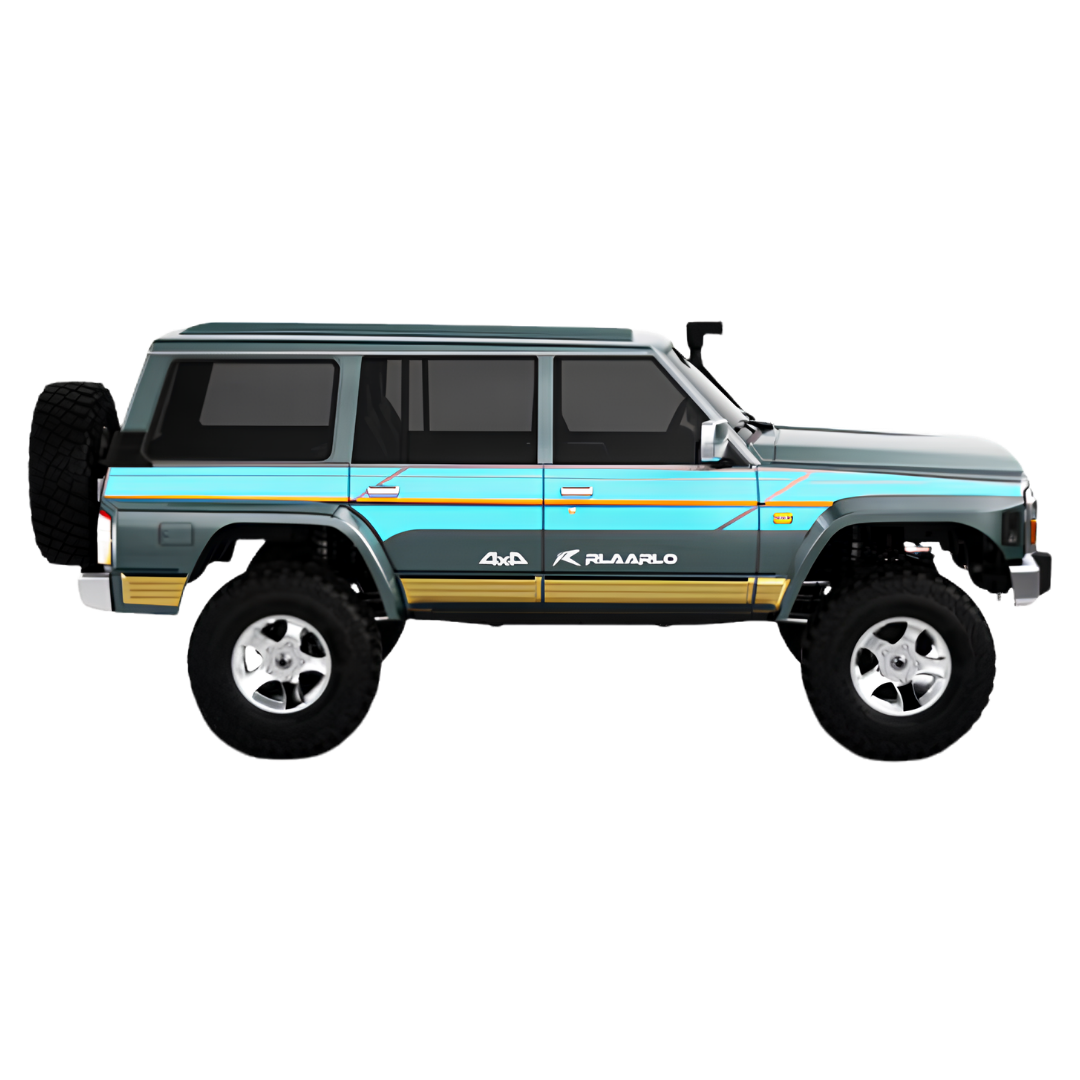

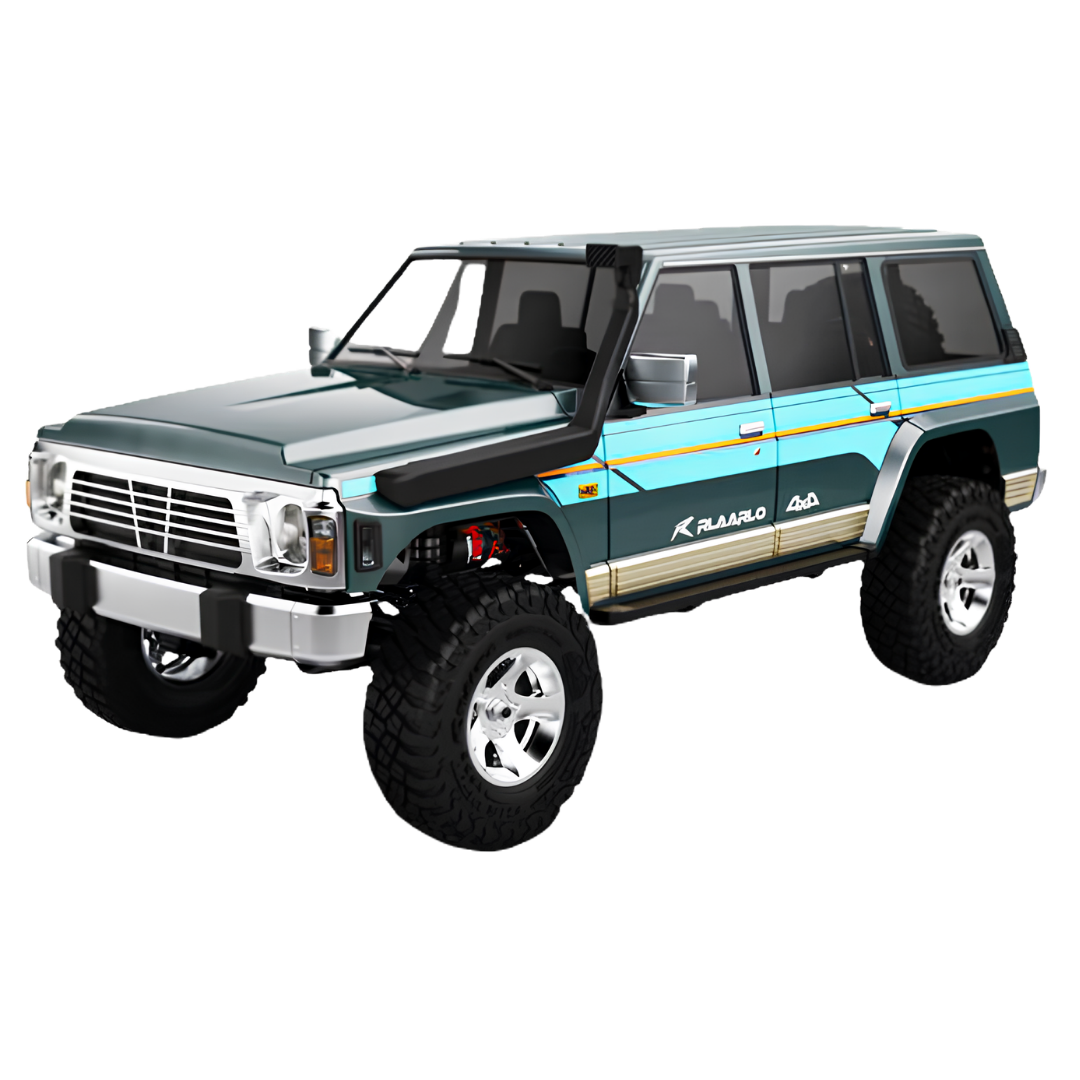

• Green 1.5mm polycarbonate body with more than 30 injection-moulded scale details
• 4282 2600KV magnetic-encoder sensored brushless motor
• 140A FOC brushless ESC with app-adjustable parameters
• Supports 2S to 4S LiPo power through an XT60 connector
• Selectable front-wheel drive rear-wheel drive or four-wheel drive from the transmitter
• Remote-locking front and rear differentials
• Remote high and low 2-speed transmission
• Twin friction-plate slipper clutch helps protect the drivetrain under heavy loads
• Metal transmission gearing with 1.0 MOD motor and spur gears and 0.8 MOD internal transmission gears
• Portal axles increase ground clearance and reduce drivetrain torque load
• Front-mounted motor helps move weight forward for climbing traction
• 6mm CNC aluminium chassis rails
• 8mm stainless steel suspension links
• 3-link Panhard front suspension with 4-link rear layout
• 120mm aluminium oil-filled shock absorbers
• Up to approximately 45-degree steering angle
• 45kg waterproof brushless steering servo
• Metal-geared 25g auxiliary servos for transmission and drivetrain functions
• 2.4GHz 10-channel radio system
• Up to approximately 350m published control range under suitable conditions
• Linked LED headlight and taillight system
• Quick-release spring-loaded body mounting system

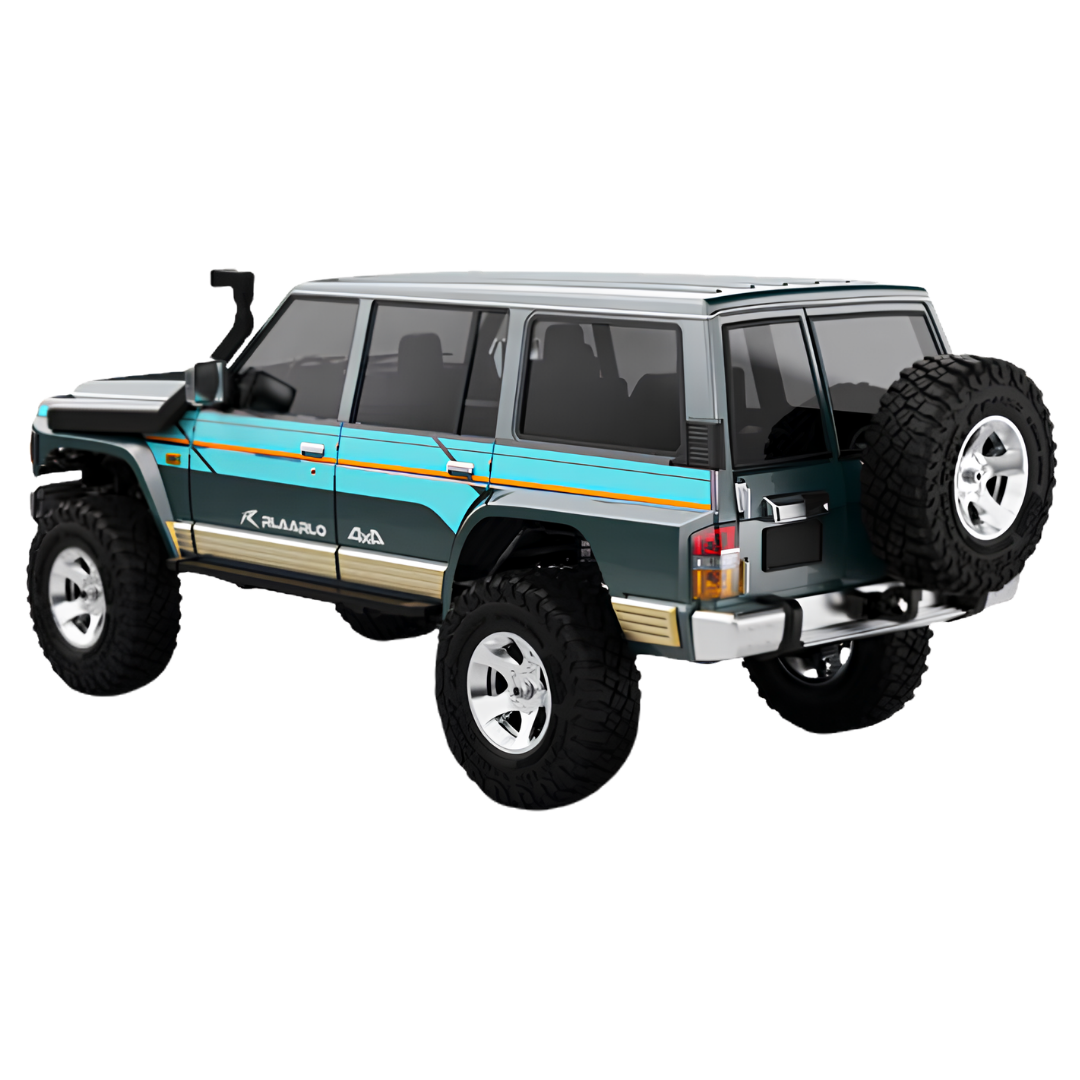

• Functional full-size spare tyre mounted at the rear

Specifications

• Brand: Rlaarlo
• Model: TK07
• Product Type: RC Rock Crawler
• Scale: 1/7
• Completion Level: ARTR
• Colour: Green
• Motor: 4282 2600KV Sensored Brushless
• ESC: 140A FOC Brushless
• Battery Support: 2S to 4S LiPo
• Battery Connector: XT60
• Drive Modes: Front-Wheel Drive Rear-Wheel Drive and 4WD
• Differentials: Remote Locking Front and Rear
• Transmission: Remote 2-Speed High and Low
• Steering Servo: 45kg Waterproof Brushless
• Auxiliary Servos: 25g Metal-Geared
• Radio: 2.4GHz 10-Channel
• Published Radio Range: Up to Approximately 350m
• Top Speed: Approximately 6 to 12km/h Depending on Gear and Setup
• Length: 720mm
• Width: 312mm
• Height: 295mm
• Wheelbase: 428mm
• Ground Clearance: Up to Approximately 90mm at Centre
• Approach Angle: Approximately 52 Degrees
• Departure Angle: Approximately 37 Degrees
• Steering Angle: Up to Approximately 45 Degrees
• Tyre Size: Approximately 135 x 48mm
• Wheel Hex: 17mm
• Vehicle Weight: Approximately 8kg
• Body Material: 1.5mm Polycarbonate

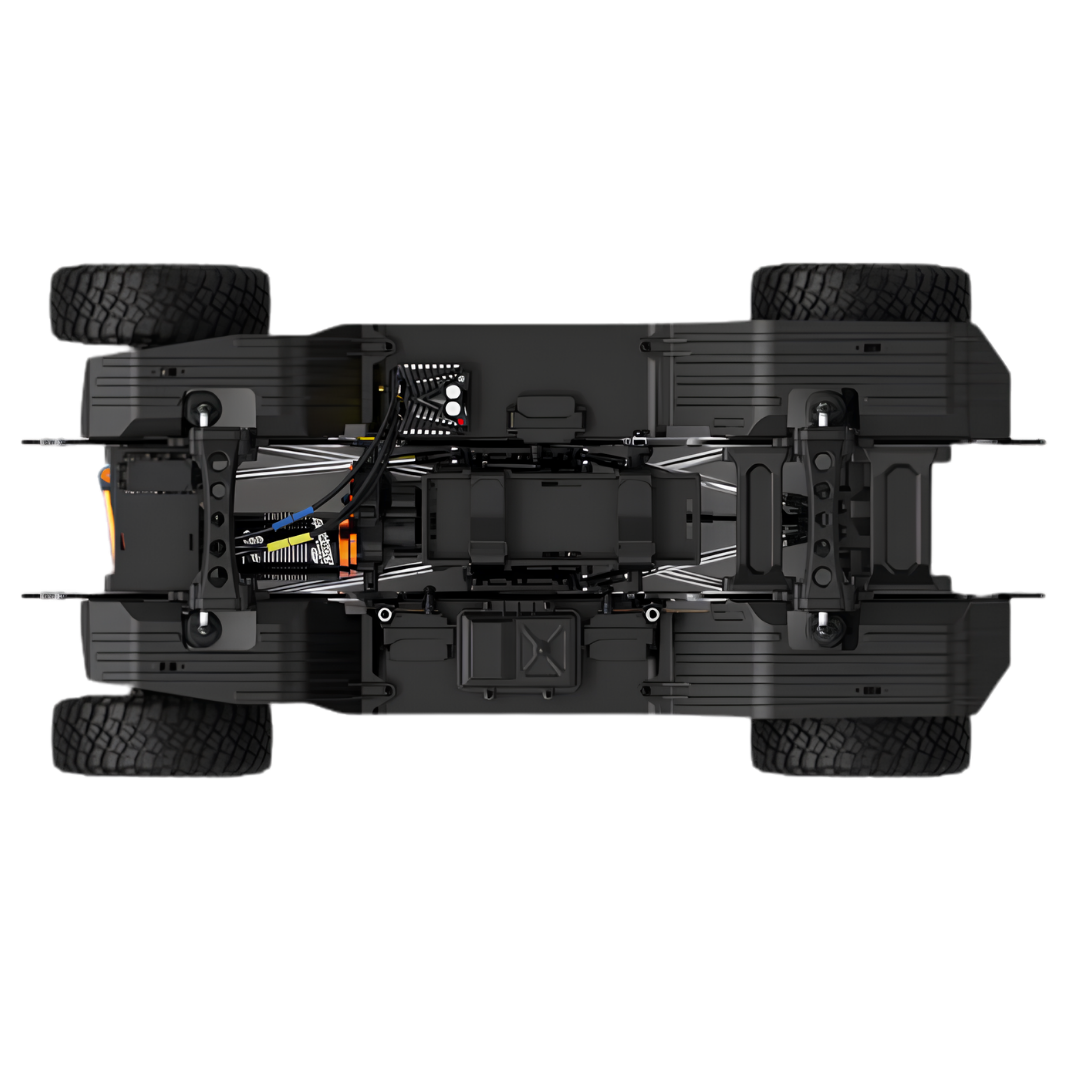

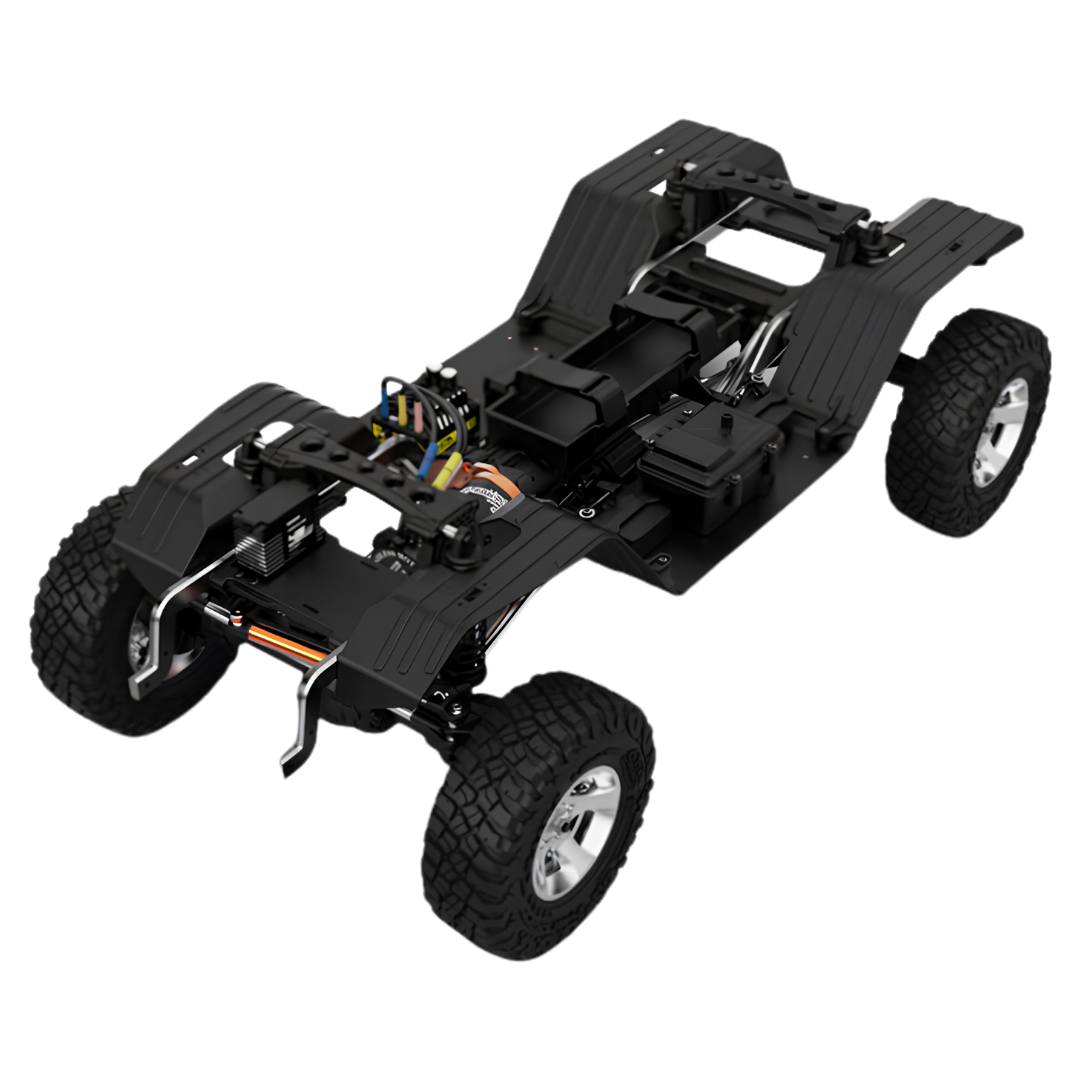

• Chassis: 6mm CNC Aluminium Rails
• Manufacturer Part Number: R-TK07G-BS

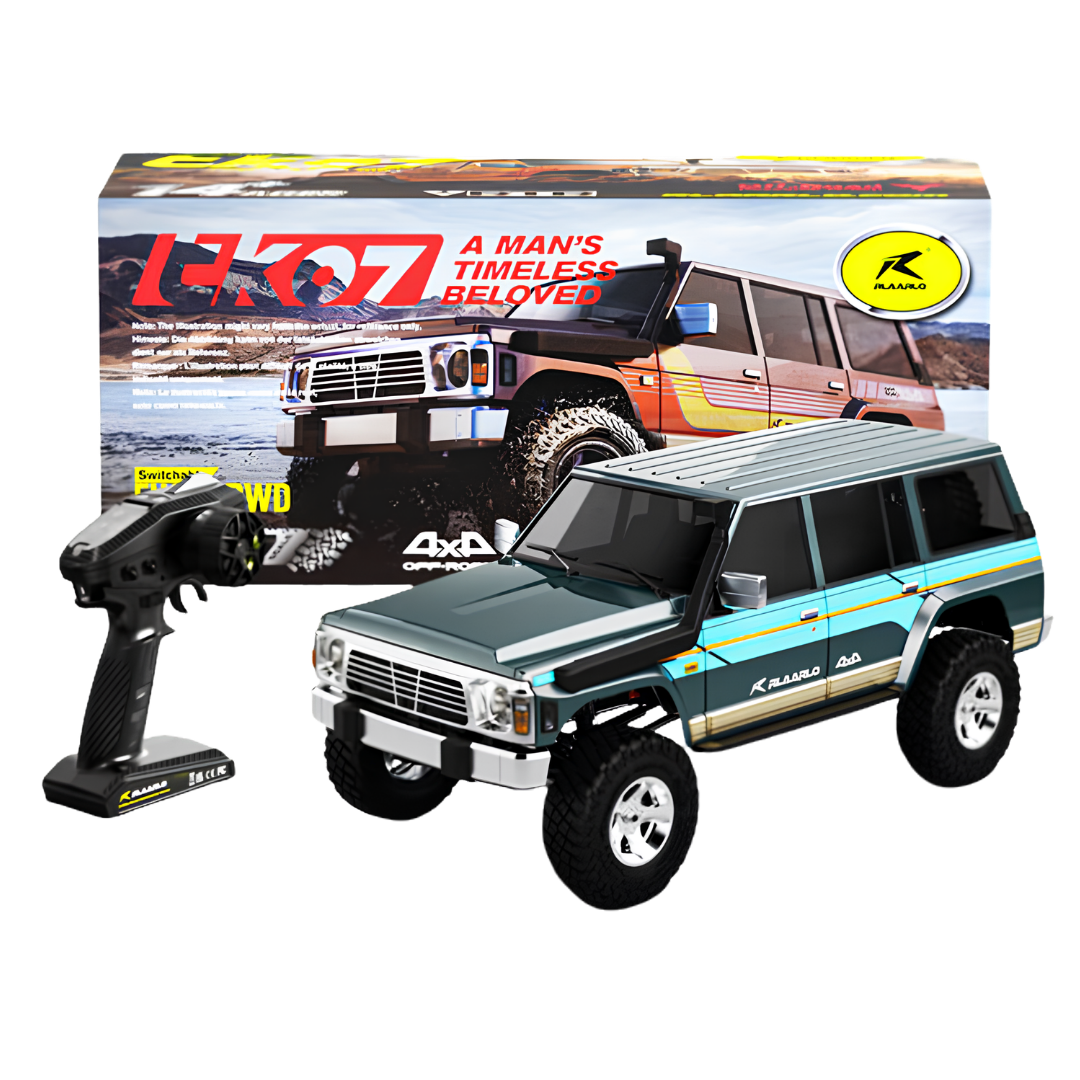

Includes

• 1 x Rlaarlo TK07 1/7 Brushless RC Crawler Green
• 1 x 2.4GHz Multi-Channel Transmitter
• Installed Receiver and Electronics
• Installed 4282 2600KV Sensored Brushless Motor
• Installed 140A FOC Brushless ESC
• Installed 45kg Waterproof Brushless Steering Servo
• Installed Auxiliary Shift and Drivetrain Servos
• Installed LED Lighting System
• 1 x Product Manual

Required To Complete

• 2S to 4S LiPo Battery with XT60 Connector
• Compatible LiPo Battery Charger
• Transmitter Batteries as Required

FAQ

Does the Rlaarlo TK07 include a battery and charger? No, the Green brushless TK07 package is sold without a drive battery or charger and requires a suitable 2S to 4S LiPo with an XT60 connector

Can the TK07 switch between 2WD and 4WD? Yes, the brushless TK07 provides three selectable drive modes from the transmitter including front-wheel drive rear-wheel drive and four-wheel drive

Can the differentials be locked remotely? Yes, the front and rear differentials can be locked or unlocked remotely to suit different terrain and steering requirements

Does the TK07 have a 2-speed gearbox? Yes, the transmission can be switched remotely between high and low range while driving

What battery does the brushless TK07 support? Rlaarlo specifies 2S to 4S LiPo operation for the 140A brushless system with an XT60 battery connector

Is the 2600KV motor sensored? Yes, the brushless version uses a 4282 2600KV magnetic-encoder sensored motor paired with a FOC ESC for smooth low-speed control

Important Notes

• Battery and charger are not included
• Confirm battery dimensions fit within the approximately 164 x 49mm battery space before purchase
• Use a suitable LiPo charger and follow appropriate charging storage and handling procedures
• The selectable drive modes are front-wheel drive rear-wheel drive and four-wheel drive rather than a conventional centre-drivetrain DIG system
• Published speed range and radio distance depend on battery terrain setup interference and operating conditions
