RPM Castle Mamba X 1/10 Traxxas Vehicles ESC Mount Cage Black 73762

Only 2 left
SKU: RPM73762
(0)
$19.95
Checking status...

CALL US EMAIL US
Ask the experts Staff
SHIPPING CALCULATOR

More from RPM

RPM Caster Blocks for the Slash 2wd, Stampede & Rustler 80712
RPM Caster Blocks for the Slash 2wd, Stampede & Rustler 80712 $18.00
RPM Roof Skid Rails for the Traxxas X-Maxx 80312
RPM Roof Skid Rails for the Traxxas X-Maxx 80312 $22.80
RPM Rear Skid Plate for ARRMA & Durango 1/8 & 1/10 Scale Vehicles 81442
RPM Rear Skid Plate for ARRMA & Durango 1/8 & 1/10 Scale Vehicles 81442 $20.90
View All RPM

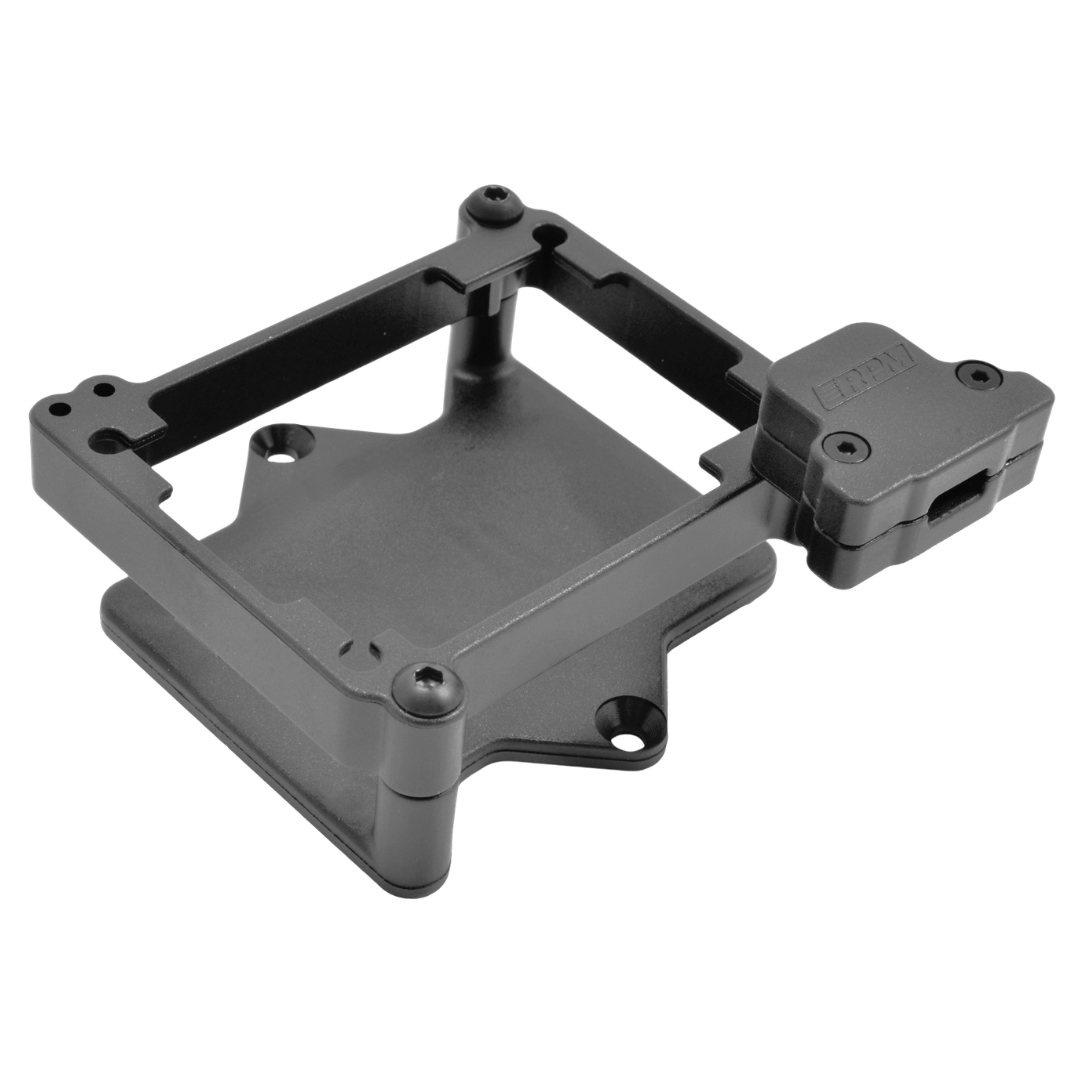

The RPM Castle Mamba X ESC Cage is a black nylon mounting cage for Castle Mamba X speed controllers in compatible 1/10 Traxxas vehicles, providing secure bolt-on retention while maintaining cooling-fan access.

Features

  • Secure ESC Mounting: Holds the Castle Mamba X ESC in a positive mechanical mount instead of relying on double-sided tape or cable ties
  • Two-Screw Chassis Attachment: The complete cage assembly can be removed using the two base mounting screws for easier cleaning and electronics maintenance
  • Cooling Fan Clearance: Surrounds the ESC body while leaving the cooling fan unobstructed and supports installation with or without the fan
  • Side Air Channels: Allows airflow to move along both sides of the ESC case
  • Adjustable Switch Mount: The enclosed on/off switch holder can be rotated or installed in an alternate position to suit the vehicle layout
  • Stock-Location Fitment: Designed for the standard ESC mounting area in selected Traxxas Slash, Stampede and Rally models
  • Durable Construction: Manufactured from RPM engineering-grade nylon for RC vehicle use

Specifications

  • Brand: RPM
  • Product Type: ESC mounting cage
  • Manufacturer Part Number: 73762
  • SKU: RPM73762
  • UPC: 672415737620
  • Colour: Black
  • Material: Engineering-grade nylon
  • Vehicle Scale: 1:10
  • ESC Compatibility: Castle Creations Mamba X ESC
  • Stock-Location Vehicle Compatibility: Traxxas Slash 2WD, Slash 2WD LCG, Slash 4X4, Slash 4X4 LCG, Stampede 4X4 and Rally
  • Conditional Vehicle Compatibility: Traxxas Rustler, Stampede 2WD and Bandit when fitted with the Traxxas 3725 ESC mounting plate

Includes

  • 1 x RPM ESC cage base plate
  • 1 x RPM top cage
  • 1 x switch mount base
  • 1 x switch mount top
  • 2 x M3 x 16 mm button-head screws
  • 2 x M3 x 8 mm flat-head screws
  • 4 x M2 x 8 mm flat-head screws

FAQ

Does this ESC cage fit the Traxxas Rustler Stampede 2WD or Bandit? Yes, provided the vehicle is fitted with the Traxxas 3725 ESC mounting plate. This plate is standard equipment on applicable VXL models, but OZRC recommends confirming it is present before ordering.

Can the Castle Mamba X cooling fan remain installed? Yes. The RPM cage surrounds the ESC body while leaving the cooling-fan area open, allowing the Mamba X to be used with or without its fan.

Is the Castle Mamba X ESC included? No. The package contains the RPM cage, switch holder and installation screws only. The ESC, vehicle and tools are sold separately.

Important Notes

  • A 1.25 mm or 0.05 inch hex driver is required for the switch-mount screws and is not included
  • Traxxas Rustler, Stampede 2WD and Bandit installations require the Traxxas 3725 ESC mounting plate
  • Custom vehicle installations require enough chassis space and may require drilling and tapping two 3 mm mounting holes
  • Check wire clearance around the ESC case, battery leads and power connectors during installation
  • Tighten the cage screws only until slightly snug to avoid damaging the nylon components
