RPM Front Bumper ARRMA Kraton 6S V5 EXB 81812

The RPM Front Bumper is a heavy-duty replacement bumper designed for the ARRMA Kraton 6S V5 and EXB. Its impact-absorbing design helps protect the chassis and body during crashes while providing improved skid protection over the factory bumper.

Features

• Designed specifically for the ARRMA Kraton 6S V5 and EXB
• Updated design fits current V5 and EXB models as well as older Kraton 6S versions
• Engineered to absorb impacts and reduce force transferred to the chassis

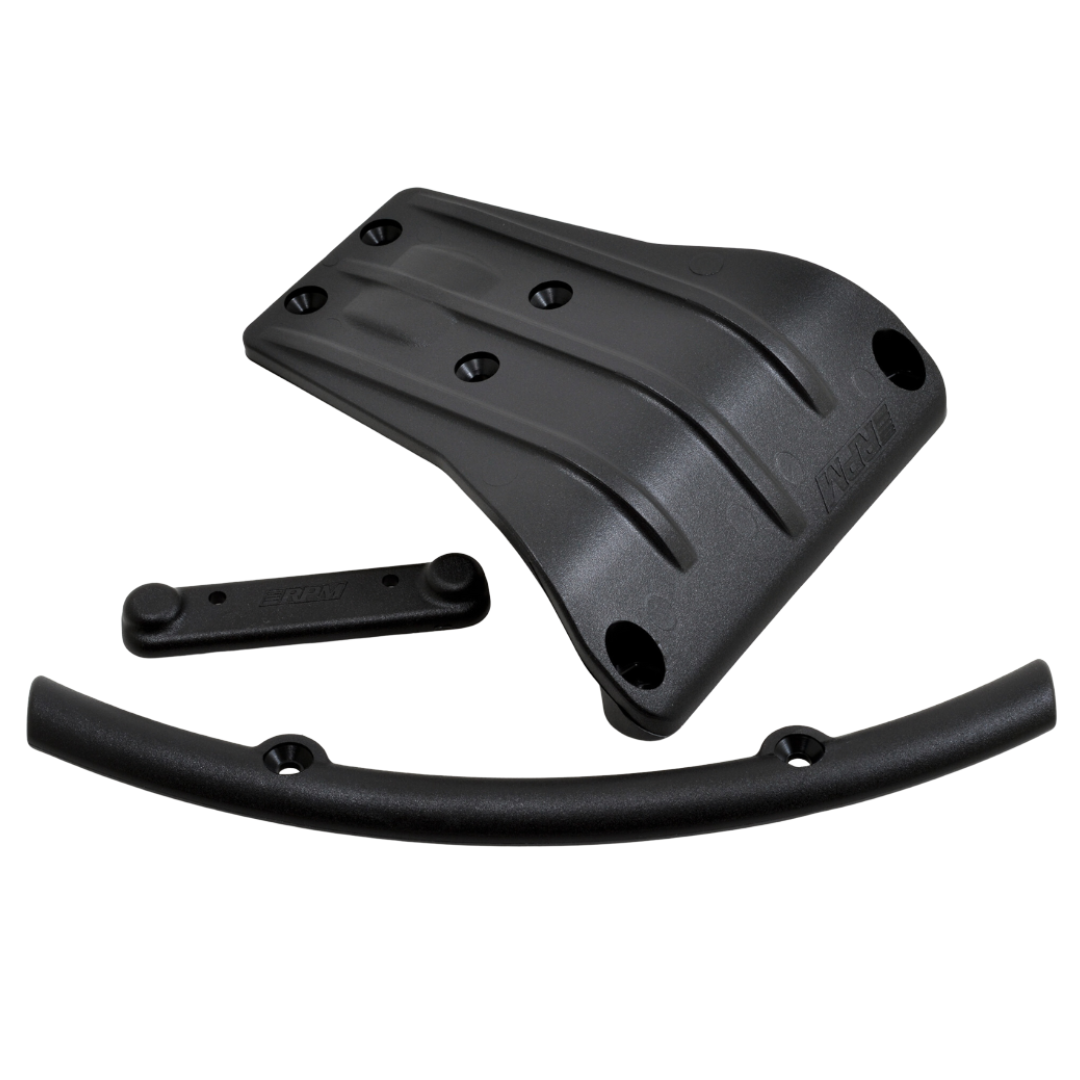

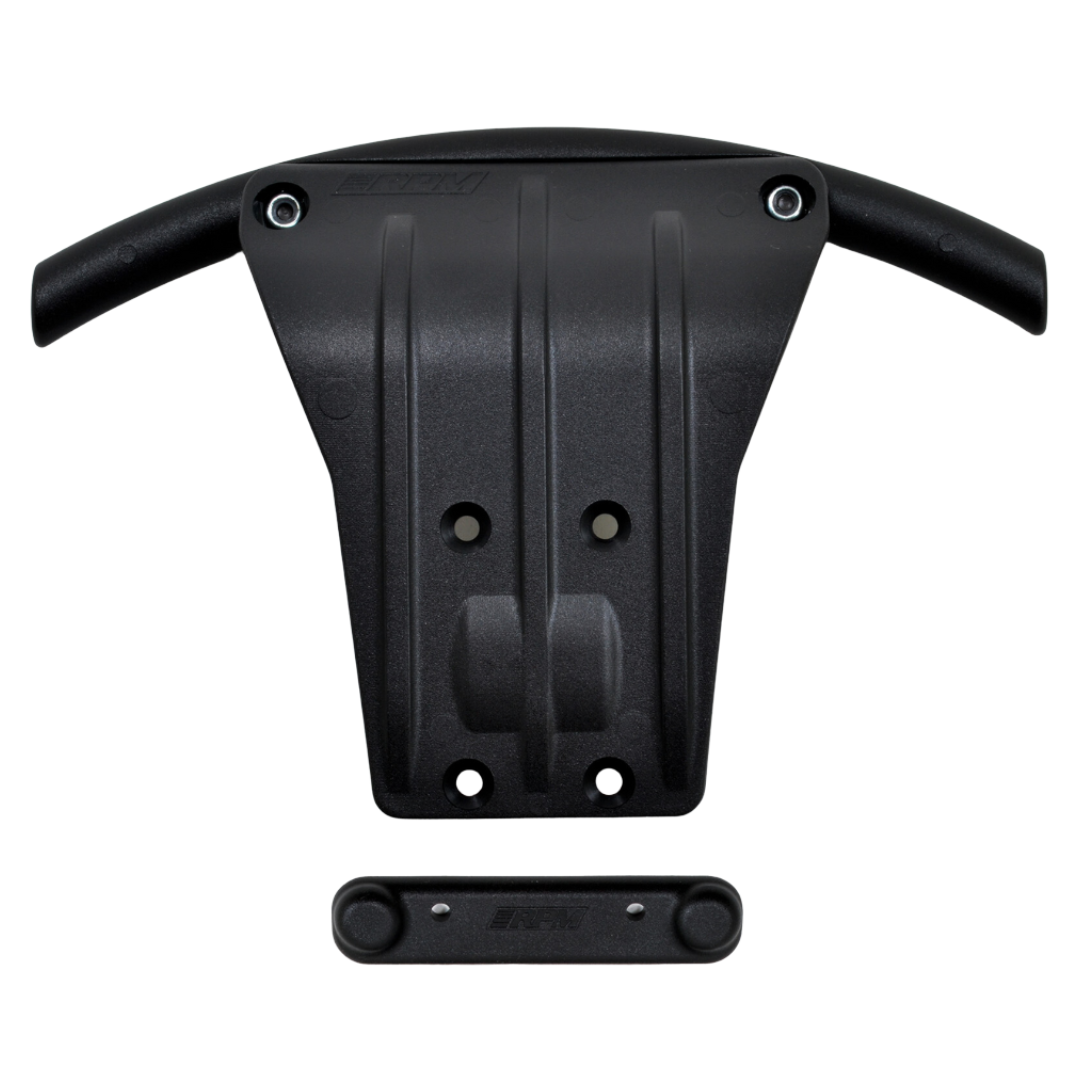

• Two-piece construction with separate bumper and skid plate
• 4mm thick skid plate with 1.5mm skid ribs for added chassis protection
• Extended skid ribs help protect the front of the aluminium chassis from impact and abrasion
• Large curved oval bumper helps protect the front of the vehicle body during collisions
• Includes hinge pin retainer plate for simplified installation
• Moulded from RPM's renowned high-strength engineering-grade plastic
• Made in the USA

Specifications

• Brand: RPM
• Product: Front Bumper
• Manufacturer Part Number: 81812
• Vehicle Compatibility: ARRMA Kraton 6S V5 and EXB
• Also Fits: Older ARRMA vehicles using gearbox case AR310854 or AR310427
• Also Fits: Selected Durango vehicles using gearbox case TD210046
• Skid Plate Thickness: 4mm
• Skid Rib Thickness: 1.5mm
• Bumper Dimensions: 9.5mm × 12.7mm × 171.5mm
• Material: Engineering-grade nylon
• Made in: USA

Includes

• 1 × RPM front bumper
• 1 × Skid plate
• 1 × Hinge pin retainer plate
• Required mounting hardware

FAQ

Will this fit older ARRMA Kraton 6S models? Yes. RPM updated the 81812 bumper to fit the current V5 and EXB models while maintaining compatibility with older Kraton 6S vehicles using the specified stock gearbox cases.

Will this fit other ARRMA vehicles? It fits many ARRMA models using stock gearbox cases AR310854 or AR310427. OZRC recommends checking your vehicle's gearbox case and body clearance before ordering.

Does this require additional parts to install? No. The updated version includes the hinge pin retainer plate required for installation on compatible vehicles.

Important Notes

• Designed specifically for the ARRMA Kraton 6S V5 and EXB.
• Compatible with most ARRMA vehicles using stock gearbox case AR310854 or AR310427.
• Compatible with selected Durango vehicles using stock gearbox case TD210046.
• Body trimming may be required on vehicles other than the ARRMA Kraton 6S V5 and EXB.
• Compatibility with vehicles not specifically listed cannot be guaranteed.
