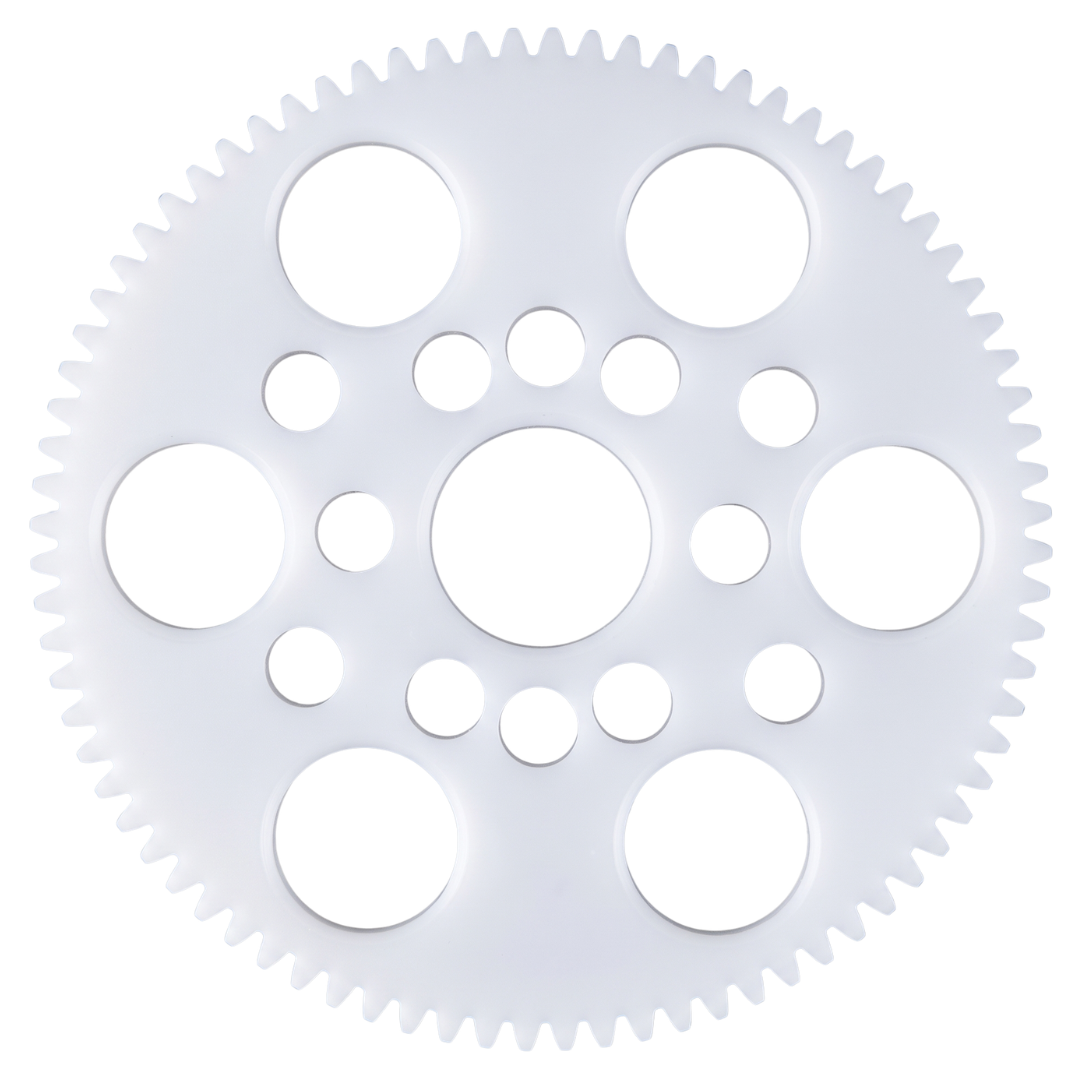

RW Racing Supalite Spur Gear 80 Tooth 48 Pitch RW48F80

The RW Racing Supalite 80-tooth spur gear is a precision machine-cut 48-pitch RC drivetrain gear designed for compatible racing cars requiring a lightweight replacement or gearing adjustment.

Machined from acetal engineering plastic, the Supalite spur gear combines accurate tooth formation with lightening holes to reduce rotating mass. Its generic multi-hole design provides broad installation flexibility, but the mounting pattern, centre bore and available chassis clearance must be checked against the vehicle before fitting.

Features

• Precision machine-cut teeth for consistent gear engagement
• Supalite design reduces unnecessary rotating mass
• Strong acetal engineering plastic construction
• Lightening holes incorporated into the gear face
• Generic multi-hole mounting pattern suits a broad range of compatible RC cars
• 80-tooth gearing option for drivetrain tuning
• Suitable for racing, maintenance and replacement applications

Specifications

• Brand: RW Racing
• Product Range: Supalite
• Manufacturer Part Number: RW48F80
• Product Type: Spur gear
• Tooth Count: 80T
• Gear Pitch: 48 pitch
• Material: Acetal engineering plastic
• Manufacturing Method: Machine cut
• Fitment Type: Generic multi-hole mounting pattern
• Quantity: 1 spur gear

Includes

• 1 x RW Racing Supalite 80-tooth 48-pitch spur gear

FAQ

Will the RW Racing Supalite spur gear fit any RC car? No. The generic drilled pattern is designed to provide broad compatibility, but the centre bore, mounting-hole positions, gear clearance and attachment method must match the vehicle’s spur-gear assembly.

Which pinion gear should be used with this spur gear? A 48-pitch motor pinion is required. Gears with different pitches must not be meshed together.

What effect does an 80-tooth spur gear have on gearing? When used with the same pinion, an 80-tooth spur produces a higher numerical gear ratio than a smaller spur, generally favouring acceleration and reduced motor load over maximum speed.

Is mounting hardware included? No mounting hardware is specified with this product. Reuse the compatible vehicle hardware or obtain the correct screws, adaptor or spur mount separately.

Important Notes

• Confirm the centre bore, mounting pattern and available drivetrain clearance before ordering.
• This is a generic spur gear and is not advertised as a direct replacement for one specific vehicle.
• Use only with a compatible 48-pitch pinion gear.
• Set the pinion-to-spur mesh correctly before operating the vehicle. A mesh that is too tight can create excess friction, while a loose mesh can damage the gear teeth.
• Check that the selected 80-tooth gear provides the intended final-drive ratio for the motor, track and tyre size being used.
