Sense Innovations S10 10CH Radio with S10RX Receiver SENSES10SET

The Sense Innovations S10 is a 10-channel 2.4GHz surface radio system with S10RX receiver for RC cars and boats, suited to drivers needing flexible channel control, telemetry support and customisable model setup.

This radio set is useful for crawlers, trail trucks, boats, custom builds and multi-function RC vehicles that need more than basic steering and throttle control. The S10 transmitter features a high-resolution IPS display, Wi-Fi OTA update support, 40-model memory and assignable controls, while the S10RX receiver provides 10 PWM channels for compatible accessories, servos and control functions.

Features

• 10-Channel Surface Radio: Provides expanded control for RC cars, boats, crawlers and custom builds

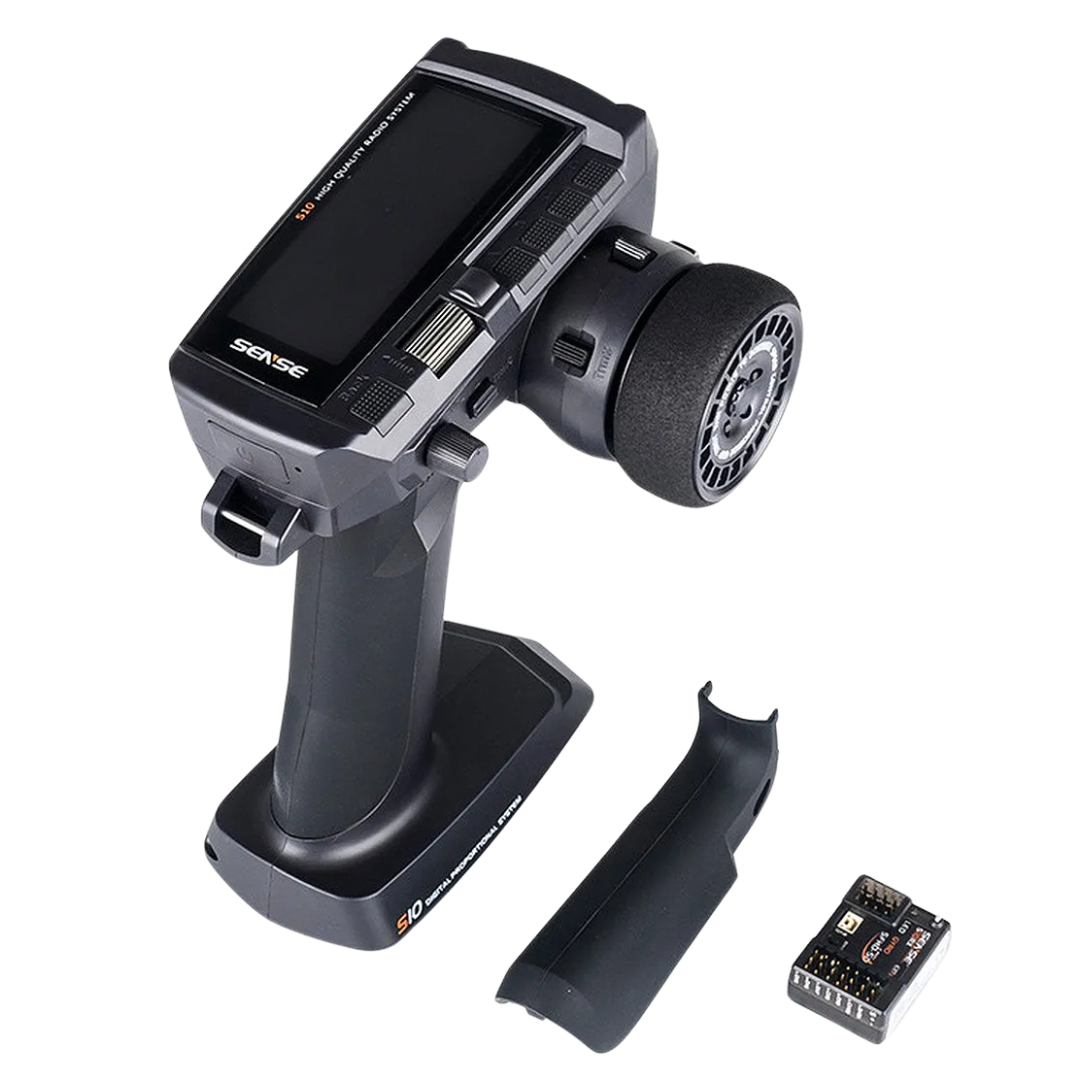

• S10RX Receiver Included: Supplied with the matching 10-channel S10RX receiver
• 2.4GHz Frequency Hopping System: Uses SFHD-SD protocol across 2403MHz to 2480MHz for stable surface control
• Bi-Directional Data Support: Supports receiver feedback and telemetry-style data when compatible sensors or functions are used

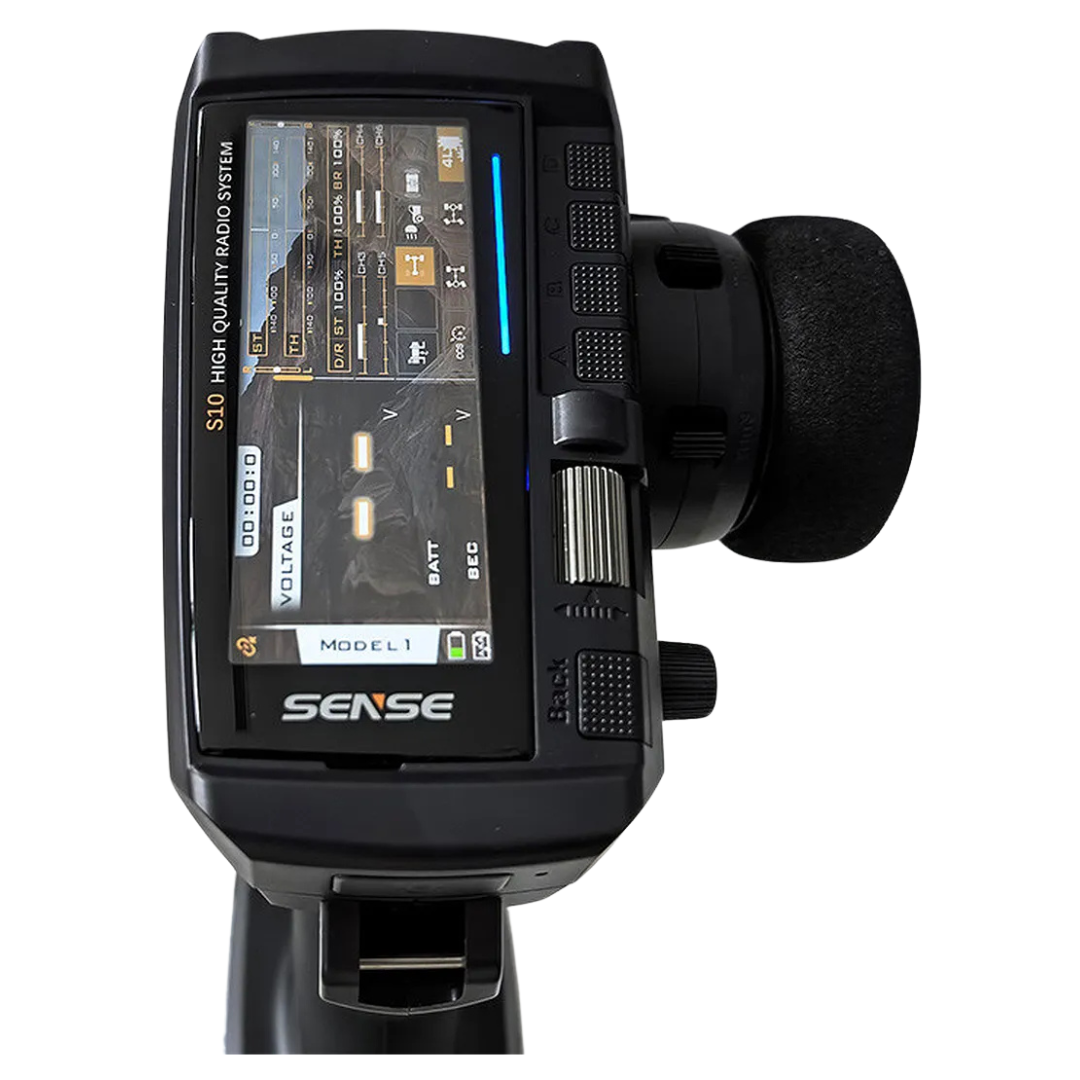

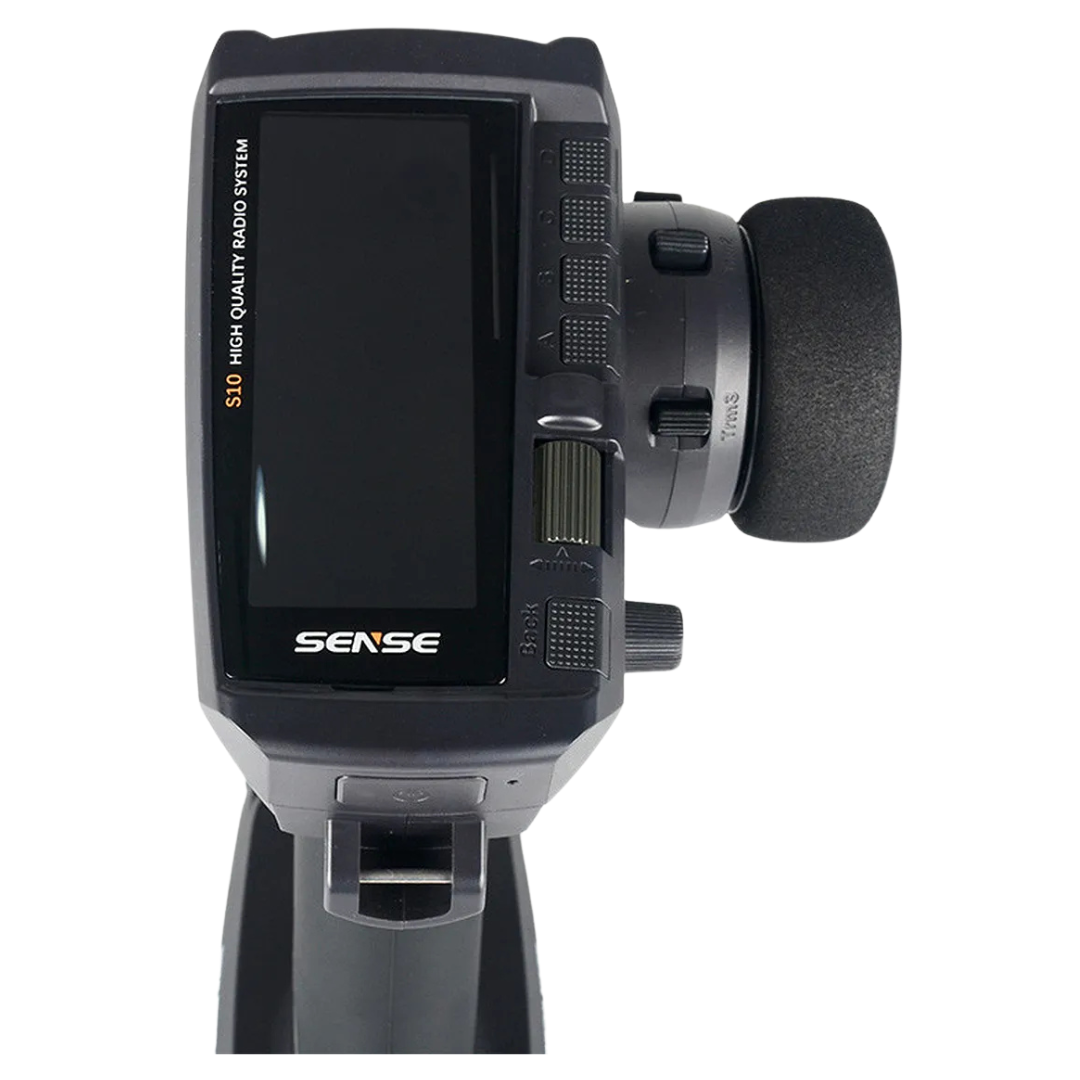

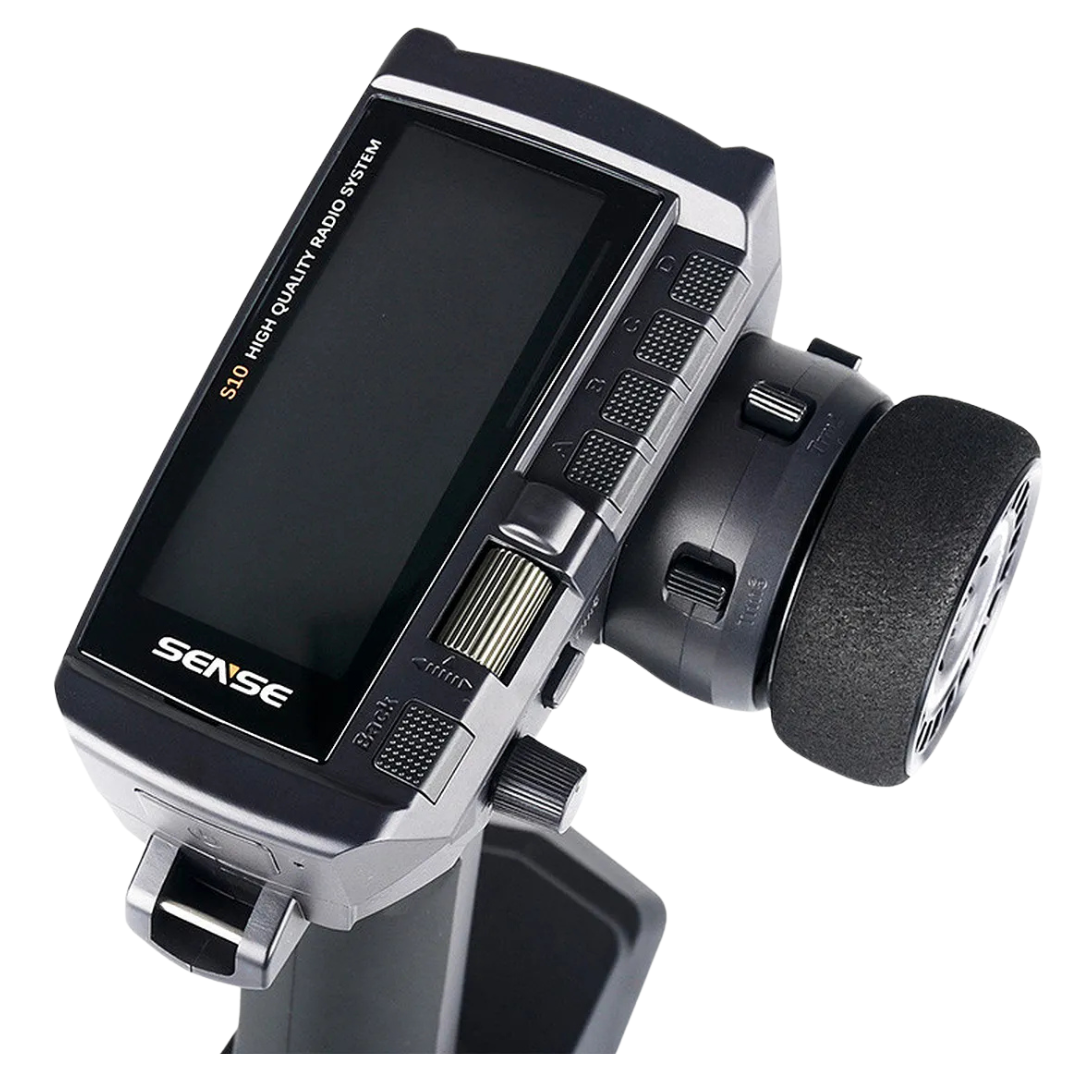

• High-Resolution IPS Display: 3.13 inch 376 x 960 full-dot matrix IPS screen for clear menu navigation
• 4096 Channel Resolution: Fine channel resolution supports precise control adjustment
• 40-Model Memory: Stores multiple vehicle or boat setups for quick switching
• Assignable Controls: Supports custom control mapping for switches, trims, knobs and channel functions
• Wi-Fi OTA Updates: Supports over-the-air firmware updates for the transmitter and receiver
• USB Type-C Charging And Data: USB Type-C interface supports charging and data connection
• Dual Battery Power: Uses a 1S 2600mAh LiPo battery with 4 AAA backup battery support
• Optional GPS Support: S10RX receiver supports an external GPS module through the EXT port, sold separately
• Car And Boat Presets: Includes model setup support for crawler, nitro car, electric car and boat applications

Specifications

• Brand: Sense Innovations
• Model: S10 Radio System
• SKU: SENSES10SET
• Product Type: RC surface transmitter and receiver set
• Compatible Use: RC cars and boats
• Transmitter Model: S10
• Receiver Model: S10RX
• Number Of Channels: 10
• RF Frequency: 2403MHz to 2480MHz
• Wireless Protocol: SFHD-SD
• Transmit Power: Less than 100mW
• Transmitter Antenna: Built-in single antenna
• Receiver Antenna: External single antenna
• Display: 3.13 inch 376 x 960 full-dot matrix IPS screen
• Channel Resolution: 4096
• Control Range: More than 200m in open unobstructed ground conditions
• Transmitter Power: 1S 2600mAh LiPo battery plus 4 x AAA backup batteries
• Low Voltage Alarm: LiPo 3.3V, AAA 4.25V
• Data Interface: USB Type-C
• Charging Interface: USB Type-C
• OTA Update: Supported
• Transmitter Dimensions: 128 x 101 x 188mm
• Transmitter Weight: 370g without batteries
• Receiver PWM Channels: 10
• Receiver Operating Voltage: 5 to 9V DC
• Receiver Data Output: PWM / PPM
• Receiver Dimensions: 34.5 x 26 x 13.6mm
• Receiver Weight: 10g
• Operating Temperature: -10°C to +60°C
• Operating Humidity: 20% to 95% RH
• Certifications: CE-RED, FCC-ID and RoHS

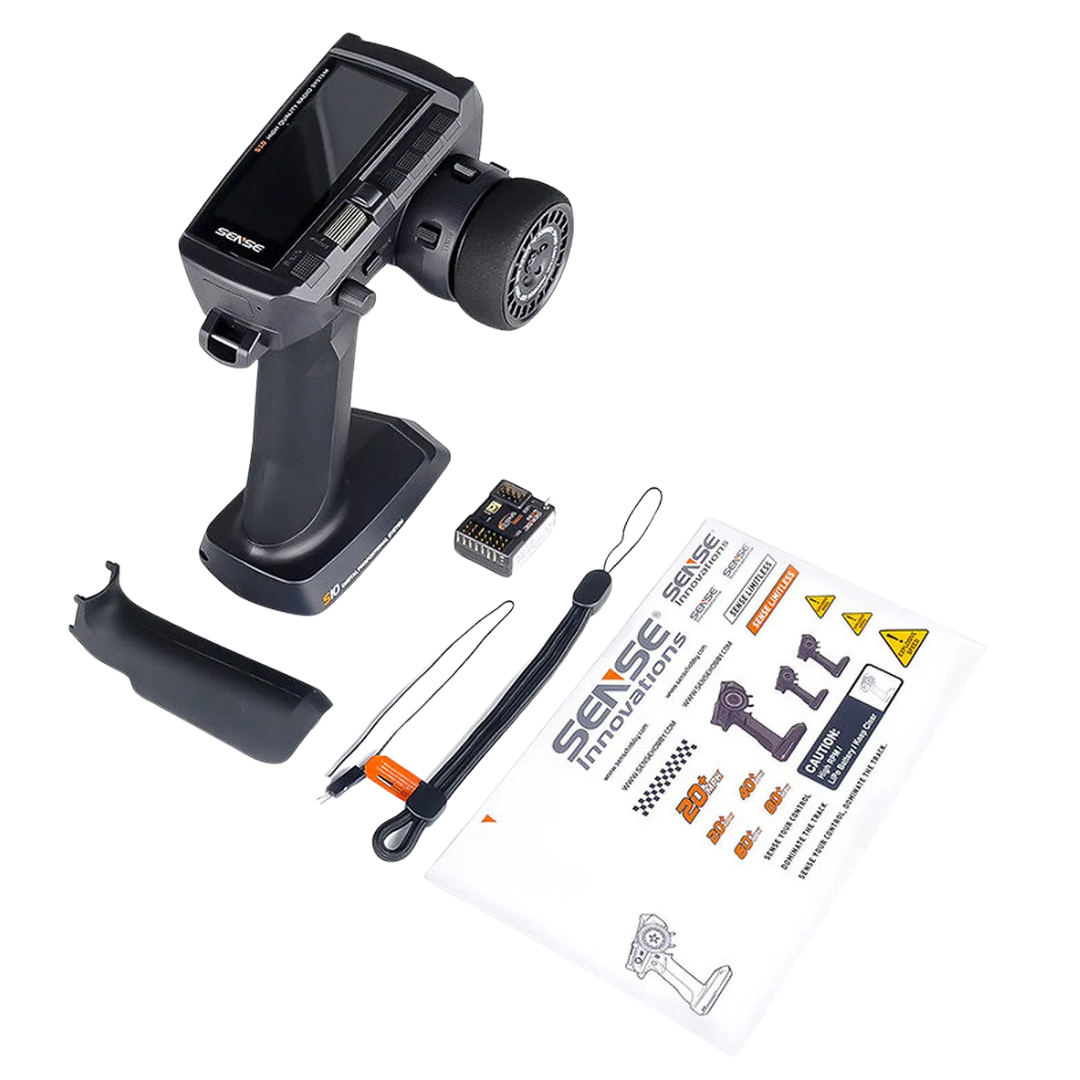

Includes

• 1 x Sense S10 transmitter
• 1 x Sense S10RX receiver
• 1 x Quick start guide
• 1 x BVD battery voltage detector cable
• 1 x USB Type-C cable
• 1 x Wrist strap
• 1 x Small silicone grip, pre-installed
• 1 x Medium or large silicone grip, supplied depending on package version
• 1 x 18650 lithium battery, pre-installed
• 2 x Receiver antenna protectors, manufacturer manual listed

FAQ

What vehicles does the Sense S10 suit? The Sense S10 radio system is designed for RC cars and boats, including crawlers, electric cars, nitro cars and custom surface models.

How many channels does the S10RX receiver provide? The included S10RX receiver provides 10 PWM channels.

Are AAA batteries included? No. The package includes a pre-installed 18650 lithium battery, but AAA backup batteries are not listed as included.

Does the S10 support firmware updates? Yes. The Sense S10 supports Wi-Fi OTA updates for both the transmitter and receiver.

Important Notes

• Designed for surface RC use with cars and boats.
• AAA backup batteries are not included.
• Optional GPS module and extra telemetry accessories are sold separately.
• Range depends on conditions, antenna placement, power supply, interference and installation quality.
• Receiver output voltage depends on the vehicle’s receiver power source or ESC BEC.
• Check servo, ESC, winch, light controller and accessory compatibility before installation.
• Do not expose the transmitter battery to impact, puncture, short circuit, high heat or liquid.
• RC vehicle, servos, ESC, battery, charger, optional GPS module and extra receivers are not included unless shown separately.
