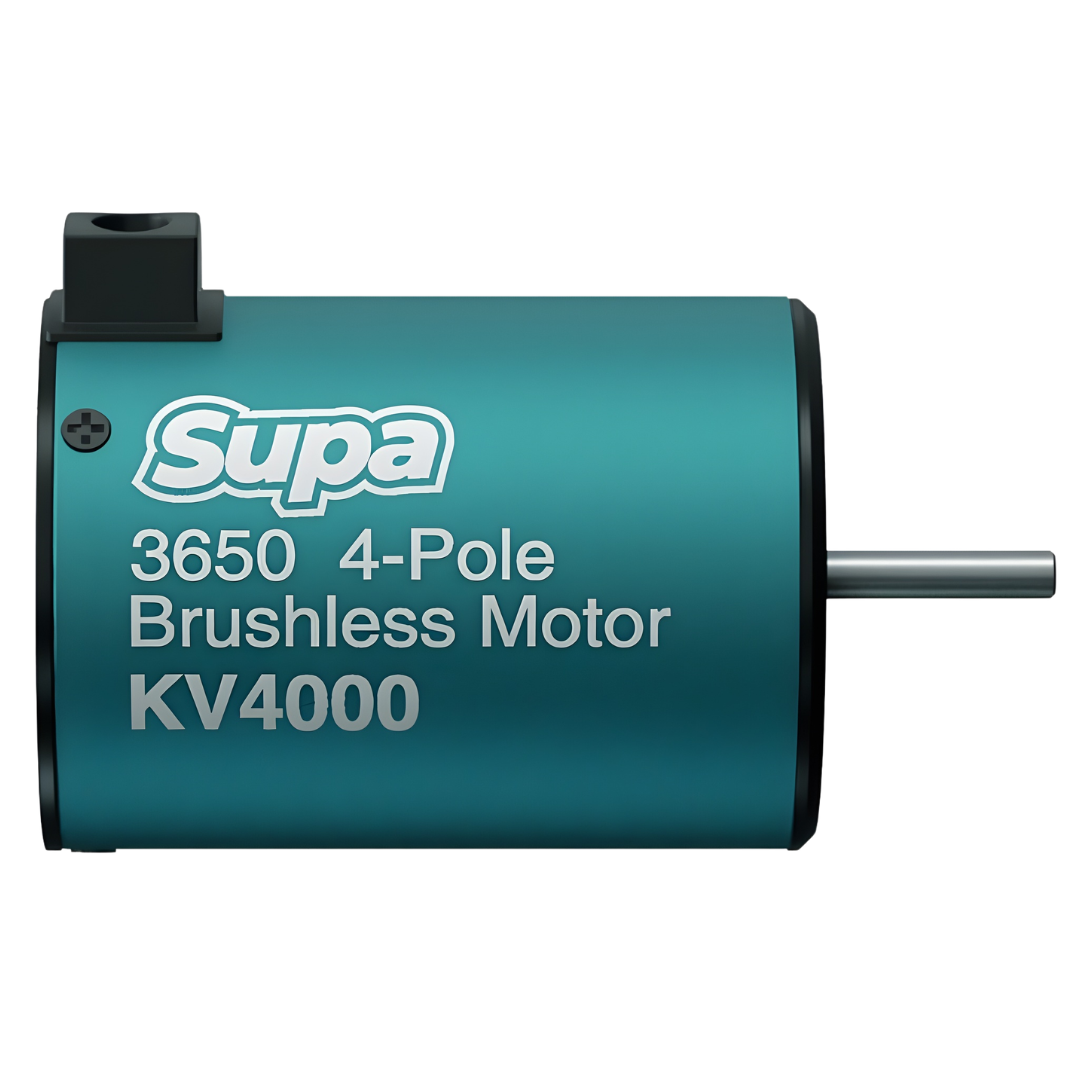

SkyRC FuriaX Supa 3650 Brushless Motor 4000KV SK-400035-04

The SkyRC FuriaX Supa 3650 4000KV is a 4-pole sensorless brushless motor for compatible 1/10 RC vehicles, delivering strong torque smooth power delivery and up to 900W maximum output in a compact 36mm motor format

Features

• 4-pole 12-slot brushless motor design for strong torque and smooth power delivery
• 4000KV winding suited to compatible 1/10 performance applications
• Ultra-thin 0.2mm stator laminations help reduce energy loss and heat generation
• 6061-T6 aluminium motor can provides strength with efficient heat dissipation
• High-precision bearings and precision motor shaft support smooth operation
• Precision-balanced rotor helps reduce vibration at high speed
• 220°C-rated high-purity copper windings
• Factory-fitted 4.0mm gold-plated motor connectors
• Colour-coded ABC phase wires simplify ESC connection and cable routing
• Designed to resist dust mud and splashes during normal RC use
• Compatible with mainstream sensorless brushless ESCs
• Matched for use with the SkyRC FuriaX Supa ESC range

Specifications

• Brand: SkyRC
• Series: FuriaX Supa
• Product Type: Sensorless Brushless Motor
• Scale: 1/10
• Motor Size: 3650
• KV Rating: 4000KV
• Pole Count: 4
• Slot Count: 12
• Maximum Voltage: Less Than 12V
• No-Load Current: 2.0A
• Maximum Load Current: 75A
• Maximum Power: 900W
• Motor Diameter: 36mm
• Motor Length: 50mm
• Shaft Diameter: 3.175mm
• Motor Connector: 4.0mm Gold-Plated
• Weight: Approximately 150g ±5g
• Operating Temperature: -10°C to 80°C
• Barcode: 6930460009074
• Manufacturer Part Number: SK-400035-04

Includes

• 1 x SkyRC FuriaX Supa 3650 4000KV Brushless Motor

FAQ

Is the SkyRC FuriaX Supa 3650 4000KV sensored? No, this FuriaX Supa 3650 motor is designed for sensorless brushless operation and SkyRC states that it is compatible with mainstream sensorless ESCs

What ESC should be used with this motor? SkyRC pairs the FuriaX Supa 3650 range with its FuriaX Supa 60A ESC although any compatible sensorless ESC must also meet the motor voltage and current requirements

What is the maximum power of the 4000KV version? SkyRC specifies up to 900W maximum power with a maximum load current of 75A

Will this motor fit any 1/10 RC vehicle? SkyRC states that the range supports most mainstream 1/10 chassis but OZRC recommends checking the 36 x 50mm motor dimensions shaft size mounting space gearing and ESC compatibility before installation

Important Notes

• The 220°C figure refers to the temperature rating of the copper windings and not the recommended operating temperature of the complete motor
• SkyRC specifies a normal motor operating temperature range of -10°C to 80°C
• Confirm gearing battery voltage ESC rating and motor clearance before installation
• Monitor motor and ESC temperatures after changing gearing battery voltage or tyre size
