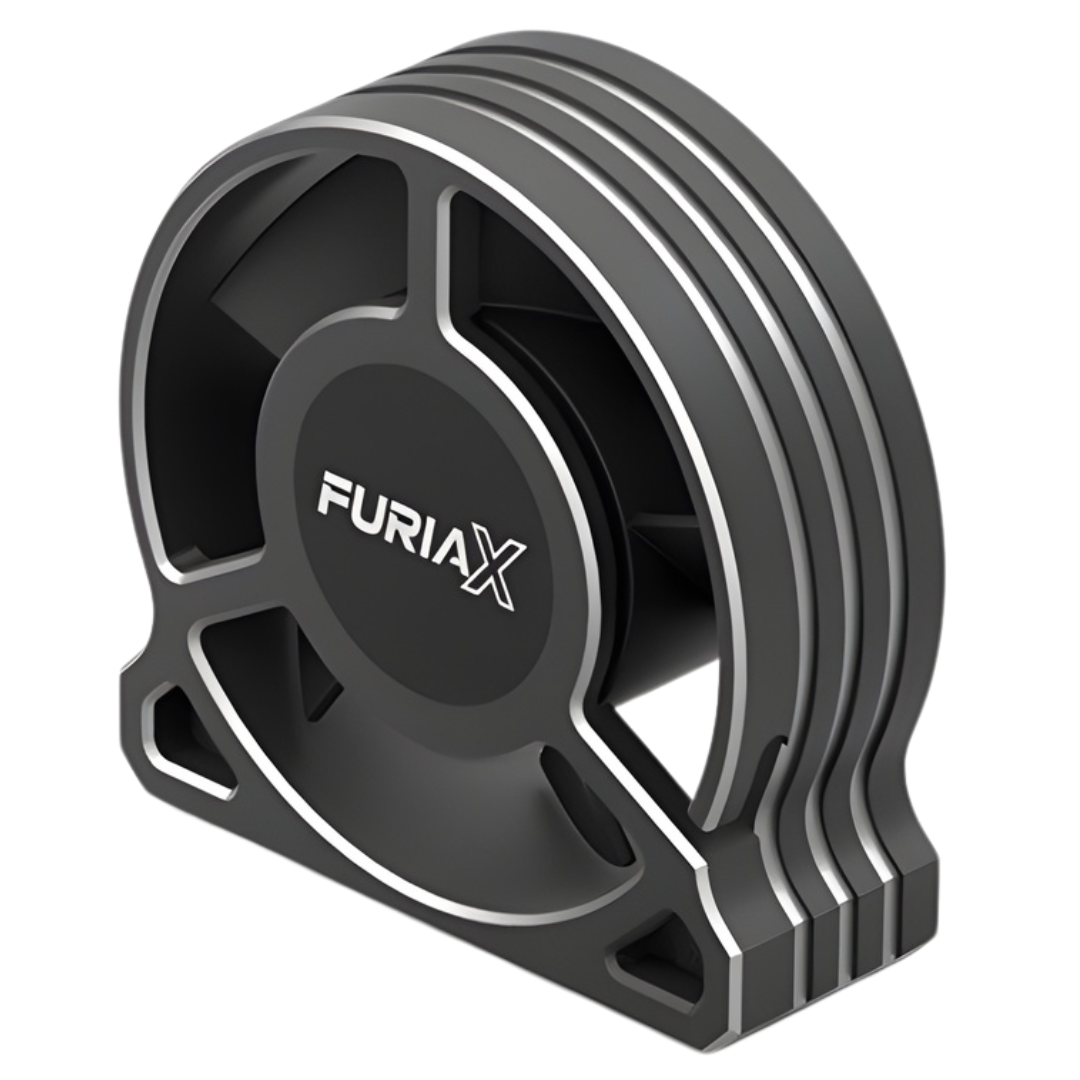

SkyRC Alloy Round Cooling Fan Black SK-400038-B1

The SkyRC Alloy Round Cooling Fan is a high performance motor cooling solution designed for 1/10 scale RC vehicles. Featuring a CNC aluminium frame and high speed fan, it delivers strong airflow to keep motors and ESCs operating at stable temperatures even under heavy loads.

Features

• High speed cooling fan designed for 1/10 scale RC systems
• Up to 28 CFM airflow for effective heat dissipation
• High RPM fan operating between 28000 and 30000 RPM
• CNC machined aluminium heatsink frame
• Wide operating voltage range from 3.5V to 9.0V
• Stall protection with automatic recovery
• Reverse polarity protection for safe operation
• JR 2 pin connector for direct receiver power
• Flexible 26AWG silicone wires for easy installation

Specifications

• Fan Size: 31 x 31 x 10.8 mm
• Airflow: Up to 28 CFM
• Fan Speed: 28000 to 30000 RPM
• Operating Voltage: 3.5V to 9.0V DC
• Rated Voltage: 6.0V to 8.4V
• Current Draw: 0.5A at 6.0V 0.6A at 8.4V
• Wire Type: 26AWG silicone wire
• Wire Length: 200mm
• Connector Type: JR 2 pin
• Operating Temperature: -10°C to 70°C
• Material: Aluminium heatsink frame
• SKU: SK400038B1

Includes

• 1 x SkyRC Alloy Round Cooling Fan
