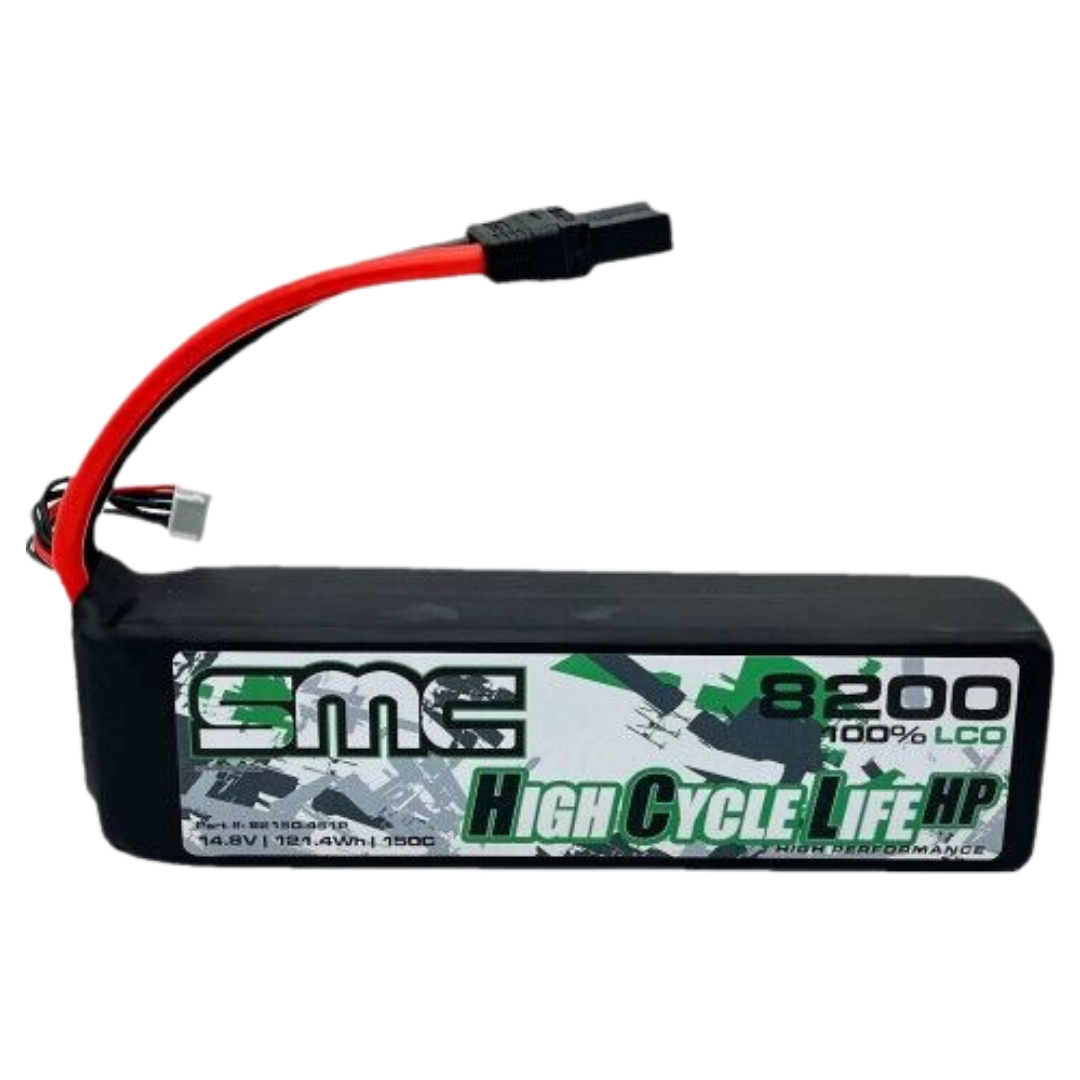

SMC HCL-HP 4S 8200mAh 150C LiPo Traxxas ID Compatible SMC-82150-4S1P-TRX
Couldn't load pickup availability
The SMC HCL-HP 8200mAh 4S LiPo is a high-capacity 14.8V 150C battery pack designed to fit the Traxxas Maxx V2 and X-Maxx, using five G10 protection plates, heavy-duty 10 AWG wiring and a first-generation Traxxas connector compatible with the Traxxas ID socket
Features
- HCL-HP high-performance LiPo battery series
- 8200mAh true-capacity specification with a stated tolerance of plus or minus 5 percent
- 4S 14.8V configuration for compatible high-power RC vehicles
- 150C discharge rating
- Designed to fit the Traxxas Maxx V2 and X-Maxx
- First-generation Traxxas connector compatible with the Traxxas ID socket
- Five G10 protection plates provide additional physical protection around the battery pack
- Rubber-style shrink construction protects the cells while avoiding the bulk of a conventional moulded hardcase
- 100 percent LCO cathode chemistry used by SMC for performance and cycle life
- Low internal resistance cell design supports strong current delivery and reduced heat generation
- 10 AWG discharge wiring supports high-current applications
- Supports charge rates from 1C to 5C when used with suitable LiPo charging equipment
Specifications
- Brand: SMC LiPo Batteries
- Series: HCL-HP
- Product Type: LiPo Battery
- Product Code: 82150-4S1P
- SKU: SMC-82150-4S1P-TRX
- Barcode: 8793000037269
- Battery Chemistry: LiPo
- Configuration: 4S1P
- Cell Count: 4S
- Nominal Voltage: 14.8V
- Capacity: 8200mAh
- Capacity Tolerance: Plus or minus 5 percent
- Discharge Rating: 150C
- SMC Power Factor: 404
- Connector: First-generation Traxxas compatible with ID socket
- Wire Gauge: 10 AWG
- Protection: Five G10 plates with rubber-style shrink
- Dimensions: 180 x 48 x 42 mm
- Weight: Approximately 778 g
- Charge Rate: 1C to 5C
- Primary Compatibility: Traxxas Maxx V2 and X-Maxx
Includes
- 1 x SMC HCL-HP 8200mAh 4S 14.8V 150C LiPo battery with Traxxas-compatible connector
FAQ
Does this SMC 8200mAh 4S battery fit the Traxxas Maxx V2? Yes, SMC specifically lists the HCL-HP 14.8V 8200mAh 150C pack as fitting the Traxxas Maxx V2
Does this battery fit the Traxxas X-Maxx? Yes, SMC lists the 14.8V 8200mAh HCL-HP pack as a compatible battery option for the Traxxas X-Maxx
Is the connector compatible with Traxxas ID? This version is supplied with SMC's first-generation Traxxas-style connector that is compatible with the Traxxas ID socket, but it does not provide the integrated smart identification features of a genuine Traxxas ID battery
Is this a conventional hardcase battery? No, this HCL-HP pack uses five G10 protection plates with rubber-style shrink to provide structural protection around the cells rather than a full moulded plastic hardcase
Can the battery be charged at 5C? SMC specifies a charge range of 1C to 5C, but also notes that higher charge rates can reduce the amount of capacity returned to the pack and shorten cycle life
Important Notes
- Use only a charger designed for 4S LiPo batteries
- The Traxxas-compatible connector does not make this a genuine Traxxas ID smart battery
- Confirm your vehicle and ESC are approved for 4S 14.8V operation before use
- Confirm the 180 x 48 x 42 mm dimensions provide sufficient battery tray clearance before installation
- SMC advises that charging at higher rates can reduce usable charge capacity and battery cycle life
- Do not leave a LiPo battery unattended while charging
- Allow the battery to cool after high-current use before recharging
- Store the battery at an appropriate LiPo storage voltage when not in regular use
