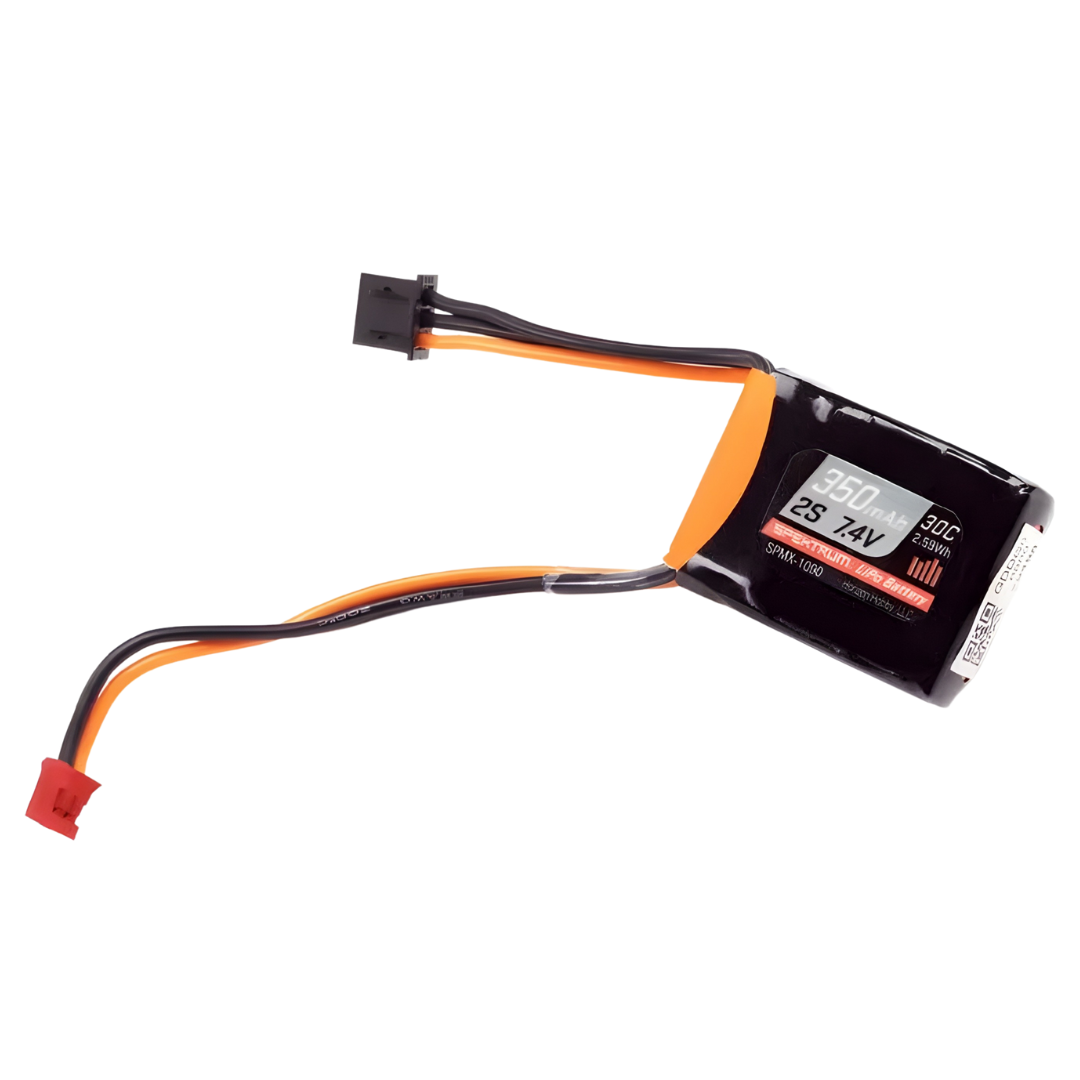

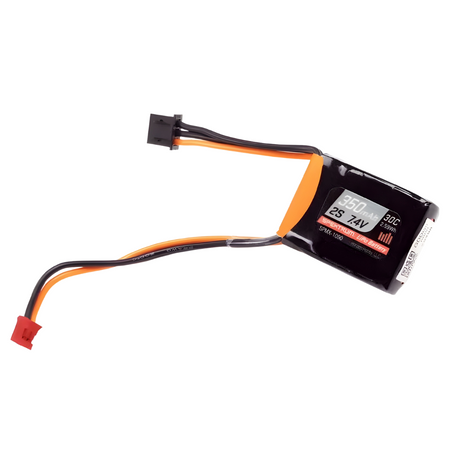

Spektrum 350mAh 2S 7.4V 30C LiPo Battery PH2.0 Micro-B SPMX1090

The Spektrum SPMX1090 is a compact 2S 7.4V 350mAh 30C LiPo battery with a PH2.0 connector, designed specifically for micro surface RC models including the Losi 1/24 Micro-B and offering a direct replacement power pack with strong current delivery in a lightweight soft-case format

Features

• Compact 2S LiPo battery for micro RC vehicles
• 350mAh capacity
• 7.4V nominal voltage
• 30C maximum continuous discharge rating
• Factory-fitted PH2.0 high-current ultra-micro connector
• Soft-case construction
• Maximum published charge rate of 3C
• Designed specifically for the Losi Micro-B
• Also listed for compatible Losi Micro-T applications

Specifications

• Brand: Spektrum
• Product Type: LiPo Battery
• Application: Surface RC
• Battery Chemistry: LiPo
• Cell Count: 2S
• Nominal Voltage: 7.4V
• Capacity: 350mAh
• Maximum Continuous Discharge Rate: 30C
• Maximum Charge Rate: 3C
• Connector: PH2.0 High-Current Ultra Micro
• Hard Case: No
• Length: 36mm
• Width: 27mm
• Height: 11mm
• Weight: 18g
• UPC: 660132987664
• Manufacturer Part Number: SPMX1090

Compatibility

• Losi 1/24 Micro-B 2WD Buggy LOS00007 Series
• Losi 1/28 Micro-T Models Specifying SPMX1090
• Other compatible micro RC models requiring the same voltage connector dimensions and current capability

Includes

• 1 x Spektrum 350mAh 2S 7.4V 30C LiPo Battery with PH2.0 Connector

FAQ

Is SPMX1090 the standard battery for the Losi Micro-B? Yes, the Losi Micro-B manual lists SPMX1090 as its 7.4V 350mAh 2S 30C PH2.0 replacement battery

What connector does SPMX1090 use? It uses a PH2.0 high-current ultra-micro connector

What is the maximum charge rate? Spektrum specifies a maximum charge rate of 3C, although a lower charge rate may be used when supported by the charger

Is this a Spektrum Smart battery? No, SPMX1090 is a conventional LiPo battery and is not listed as a Smart or Smart G2 battery

Important Notes

• Use only a charger designed for 2S LiPo batteries and compatible with the battery connection or balance requirements
• Do not exceed the published 3C maximum charge rate
• Confirm voltage connector polarity battery dimensions and vehicle compatibility before use
• Always follow appropriate LiPo charging storage and handling procedures
