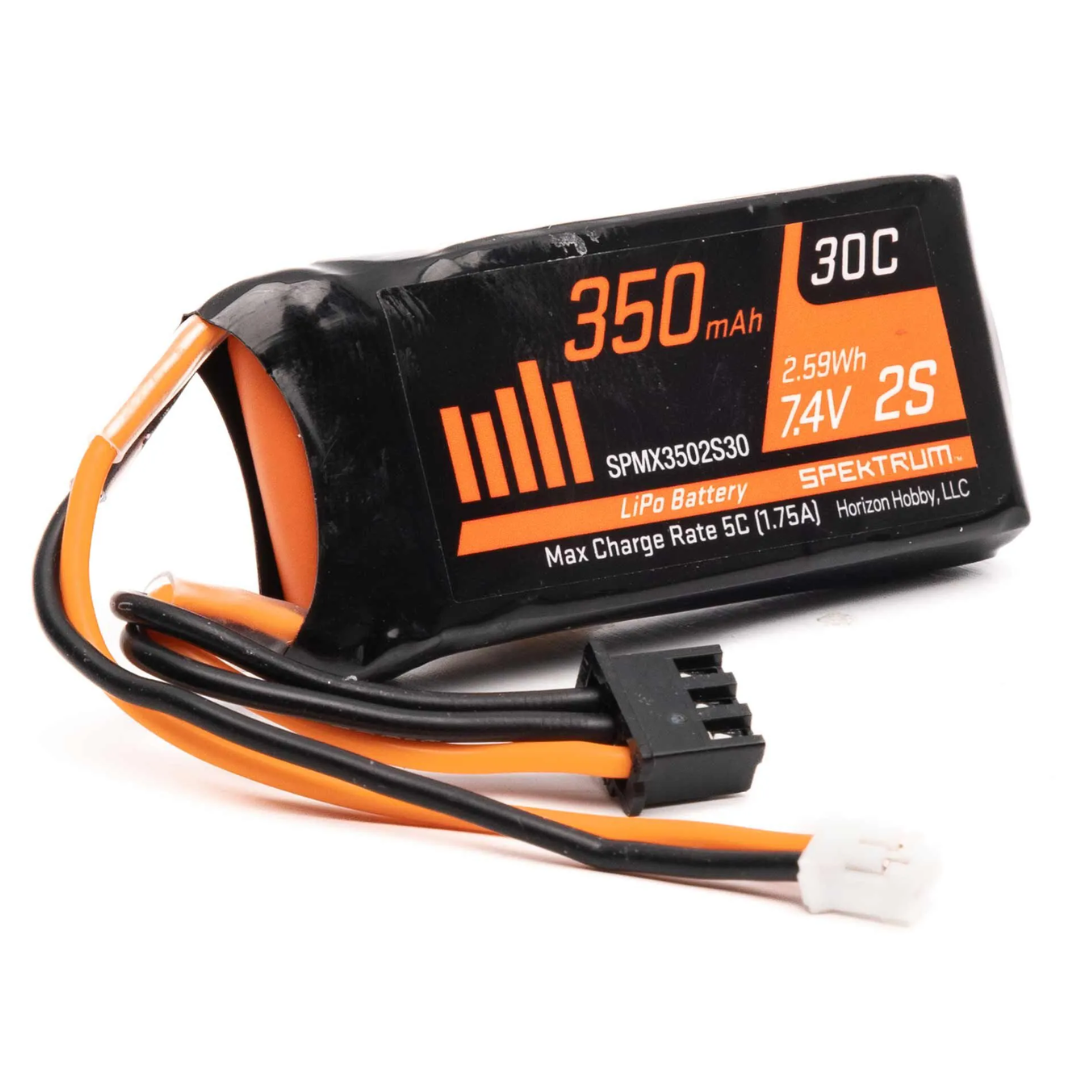

Spektrum 350mAh 2S 7.4V LiPo PH2.0 2 Pin Connector SCX24 DYNB0012 SPMX3502S30

Keep your compatible Axial SCX24 crawler powered with the Spektrum 350mAh 2S 7.4V LiPo Battery, SPMX3502S30. Designed for ultra-micro RC applications, this compact lithium polymer battery provides dependable power in a lightweight package, making it ideal as a replacement or additional battery for your RC adventures.

Featuring a high-current PH2.0 two-pin power connector, the battery is designed for compatible small-scale RC electronics. Its separate JST-XH balance connector allows accurate individual cell balancing when used with an appropriate 2S LiPo balance charger.

With a 350mAh capacity, 7.4V nominal voltage and compact dimensions of 56 x 28 x 13mm, this battery is well suited to selected Axial SCX24 crawlers and other micro RC models requiring the same voltage, connector and physical dimensions.

Features

• Genuine Spektrum Battery: Manufacturer part number SPMX3502S30
• 350mAh Capacity: Compact power source for ultra-micro RC applications
• 7.4V 2S LiPo Configuration: Two lithium polymer cells connected in series
• 30C Discharge Rating: Designed to deliver power for compatible micro RC electronics
• High-Current PH2.0 Connector: Two-pin power connection for supported RC models
• JST-XH Balance Lead: Supports individual cell balancing with a compatible charger
• Compact Size: Measures approximately 56 x 28 x 13mm
• Lightweight Construction: Weighs approximately 24g
• SCX24 Application: Suitable for selected Axial SCX24 RC crawlers
• Replacement or Spare Battery: Convenient for maintaining additional charged batteries

Specifications

• Brand: Spektrum
• Manufacturer Part Number: SPMX3502S30
• Additional Supplied Reference: DYNB0012 (Not Confirmed as an Equivalent Manufacturer SKU)
• Battery Type: Lithium Polymer (LiPo)
• Capacity: 350mAh
• Nominal Voltage: 7.4V
• Cell Count: 2S
• Nominal Cell Voltage: 3.7V
• Discharge Rating: 30C
• Energy Capacity: 2.59Wh
• Main Power Connector: PH2.0 High-Current 2-Pin
• Balance Connector: JST-XH
• Length: 56mm
• Width: 28mm
• Height: 13mm
• Weight: Approximately 24g
• Application: Compatible Ultra-Micro RC Vehicles
• Quantity: 1 Battery

Compatibility

Suitable for selected Axial SCX24 crawlers and other RC models designed to use a 7.4V 2S LiPo battery with a PH2.0 two-pin power connector.

Before purchasing, confirm that your model supports the battery voltage, connector polarity, physical dimensions and required discharge performance.

Important: PH2.0, IC2 and EC2 are different connector systems and should not be assumed interchangeable. Not every Axial SCX24 production version uses identical electronics or battery connectors.

Includes

• 1 x Spektrum 350mAh 2S 7.4V 30C LiPo Battery with PH2.0 Connector - SPMX3502S30

Required To Complete

• Compatible RC Vehicle or Device
• Compatible 2S LiPo Balance Charger
• Suitable PH2.0 Charging Connection
• Appropriate LiPo-Safe Charging and Storage Equipment

FAQ

Is this battery compatible with the Axial SCX24? It is intended for selected SCX24 vehicles. Check your exact model's battery voltage, connector and battery compartment before ordering.

What does 2S mean? The battery contains two lithium polymer cells connected in series, providing a nominal voltage of 7.4V.

What connector does it use? It features a high-current PH2.0 two-pin main power connector and a separate JST-XH balance connector.

Is PH2.0 the same as IC2? No. PH2.0 and Spektrum IC2 are different connector types. Check the connector fitted to your vehicle before purchasing.

What is the battery capacity? The capacity is 350mAh, equivalent to 0.35Ah.

What does the 30C rating mean? The discharge rating describes the battery's specified continuous current capability. A 350mAh battery rated at 30C corresponds to a calculated 10.5A continuous discharge current.

Can I use a standard LiPo charger? Yes, provided it supports 2S lithium polymer batteries and has suitable power and balance connections.

Does this battery require balance charging? Yes. Use the JST-XH balance lead with a compatible charger to monitor and balance the two cells.

Is this a Spektrum Smart G2 battery? It is described as a conventional LiPo battery with a separate balance lead. Do not assume it supports Smart G2 single-connection charging.

Will this battery fit a micro RC aircraft? It may suit aircraft designed for the same voltage, connector, dimensions, weight and discharge requirements. Verify compatibility before use.

Can I use it in a 1S-only RC model? No. This 2S battery must not be connected to electronics designed only for a 1S power supply.

How long does a charge last? Runtime varies according to the vehicle, motor, terrain, driving style and battery condition. No fixed runtime is guaranteed.

Does it include a charger? No. This product contains one rechargeable LiPo battery only.

How should the battery be stored? Use a suitable LiPo storage-charge setting for extended storage and keep the battery in a cool, dry location away from combustible materials.

Important Notes

• Includes one LiPo battery only; charger sold separately
• Use a charger specifically compatible with 2S LiPo batteries
• Verify PH2.0 connector fit and polarity before connecting
• Do not connect to 1S-only electronics
• Do not use a NiMH-only charger
• Balance charge with appropriate charging equipment
• Never leave a LiPo battery charging unattended
• Do not charge swollen, punctured, damaged or excessively hot batteries
• Protect the battery against over-discharge, crushing and short circuits
• Disconnect the battery from the vehicle when not in use
• Follow all manufacturer LiPo charging, handling and storage instructions
