Spektrum 810mAh 2S 7.4V Smart G2 50C LiPo Battery IC2 SPMX812SH2

The Spektrum SPMX812SH2 is a compact 810mAh 2S 7.4V Smart G2 50C LiPo battery with IC2 connector, designed for compatible RC cars, aircraft, and mini models needing Smart battery data, simple charging, and strong 2S performance.

Features

• Smart G2 Battery Technology: Integrated microchip stores battery parameters, usage data, and health information for compatible Spektrum Smart chargers
• Single-Connection Charging: Balance charging data travels through the IC2 connector data wire, so no separate balance lead is required when used with a compatible Smart charger
• 810mAh 2S Capacity: Compact 7.4V LiPo pack suits compatible mini RC vehicles, small aircraft, and other models requiring this battery size and connector
• 50C Continuous Discharge: Provides strong output capability for suitable RC applications within the battery’s rating
• Auto Storage Discharge: Factory programmed to discharge to safe storage voltage after 72 hours of inactivity, with settings adjustable through compatible Smart equipment
• Faster G2 Storage Discharge: Smart G2 batteries offer faster auto discharge than previous G1 Smart batteries
• Data-Rich Battery Monitoring: Stores information such as battery type, capacity, C rating, cell voltage, temperature, charge cycles, discharge cycles, and error logs
• IC2 Connector: Fitted with Spektrum IC2 connector for compatible models and Smart charging systems
• EC2 Adaptor Included: Includes an IC2 device to EC2 battery adaptor for compatible EC2-equipped applications

Specifications

• Brand: Spektrum
• Model: 7.4V 810mAh 2S Smart G2 50C LiPo IC2
• Part Number: SPMX812SH2
• Product Type: Smart G2 LiPo battery
• Battery Type: LiPo
• Capacity: 810mAh
• Cell Count: 2S
• Voltage: 7.4V nominal
• Discharge Rating: 50C continuous
• Connector Type: IC2
• Balance Lead: No separate balance lead required with compatible Smart G2 charging setup
• Auto Storage Voltage: 3.90V per cell after 72 hours of inactivity from factory setting
• Storage Discharge Rate: Up to 1.5A
• Dimensions: 58 x 32 x 20mm
• Weight: 65g
• Application: Compatible RC cars, aircraft, and mini models requiring a 2S 810mAh LiPo with IC2 connector

Includes

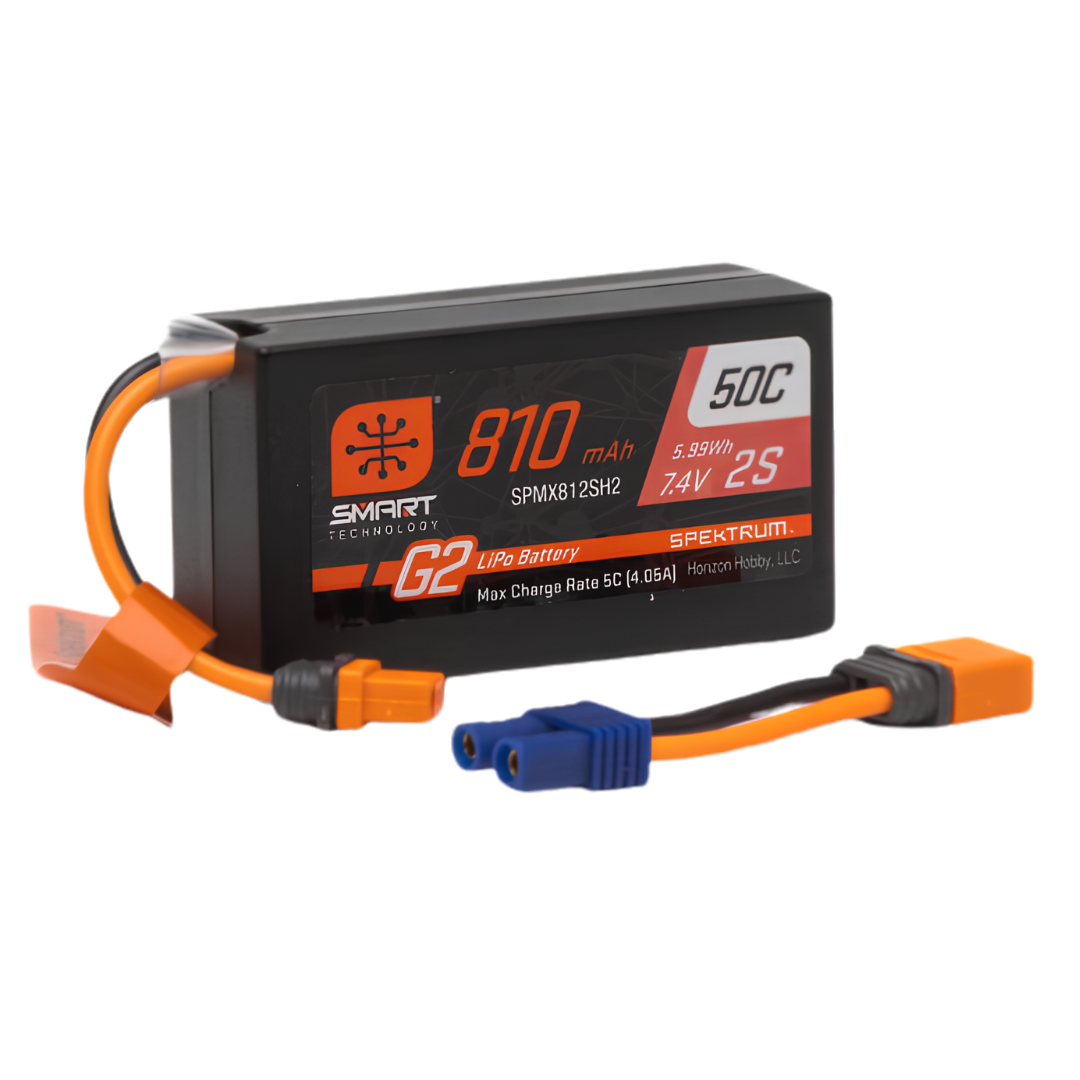

• 1 x Spektrum 7.4V 810mAh 2S Smart G2 50C LiPo battery with IC2 connector
• 1 x IC2 device to EC2 battery adaptor

Needed To Complete

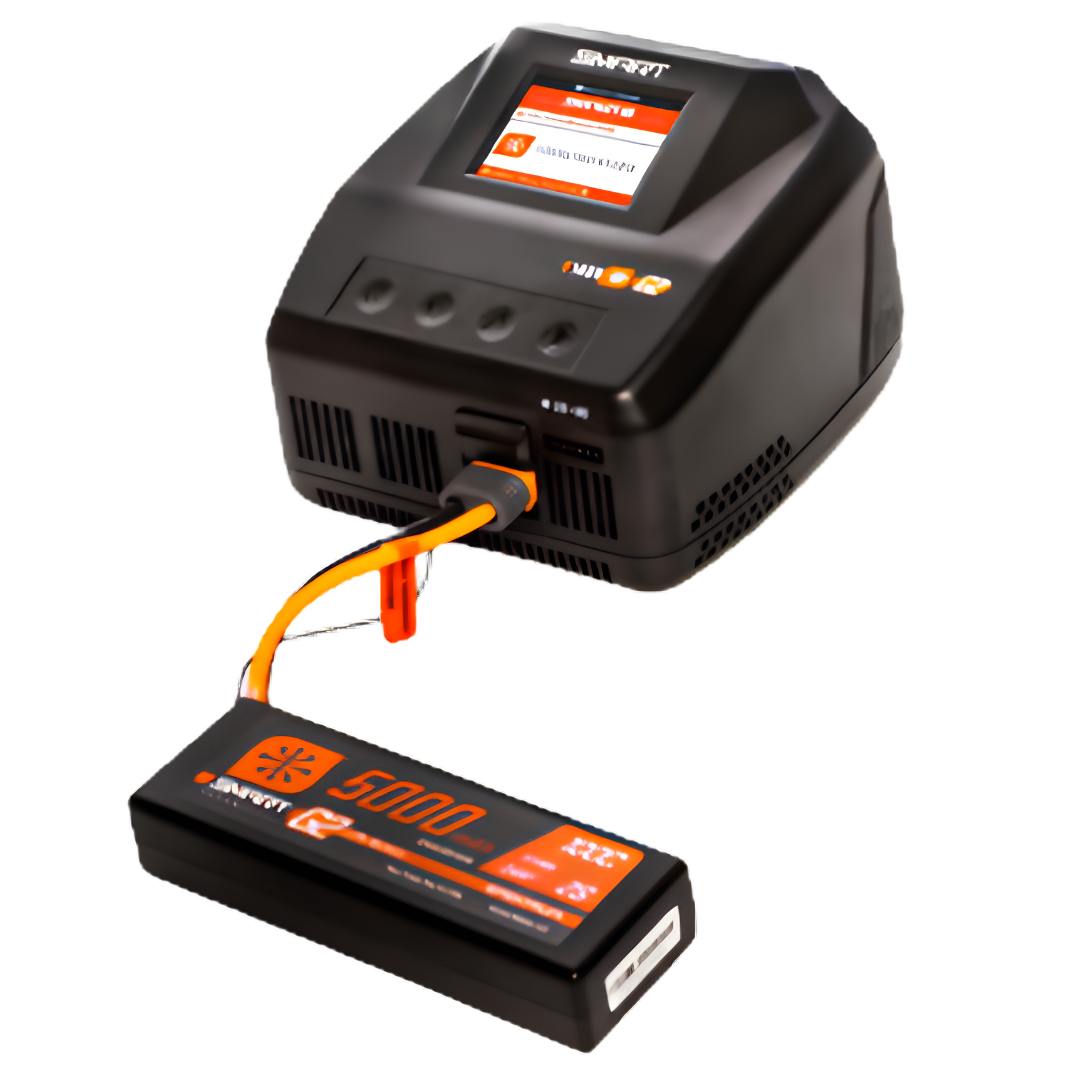

• Compatible Spektrum Smart Charger
• Compatible RC model designed for 2S 7.4V LiPo use
• LiPo charging bag or safe charging solution

FAQ

Does the Spektrum SPMX812SH2 have a balance lead? No. Spektrum Smart G2 batteries balance charge through the IC2 connector data wire when used with a compatible Spektrum Smart Charger.

What charger does this battery require? The Spektrum SPMX812SH2 requires a compatible Spektrum Smart Charger. A charger firmware update may be required for the latest Smart G2 features.

What connector is fitted to this battery? The Spektrum SPMX812SH2 is fitted with an IC2 connector and includes an IC2 device to EC2 battery adaptor.

What voltage is this battery? This is a 2S LiPo battery with 7.4V nominal voltage.

Will this battery fit my RC model? OZRC recommends checking your model manual for required voltage, connector type, battery dimensions, battery weight, and battery tray fitment before use.

Important Notes

• Spektrum Smart G2 batteries require a compatible Spektrum Smart Charger for correct Smart charging and balancing.
• Use only with RC models designed for 2S 7.4V LiPo batteries.
• Check connector type, battery tray dimensions, ESC rating, and centre of gravity before installation.
• Always charge, store, and transport LiPo batteries safely using appropriate LiPo safety practices and a LiPo charging bag.
• Do not over-discharge, overcharge, puncture, crush, short circuit, or leave LiPo batteries unattended while charging.
