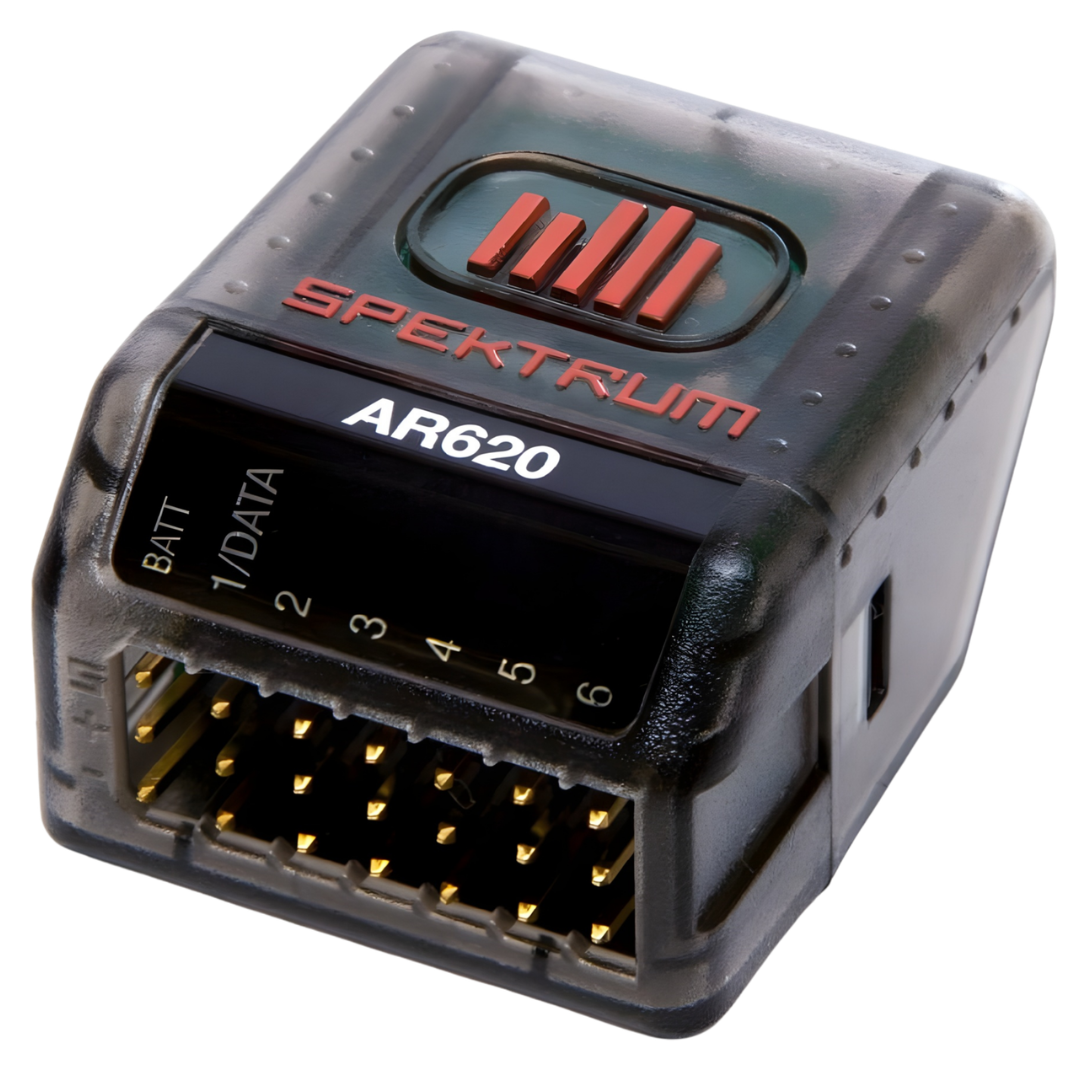

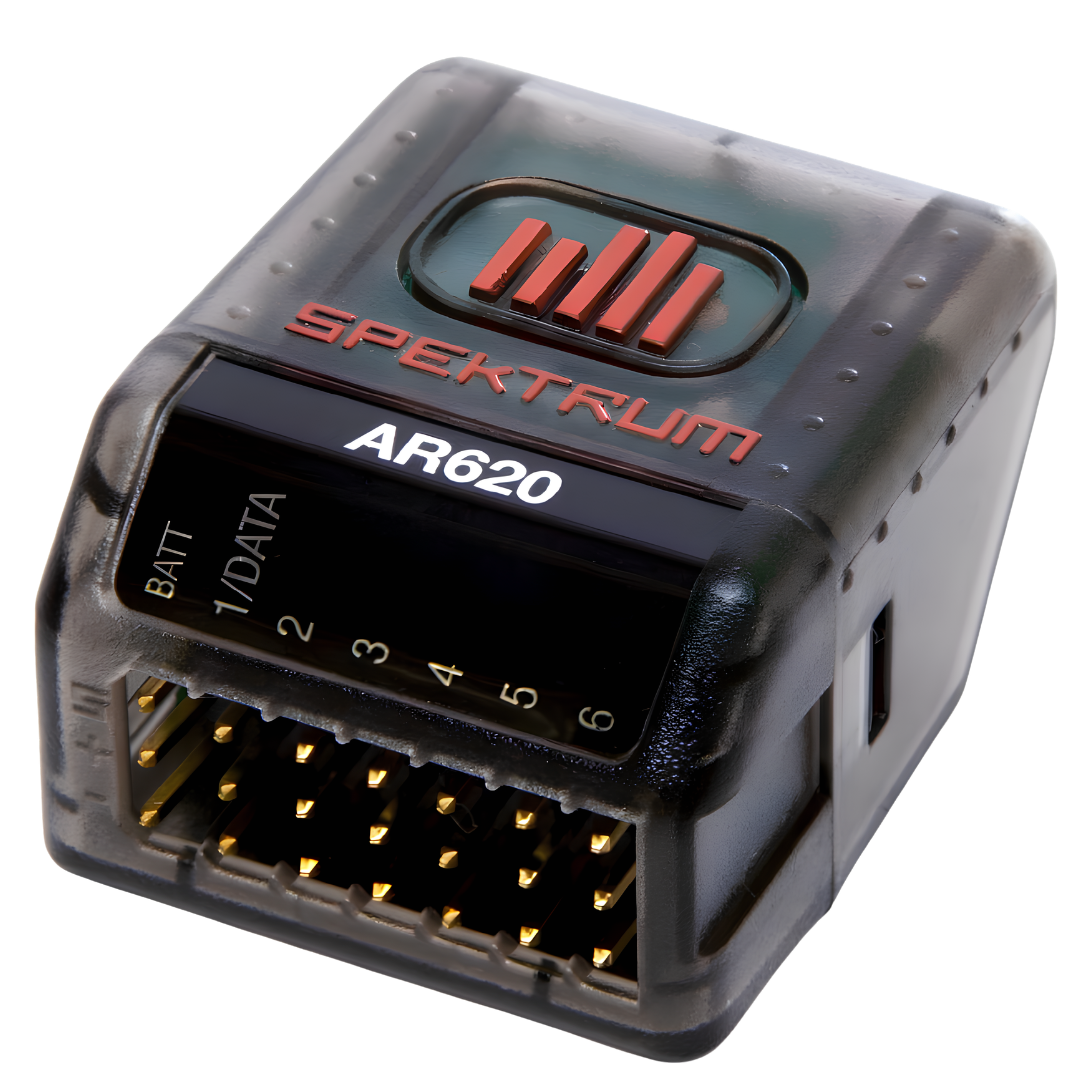

Spektrum AR620 DSMX 6-Channel Sport Aircraft Receiver SPMAR620

The Spektrum SPMAR620 AR620 is a compact full-range 6-channel sport aircraft receiver designed for electric and engine-powered RC aircraft needing reliable DSMX/DSM2 control, simple installation, and built-in fly-by telemetry.

Features

• 6-Channel Sport Receiver: Full-range receiver designed for sport, park flyer, indoor, and general aircraft use
• DSMX And DSM2 Compatible: Works with compatible Spektrum DSMX and DSM2 transmitters for flexible radio system support
• Internal Antenna Design: Antenna-less layout simplifies installation and helps reduce the risk of exposed antenna wire damage
• Integrated Fly-By Telemetry: Provides receiver voltage and flight log telemetry data with compatible Spektrum telemetry-capable transmitters
• Automatic Telemetry Access: Telemetry data is available automatically when used with compatible Spektrum transmitters
• Bind Button: Large bind button eliminates the need for a traditional bind plug
• High-Resolution Performance: 2048 resolution supports precise control response with compatible systems
• Compact Hard Case: Streamlined end-pin design fits neatly in a wide range of model aircraft installations
• Failsafe Support: Includes SmartSafe and Hold Last failsafe support for compatible Spektrum radio setups

Specifications

• Brand: Spektrum
• Model: AR620 DSMX 6-Channel Sport Receiver
• Part Number: SPMAR620
• Product Type: Aircraft receiver
• Application: Air
• Channels: 6
• Band: 2.4GHz
• Modulation: DSMX / DSM2
• Antenna Type: Internal PCB antenna
• Bind Method: Bind button
• Telemetry: Integrated fly-by range telemetry
• Telemetry Data: Receiver voltage and flight log data
• Failsafe: SmartSafe and Hold Last
• Input Voltage: 3.5V to 9V
• Resolution: 2048
• Range: Full range
• Remote Receiver Ports: 0
• Forward Programming: No
• Integrated Variometer: No
• Dimensions: 1.04 x 1.04 x 0.71 inch, 26.4 x 26.4 x 17.9mm
• Weight: 0.28oz, 8g

Includes

• 1 x Spektrum AR620 6-channel sport aircraft receiver

FAQ

Does the Spektrum AR620 need a bind plug? No. The Spektrum AR620 has a built-in bind button, so a separate bind plug is not required.

Does the AR620 have telemetry? Yes. The AR620 includes integrated fly-by telemetry for receiver voltage and flight log data when used with compatible Spektrum telemetry-capable transmitters.

Is the Spektrum AR620 full range? Yes. Spektrum lists the AR620 as a full-range 6-channel sport receiver for RC aircraft.

Does the AR620 use an external antenna? No. The AR620 uses an internal antenna design for easier installation and improved durability.

Is the AR620 compatible with TM1000 or TM1100 telemetry modules? No. The AR620 is not compatible with Spektrum TM1000 or TM1100 external telemetry modules.

Important Notes

• Telemetry functions require a compatible Spektrum telemetry-capable transmitter.
• Not compatible with Spektrum TM1000 or TM1100 external telemetry modules.
• Check aircraft channel requirements, receiver mounting location, power system, servo count, and transmitter compatibility before installation.
• This listing is for the receiver only. Transmitter, servos, ESC, battery, switch harness, and aircraft are not included.
• Always perform a range check and failsafe test before flying after installation or radio setup changes.
