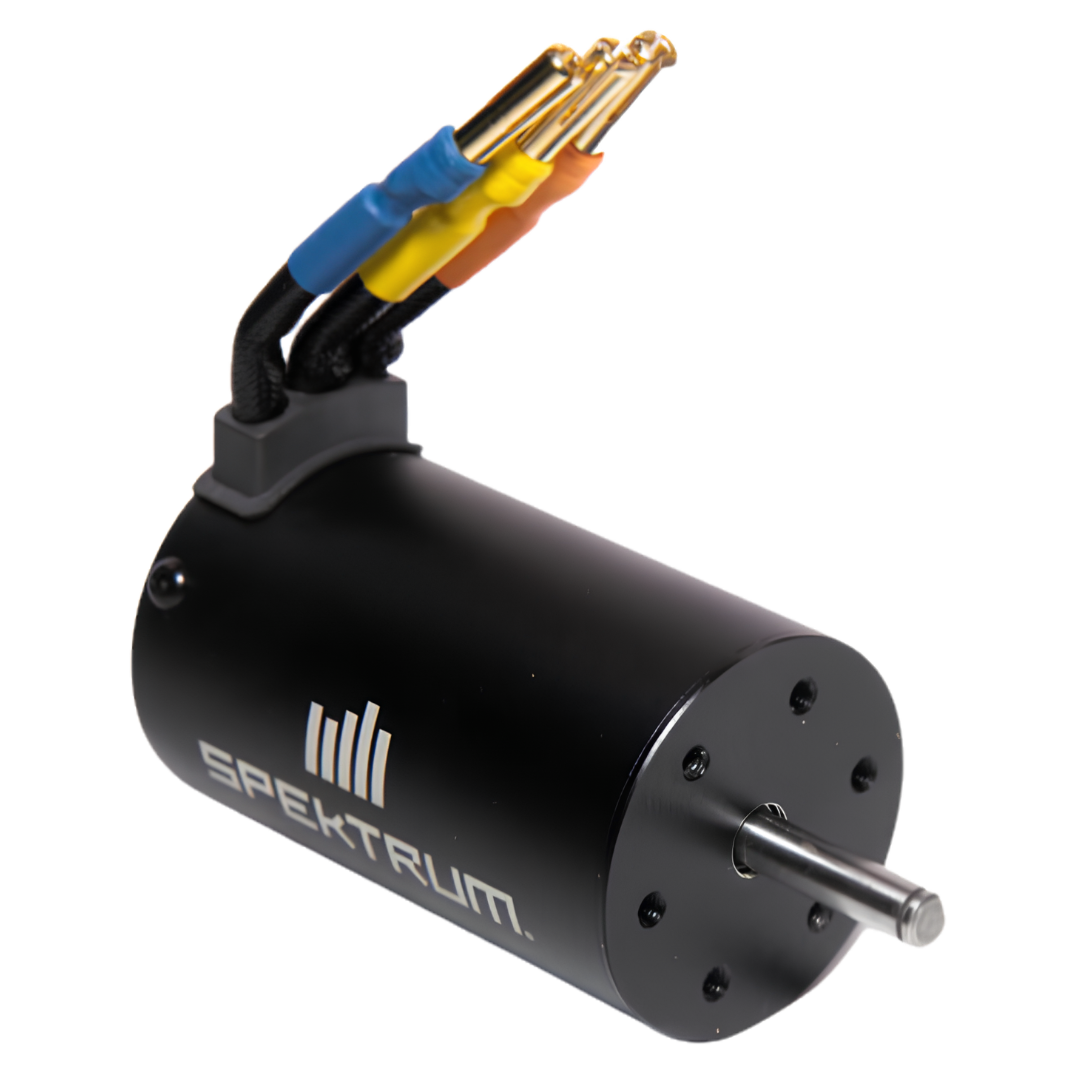

Spektrum Firma 3660 3200Kv 4-Pole Brushless Motor SPMXSM2000
Couldn't load pickup availability
The Spektrum Firma 3660 3200Kv 4-Pole Brushless Motor is engineered to deliver powerful, smooth and efficient performance for high-performance RC surface vehicles. Featuring a robust 4-pole rotor design, high-quality construction and 4mm bullet connectors, this motor provides strong acceleration, excellent torque and consistent power delivery. Designed for use with compatible brushless electronic speed controllers, it is an ideal upgrade or replacement motor for 1/10 scale RC cars and trucks requiring reliable high-output performance.
Features
- Genuine Spektrum Firma brushless motor
- High-performance 3660-size 4-pole brushless design
- 3200Kv rating delivers an excellent balance of speed and torque
- 4-pole rotor provides smooth power delivery and strong acceleration
- Factory fitted with 4mm bullet connectors for easy installation
- High-efficiency design for improved performance
- Suitable for compatible brushless ESC systems
- Ideal for high-performance RC cars and trucks
Specifications
- Brand: Spektrum
- Series: Firma
- Manufacturer Part Number: SPMXSM2000
- Product Type: Brushless Motor
- Motor Size: 3660
- Motor Type: 4-Pole Sensorless Brushless
- KV Rating: 3200Kv
- Maximum Output: 1150W (3S)
- Recommended Voltage: Up to 3S LiPo
- Outer Diameter: 36mm (1.41")
- Length: 60mm (2.36")
- Shaft Diameter: 5mm (0.197")
- Motor Connectors: 4mm Bullet Connectors
Includes
- 1 × Spektrum Firma 3660 3200Kv 4-Pole Brushless Motor
FAQ
What vehicles is this motor suitable for? The 3660-size motor is suitable for many 1/10 scale RC cars and trucks that accept a 36mm diameter brushless motor. Always confirm compatibility with your vehicle's motor mount and gearing.
What does 3200Kv mean? The 3200Kv rating indicates the motor will theoretically spin at approximately 3,200 RPM per volt without load. Actual performance depends on battery voltage, gearing and vehicle setup.
Is this a sensored motor? Based on the supplied product specifications, the listing identifies it only as a brushless motor and does not indicate sensored operation. It should therefore be paired with a compatible sensorless brushless ESC unless manufacturer documentation states otherwise.
Which ESC should I use? Use a brushless ESC capable of handling the motor's power output and your chosen battery voltage. Ensure the ESC supports your intended LiPo cell count and vehicle application.
Does it come with connectors? Yes. The motor is factory fitted with 4mm bullet connectors for quick installation with compatible electronic speed controllers.
Important Notes
- Ensure your ESC is compatible with the motor and battery voltage being used.
- Always use appropriate gearing to prevent excessive motor temperatures.
- Monitor motor temperature during initial runs after installation.
- Confirm the motor dimensions fit your vehicle before purchase.
- Use high-quality LiPo batteries and connectors for optimum performance.
- Keep the motor clean and free from dirt and debris.
- Avoid operating the motor if it has been submerged without proper inspection and maintenance.
- Follow all manufacturer installation and safety recommendations.
