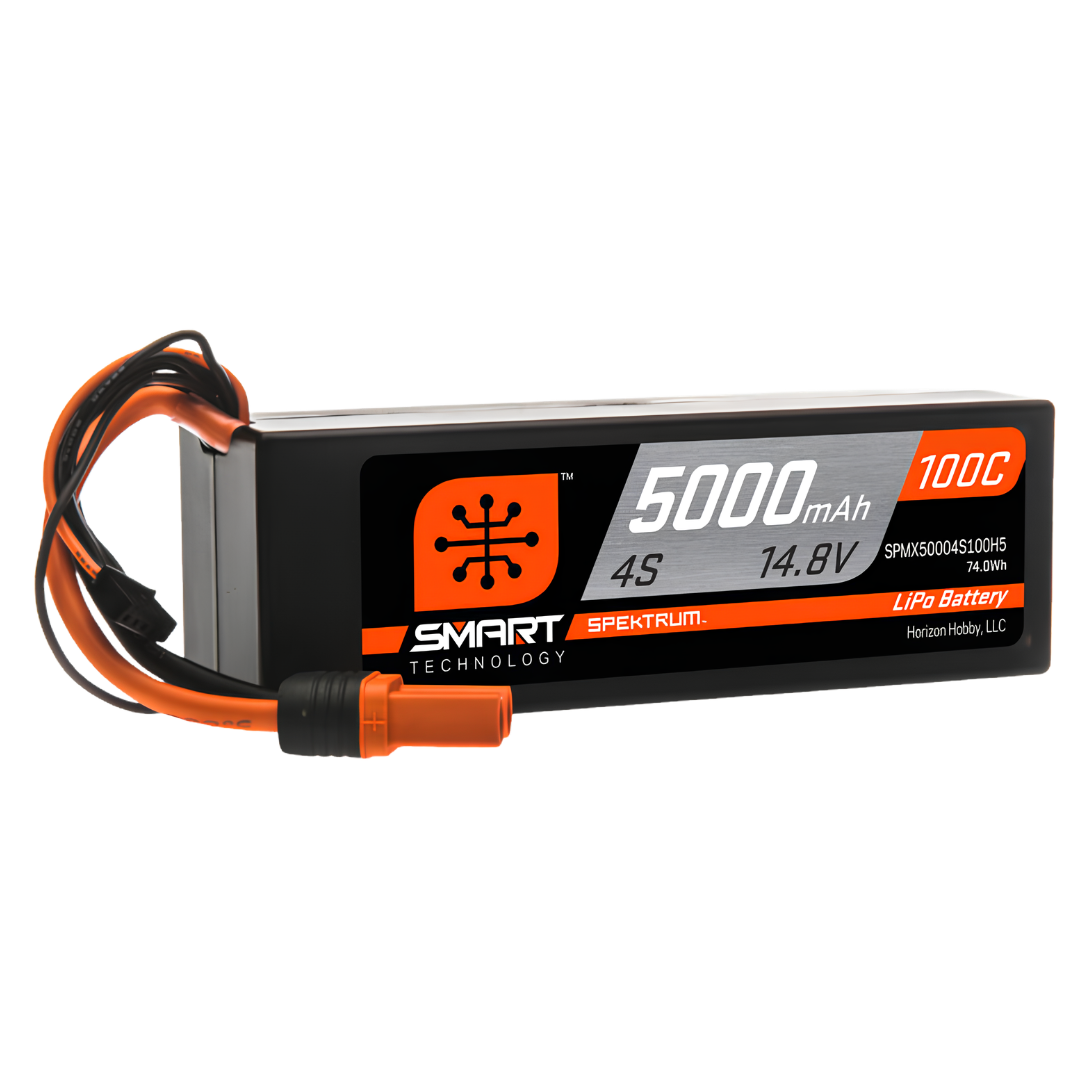

Spektrum Smart 14.8V 5000mAh 4S 100C Hardcase LiPo Battery IC5 SPMX50004S100H5

The Spektrum Smart 14.8V 5000mAh 4S 100C LiPo Battery is a premium high-performance power pack designed for demanding RC cars and boats. Featuring Spektrum Smart Technology, an integrated microchip automatically stores battery data and communicates with compatible Spektrum Smart chargers, simplifying charging while helping maximise battery life. With a powerful 100C continuous discharge rating, rugged ABS hardcase construction and IC5 connector compatibility, this battery delivers exceptional power, reliability and convenience for serious RC enthusiasts.

Features

• Genuine Spektrum Smart LiPo battery with integrated Smart Technology
• 5000mAh capacity delivers long run times
• 14.8V 4S configuration provides powerful performance
• 100C continuous discharge rating for high-demand applications
• Integrated Smart microchip automatically stores battery data
• Smart Auto Storage function automatically discharges to storage voltage when used with a compatible Spektrum Smart charger
• Built-in battery health monitoring and charge cycle tracking
• Impact-resistant ABS hardcase protects the cells
• Factory fitted IC5 connector with backward compatibility for EC5 systems
• JST-XH balance connector for charging compatibility
• No soldering required
• Ideal for high-performance RC cars and boats

Specifications

• Brand: Spektrum
• Manufacturer Part Number: SPMX50004S100H5
• Product Type: Smart Hardcase LiPo Battery
• Battery Chemistry: Lithium Polymer (LiPo)
• Configuration: 4S (4 Cells)
• Nominal Voltage: 14.8V
• Capacity: 5000mAh
• Continuous Discharge Rating: 100C
• Maximum Charge Rate: 3C
• Connector: IC5 (Compatible with EC5)
• Balance Connector: JST-XH
• Wire Gauge: 12AWG
• Smart Technology: G1 Smart Technology
• Auto Storage: Yes (with compatible Spektrum Smart Charger)
• Charge Protection Circuitry: Yes
• Hardcase: Yes (ABS)
• Length: 138mm
• Width: 47mm
• Height: 40mm
• Weight: Approximately 400–499g
• Application: Surface RC Cars and Boats

Includes

• 1 × Spektrum Smart 14.8V 5000mAh 4S 100C Hardcase LiPo Battery

FAQ

What is Spektrum Smart Technology? The integrated Smart microchip stores important battery information including capacity, charge cycles, individual cell voltage, temperature, internal resistance and battery health. When connected to a compatible Spektrum Smart charger, this information is automatically transferred to simplify charging and battery management.

What is Smart Auto Storage? When used with a compatible Spektrum Smart charger, the battery can automatically discharge itself to a user-defined storage voltage after a selected period of inactivity (typically between 12 and 240 hours), helping extend battery lifespan.

Can I use this battery with an EC5-equipped vehicle? Yes. The fitted IC5 connector is fully backward compatible with EC5 connectors. Smart data features are available only when used with compatible Spektrum Smart chargers and electronics.

What vehicles is this battery suitable for? This battery is designed for high-performance surface RC vehicles, including 1/8 and 1/10 scale RC cars, trucks and boats that require a 4S LiPo battery and have sufficient battery tray space.

Can I charge this battery on a standard LiPo charger? Yes. The battery can be charged using a standard LiPo balance charger via the JST-XH balance lead and main connector. However, Smart charging functions and automatic data communication are only available with compatible Spektrum Smart chargers.

Important Notes

• Always use a LiPo-compatible balance charger when charging.
• Maximum recommended charge rate is 3C.
• Inspect the battery before every use and discontinue use if damaged or swollen.
• Never leave LiPo batteries unattended while charging.
• Store at the recommended storage voltage when not in use.
• Ensure your vehicle has adequate space for the battery dimensions before purchase.
• Observe correct connector polarity when installing the battery.
• Follow all LiPo safety guidelines during charging, storage and transport.
