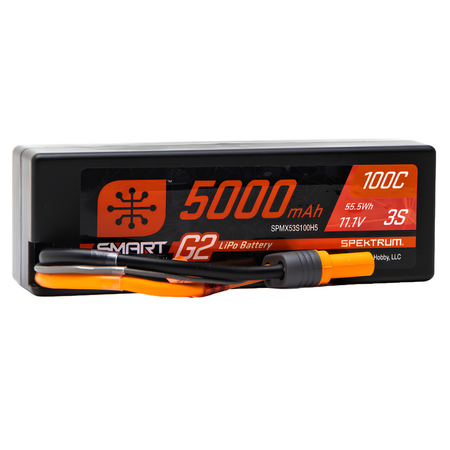

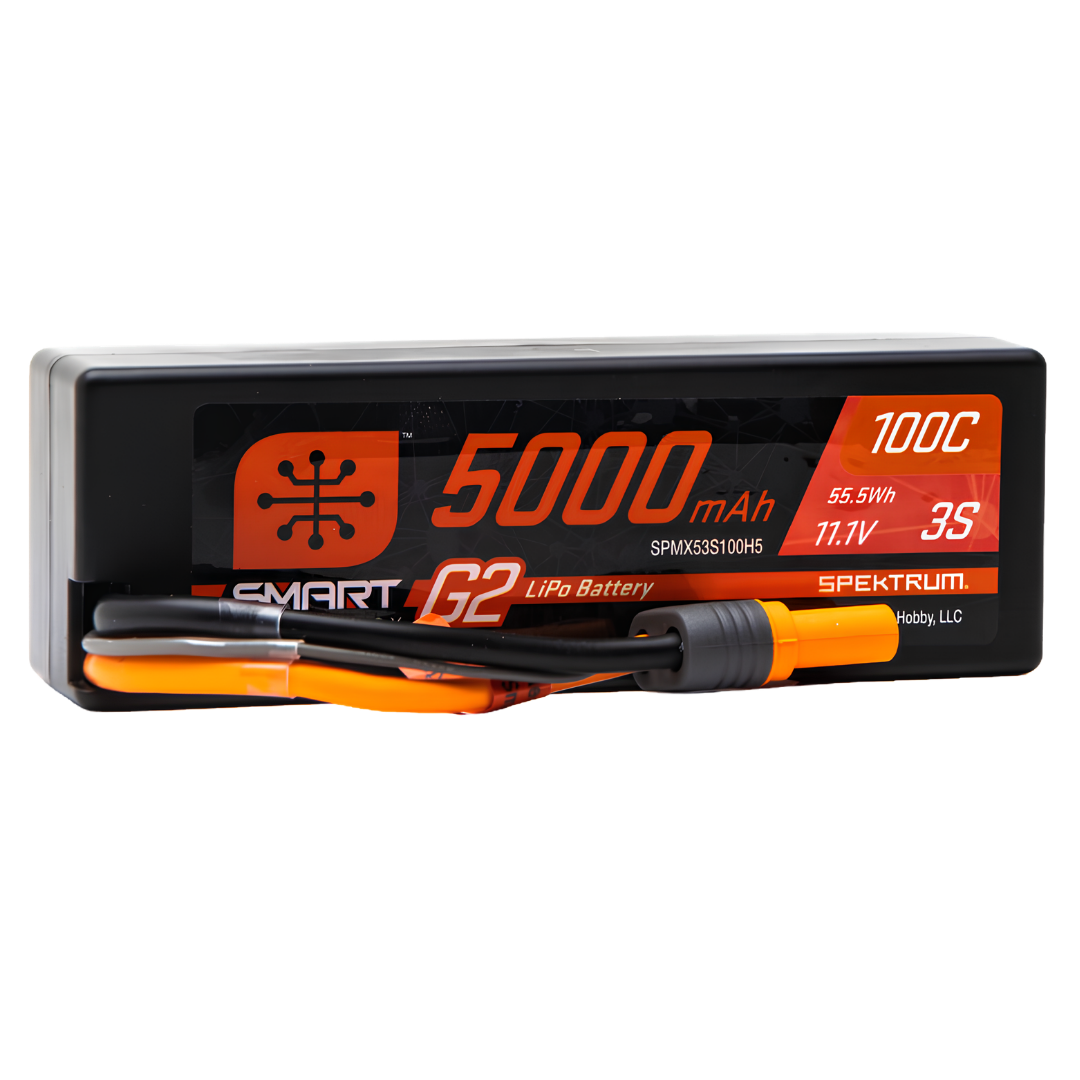

Spektrum Smart G2 5000mAh 3S 100C Hardcase LiPo IC5 SPMX53S100H5

The Spektrum Smart G2 11.1V 5000mAh 3S 100C Hardcase LiPo Battery SPMX53S100H5 is designed to deliver high-output power for compatible RC cars and trucks. Featuring a 100C continuous discharge rating, durable hardcase construction and IC5 connector, this 55.5Wh battery is built for demanding surface applications. Spektrum Smart G2 technology allows compatible chargers to automatically recognise battery settings and balance charge through a single IC5 connection, while programmable Auto Storage helps protect the battery during periods of inactivity.

Features

• Smart G2 Battery Technology: Integrated electronics communicate battery specifications, charging parameters and battery health information to compatible Spektrum Smart chargers
• 5000mAh Capacity: High-capacity 3S LiPo pack for compatible high-performance RC cars and trucks
• 11.1V 3S Configuration: Three lithium polymer cells connected in series for vehicles designed to operate with 3S LiPo power
• 100C Continuous Discharge Rating: High-output battery design for demanding brushless RC applications
• IC5 Smart Connector: High-current connector with integrated Smart data communication
• Single-Connection Balance Charging: Smart G2 balancing information travels through the IC5 connector without a separate balance lead
• Automatic Charger Setup: Compatible Spektrum Smart chargers read stored battery information and apply appropriate charging settings
• Programmable Auto Storage: Factory-configured to begin discharging towards 3.90V per cell after 72 hours of inactivity
• Faster Storage Discharge: Smart G2 technology supports automatic storage discharge at up to 1.5A
• Integrated Battery Memory: Stores battery type, capacity, discharge rating, cell voltages, temperature and charge/discharge cycle information
• Battery Event Logging: Records over-temperature, over-discharge and over-charge incidents for monitoring battery condition
• Hardcase Construction: Protective outer case designed for RC surface applications
• Internal Metal Side Plates: Help protect the cells and improve heat dissipation
• IC5 and EC5 Compatibility: IC5 connector is designed for electrical compatibility with corresponding EC5-style connections
• 10 AWG Battery Wires: Heavy-gauge wiring for high-current power delivery
• 55.5Wh Energy Capacity: Combines 11.1V nominal voltage with 5000mAh capacity

Specifications

• Brand: Spektrum
• Product Range: Smart G2
• Manufacturer Part Number: SPMX53S100H5
• Product Type: Rechargeable RC Battery Pack
• Battery Chemistry: Lithium Polymer (LiPo)
• Application: Surface / RC Cars and Trucks
• Cell Count: 3S / 3 Cells
• Nominal Voltage: 11.1V
• Capacity: 5000mAh / 5.0Ah
• Energy Capacity: 55.5Wh
• Continuous Discharge Rating: 100C
• Listed Maximum Burst Discharge Rating: 100C
• Connector: IC5
• Balance Connection: Integrated Smart G2 Connector Data System
• Smart Technology: Spektrum Smart G2
• Auto Storage Function: Yes
• Factory Auto Storage Delay: 72 Hours
• Factory Storage Target: 3.90V Per Cell
• Maximum Auto Storage Discharge Current: Up to 1.5A
• Standard Charge Rate: 1C
• Listed Maximum Charge Rate: 5C
• Listed Maximum Charge Current: 5A
• Charge Protection Circuitry: Yes
• Case Type: Hardcase
• Wire Gauge: 10 AWG
• Length: 138mm / 5.45 Inches
• Width: 46mm / 1.8 Inches
• Height: 35mm / 1.37 Inches
• Weight: 450g / 15.87oz
• ROAR Approved: No
• Compatible Charger: Spektrum Smart G2 Charger or G2-Updated Spektrum Smart Charger

Includes

• 1 x Spektrum Smart G2 11.1V 5000mAh 3S 100C Hardcase LiPo Battery with IC5 Connector

Required To Complete

• Compatible Spektrum Smart G2 Battery Charger or Earlier Spektrum Smart Charger with G2 Firmware Support
• RC Vehicle or Electronic Speed Controller Compatible with 3S LiPo Voltage, Battery Dimensions and IC5 / EC5 Connector
• Appropriate Charger Power Supply, if Required by the Selected Charger

FAQ

What vehicles can use the Spektrum SPMX53S100H5 battery? This battery is intended for RC surface vehicles that support 11.1V 3S LiPo power, have sufficient battery compartment space for a 138 x 46 x 35mm pack and use a compatible IC5 or EC5 power connection. Always check your vehicle and ESC specifications before use.

Does this battery need a separate balance lead? No. Spektrum Smart G2 batteries transmit balancing information through the Smart connector, allowing compatible Spektrum G2 chargers to balance charge using a single connection.

Can I charge this battery with a standard LiPo charger? Smart G2 batteries do not have a conventional external balance lead. Use a compatible Spektrum Smart G2 charger or an earlier Spektrum Smart charger updated for G2 battery support.

What is the difference between Spektrum Smart G1 and G2 batteries? Smart G2 batteries use single-connector balance charging and offer improved automatic storage discharge performance. G2 batteries require a charger with G2 support.

What does the 100C rating mean? The 100C rating describes the manufacturer's specified continuous discharge capability relative to battery capacity. For a 5000mAh pack, this corresponds mathematically to 500A, although actual usable current is limited by the battery, connectors, wiring, temperature and application.

Does the Spektrum Smart G2 battery discharge itself for storage? Yes. The factory setting starts automatic discharge towards 3.90V per cell after 72 hours of inactivity. The delay and storage settings can be adjusted using a compatible Spektrum Smart charger.

Is the IC5 connector compatible with EC5? IC5 connectors are designed to be electrically compatible with corresponding EC5-style connectors. Smart communication features require compatible Spektrum Smart equipment.

Is this a hardcase battery? Yes. This model uses a protective hardcase designed for RC surface vehicles.

Can I use this 3S battery in a 2S-only RC car? No. An 11.1V 3S LiPo must only be used in a vehicle and ESC specifically rated for 3S operation.

Is this battery ROAR approved? No. The manufacturer lists this battery as not ROAR approved. Check your racing organisation's battery regulations before competition use.

Important Notes

• This product contains one battery only; a charger and RC vehicle are not included
• A compatible Spektrum Smart G2 charger or G2-updated Smart charger is required for balance charging
• The battery does not have a separate conventional balance connector
• Only use in vehicles and ESCs approved for 3S LiPo operation
• Confirm the 138 x 46 x 35mm battery dimensions and IC5 connector before purchasing
• The supplied specifications list a 5C maximum charge rate and 5A maximum charge current; follow the charger's recognised battery settings and do not exceed the manufacturer's permitted charging limits
• Never leave a LiPo battery charging unattended
• Charge and store in a suitable fire-resistant location using appropriate LiPo safety precautions
• Do not charge a damaged, swollen, punctured or excessively hot battery
• Automatic storage discharge is a battery maintenance feature and does not replace proper LiPo handling and storage
• Not listed as ROAR approved
