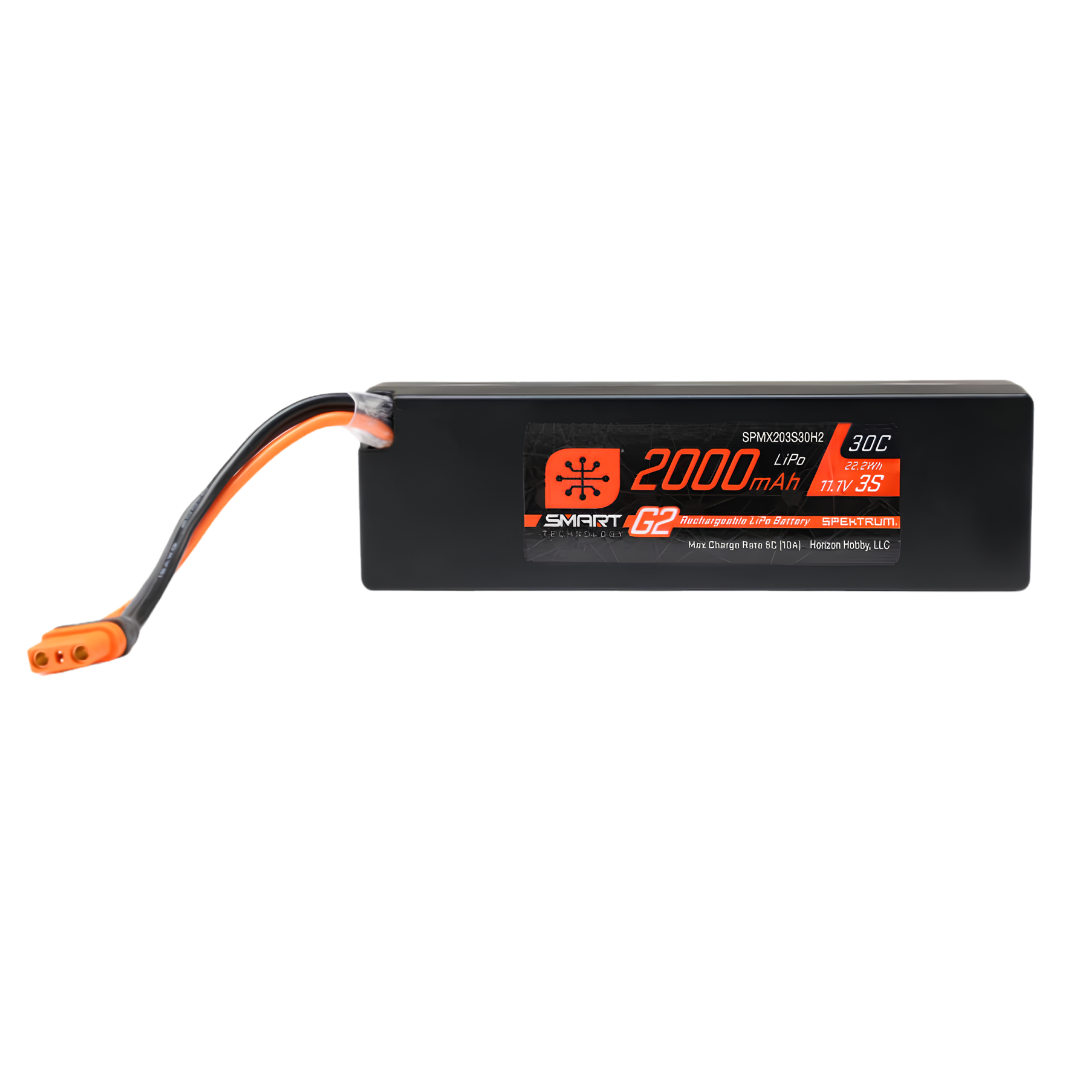

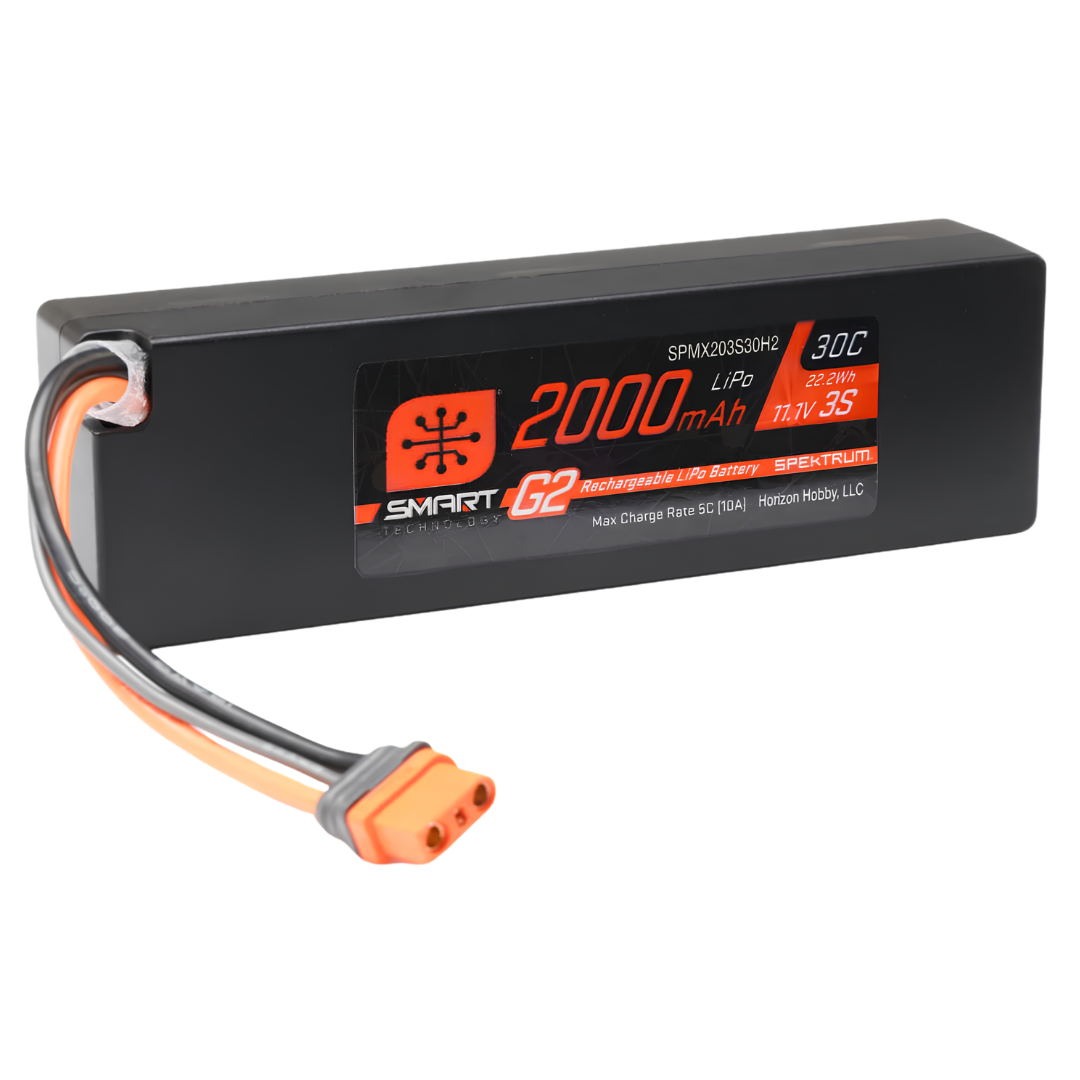

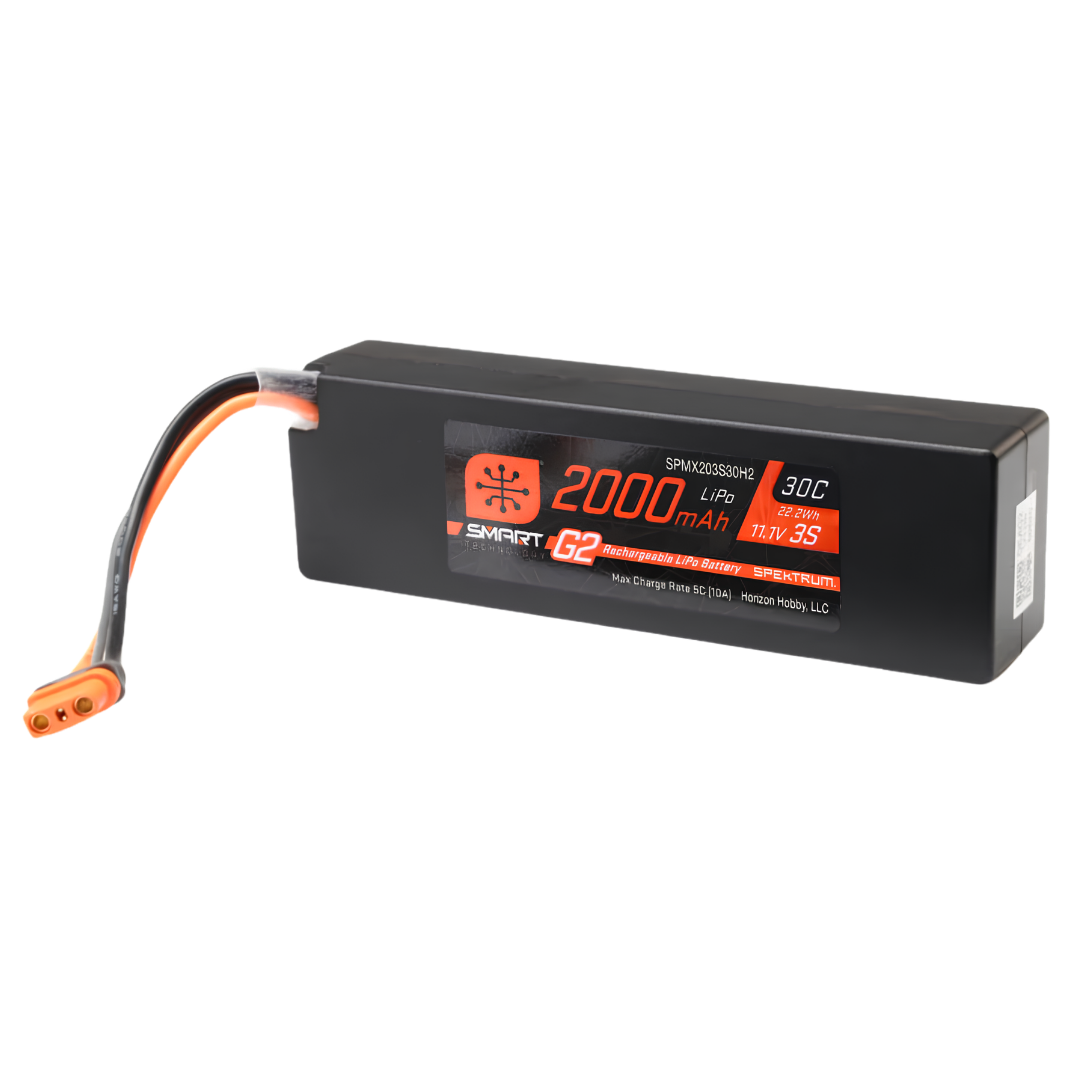

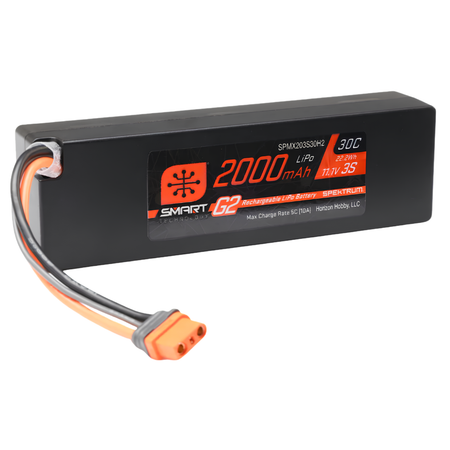

Spektrum Smart G2 LiPo Battery 3S 11.1V 2000mAh 30C IC2 SPMX203S30H2
Couldn't load pickup availability
The Spektrum SPMX203S30H2 is a 3S 11.1V 2000mAh 30C Smart G2 LiPo battery with an IC2 connector, designed specifically for the ARRMA 1/16 MINI KRATON 3S and compatible Spektrum Smart charging systems
Features
- Spektrum Smart G2 LiPo battery technology
- Designed specifically for the ARRMA 1/16 MINI KRATON 3S
- 3S 11.1V configuration with 2000mAh capacity
- 30C continuous discharge rating
- IC2 power and Smart data connector
- Integrated Smart microchip stores battery parameters and usage data
- Automatically communicates charging information to compatible Spektrum Smart chargers
- Smart Auto Storage function can automatically discharge the battery to a safer storage voltage after a user-defined period
- G2 integrated balancing allows charging and balancing through the main IC2 connection without a separate external balance lead
- Hard-case construction for surface RC applications
Specifications
- Brand: Spektrum
- Product Type: Smart G2 LiPo Battery
- Application: Surface RC
- Cell Count: 3S
- Cell Configuration: 3S1P
- Nominal Voltage: 11.1V
- Capacity: 2000mAh
- Discharge Rating: 30C
- Maximum Charge Rate: 5C
- Energy: 22.2Wh
- Connector: IC2
- Case Type: Hard Case
- Length: 112mm
- Width: 33mm
- Height: 22mm
- Weight: Approximately 155g
- Smart Technology: Yes
- Manufacturer Part Number: SPMX203S30H2
Compatibility
- ARRMA 1/16 MINI KRATON 3S
- Other RC models that can safely accept the battery dimensions voltage capacity and IC2 connector
Includes
- 1 x Spektrum 3S 11.1V 2000mAh 30C Smart G2 LiPo Battery with IC2 Connector
FAQ
Is SPMX203S30H2 designed for the ARRMA MINI KRATON 3S? Yes, Spektrum specifically designed this battery's size shape and 30C rating for the ARRMA 1/16 MINI KRATON 3S
Does this Smart G2 battery have a separate balance lead? No, Smart G2 batteries use integrated balancing through the main IC2 connection when used with a compatible Spektrum Smart charger
What is the maximum charge rate? Current Spektrum retailer specifications list a maximum charge rate of 5C although OZRC recommends following the settings communicated by the battery and compatible Smart charger
Can this battery be charged with a standard LiPo charger? Full Smart G2 functionality and integrated balancing require a compatible Spektrum Smart charger and appropriate IC2 connection
Important Notes
- Use a compatible LiPo charger that supports Spektrum Smart G2 batteries and the IC2 connector
- Confirm battery dimensions connector type and 3S voltage compatibility before using it in any vehicle other than the intended MINI KRATON application
- Follow normal LiPo charging storage and handling precautions
