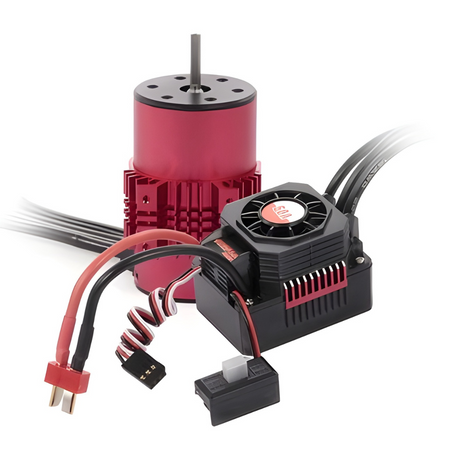

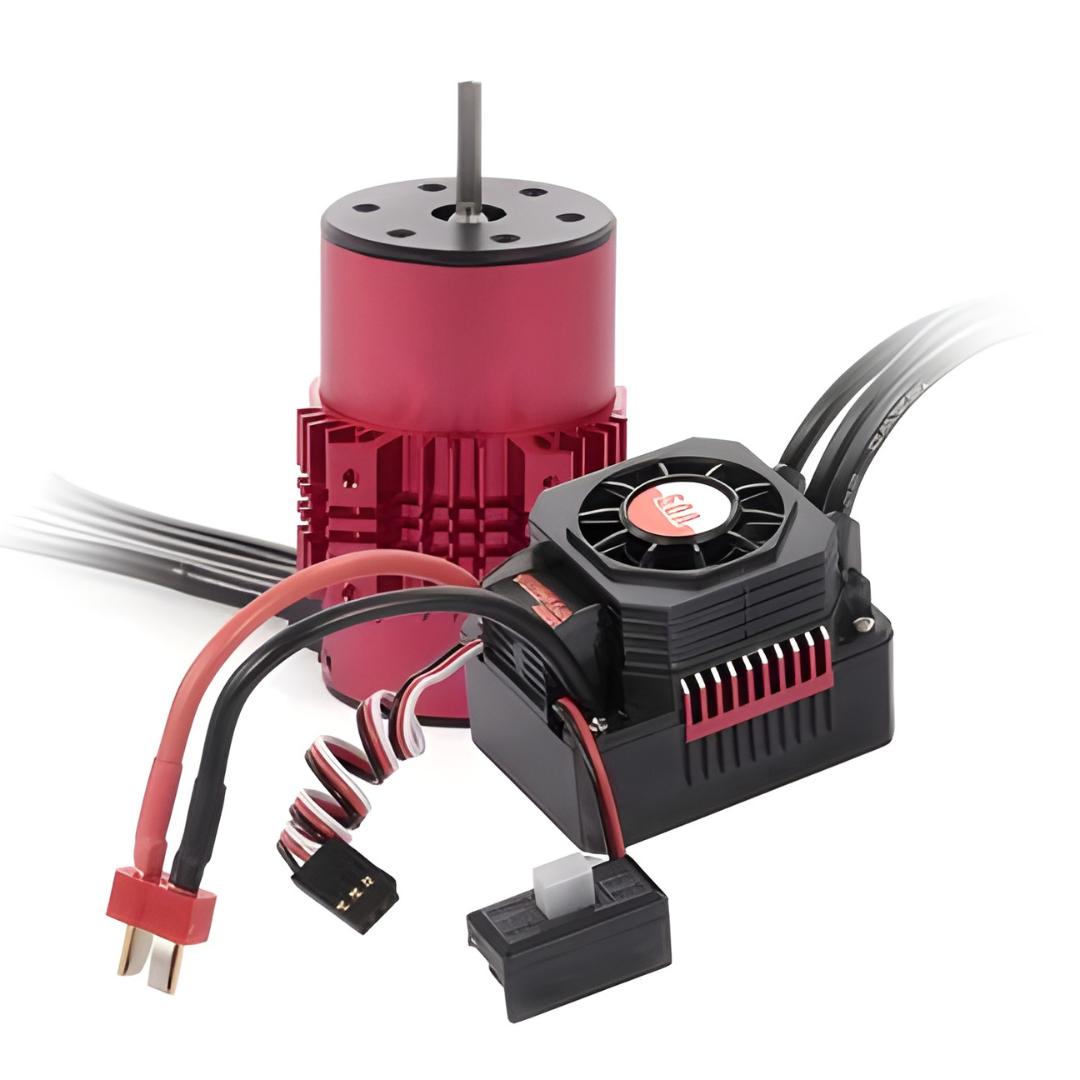

Surpass Hobby KK Waterproof 3660 Brushless Motor 2600KV with 60A ESC Combo Red Heatsink

The Surpass Hobby KK 3660 2600KV Waterproof Brushless Motor and 60A ESC Combo is a powerful and cost-effective upgrade for 1/10 and 1/8 scale RC cars and trucks. Built with high-precision CNC-machined aluminium alloy and equipped with a striking red heatsink, this combo delivers reliable high-speed performance even in wet and muddy conditions. Designed to handle up to 1200W of power with a max RPM of 50,000, the 3660 motor offers long run times and high efficiency. Paired with a 60A ESC that supports 2–3S LiPo and 4–9S NiMH batteries, this combo is ideal for bashing and high-performance builds that demand waterproof durability and consistent throttle response.

Features

• Powerful 3660 2600KV sensorless brushless motor for 1/10 and 1/8 scale RC vehicles
• Waterproof motor and ESC design for all-weather driving
• Durable CNC-machined aluminium motor can with red anodised heatsink
• ESC supports burst current up to 360A with 2–3S LiPo and 4–9S NiMH battery compatibility
• Easy installation with 4mm gold banana plugs and T-plug connector

Motor Specifications

• KV Rating: 2600KV (RPM/Volt)
• Watts: 1200W
• Max Voltage: <19V
• Max Amps: 63A
• Max RPM: 50,000
• Motor Diameter: 36mm
• Motor Length: 60mm
• Shaft Length: 17mm
• Shaft Diameter: 5mm
• Plug Type: 4mm gold banana plug

ESC Specifications

• Continuous Current: 60A
• Burst Current: 360A
• Battery Support: 2–3S LiPo / 4–9S NiMH
• BEC Output: 5.8V / 3A
• Power Plug: T plug male

Includes

• 1 x Surpass Hobby 3660 2600KV Waterproof Brushless Motor
• 1 x Surpass Hobby 60A Waterproof ESC
