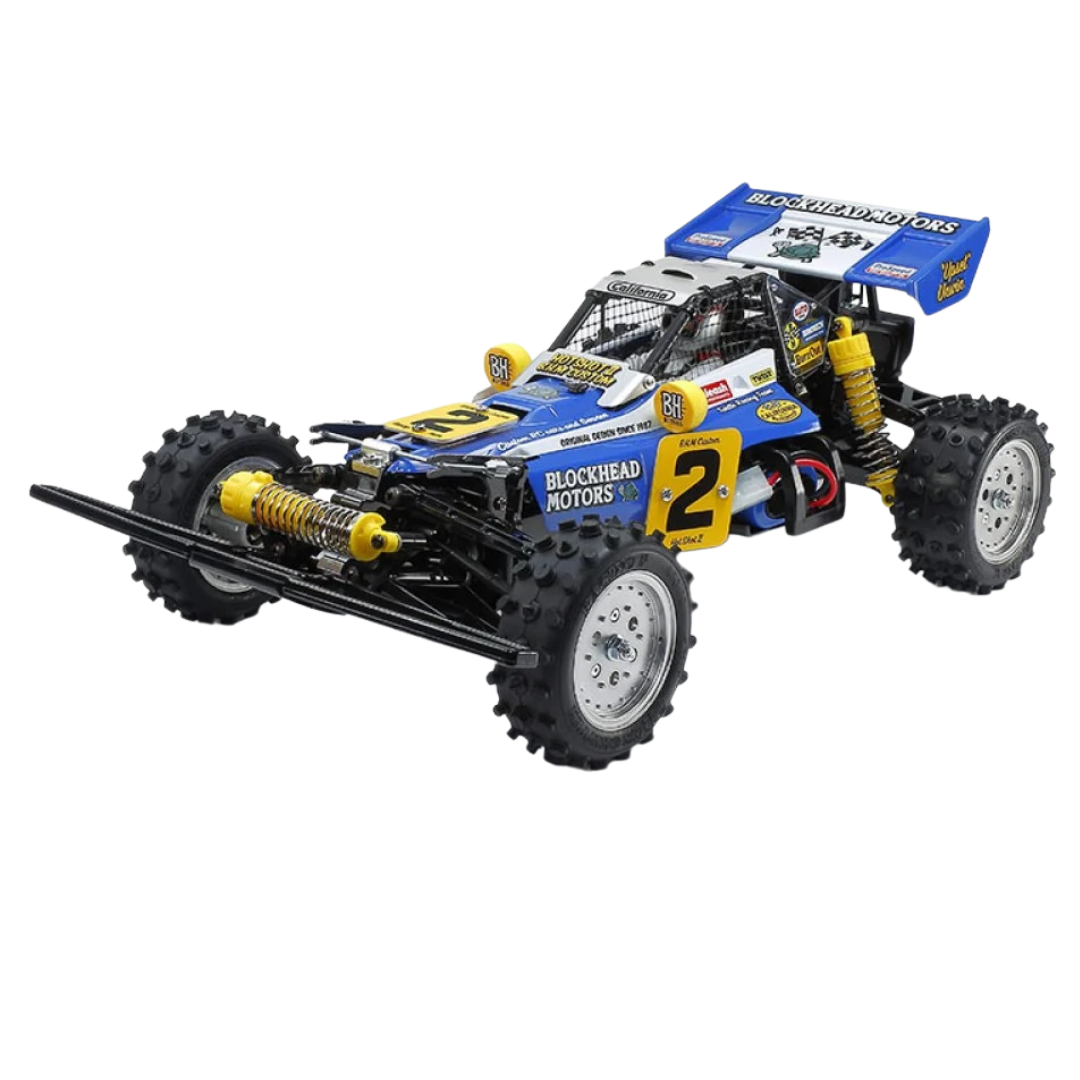

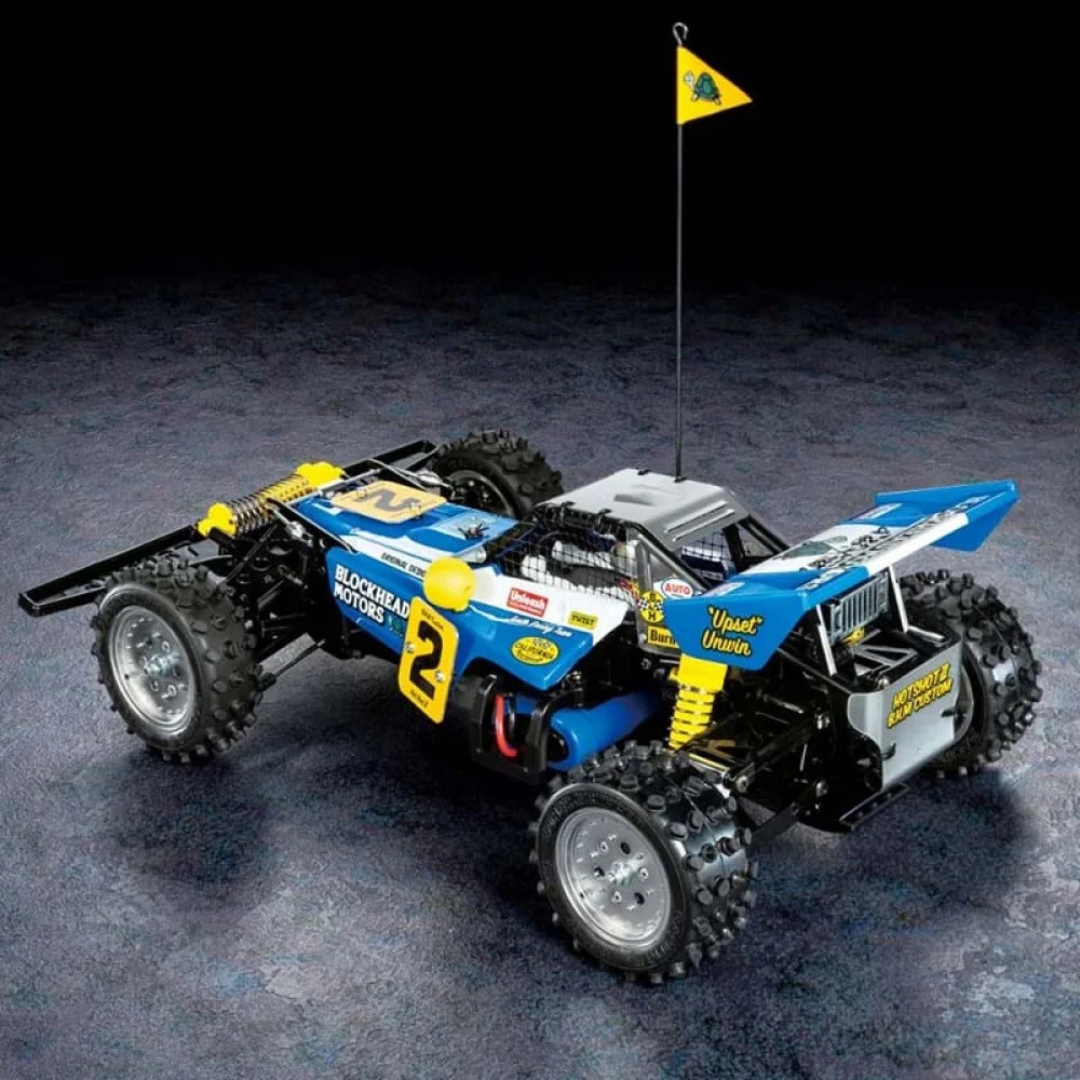

Tamiya Hotshot II Blockhead Motors RC 4WD 1/10 Buggy Kit 58710

The Tamiya Hotshot II Blockhead Motors is a 1/10 scale 4WD RC buggy assembly kit for builders seeking classic 1980s Tamiya engineering with a distinctive pre-painted Jun Watanabe livery.

Based on the original Hotshot II released in 1987, this special edition combines the shaft-driven four-wheel-drive chassis with a raised driver position, revised roll cage, matte metal-plated details and dedicated Blockhead Motors graphics. The bright blue polycarbonate body and rear wing are supplied pre-cut and pre-painted, reducing finishing work while retaining the hands-on experience of assembling the chassis and electronics.

Features

• Blockhead Motors Edition: Jun Watanabe styling gives the classic Hotshot II a distinctive custom appearance
• Pre-Painted Body: Bright blue polycarbonate body is supplied pre-cut and pre-painted
• Pre-Painted Rear Wing: Matching polycarbonate wing is ready for sticker application
• Dedicated Sticker Set: Includes Blockhead Motors logos, racing numbers and custom graphics
• Revised Driver Position: Updated upper frame and taller roll cage position the driver figure higher for a more realistic appearance
• Scale Accessories: Includes number plates, light pods, side plates, window nets and a dummy antenna

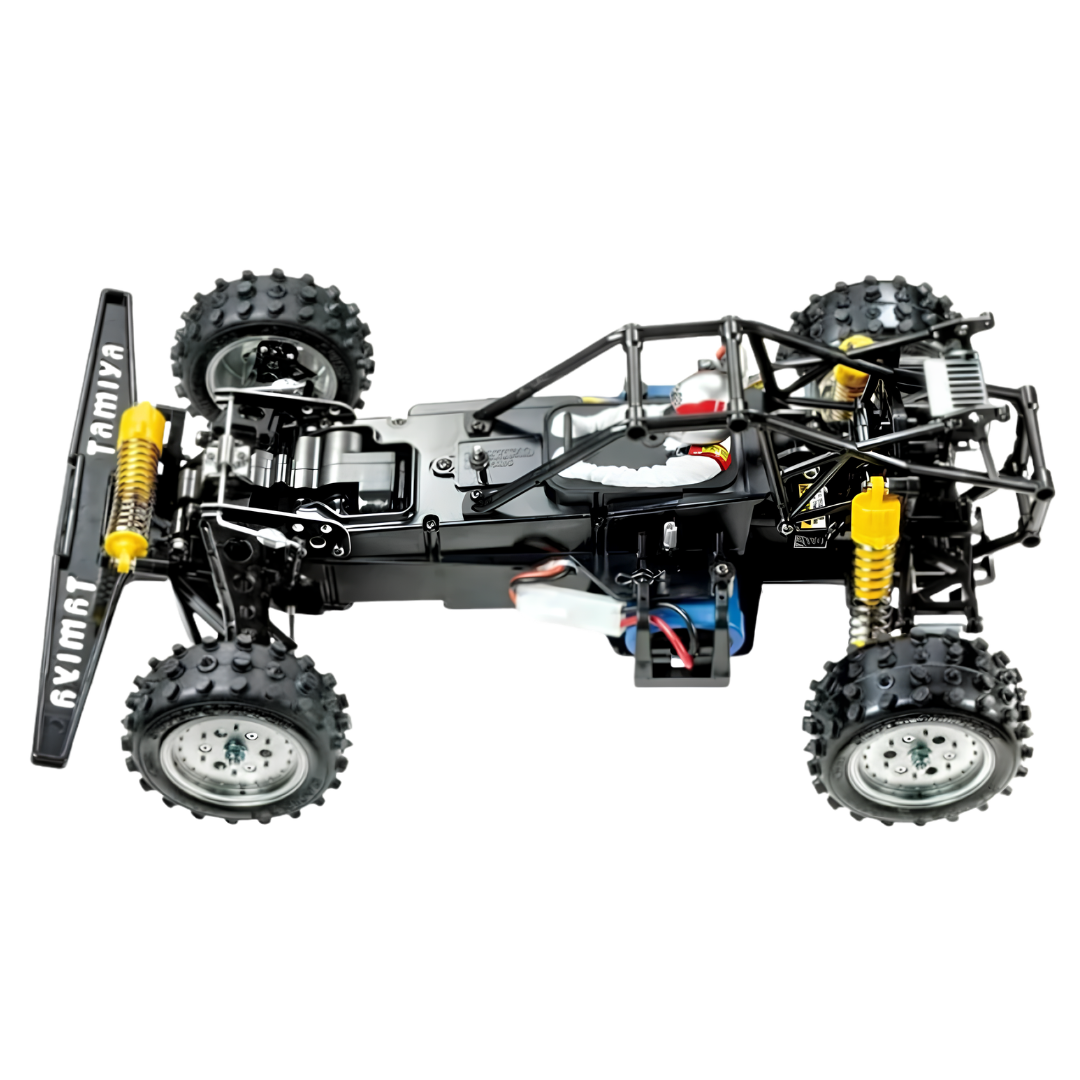

• Shaft-Driven 4WD: Delivers power to all four wheels for predictable off-road traction
• Sealed Gearboxes: Front and rear gearboxes help protect the drivetrain from dirt and debris
• Front and Rear Differentials: Three-bevel gear differentials support smoother cornering
• Double Wishbone Suspension: Fully independent suspension supports stable off-road handling
• CVA Oil Dampers: Uses one transverse front monoshock and two rear oil-filled dampers
• Front Stabiliser: Works with the transverse front damper to control suspension movement
• Matte Metal-Plated Details: Uprights and wheels feature a distinctive metallic finish
• Hybrid Off-Road Tyres: Low-profile tyres combine oval block and pin-spike tread elements
• 540 Brushed Motor Included: Suitable power system for the classic Hotshot II drivetrain

Specifications

• Brand: Tamiya
• Model: Hotshot II Blockhead Motors
• Manufacturer Part Number: 58710
• Product Type: RC off-road buggy assembly kit
• Scale: 1/10
• Drive Type: Shaft-driven 4WD
• Length: 390mm
• Width: 235mm
• Height: 150mm
• Approximate Weight: 1285g when completed
• Chassis Material: ABS plastic
• Body Material: 0.7mm polycarbonate
• Body Colour: Bright blue
• Body Preparation: Pre-cut and pre-painted
• Motor: 540-size brushed motor
• Electronic Speed Controller: Not included
• Gear Ratio: Fixed 8.70:1
• Differential Type: Front and rear three-bevel gear differentials
• Suspension: Four-wheel independent double wishbone
• Front Dampers: Single transverse CVA oil-filled damper
• Rear Dampers: Twin CVA oil-filled dampers
• Bearings: Plastic bushings
• Front Tread: 205mm
• Rear Tread: 200mm
• Front Tyre Size: Approximately 88mm diameter × 31mm wide
• Rear Tyre Size: Approximately 88mm diameter × 38mm wide
• Terrain: Off-road
• Construction Type: Assembly kit

Includes

• 1 × Tamiya Hotshot II Blockhead Motors 1/10 RC buggy assembly kit
• 1 × Pre-cut and pre-painted bright blue polycarbonate body
• 1 × Pre-cut and pre-painted polycarbonate rear wing
• 1 × 540-size brushed motor with dedicated motor sticker
• 1 × Driver figure
• 1 × Blockhead Motors sticker set
• 1 × Set of matte metal-plated wheels
• 1 × Set of off-road tyres
• 1 × Front CVA oil damper and two rear CVA oil dampers
• Number plates, light pods, side plates, window nets and dummy antenna
• Assembly hardware and instruction manual

Required to Complete

• 2-channel surface transmitter and compatible receiver
• Standard-size steering servo
• Brushed electronic speed controller suitable for the included 540 motor
• Compatible 7.2V NiMH or 7.4V 2S battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Basic RC assembly tools
• Paint for the driver figure or small detail parts if desired

FAQ

Is the Tamiya Hotshot II Blockhead Motors ready to run? No. The Tamiya 58710 is an assembly kit that requires radio equipment, a steering servo, an ESC, a battery, a charger and tools.

Is the body already painted? Yes. The bright blue polycarbonate body and rear wing are supplied pre-cut and pre-painted, although the stickers must still be applied.

Does the Australian 58710 kit include an ESC? No. This Australian-market package requires a suitable brushed ESC separately. OZRC recommends checking the individual kit contents because overseas versions may include different electronics.

Does the kit include a motor? Yes. A 540-size brushed motor is included with the Tamiya Hotshot II Blockhead Motors kit.

Important Notes

• This product is an assembly kit and is not ready to run
• The electronic speed controller is not included with this package
• Radio equipment, steering servo, battery, charger, transmitter batteries and tools are required separately
• The main body and rear wing are pre-cut and pre-painted, but sticker application and full chassis assembly are required
• Kit contents can vary between regional versions; this listing applies to the Australian-market 58710 package without an ESC
• Confirm that the selected ESC supports the included 540-size brushed motor and chosen battery chemistry
• A LiPo-compatible ESC with correctly configured low-voltage protection is required when using a 2S LiPo battery
• Plastic bushings are supplied as standard; compatible ball bearings are an optional upgrade
• Adult supervision is recommended for younger builders
