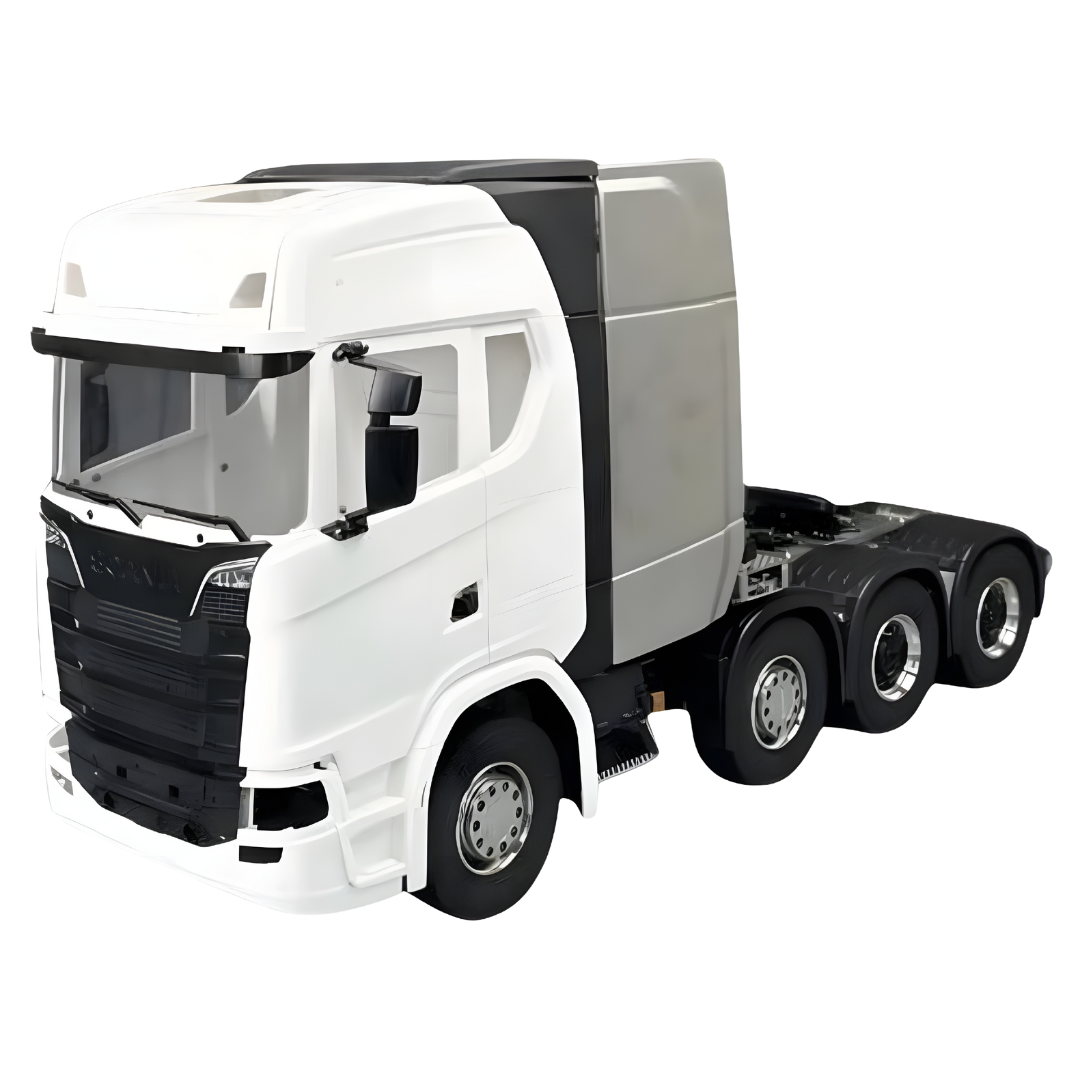

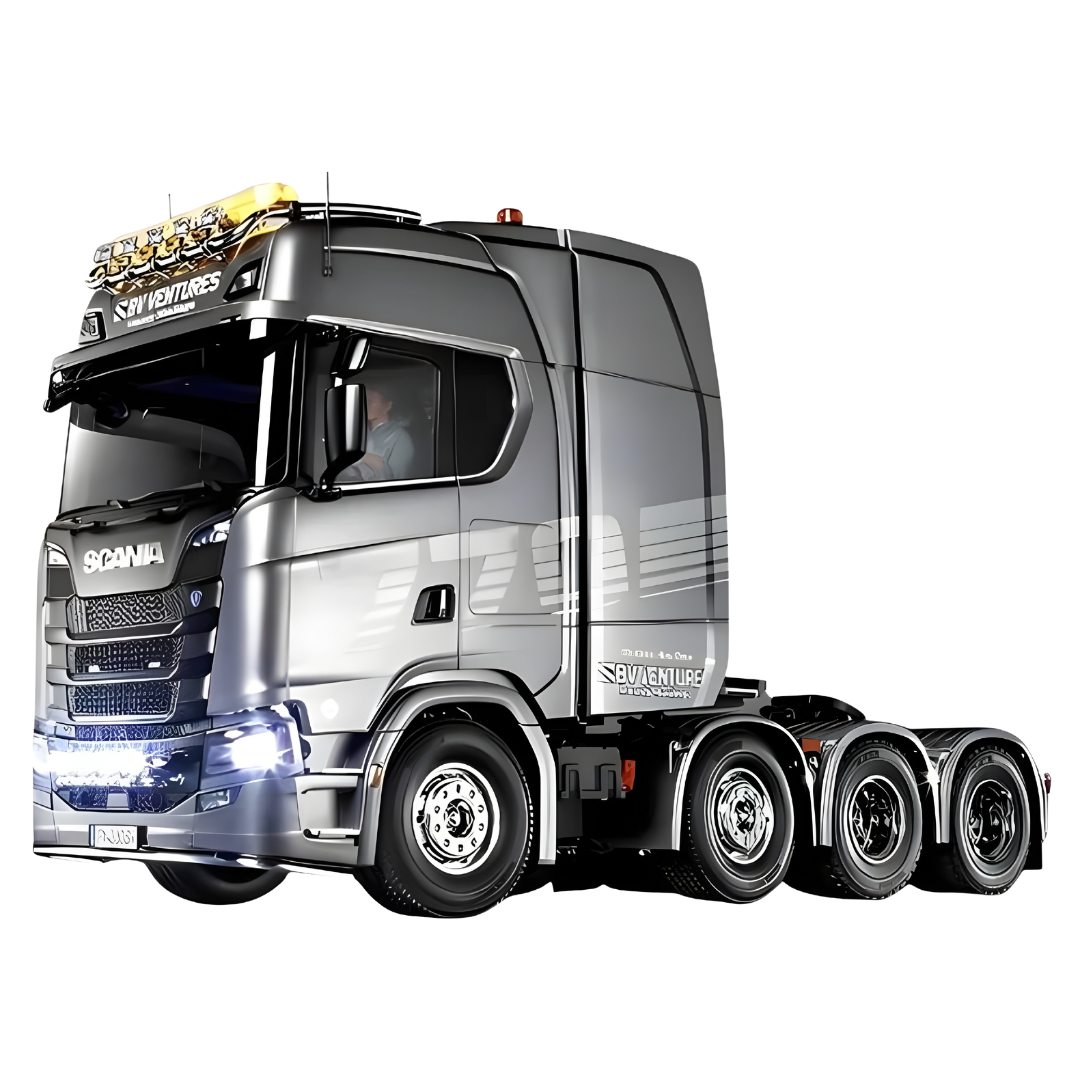

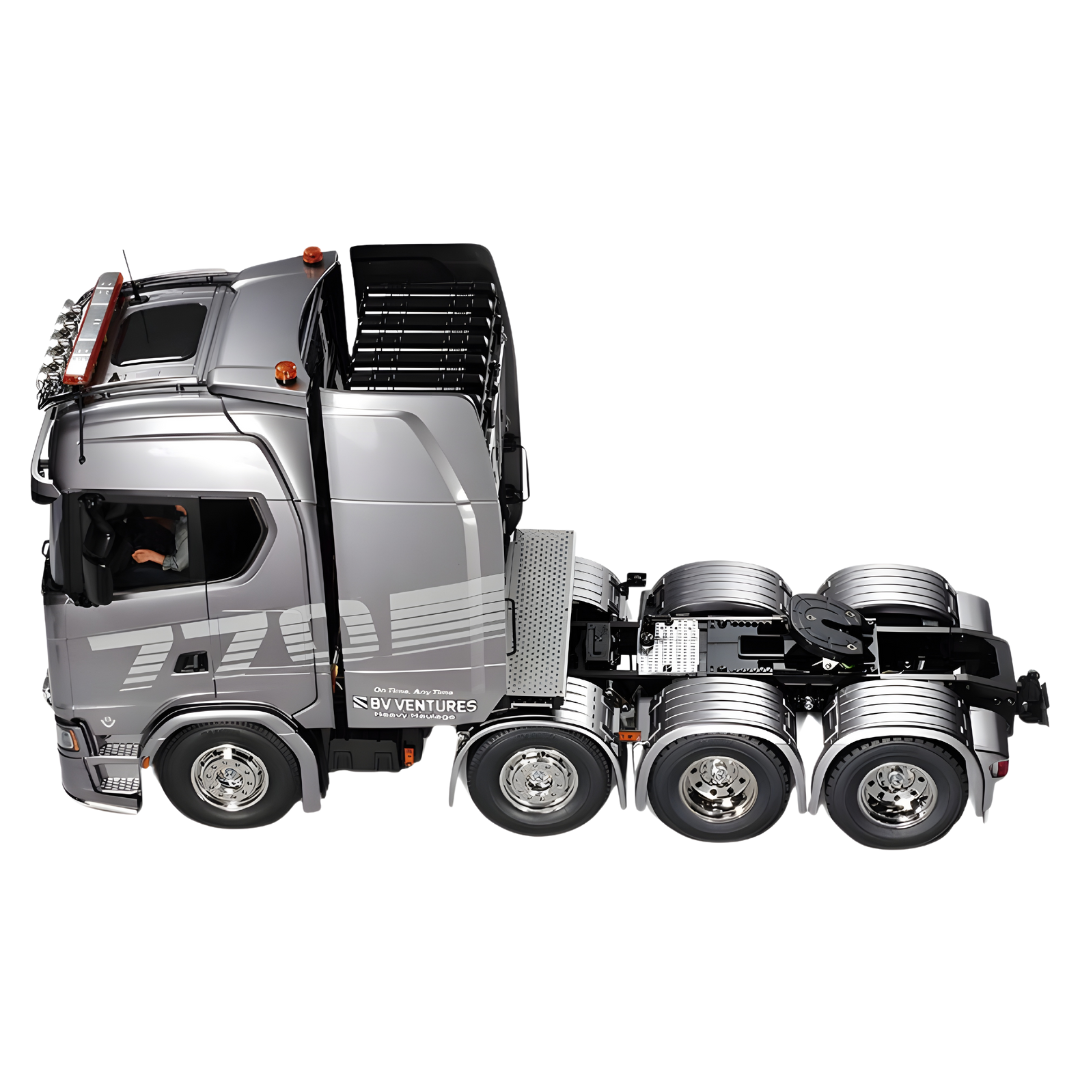

Tamiya Scania 770 S 8x4/4 Prime Mover 1/14 RC Tractor Truck Kit 56371

The Tamiya Scania 770 S 8x4/4 is an exceptionally detailed 1/14 scale RC tractor-truck assembly kit depicting Scania's flagship heavy-haul prime mover. Based on the full-size 770 S introduced to Scania's top-grade S Series in 2020, the model captures the commanding high-roof cab, heavy-duty equipment tower and eight-wheel chassis of the 770hp V8-powered truck.

Its working chassis faithfully recreates the full-size 8x4/4 configuration, with both rear axles driven and both front axles steering at slightly different angles. Power from the included Type 540 brushed motor is delivered through a transmitter-operated three-speed transmission, while the second front axle incorporates a manually operated lift mechanism.

A realistic ladder frame with aluminium side channels, metal leaf springs, dual rear tyres and extensive scale detailing make this an impressive project for experienced RC truck builders. The included fifth-wheel coupler allows the finished model to be connected to compatible Tamiya 1/14 scale semi-trailers.

Features

• Highly detailed 1/14 scale Scania 770 S 8x4/4 RC tractor-truck assembly kit
• Officially licensed Scania body design
• Recreates the full-size 770hp 16.4-litre V8 turbo-diesel prime mover
• Eight-wheel 8x4/4 heavy-haul chassis configuration
• Both rear axles are driven
• Both front axles steer using a single steering servo
• Different steering angles are reproduced between the two front axles
• Second front axle can be manually raised and lowered
• Three-speed transmission with transmitter-operated gear changes
• Includes Type 540 brushed motor
• Aluminium ladder-frame side channels with reinforced crossmembers
• Metal leaf-spring suspension with friction-style dummy dampers
• Trunnion-type rear suspension design
• Three-bevel differentials fitted to both driven rear axles
• Realistic dual rear tyres with moulded tread
• Detailed high-roof cab with modern dashboard and seat interior
• Includes a 1/14 scale driver figure
• Metal-plated cab steps and detailed exterior accessories
• Includes roof bar, light pods, grille bar and low bar
• Metal transfers recreate the Scania V8 and 770 S emblems
• Detailed heavy-haul tower with fuel tank, air tanks and storage-box representations
• Battery compartment concealed inside the equipment tower
• Magnetically retained tower side panels provide battery access
• Includes fifth-wheel coupler for compatible Tamiya semi-trailers
• Compatible with optional Tamiya truck lighting and multifunction equipment

Specifications

• Brand: Tamiya
• Product: Scania 770 S 8x4/4 RC Tractor Truck
• Manufacturer Part Number: 56371
• Product Type: Electric RC tractor-truck assembly kit
• Scale: 1/14
• Vehicle Type: Prime mover / tractor truck
• Drive Configuration: 8x4/4
• Driven Axles: Two rear axles
• Steering Axles: Two front axles
• Lift Axle: Manually operated second front axle
• Motor: Type 540 brushed motor
• Transmission: Three-speed constant-mesh transmission
• First-Gear Ratio: 32.49:1
• Second-Gear Ratio: 17.66:1
• Third-Gear Ratio: 10.66:1
• Chassis: Ladder frame with aluminium side channels and resin crossmembers
• Suspension: Front and rear rigid-axle leaf-spring suspension
• Dampers: Aluminium-finish friction-style dummy dampers
• Differentials: Three-bevel gear differentials
• Wheelbase: 183mm + 109mm + 103mm
• Front Track: 155mm
• Rear Track: 138mm with dual tyres
• Front Tyre Size: 30mm wide × 85mm diameter
• Rear Tyre Size: 22mm wide × 84mm diameter
• Assembled Length: 610mm
• Assembled Width: 196mm
• Assembled Height: 320mm
• Approximate Weight: 4.2kg without optional equipment
• Terrain: On-road
• Assembly Required: Yes
• Painting Required: Yes

Includes

• 1 × Tamiya Scania 770 S 8x4/4 tractor-truck assembly kit
• 1 × Type 540 brushed motor
• Three-speed transmission components
• High-roof Scania cab and interior components
• Heavy-haul equipment tower components
• 1 × Driver figure
• Fifth-wheel coupler
• Metal transfers, decals and exterior detail components
• Tyres, wheels, assembly hardware and illustrated instructions

Required to Complete

• Compatible multi-channel RC transmitter and receiver system
• 1 × Steering servo
• 1 × Gear-shift servo
• Compatible brushed electronic speed controller or Tamiya Multi-Function Control Unit
• Compatible 7.2V battery pack
• Compatible battery charger
• AA batteries for the transmitter
• Tamiya TS spray paints and detail paints
• Modelling tools, adhesives and finishing supplies

Optional Upgrades

• Tamiya 56523 MFC-03 Multi-Function Control Unit
• Compatible Tamiya tractor-truck LED lighting components
• Compatible Tamiya 1/14 scale semi-trailers
• Ball-bearing upgrade set
• Compatible truck servos and radio equipment

FAQ

Is the Tamiya Scania 770 S ready to run? No. This is an unassembled RC model kit that requires construction, painting, radio equipment, two servos, a speed controller or MFC unit, battery and charger.

Does the kit include a motor? Yes. A Type 540 brushed motor is included.

Does it include an electronic speed controller? No. A compatible brushed ESC or Tamiya truck Multi-Function Control Unit is required separately.

Are both rear axles driven? Yes. Power is transferred through the three-speed transmission to both rear axles, with each rear axle using its own differential.

Do both front axles steer? Yes. A single steering servo operates both front axles, with different steering angles reproduced to provide more realistic cornering.

Is the second axle powered? No. The second axle is a steering lift axle. It can be manually raised or lowered using the chassis mechanism.

Can the lift axle be operated from the transmitter? The standard kit uses a manually operated lift-axle mechanism. Remote operation is not included.

Can the gearbox be shifted from the transmitter? Yes. A compatible radio system and separate shift servo allow the three-speed transmission to be changed remotely.

Does the truck require a four-channel radio? A suitable multi-channel radio is required to control steering, throttle and gear shifting. Additional channels may be useful when installing optional lighting or multifunction equipment.

Can a LiPo battery be used? Use only a battery that fits the truck and is compatible with the selected ESC or MFC unit. Do not assume every 2S LiPo is suitable; check voltage limits, dimensions, connector type and low-voltage protection before use.

Does the body come painted? No. This standard 56371 edition requires painting. The completed truck shown in promotional images has been assembled and painted for display.

Can it pull a Tamiya trailer? Yes. The included fifth-wheel coupler is designed for compatible Tamiya 1/14 scale semi-trailers.

What does the optional MFC-03 add? The Tamiya MFC-03 can add synchronised engine sounds, lighting, vibration and additional operating effects for greater realism.

Important Notes

• This is a complex unassembled model kit intended for experienced builders.
• The completed and painted truck shown in promotional images is for illustration only.
• The cab and body components require painting and finishing.
• Radio system, receiver, servos, ESC or MFC unit, battery and charger are not included.
• The correct assembled dimensions are 610mm long, 196mm wide and 320mm high.
• The second front axle is manually raised and lowered and is not powered.
• Check radio channel requirements before purchasing electronics, especially when fitting optional functions.
• Check battery dimensions, voltage, connector and electronic compatibility before use.
• Optional lighting, MFC equipment and semi-trailer are sold separately.
